Parts for SB1036 18" x 60" Lathe 440V

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

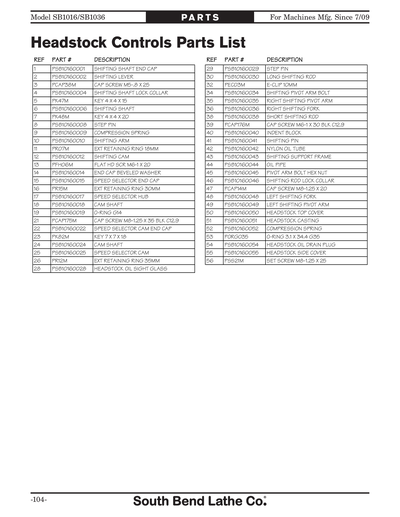

P
SHIFTING SHAFT END CAP
P
SHIFTING LEVER
PSB10360003
CAP SCREW M5-.8 X 25
Price
N/A
P
SHIFTING SHAFT LOCK COLLAR
PSB10360005
Now: PK47M
KEY 4 X 4 X 15
Price
N/A
P
SHIFTING SHAFT
PSB10360007
Now: PK48M
KEY 4 X 4 X 20
Price
N/A
P
STEP PIN
P
COMPRESSION SPRING
P
SHIFTING ARM
PSB10360011
Now: PR07M
EXT RETAINING RING 18MM
Price
N/A
P
SHIFTING CAM
PSB10360013
FLAT HD SCR M6-1 X 20
Price
N/A
P
END CAP BEVELED WASHER
P
SPEED SELECTOR END CAP
PSB10360016
Now: PR15M
EXT RETAINING RING 30MM
Price
N/A
P
SPEED SELECTOR HUB
P
CAM SHAFT
PSB10360019
O-RING 13.8 X 2.4 P14
Price
N/A
PSB10360021
CAP SCREW M8-1.25 X 35 BLK C12.9
Price
N/A
P
SPEED SELECTOR CAM END CAP
PSB10360023
Now: PK27M
KEY 7 X 7 X 25
Price
N/A
P
CAM SHAFT
P
SPEED SELECTOR CAM
PSB10360026
Now: PR12M
EXT RETAINING RING 35MM
Price
N/A
P
HEADSTOCK OIL SIGHT GLASS
P
STEP PIN
P
LONG SHIFTING ROD
PSB10360032
E-CLIP 10MM
Price
N/A
P
SHIFTING PIVOT ARM BOLT
P
RIGHT SHIFTING PIVOT ARM
P
RIGHT SHIFTING FORK
P
SHORT SHIFTING ROD
PSB10360039
CAP SCREW M6-1 X 30 BLK C12.9
Price
N/A
P
INDENT BLOCK
P
SHIFTING PIN
P
NYLON OIL TUBE
P
SHIFTING SUPPORT FRAME
P
OIL PIPE
P
PIVOT ARM BOLT HEX NUT
P
SHIFTING ROD LOCK COLLAR
PSB10360047
CAP SCREW M8-1.25 X 20
Price
N/A
P
LEFT SHIFTING FORK
P
LEFT SHIFTING PIVOT ARM
P
HEADSTOCK TOP COVER
P
HEADSTOCK CASTING
P
COMPRESSION SPRING
PSB10360053
O-RING 3.1 X 34.4 G35
Price
N/A
P
HEADSTOCK OIL DRAIN PLUG
P
HEADSTOCK SIDE COVER
PSB10360056
SET SCREW M8-1.25 X 25
Price
N/A
P

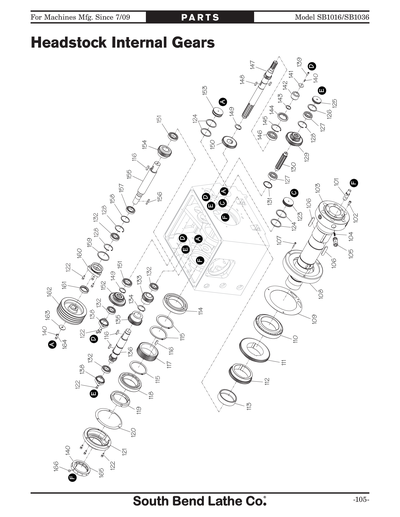

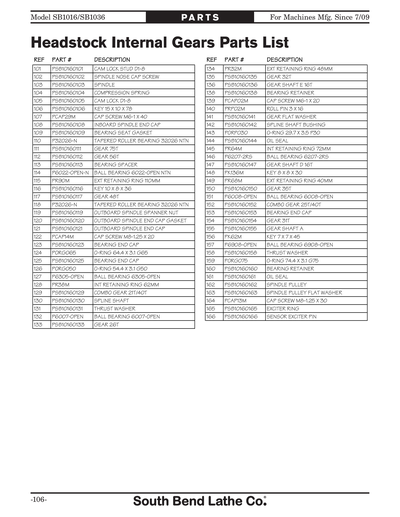

CAM LOCK STUD D1-8
P
SPINDLE NOSE CAP SCREW
P
SPINDLE
P
COMPRESSION SPRING
P
CAM LOCK D1-8
P
KEY 15 X 10 X 78
PSB10360107
CAP SCREW M6-1 X 40
Price
N/A
P
INBOARD SPINDLE END CAP
P
BEARING SEAT GASKET
PSB10360110
TAPERED ROLLER BEARING 32026 NTN
Price
N/A
P
GEAR 75T
P
GEAR 56T
P
BEARING SPACER
PSB10360114
BALL BEARING 6022-OPEN NTN
Price
N/A
PSB10360115
Now: PR90M
EXT RETAINING RING 110MM
Price
N/A
P
KEY 10 X 8 X 36
P
GEAR 48T
PSB10360118
TAPERED ROLLER BEARING 32026 NTN
Price
N/A
P
OUTBOARD SPINDLE SPANNER NUT
P
OUTBOARD SPINDLE END CAP GASKET
P
OUTBOARD SPINDLE END CAP
PSB10360122
CAP SCREW M8-1.25 X 20
Price
N/A
P
BEARING END CAP
PSB10360124
O-RING 64.4 X 3.1 G65
Price
N/A
P
BEARING END CAP
PSB10360126
O-RING 49.4 X 3.1 G50
Price
N/A
PSB10360127
BALL BEARING 6305-OPEN
Price
N/A
PSB10360128
Now: PR38M
INT RETAINING RING 62MM
Price
N/A
P
COMBO GEAR 21T/40T
P
SPLINE SHAFT
P
THRUST WASHER
PSB10360132
BALL BEARING 6007-OPEN
Price
N/A
P
GEAR 26T
PSB10360134
Now: PR32M
EXT RETAINING RING 48MM
Price
N/A
P
GEAR 32T
P
GEAR SHAFT E 16T
P
BEARING RETAINER
PSB10360139
CAP SCREW M6-1 X 20
Price
N/A
PSB10360140
ROLL PIN 3 X 16
Price
N/A
P
GEAR FLAT WASHER
P
SPLINE SHAFT BUSHING
PSB10360143
O-RING 29.7 X 3.5 P30
Price
N/A
P
OIL SEAL
PSB10360145
Now: PR64M
INT RETAINING RING 72MM
Price
N/A
PSB10360146
BALL BEARING 6207-2RS
Price
N/A
P
GEAR SHAFT D 16T
PSB10360148
KEY 8 X 8 X 30
Price
N/A
PSB10360149
Now: PR68M
EXT RETAINING RING 40MM
Price
N/A
P
GEAR 35T
PSB10360151
BALL BEARING 6008-OPEN
Price
N/A
P
COMBO GEAR 25T/40T
P
BEARING END CAP
P
GEAR 31T
P
GEAR SHAFT A
PSB10360156
Now: PK62M
KEY 7 X 7 X 45
Price
N/A
PSB10360157
BALL BEARING 6908-OPEN
Price
N/A
P
THRUST WASHER
PSB10360159
O-RING 74.4 X 3.1 G75
Price
N/A
P
BEARING RETAINER
P
OIL SEAL 40 X 62 X 12
P
SPINDLE PULLEY
P
SPINDLE PULLEY FLAT WASHER
PSB10360164
CAP SCREW M8-1.25 X 30
Price
N/A
P
EXCITER RING
P
SENSOR EXCITER PIN
PSB10360186
O-RING 15.8 X 2.4 P16
Price
N/A
PSB10360187
CAP SCREW M6-1 X 12
Price
N/A
P
GEAR SHAFT FLAT WASHER
P
OUTBOUND SHAFT K
P
OUTBOUND SHAFT L
P
OIL SEAL
P
SPLINED SHAFT J
P
BEARING RETAINER
P
THRUST WASHER
P
NEEDLE BEARING W/O INNER RACE 3230
PSB10360196
Now: PR15M
EXT RETAINING RING 30MM
Price
N/A
P
GEAR 24T
P
GEAR SHAFT I
P
COMBO GEAR 24T
PSB10360203
Now: PR37M
EXT RETAINING RING 32MM
Price
N/A
P
GEAR SHAFT H
P
COMBO GEAR 24T/48T
P
GEAR SHAFT G
P
DOUBLE GEAR 48T/24T
PSB10360208
CAP SCREW M6-1 X 16
Price
N/A
P
HEADSTOCK CASTING PLUG
PSB10360210
O-RING 3.1 X 34.4 G35
Price
N/A
PSB10360211
Now: PR12M
EXT RETAINING RING 35MM
Price
N/A
P
SHAFT END CAP
P
BEARING RETAINER
P
SHAFT C
PSB10360217
BALL BEARING 6207-OPEN
Price
N/A
P
BEARING FLAT WASHER
P
OUTBOARD GEAR SHAFT G1
PSB10360302
KEY 7 X 7 X 35
Price
N/A
P
THRUST WASHER
P
OIL SEAL
P
GEAR SHAFT NEEDLE BEARING
PSB10360306
CAP SCREW M6-1 X 16 BLK C12.9
Price
N/A
P
BEARING RETAINER
P
SPACER
PSB10360309
Now: PR11M
EXT RETAINING RING 25MM
Price
N/A
P
DOUBLE CLUTCH GEAR 19T/19T
P
CLUTCH SPLINE SHAFT G1
P
BEARING RETAINER
P
SPLINE SHAFT COVER GASKET
PSB10360314
BALL BEARING 16005-OPEN
Price
N/A
P
THRUST WASHER
P
DOUBLE GEAR 20T/30T
P
GEAR WASHER
PSB10360318
Now: PR15M
EXT RETAINING RING 30MM
Price
N/A
P
SPLINE SHAFT G2
P
GEAR 22T
P
SPLINE SHAFT BUSHING
P
SPLINE SHAFT G3
P
GEARBOX CASTING
P
THRUST WASHER
P
GEAR 32T
P
CLUTCH GEAR 23T
P
CLUTCH SPLINE 16T
P
SPACER
PSB10360329
Now: PR25M
INT RETAINING RING 47MM
Price
N/A
PSB10360330
BALL BEARING 6204-OPEN
Price
N/A
P
SPACER
P
LEADSCREW CLUTCH
PSB10360333
Now: PR09M
EXT RETAINING RING 20MM
Price
N/A
P
DOUBLE CLUTCH GEAR 35T/35T
P
SPACER
P
GEAR 22T
P
GEAR 16T
P
GEAR 20T
P
THRUST WASHER
P
GEAR 24T
P
GEAR BUSHING
P
GEAR 23T
P
THRUST WASHER
P
GEAR 27T
P
GEAR BUSHING
P
GEAR 24T
P
THRUST WASHER
P
GEAR 28T
P
GEAR BUSHING
P
GEAR 26T
P
GEAR 32T
P
LOCK COLLAR
PSB10360353
SET SCREW M6-1 X 6
Price
N/A
PSB10360354
Now: PR10M
EXT RETAINING RING 22MM
Price
N/A
P
DOUBLE GEAR 45T/18T
P
GEAR 22T
P
GEAR 22T
P
GEAR 33T
P
GEAR 22T
P
SPACER
P
GEAR 36T
P
INBOARD SHAFT SEAL RETAINER
P
OIL SEAL
P
KEYED SHAFT WASHER 18-63008
P
INBOARD SPLINE SHAFT G1
P
CONNECTION SHAFT SEAL RETAINER
P
THRUST WASHER
P
FEED ROD CONNECTION SHAFT
P
DOWEL PIN 6 X 36
PSB10360370
BALL BEARING 16003-OPEN
Price
N/A
PSB10360371
Now: PR18M
EXT RETAINING RING 17MM
Price
N/A
P
BEARING RETAINER
P

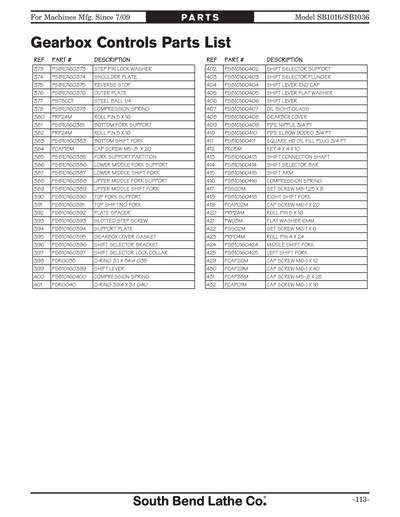

STEP PIN LOCK WASHER M6 X 13
P
SHOULDER PLATE
P
REVERSE STOP
P
OUTER PLATE
PSB10360377
STEEL BALL 1/4
Price
N/A
P
COMPRESSION SPRING
PSB10360380
ROLL PIN 5 X 16
Price
N/A
P
BOTTOM FORK SUPPORT
PSB10360382
ROLL PIN 5 X 16
Price
N/A
P
BOTTOM SHIFT FORK
PSB10360384
CAP SCREW M5-.8 X 20
Price
N/A
P
FORK SUPPORT PARTITION
P
LOWER MIDDLE FORK SUPPORT
P
LOWER MIDDLE SHIFT FORK
P
UPPER MIDDLE FORK SUPPORT
P
UPPER MIDDLE SHIFT FORK
P
TOP FORK SUPPORT
PSB10360391
BOTTOM SHIFT FORK
Price
N/A
P
PLATE SPACER
PSB10360393
SPLINE SHAFT BUSHING
Price
N/A
P
SUPPORT PLATE
P
GEARBOX COVER GASKET
P
SHIFT SELECTOR BRACKET
P
SHIFT SELECTOR LOCK COLLAR
PSB10360398
O-RING 3.1 X 34.4 G35
Price
N/A
P
SHIFT LEVER
P
COMPRESSION SPRING
PSB10360401
O-RING 39.4 X 3.1 G40
Price
N/A
P
SHIFT SELECTOR SUPPORT
PSB10360403
THRUST WASHER
Price
N/A
P
SHIFT LEVER END CAP
P
SHIFT LEVER FLAT WASHER M6
P
SHIFT LEVER
P
OIL SIGHT GLASS
PSB10360408
SPLINE SHAFT G2
Price
N/A
P
PIPE NIPPLE 3/4 PT
P
PIPE ELBOW 90DEG 3/4 PT
P
SQUARE HD OIL FILL PLUG 3/4 PT
PSB10360412
Now: PK05M
KEY 4 X 4 X 10
Price
N/A
P
SHIFT CONNECTION SHAFT
P
SHIFT SELECTOR BAR
P
SHIFT ARM
P
COMPRESSION SPRING
PSB10360417
SET SCREW M8-1.25 X 8
Price
N/A
P
RIGHT SHIFT FORK
PSB10360419
CAP SCREW M6-1 X 20
Price
N/A
PSB10360420
ROLL PIN 5 X 16
Price
N/A
PSB10360421
Now: PW03M
FLAT WASHER 6MM
Price
N/A
PSB10360422
SET SCREW M6-1 X 6
Price
N/A
PSB10360423
ROLL PIN 4 X 24
Price
N/A
P
MIDDLE SHIFT FORK
P
LEFT SHIFT FORK
P
SQUARE HD OIL DRAIN PLUG 1/2 PT
P
PIPE ELBOW 90DEG 1/2 PT
P
PIPE NIPPLE 1/2 PT
PSB10360429
CAP SCREW M6-1 X 12
Price
N/A
PSB10360430
CAP SCREW M6-1 X 40
Price
N/A
PSB10360431
CAP SCREW M5-.8 X 25
Price
N/A
PSB10360432
CAP SCREW M6-1 X 16
Price
N/A
P

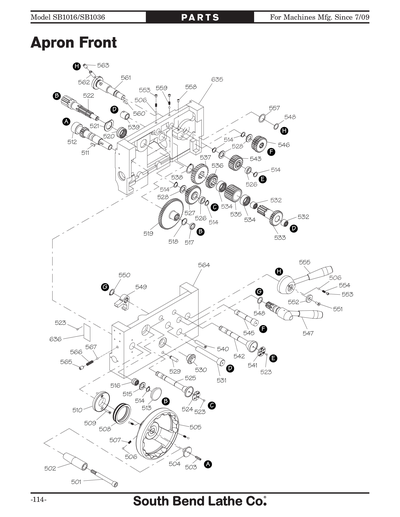

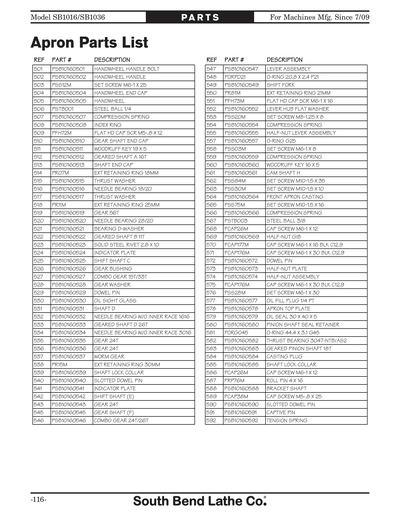

HANDWHEEL HANDLE BOLT
P
HANDWHEEL HANDLE
PSB10360503
SET SCREW M6-1 X 25
Price
N/A
P
HANDWHEEL END CAP
P
HANDWHEEL
PSB10360506
STEEL BALL 1/4
Price
N/A
P
COMPRESSION SPRING
P
INDEX RING
PSB10360509
FLAT HD CAP SCR M5-.8 X 12
Price
N/A
P
GEAR SHAFT END CAP
P
WOODRUFF KEY 19 X 5
P
GEARED SHAFT A 16T
P
SHAFT END CAP
PSB10360514
Now: PR07M
EXT RETAINING RING 18MM
Price
N/A
P
THRUST WASHER
P
NEEDLE BEARING 18/20
P
THRUST WASHER
PSB10360518
Now: PR11M
EXT RETAINING RING 25MM
Price
N/A
P
GEAR 56T
P
NEEDLE BEARING 28/20
P
BEARING D-WASHER
P
GEARED SHAFT B 11T
P
SOLID STEEL RIVET 2.8 X 10
P
INDICATOR PLATE
P
SHIFT SHAFT C
P
GEAR BUSHING
P
COMBO GEAR 15T/33T
P
GEAR WASHER
P
DOWEL PIN
P
OIL SIGHT GLASS
P
SHAFT D
P
NEEDLE BEARING W/O INNER RACE 1616
P
GEARED SHAFT D 26T
P
NEEDLE BEARING W/O INNER RACE 3016
P
GEAR 24T
P
GEAR 24T
P
WORM GEAR
PSB10360538
Now: PR15M
EXT RETAINING RING 30MM
Price
N/A
P
SHAFT LOCK COLLAR
P
SLOTTED DOWEL PIN
P
INDICATOR PLATE
P
SHIFT SHAFT
P
GEAR 24T
P
GEAR SHAFT
P
COMBO GEAR 24T/26T
P
LEVER ASSEMBLY
PSB10360548
O-RING 20.8 X 2.4 P21
Price
N/A
P
SHIFT FORK
PSB10360550
Now: PR81M
EXT RETAINING RING 21MM
Price
N/A
PSB10360551
FLAT HD CAP SCR M6-1 X 16
Price
N/A
P
LEVER HUB FLAT WASHER
PSB10360553
SET SCREW M8-1.25 X 8
Price
N/A
P
COMPRESSION SPRING
P
HALF-NUT LEVER ASSEMBLY
P
O-RING G25
PSB10360558
SET SCREW M6-1 X 8
Price
N/A
P
COMPRESSION SPRING
P
WOODRUFF KEY 16 X 5
P
CAM SHAFT H
PSB10360562
SET SCREW M10-1.5 X 35
Price
N/A
PSB10360563
SET SCREW M10-1.5 X 10
Price
N/A
PSB10360564

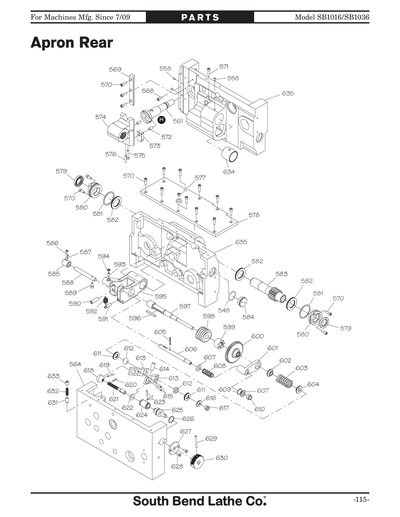

REAR APRON CASTING
Price
N/A
PSB10360565
SET SCREW M10-1.5 X 16
Price
N/A
P
COMPRESSION SPRING
PSB10360567
STEEL BALL 3/8
Price
N/A
PSB10360568
CAP SCREW M6-1 X 12
Price
N/A
P
HALF-NUT GIB
PSB10360570
CAP SCREW M6-1 X 16 BLK C12.9
Price
N/A
PSB10360571
CAP SCREW M6-1 X 30 BLK C12.9
Price
N/A
P
DOWEL PIN
P
HALF-NUT PLATE
P
HALF-NUT ASSEMBLY
PSB10360575
CAP SCREW M6-1 X 30 BLK C12.9
Price
N/A
PSB10360576
SET SCREW M6-1 X 30
Price
N/A
P
OIL FILL PLUG 3/8PT
P
APRON TOP PLATE
P
OIL SEAL 30 X 40 X 5
P
PINION SHAFT SEAL RETAINER
PSB10360581
O-RING 44.4 X 3.1 G45
Price
N/A
P
THRUST BEARING 3047-NTB/AS2
P
GEARED PINION SHAFT 18T
P
CASTING PLUG
P
SHAFT LOCK COLLAR
PSB10360586
CAP SCREW M6-1 X 12
Price
N/A
PSB10360587
ROLL PIN 4 X 16
Price
N/A
P
BRACKET SHAFT
PSB10360589
CAP SCREW M5-.8 X 25
Price
N/A
P
SLOTTED DOWEL PIN
P
CAPTIVE PIN
P
TENSION SPRING
PSB10360593
SET SCREW M6-1 X 14
Price
N/A
PSB10360594
LOCK NUT M6-1
Price
N/A
P
WORM SHAFT BRACKET
PSB10360596
Now: PK33M
KEY 5 X 5 X 45
Price
N/A
P
WORM SHAFT
P
WORM GEAR
P
CLUTCH
P
CLUTCH GEAR 36T
P
PIVOT ARM
P
SPRING CAP
P
COMPRESSION SPRING
P
SPRING CAP
PSB10360605
ROLL PIN 4 X 24
Price
N/A
P
TRIP ROD
PSB10360607
Now: PW06M
FLAT WASHER 12MM
Price
N/A
P
COMPRESSION SPRING
P
PIVOT ARM WASHER
PSB10360610
LOCK NUT M12-1.75
Price
N/A
P
THRUST BEARING 1528-NTB/AS2
P
CUPPED BEARING
P
COMPRESSION PLATE
P
DOWEL PIN
PSB10360615
ROLL PIN 5 X 30
Price
N/A
PSB10360616
Now: PW04M
FLAT WASHER 10MM
Price
N/A
PSB10360617
LOCK NUT M10-1.5
Price
N/A
P
CUPPED BEARING
PSB10360619
ROLL PIN 4 X 24
Price
N/A
PSB10360620
ROLL PIN 3 X 16
Price
N/A
P
THREADED SHAFT
P
COMPRESSION PLATE WASHER
PSB10360623
ROLL PIN 3 X 24
Price
N/A
P
COUPLING
P
STEP SHAFT
PSB10360626
O-RING 17.8 X 2.4 P18
Price
N/A
PSB10360627
Now: PW03M
FLAT WASHER 6MM
Price
N/A
PSB10360628
FLAT HD CAP SCR M5-.8 X 16
Price
N/A
PSB10360629
ROLL PIN 5 X 36
Price
N/A
P
KNURLED KNOB
P
PLUNGER
P
COMPRESSION SPRING
PSB10360633
SET SCREW M12-1.75 X 12
Price
N/A
P
SHAFT SLEEVE
P
REAR APRON CASTING
P
FEED CLUTCH INSTRUCTION PLATE

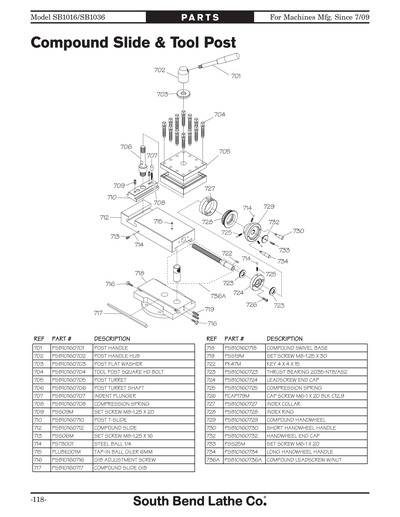

P
POST HANDLE
P
POST HANDLE HUB
P
POST FLAT WASHER
P
TOOL POST SQUARE HD BOLT
P
POST TURRET
P
POST TURRET SHAFT
P
INDENT PLUNGER
P
COMPRESSION SPRING
PSB10360709
SET SCREW M8-1.25 X 20
Price
N/A
P
POST T-SLIDE
PSB10360712
COMPOUND SLIDE ASSEMBLY
Price
N/A
P
COMPOUND SLIDE ASSEMBLY
PSB10360713
SET SCREW M8-1.25 X 16
Price
N/A
PSB10360714
STEEL BALL 1/4
Price
N/A
PSB10360715
BALL OILER 6MM PRESS-IN
Price
N/A
P
GIB ADJUSTMENT SCREW
P
COMPOUND SLIDE GIB
PSB10360718
COMPOUND SLIDE ASSEMBLY
Price
N/A
PSB10360719
SET SCREW M8-1.25 X 30
Price
N/A
P
COMPOUND LEADSCREW W/ NUT
PSB10360722
Now: PK47M
KEY 4 X 4 X 15
Price
N/A
P
THRUST BEARING 2035-NTB/AS2
P
LEADSCREW END CAP
P
COMPRESSION SPRING
PSB10360726
CAP SCREW M6-1 X 20 BLK C12.9
Price
N/A
P
INDEX COLLAR
P
INDEX RING
P
COMPOUND HANDWHEEL
P
SHORT HANDWHEEL HANDLE
P
HANDWHEEL END CAP
PSB10360733
SET SCREW M6-1 X 20
Price
N/A
P
LONG HANDWHEEL HANDLE
PSB10360736
COMPOUND LEADSCREW W/ NUT
Price
N/A
PSB10360736A
COMPOUND LEADSCREW W/ NUT
Price
N/A
P

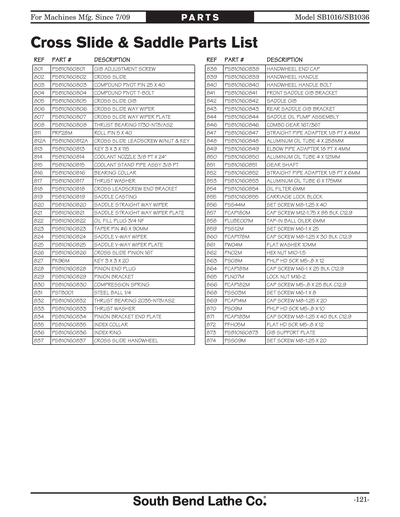

GIB ADJUSTMENT SCREW
P

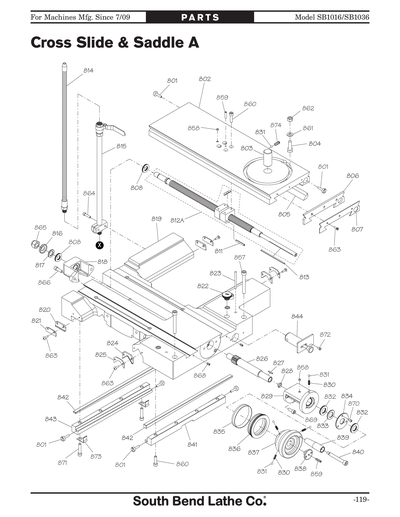

CROSS SLIDE
P
COMPOUND PIVOT PIN 25 X 40
P
COMPOUND PIVOT T-BOLT
P
CROSS SLIDE GIB
P
CROSS SLIDE WAY WIPER
P
CROSS SLIDE WAY WIPER PLATE
P
THRUST BEARING 1730-NTB/AS2
PSB10360809
CROSS SLIDE LEADSCREW W/ NUT & KEY
Price
N/A
PSB10360810
CROSS SLIDE LEADSCREW W/ NUT & KEY
Price
N/A
PSB10360811
ROLL PIN 5 X 40
Price
N/A
PSB10360812
CROSS SLIDE LEADSCREW W/ NUT & KEY
Price
N/A
P
CROSS SLIDE LEADSCREW W/ NUT & KEY
P
KEY 3 X 3 X 115
P
COOLANT NOZZLE 3/8 PT X 24"
P
COOLANT STAND PIPE ASSY 3/8 PT
P
BEARING COLLAR
P
THRUST WASHER
P
CROSS LEADSCREW END BRACKET
P
SADDLE CASTING
P
SADDLE STRAIGHT WAY WIPER
P
SADDLE STRAIGHT WAY WIPER PLATE
P
OIL FILL PLUG 3/4 NF
P
TAPER PIN #6 X 90MM
P
SADDLE V-WAY WIPER
P
SADDLE V-WAY WIPER PLATE
P
CROSS SLIDE PINION 16T
PSB10360827
Now: PK96M
KEY 3 X 3 X 20
Price
N/A
P
PINION END PLUG
P
PINION BRACKET
P
COMPRESSION SPRING
PSB10360831
STEEL BALL 1/4
Price
N/A
P
THRUST BEARING 2035-NTB/AS2
P
THRUST WASHER
P
PINION BRACKET END PLATE
P
INDEX COLLAR
P
INDEX RING
P
CROSS SLIDE HANDWHEEL
P
HANDWHEEL END CAP 18-40014
P
HANDWHEEL HANDLE
P
HANDWHEEL HANDLE BOLT
P
FRONT SADDLE GIB BRACKET
P
SADDLE GIB
P
REAR SADDLE GIB BRACKET

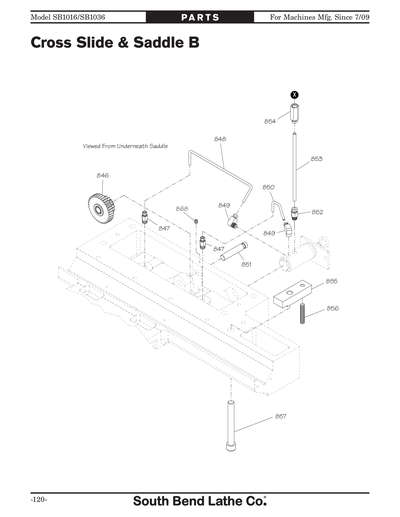

PSB10360844
SADDLE OIL PUMP ASSEMBLY
Price
N/A
P
COMBO GEAR 16T/36T
P
STRAIGHT PIPE ADAPTER 1/8 PT X 4MM
P
ALUMINUM OIL TUBE 4 X 258MM
P
ELBOW PIPE ADAPTER 18 PT X 4MM
P
ALUMINUM OIL TUBE 4 X 121MM
P
GEAR SHAFT
P
STRAIGHT PIPE ADAPTER 1/8 PT X 6MM
P
ALUMINUM OIL TUBE 6 X 175MM
PSB10360854
OIL FILTER 6MM
Price
N/A
P
CARRIAGE LOCK BLOCK
PSB10360856
SET SCREW M8-1.25 X 40
Price
N/A
PSB10360857
CAP SCREW M12-1.75 X 85 BLK C12.9
Price
N/A
PSB10360858
BALL OILER 6MM PRESS-IN
Price
N/A
PSB10360859
SET SCREW M6-1 X 25
Price
N/A
PSB10360860
CAP SCREW M8-1.25 X 30 BLK C12.9
Price
N/A
PSB10360861
Now: PW04M
FLAT WASHER 10MM
Price
N/A
PSB10360862
Now: PN02M
HEX NUT M10-1.5
Price
N/A
PSB10360863
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
PSB10360864
CAP SCREW M6-1 X 25 BLK C12.9
Price
N/A
PSB10360865
LOCK NUT M16-2
Price
N/A
PSB10360866
CAP SCREW M5-.8 X 25 BLK C12.9
Price
N/A
PSB10360868
SET SCREW M6-1 X 8
Price
N/A
PSB10360869
CAP SCREW M8-1.25 X 20
Price
N/A
PSB10360870
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
PSB10360871
CAP SCREW M8-1.25 X 40 BLK C12.9
Price
N/A
PSB10360872
FLAT HD SCR M5-.8 X 12
Price
N/A
P
GIB SUPPORT PLATE
PSB10360874
SET SCREW M8-1.25 X 20
Price
N/A
P

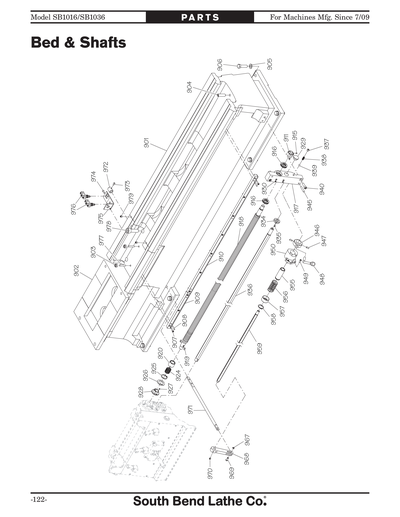

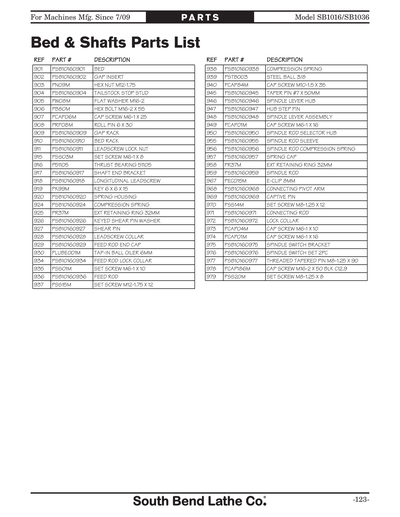

LATHE BED W/ GAP INSERT
PSB10360902
LATHE BED W/ GAP INSERT
Price
N/A
PSB10360903
Now: PN09M
HEX NUT M12-1.75
Price
N/A
P
STUD-SE M16-2 X 55 20
PSB10360905
Now: PW08M
FLAT WASHER 16MM
Price
N/A
PSB10360906
Now: PB80M
HEX BOLT M16-2 X 55
Price
N/A
PSB10360907
CAP SCREW M6-1 X 25
Price
N/A
PSB10360908
ROLL PIN 6 X 30
Price
N/A
P
GAP RACK
P
BED RACK
P
LEADSCREW LOCK NUT RL-63025
PSB10360915
SET SCREW M6-1 X 8
Price
N/A
PSB10360916
THRUST BEARING 51105
Price
N/A
P
SHAFT END BRACKET
P
LONGITUDINAL LEADSCREW
PSB10360919
Now: PK99M
KEY 6 X 6 X 15
Price
N/A
P
SPRING HOUSING
P
COMPRESSION SPRING
PSB10360925
Now: PR37M
EXT RETAINING RING 32MM
Price
N/A
P
KEYED SHEAR PIN WASHER
P
SHEAR PIN
P
LEADSCREW COLLAR
P
FEED ROD END CAP
PSB10360930
BALL OILER 6MM PRESS-IN
Price
N/A
P
FEED ROD LOCK COLLAR
PSB10360935
SET SCREW M6-1 X 10
Price
N/A
P
FEED ROD
PSB10360937
SET SCREW M12-1.75 X 12
Price
N/A
P
COMPRESSION SPRING 13-63041
PSB10360939
STEEL BALL 3/8
Price
N/A
PSB10360940
CAP SCREW M10-1.5 X 35
Price
N/A
P
TAPER PIN #7 X 50MM
PSB10360946
SPINDLE LEVER HUB, PIN AND ROD SET
Price
N/A
P
SPINDLE LEVER HUB, PIN AND ROD SET
PSB10360947
SPINDLE LEVER HUB, PIN AND ROD SET
Price
N/A
P
SPINDLE LEVER ASSEMBLY
PSB10360949
CAP SCREW M6-1 X 16
Price
N/A
P
SPINDLE ROD SELECTOR HUB
PSB10360955
SPINDLE LEVER HUB, PIN AND ROD SET
Price
N/A
P
SPINDLE ROD COMPRESSION SPRING 13-63018
P
SPRING CAP 13-63017
PSB10360958
Now: PR37M
EXT RETAINING RING 32MM
Price
N/A
P
SPINDLE ROD
PSB10360967
E-CLIP 8MM
Price
N/A
P
CONNECTING PIVOT ARM
P
CAPTIVE PIN 13-60037
PSB10360970
SET SCREW M8-1.25 X 12
Price
N/A
P
CONNECTING ROD
P
LOCK COLLAR
PSB10360973
CAP SCREW M6-1 X 10
Price
N/A
PSB10360974
CAP SCREW M6-1 X 16
Price
N/A
P
SPINDLE SWITCH BRACKET
P
SPINDLE SWITCH SET 2PC
P
THREADED TAPERED PIN M8-1.25 X 90
PSB10360978
CAP SCREW M16-2 X 50 BLK C12.9
Price
N/A
PSB10360979
SET SCREW M8-1.25 X 8
Price
N/A

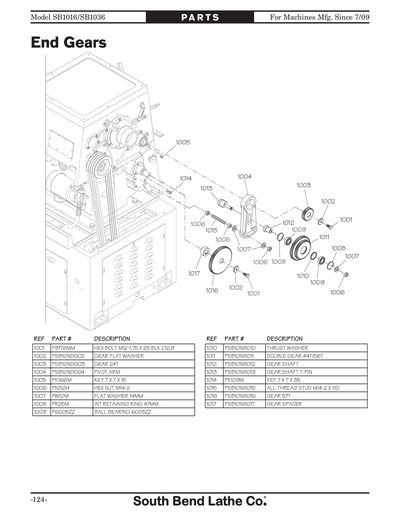

PSB10361001
HEX BOLT M12-1.75 X 25 BLK C12.9
Price
N/A
P
GEAR FLAT WASHER
P
GEAR 24T
P
PIVOT ARM
PSB10361005
KEY 7 X 7 X 15
Price
N/A
PSB10361006
Now: PN32M
HEX NUT M14-2
Price
N/A
PSB10361007
Now: PW10M
FLAT WASHER 14MM
Price
N/A
PSB10361008
Now: PR25M
INT RETAINING RING 47MM
Price
N/A
PSB10361009
BALL BEARING 6005ZZ
Price
N/A
P
THRUST WASHER
P
DOUBLE GEAR 44T/56T
P
GEAR SHAFT 13-60013
P
GEAR SHAFT T-PIN
PSB10361014
KEY 7 X 7 X 35
Price
N/A
P
STUD-FT M14-2 X 110 110
P
GEAR 57T
P
GEAR SPACER
P
STRAIGHT PIPE ADAPTER 1 PT X 3/4"

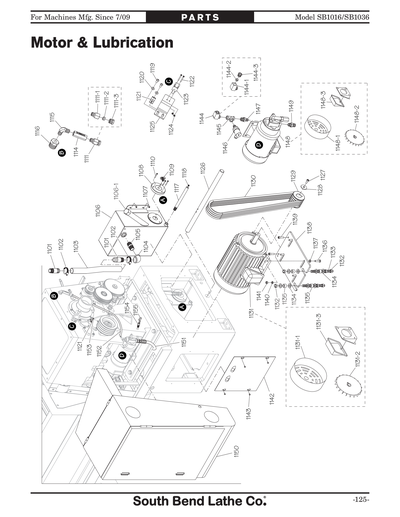

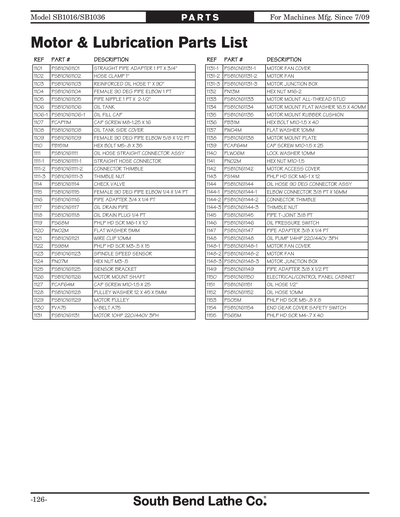

P
HOSE CLAMP 1"
P
REINFORCED OIL HOSE 1" X 90"
P
FEMALE 90 DEG PIPE ELBOW 1 PT
P
PIPE NIPPLE 1 PT X 2-1/2"
P
OIL TANK
P
OIL FILL CAP
PSB10361107
CAP SCREW M8-1.25 X 16
Price
N/A
P
OIL TANK SIDE COVER
P
FEMALE 90 DEG PIPE ELBOW 5/8 X 1/2 PT
PSB10361110
HEX BOLT M5-.8 X 35
Price
N/A
P
OIL HOSE STRAIGHT CONNECTOR ASSY
P
STRAIGHT HOSE CONNECTOR
P
CONNECTOR THIMBLE
P
THIMBLE NUT
P
CHECK VALVE
P
FEMALE 90 DEG PIPE ELBOW 1/4 X 1/4 PT
P
PIPE ADAPTER 3/4 X 1/4 PT
P
OIL DRAIN PIPE
P
OIL FILL PLUG 3/8PT
PSB10361119
Now: PS68M
PHLP HD SCR M6-1 X 10
Price
N/A
PSB10361120
Now: PW02M
FLAT WASHER 5MM
Price
N/A
P
WIRE CLIP 10MM
PSB10361122
Now: PS98M
PHLP HD SCR M3-.5 X 16
Price
N/A
PSB10361123
SPINDLE SPEED SENSOR
Price
N/A
PSB10361124
Now: PN07M
HEX NUT M3-.5
Price
N/A
P
SENSOR BRACKET
P
MOTOR MOUNT SHAFT
PSB10361127
CAP SCREW M10-1.5 X 25
Price
N/A
P
PULLEY WASHER 12 X 45 X 5MM
P
MOTOR PULLEY
PSB10361130
Now: PVA75
V-BELT A75
Price
N/A
P
MOTOR 10HP 220/440V 3PH
P
MOTOR FAN COVER
P
MOTOR FAN
P
MOTOR JUNCTION BOX
PSB10361132
Now: PN13M
HEX NUT M16-2
Price
N/A
P
STUD-FT M16-2 X 170 170
P
MOTOR MOUNT FLAT WASHER 16.5 X 40MM
P
MOTOR MOUNT RUBBER CUSHION
PSB10361136
Now: PB31M
HEX BOLT M10-1.5 X 40
Price
N/A
PSB10361137
Now: PW04M
FLAT WASHER 10MM
Price
N/A
P
MOTOR MOUNT PLATE
PSB10361139
CAP SCREW M10-1.5 X 25
Price
N/A
PSB10361140
LOCK WASHER 10MM
Price
N/A
PSB10361141
Now: PN02M
HEX NUT M10-1.5
Price
N/A
P
MOTOR ACCESS COVER
PSB10361143
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
P
OIL HOSE 90 DEG CONNECTOR ASSY
P
ELBOW CONNECTOR 3/8 PT X 16MM
P
CONNECTOR THIMBLE
P
THIMBLE NUT
P
PIPE T-JOINT 3/8 PT
PSB10361146
OIL PRESSURE SWITCH
Price
N/A
P
PIPE ADAPTER 3/8 X 1/4 PT
P
OIL PUMP 1/4HP 220/440V 3PH
P
MOTOR FAN COVER
P
MOTOR FAN
P
MOTOR JUNCTION BOX
P
PIPE ADAPTER 3/8 X 1/2 PT
P
ELECTRICAL/CONTROL PANEL CABINET
P
OIL HOSE 1/2"
P
OIL HOSE 10MM
PSB10361153
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
P
END GEAR COVER SAFETY SWITCH
PSB10361155
Now: PS65M
PHLP HD SCR M4-.7 X 40
Price
N/A
P

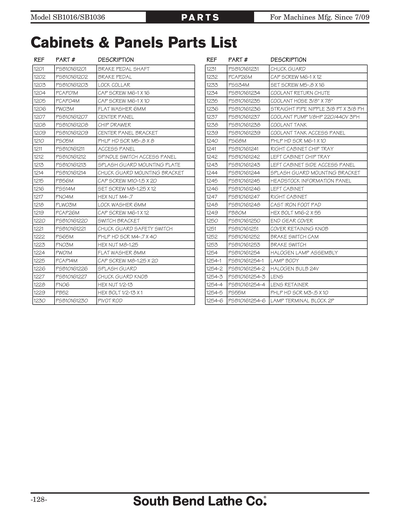

BRAKE PEDAL SHAFT
P
BRAKE PEDAL
P
LOCK COLLAR
PSB10361204
CAP SCREW M6-1 X 16
Price
N/A
PSB10361205
CAP SCREW M6-1 X 10
Price
N/A
PSB10361206
Now: PW03M
FLAT WASHER 6MM
Price
N/A
P

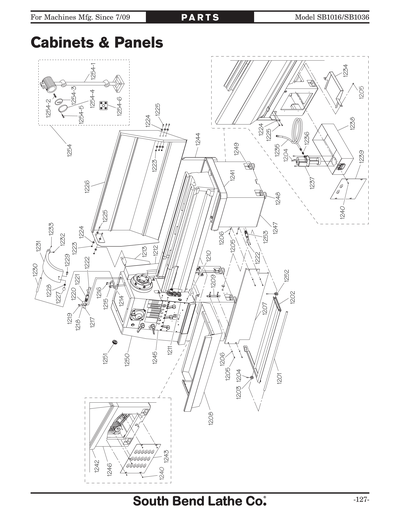

CENTER PANEL
P
CHIP DRAWER
P
CENTER PANEL BRACKET
PSB10361210
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
P
ACCESS PANEL
P
SPINDLE SWITCH ACCESS PANEL
P
SPLASH GUARD MOUNTING PLATE
P
CHUCK GUARD MOUNTING BRACKET
PSB10361215
CAP SCREW M3-.5 X 10
Price
N/A
PSB10361216
SET SCREW M8-1.25 X 12
Price
N/A
PSB10361217
Now: PN04M
HEX NUT M4-.7
Price
N/A
PSB10361218
LOCK WASHER 6MM
Price
N/A
PSB10361219
CAP SCREW M6-1 X 12
Price
N/A
P
SWITCH BRACKET
P
CHUCK GUARD SAFETY SWITCH
PSB10361222
Now: PS65M
PHLP HD SCR M4-.7 X 40
Price
N/A
PSB10361223
Now: PN03M
HEX NUT M8-1.25
Price
N/A
PSB10361224
Now: PW01M
FLAT WASHER 8MM
Price
N/A
PSB10361225
CAP SCREW M8-1.25 X 20
Price
N/A
P
SPLASH GUARD
P
CHUCK GUARD KNOB
PSB10361228
Now: PN06
HEX NUT 1/2-12
Price
N/A
PSB10361229
Now: PB52
HEX BOLT 1/2-13 X 1
Price
N/A
P
PIVOT ROD
P
CHUCK GUARD
PSB10361232
CAP SCREW M6-1 X 12
Price
N/A
PSB10361233
SET SCREW M5-.8 X 16
Price
N/A
P
COOLANT RETURN CHUTE
P
COOLANT HOSE 3/8" X 78"
P
STRAIGHT PIPE NIPPLE 3/8 PT X 3/8 PH
P
COOLANT PUMP 1/8HP 220/440V 3PH
P
COOLANT TANK
P
COOLANT TANK ACCESS PANEL
PSB10361240
Now: PS68M
PHLP HD SCR M6-1 X 10
Price
N/A
P
CHIP TRAY
PSB10361242
CHIP TRAY
Price
N/A
P
LEFT CABINET SIDE ACCESS PANEL
P
SPLASH GUARD MOUNTING BRACKET
P
HEADSTOCK INFORMATION PANEL
P
LEFT CABINET
P
RIGHT CABINET
P
CAST IRON FOOT PAD
PSB10361249
Now: PB80M
HEX BOLT M16-2 X 55
Price
N/A
P
END GEAR COVER
P
COVER RETAINING KNOB
P
BRAKE SWITCH CAM
P
BRAKE SWITCH
P
HALOGEN LAMP ASSEMBLY
P
LAMP BODY
P
HALOGEN BULB 24V
P
LENS
P
LENS RETAINER
PSB10361254-5
Now: PS55M
PHLP HD SCR M3-.5 X 10
Price
N/A
P
LAMP TERMINAL BLOCK 2P
P

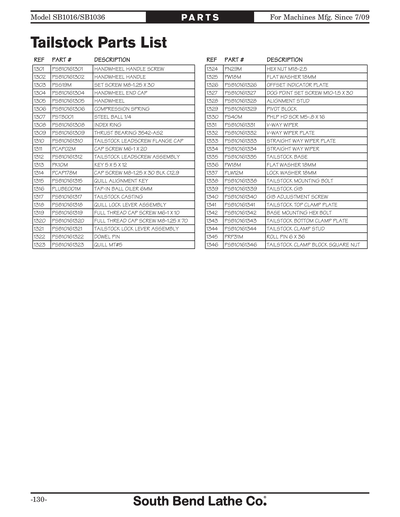

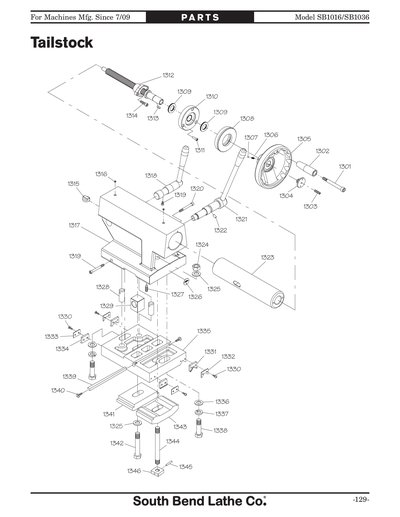

HANDWHEEL HANDLE SCREW
P
HANDWHEEL HANDLE
PSB10361303
SET SCREW M8-1.25 X 30
Price
N/A
P
HANDWHEEL END CAP
P
HANDWHEEL
P
COMPRESSION SPRING
PSB10361307
STEEL BALL 1/4
Price
N/A
P
INDEX RING
PSB10361309
THRUST BEARING 51105
Price
N/A
P
TAILSTOCK LEADSCREW FLANGE CAP
PSB10361311
CAP SCREW M6-1 X 20
Price
N/A
P
TAILSTOCK LEADSCREW ASSEMBLY
PSB10361313
Now: PK10M
KEY 5 X 5 X 12
Price
N/A
PSB10361314
CAP SCREW M8-1.25 X 30 BLK C12.9
Price
N/A
P
QUILL ALIGNMENT KEY
PSB10361316
BALL OILER 6MM PRESS-IN
Price
N/A
P
TAILSTOCK CASTING
P
QUILL LOCK LEVER ASSEMBLY
P
FULL THREAD CAP SCREW M6-1 X 10
P
FULL THREAD CAP SCREW M8-1.25 X 70
P
TAILSTOCK LOCK LEVER ASSEMBLY
P
DOWEL PIN
P
QUILL MT#5
PSB10361324
Now: PN29M
HEX NUT M18-2.5
Price
N/A
PSB10361325
Now: PW18M
FLAT WASHER 18MM
Price
N/A
P
OFFSET INDICATOR PLATE
P
DOG PT SET SCR M10-1.5 X 30
P
ALIGNMENT STUD
P
PIVOT BLOCK
PSB10361330
Now: PS40M
PHLP HD SCR M5-.8 X 16
Price
N/A
P
V-WAY WIPER
P
V-WAY WIPER PLATE
P
STRAIGHT WAY WIPER PLATE
P
STRAIGHT WAY WIPER
P
TAILSTOCK BASE
PSB10361336
Now: PW18M
FLAT WASHER 18MM
Price
N/A
PSB10361337
LOCK WASHER 18MM
Price
N/A
P
TAILSTOCK MOUNTING BOLT
P
TAILSTOCK GIB
P
GIB ADJUSTMENT SCREW
P
TAILSTOCK TOP CLAMP PLATE
P
BASE MOUNTING HEX BOLT
P
TAILSTOCK BOTTOM CLAMP PLATE
P
STUD-DE M18-2.5 X 180 16/35
PSB10361345
ROLL PIN 6 X 36
Price
N/A
P
TAILSTOCK CLAMP BLOCK SQUARE NUT
P

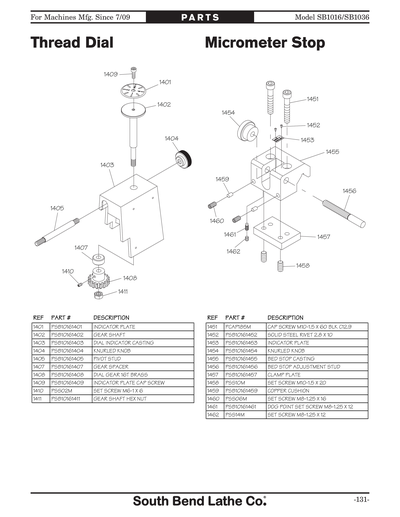

INDICATOR PLATE
P
GEAR SHAFT
P
DIAL INDICATOR CASTING
P
KNURLED KNOB
P
STUD-DE M8-1.25 X 115 12/18
P
GEAR SPACER
P
DIAL GEAR 16T BRASS
P
INDICATOR PLATE CAP SCREW
PSB10361410
SET SCREW M6-1 X 6
Price
N/A
P
GEAR SHAFT HEX NUT
PSB10361451
CAP SCREW M10-1.5 X 60 BLK C12.9
Price
N/A
PSB10361452
SOLID STEEL RIVET 2.8 X 10
Price
N/A
P
INDICATOR PLATE
P
KNURLED KNOB
P
BED STOP CASTING
P
BED STOP ADJUSTMENT STUD
P
CLAMP PLATE
PSB10361458
SET SCREW M10-1.5 X 20
Price
N/A
P
COPPER CUSHION
PSB10361460
SET SCREW M8-1.25 X 16
Price
N/A
P
DOG PT SET SCR M8-1.25 X 12
PSB10361462
SET SCREW M8-1.25 X 12
Price
N/A
P

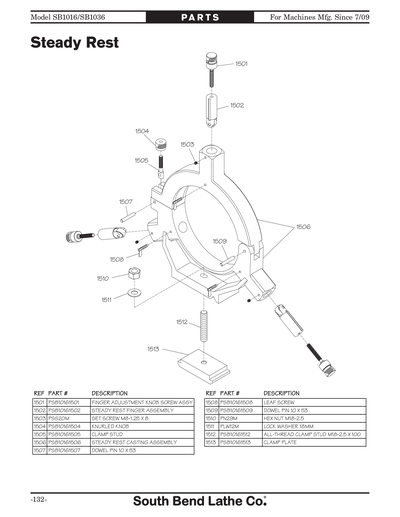

FINGER ADJUSTMENT KNOB SCREW ASSY
P
STEADY REST FINGER ASSEMBLY
PSB10361503
SET SCREW M8-1.25 X 8
Price
N/A
P
KNURLED KNOB
P
CLAMP STUD
PSB10361506
COMPLETE STEADY REST ASSEMBLY
Price
N/A
P
COMPLETE STEADY REST ASSEMBLY
P
DOWEL PIN 10 X 53
P
LEAF SCREW
P
DOWEL PIN 10 X 53
PSB10361510
Now: PN29M
HEX NUT M18-2.5
Price
N/A
PSB10361511
LOCK WASHER 18MM
Price
N/A
P
STUD-DE M16-2 X 102 30/50
P
CLAMP PLATE
P

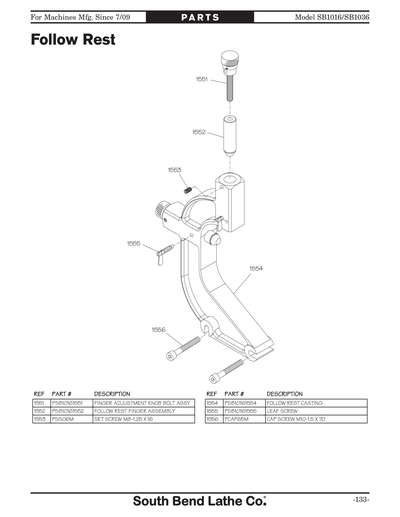

FINGER ADJUSTMENT KNOB BOLT ASSY
PSB10361552
FINGER ADJUSTMENT KNOB BOLT ASSY
Price
N/A
PSB10361553
SET SCREW M8-1.25 X 16
Price
N/A
PSB10361554
FOLLOW REST ASSEMBLY
Price
N/A
P
FOLLOW REST ASSEMBLY
P
LEAF SCREW
PSB10361556
CAP SCREW M10-1.5 X 70
Price
N/A
P

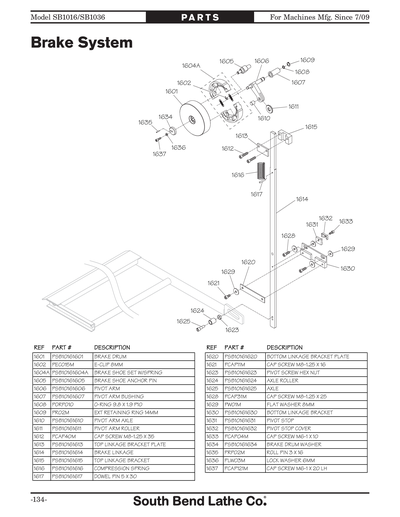

BRAKE DRUM
PSB10361602
E-CLIP 8MM
Price
N/A
PSB10361603
BRAKE SHOE SET W/SPRING
Price
N/A
PSB10361604
BRAKE SHOE SET W/SPRING
Price
N/A
P
BRAKE SHOE SET W/SPRING
P
BRAKE SHOE ANCHOR PIN
P
PIVOT ARM
P
PIVOT ARM BUSHING
PSB10361608
O-RING 9.8 X 1.9 P10
Price
N/A
PSB10361609
Now: PR02M
EXT RETAINING RING 14MM
Price
N/A
P
PIVOT ARM AXLE
P
PIVOT ARM ROLLER
PSB10361612
CAP SCREW M8-1.25 X 35
Price
N/A
P
TOP LINKAGE BRACKET PLATE
P
BRAKE LINKAGE
P
TOP LINKAGE BRACKET
P
COMPRESSION SPRING
P
DOWEL PIN 5 X 40
P
BOTTOM LINKAGE BRACKET PLATE
PSB10361621
CAP SCREW M8-1.25 X 16
Price
N/A
P
PIVOT SCREW HEX NUT
P
AXLE ROLLER
P
AXLE
PSB10361628
CAP SCREW M8-1.25 X 25
Price
N/A
PSB10361629
Now: PW01M
FLAT WASHER 8MM
Price
N/A
P
BOTTOM LINKAGE BRACKET
P
PIVOT STOP
P
PIVOT STOP COVER
PSB10361633
CAP SCREW M6-1 X 10
Price
N/A
P
BRAKE DRUM WASHER
PSB10361635
ROLL PIN 3 X 16
Price
N/A
PSB10361636
LOCK WASHER 6MM
Price
N/A
PSB10361637
CAP SCREW M6-1 X 20 LH
Price
N/A
P

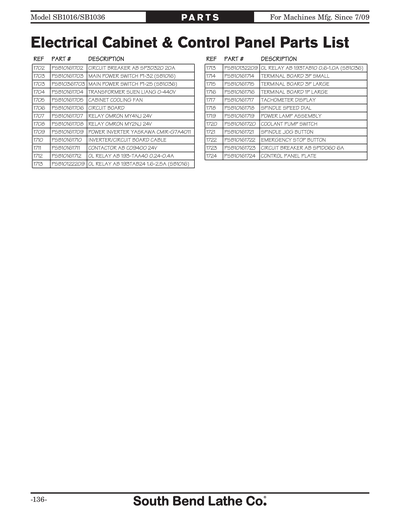

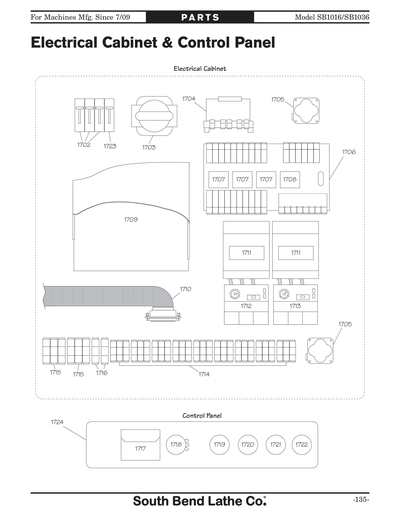

CIRCUIT BREAKER AB SP3D320 20A
P
MAIN POWER SWITCH P1-25
P
TRANSFORMER TBSW11 140VA 220/440-24/220V
P
CABINET COOLING FAN
P
CIRCUIT BOARD
P
RELAY OMRON MY4NJ 24V
P
RELAY OMRON MY2NJ 24V
P
INVERTER YASKAWA CMIR-G7A2011
P
INVERTER/CIRCUIT BOARD CABLE
P
CONTACTOR AB C09400 24V
P
OL RELAY AB 193-TAA40 0.24-0.4A
PSB10361713
OL RELAY AB193-T1AB10 0.75-1A
Price
N/A
P
TERMINAL BOARD 3P SMALL
P
TERMINAL BOARD 3P LARGE
P
TERMINAL BOARD 1P LARGE
PSB10361717
TACHOMETER DISPLAY
Price
N/A
P
SPINDLE SPEED DIAL
PSB10361719
POWER INDICATOR LIGHT AB 800FD P7N3 22MM
Price
N/A
PSB10361720
COOLANT PUMP SWITCH
Price
N/A
PSB10361721
JOG BUTTON AB 800FP-F3 22MM GRN
Price
N/A
PSB10361722
E-STOP BUTTON AB 800FD-MT44X01
Price
N/A
PSB10361723
CIRCUIT BREAKER 6A AB 1489-A D6 1P
Price
N/A
P
CONTROL PANEL PLATE
P

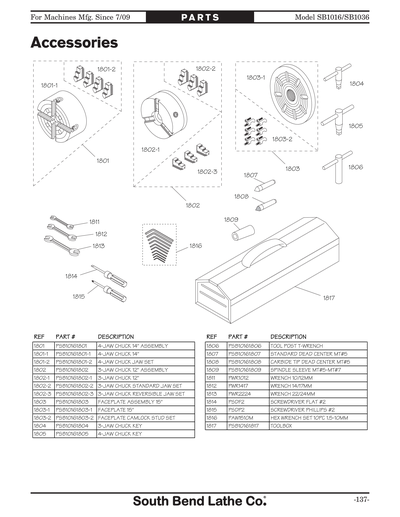

CHUCK 4-JAW 14" ASSEMBLY
P
CHUCK 4-JAW 14"
P
CHUCK 4-JAW JAW SET
P
3-JAW CHUCK 12" ASSEMBLY
PSB10361802-1
3-JAW CHUCK 12" ASSEMBLY
Price
N/A
PSB10361802-2
3-JAW CHUCK 12" ASSEMBLY
Price
N/A
PSB10361802-3
3-JAW CHUCK 12" ASSEMBLY
Price
N/A
P
FACEPLATE ASSEMBLY 14"
P
FACEPLATE 14"
P
FACEPLATE CAMLOCK STUD SET
P
3-JAW CHUCK KEY
P
LATHE CHUCK KEY 11.87MM STD
P
TOOL POST T-WRENCH
P
STANDARD DEAD CENTER MT#5
P
CARBIDE TIP DEAD CENTER MT#5
P
SPINDLE SLEEVE MT#5-MT#7
PSB10361811
WRENCH 10 X 12MM OPEN-ENDS
Price
N/A
PSB10361812
WRENCH 14 X 17MM OPEN-ENDS
Price
N/A
PSB10361813
WRENCH 22 X 24MM OPEN-ENDS
Price
N/A
PSB10361814
Now: PSDF2
SCREWDRIVER FLAT #2
Price
N/A
PSB10361815
Now: PSDP2
SCREWDRIVER PHILLIPS #2
Price
N/A
PSB10361816
HEX WRENCH 1.5-10MM 10PC SET
Price
N/A
P
TOOLBOX

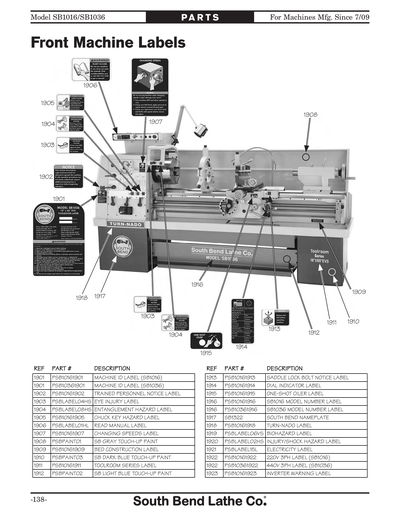

P
MACHINE ID LABEL
P
TRAINED PERSONNEL NOTICE LABEL
PSB10361903
SAFETY GLASSES LABEL 2.5 X 1.5
Price
N/A
PSB10361904
ENTANGLEMENT LABEL 2.5 X 1.5
Price
N/A
P
CHUCK KEY HAZARD LABEL
PSB10361906
READ MANUAL LABEL 3.25 X 2
Price
N/A
P
CHANGING SPEEDS LABEL
PSB10361908
SB GRAY TOUCH-UP AEROSOL 5oz
Price
N/A
P
BED CONSTRUCTION LABEL
PSB10361910
SB DK BLUE TOUCH-UP AEROSOL 5oz
Price
N/A
P
TOOLROOM SERIES LABEL
PSB10361912
SB LT BLUE TOUCH-UP AEROSOL 5oz
Price
N/A
P
SADDLE LOCK BOLT NOTICE LABEL
P
DIAL INDICATOR LABEL
P
ONE-SHOT OILER LABEL
P
MODEL NUMBER LABEL
PSB10361917
Nameplate 255mm
Price
N/A
P
TURN-NADO LABEL
PSB10361919
BIOHAZARD LABEL 1.5 X 2.5
Price
N/A
PSB10361920
DISCONNECT POWER LABEL 2.5 X 1.5
Price
N/A
PSB10361921
ELECTRICITY LABEL 1.4
Price
N/A

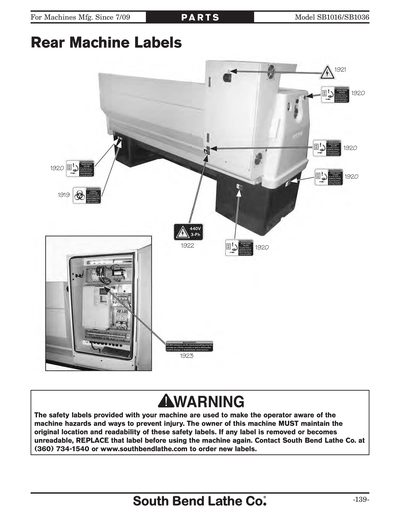

P
440V 3PH LABEL
P
INVERTER WARNING LABEL
P
MANUAL FOR SB1016-36 08/10
