Parts for SB1038F - 16" x 40" Lathe 440V with DRO
IMPORTANT: Parts may have multiple versions. This will be indicated by V1, V2, or V3 on the part number and/or description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 beginning in January 2017. Please reference your machine's manufacture date on the ID Label to ensure you are selecting the correct part when multiple versions are indicated.
If you cannot locate your part below, please contact our tech support department at firstname.lastname@example.org or 570-546-9663.
Please note: All parts ship out of our Springfield, Missouri facility.
LOCK & KEY SET

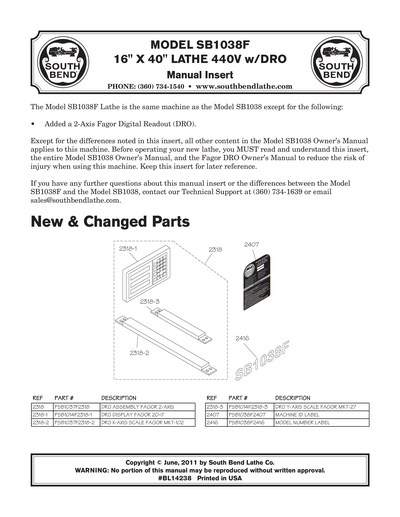

DRO ASSEMBLY FAGOR 2-AXIS
DRO DISPLAY FAGOR 20-IT
DRO Z-AXIS SCALE FAGOR MKT-102
DRO X-AXIS SCALE FAGOR MKT-27
MACHINE ID LABEL
MODEL NUMBER LABEL
MANUAL FOR SB1038F MFG 04/11 06/11
