Parts for SB1049 - Heavy 13® 13" x 30" Gearhead Lathe

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref # Part # Description Price Qty

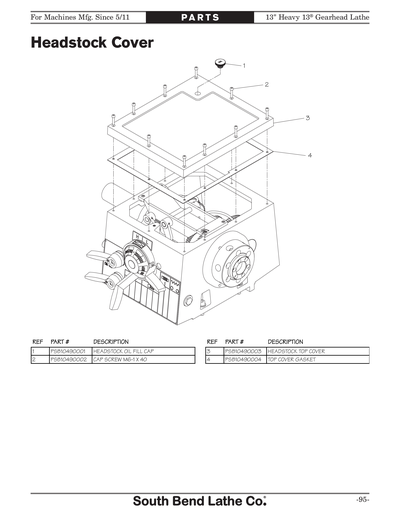

PSB10490001 PSB10490001 HEADSTOCK OIL FILL CAP $8.75
PSB10490002 PSB10490002
Replaced By PCAP29M
CAP SCREW M6-1 X 40
N/A View Replacement
PSB10490003 PSB10490003 HEADSTOCK TOP COVER $1,020.75
PSB10490004 PSB10490004 TOP COVER GASKET $80.50
PSB10490005 PSB10490005 SHIFT FORK $104.00
PSB10490006 PSB10490006
Replaced By PRP06M
ROLL PIN 5 X 24
N/A View Replacement
PSB10490007 PSB10490007 RIGHT REAR SHIFT LEVER $83.75
PSB10490008 PSB10490008 LEFT REAR SHIFT LEVER $83.75
PSB10490009 PSB10490009
Replaced By PEC015M
E-CLIP 8MM
N/A View Replacement
PSB10490010 PSB10490010
Replaced By PCAP04M
CAP SCREW M6-1 X 10
N/A View Replacement
PSB10490011 PSB10490011 SHIFT LEVER FRAME $340.50
PSB10490012 PSB10490012 SHIFT LEVER ROD $28.75
PSB10490013 PSB10490013 RIGHT FRONT SHIFT LEVER $113.50
PSB10490014 PSB10490014 LEFT FRONT SHIFT LEVER $110.50
PSB10490015 PSB10490015
Replaced By PRP02M
ROLL PIN 3 X 16
N/A View Replacement
PSB10490016 PSB10490016 STEP PIN $14.50
PSB10490017 PSB10490017
Replaced By PR07M
EXT RETAINING RING 18MM
N/A View Replacement
PSB10490018 PSB10490018 SHIFT CAM $326.75
PSB10490019 PSB10490019 SPACER $28.75
PSB10490020 PSB10490020
Replaced By PCAP17M
CAP SCREW M4-.7 X 10
N/A View Replacement
PSB10490021 PSB10490021 GEAR 40T $128.50
PSB10490022 PSB10490022 SELECTOR BRACKET $184.25
PSB10490023 PSB10490023
Replaced By PCAP02M
CAP SCREW M6-1 X 20
N/A View Replacement
PSB10490024 PSB10490024
Replaced By PORP044
O-RING 43.7 X 3.5 P44
N/A View Replacement
PSB10490025 PSB10490025 SPEED RANGE SELECTOR $287.00
PSB10490026 PSB10490026
Replaced By PCAP50M
CAP SCREW M5-.8 X 10
N/A View Replacement
PSB10490027 PSB10490027 SPEED RANGE HANDLE $81.75
PSB10490028 PSB10490028
Replaced By PSTB001
STEEL BALL 1/4
N/A View Replacement
PSB10490029 PSB10490029 COMPRESSION SPRING $3.00
PSB10490030 PSB10490030
Replaced By PSS20M
SET SCREW M8-1.25 X 8
N/A View Replacement
PSB10490031 PSB10490031 SPEED SELECTOR $222.25
PSB10490032 PSB10490032 SPEED SELECTOR LABEL PLATE $72.75
PSB10490033 PSB10490033
Replaced By PRIV001M
RIVET 2 X 5MM NAMEPLATE, STEEL
N/A View Replacement
PSB10490034 PSB10490034
Replaced By PK101M
KEY 6 X 6 X 14
N/A View Replacement
PSB10490035 PSB10490035 SHAFT $64.25
PSB10490036 PSB10490036
Replaced By PORP018
O-RING 17.8 X 2.4 P18
N/A View Replacement
PSB10490037 PSB10490037 SHAFT FLAT WASHER 6MM $14.50
PSB10490038 PSB10490038
Replaced By PCAP01M
CAP SCREW M6-1 X 16
N/A View Replacement
PSB10490039 PSB10490039 SHAFT END PLUG $11.50
PSB10490040 PSB10490040 COMPRESSION SPRING $3.00
PSB10490041 PSB10490041 FEED RANGE SHIFT FORK $93.25
PSB10490042 PSB10490042
Replaced By PR05M
EXT RETAINING RING 15MM
N/A View Replacement
PSB10490043 PSB10490043 ROCKER ARM $74.25
PSB10490044 PSB10490044
Replaced By PK155M
KEY 3 X 3 X 18
N/A View Replacement
PSB10490045 PSB10490045 FEED RANGE SHAFT $75.00
PSB10490046 PSB10490046 FEED DIRECTION SHAFT $75.00
PSB10490047 PSB10490047
Replaced By PORP016
O-RING 15.8 X 2.4 P16
N/A View Replacement
PSB10490048 PSB10490048 LEVER BRACKET $57.25
PSB10490049 PSB10490049
Replaced By PCAP10M
CAP SCREW M5-.8 X 15
N/A View Replacement
PSB10490050 PSB10490050 LEVER $91.50
PSB10490051 PSB10490051 COMPRESSION SPRING $3.00
PSB10490052 PSB10490052 LEVER FLAT WASHER 5MM $14.50
PSB10490053 PSB10490053
Replaced By PLW05M
LOCK WASHER 12MM
N/A View Replacement
PSB10490054 PSB10490054
Replaced By PCAP92M
CAP SCREW M12-1.75 X 40
N/A View Replacement
PSB10490055 PSB10490055 OIL SIGHT GLASS 3/4" $15.50
PSB10490056 PSB10490056 SHAFT $78.50
PSB10490057 PSB10490057
Replaced By PORP014
O-RING 13.8 X 2.4 P14
N/A View Replacement
PSB10490058 PSB10490058 SWING SHIFT LEVER $237.00
PSB10490059 PSB10490059
Replaced By PR06M
EXT RETAINING RING 16MM
N/A View Replacement
PSB10490060 PSB10490060 SHIFT FORK $122.25
PSB10490061 PSB10490061 OIL TUBE 6 X 270MM $64.25
PSB10490062 PSB10490062
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
PSB10490063 PSB10490063 FEED DIRECTION SHIFT FORK $85.75
PSB10490064 PSB10490064 SPEED RANGE INDICATOR $5.75
PSB10490065 PSB10490065 CASTING PLUG $48.25
PSB10490066 PSB10490066
Replaced By PORP055
O-RING 54.6 X 5.7 P55
N/A View Replacement

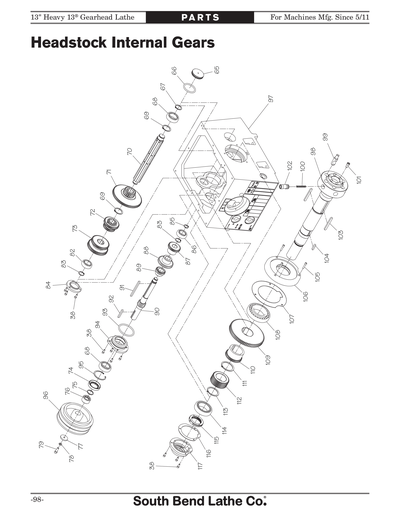

PSB10490067 PSB10490067
Replaced By PR15M
EXT RETAINING RING 30MM
N/A View Replacement
PSB10490068 PSB10490068
Replaced By P6206-OPEN
BALL BEARING 6206-OPEN
N/A View Replacement
PSB10490069 PSB10490069
Replaced By PR31M
EXT RETAINING RING 38MM
N/A View Replacement
PSB10490070 PSB10490070 SPLINE SHAFT $784.25
PSB10490071 PSB10490071 COMBO GEAR ASSEMBLY 22T/76T $1,269.50
PSB10490072 PSB10490072 COMBO GEAR ASSEMBLY 30T/38T $740.50
PSB10490073 PSB10490073 COMBO GEAR ASSEMBLY 45T/52T $920.50
PSB10490074 PSB10490074 OIL SEAL 40 X 62 X 12 $13.00
PSB10490075 PSB10490075
Replaced By PORP028
O-RING 27.7 X 3.5 P28
N/A View Replacement
PSB10490076 PSB10490076 SPACER $77.25
PSB10490077 PSB10490077 PULLEY FLAT WASHER 8MM $21.50
PSB10490078 PSB10490078
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
PSB10490079 PSB10490079
Replaced By PCAP31M
CAP SCREW M8-1.25 X 25
N/A View Replacement
PSB10490082 PSB10490082
Replaced By P6205-OPEN
BALL BEARING 6205-OPEN
N/A View Replacement
PSB10490083 PSB10490083
Replaced By PR11M
EXT RETAINING RING 25MM
N/A View Replacement
PSB10490084 PSB10490084 FLANGE COVER $57.25
PSB10490085 PSB10490085
Replaced By PR09M
EXT RETAINING RING 20MM
N/A View Replacement
PSB10490086 PSB10490086
Replaced By P6304-OPEN
BALL BEARING 6304-OPEN
N/A View Replacement
PSB10490087 PSB10490087 GEAR 30T $377.00
PSB10490088 PSB10490088 GEAR 38T $515.25
PSB10490089 PSB10490089 GEAR 22T $302.75
PSB10490090 PSB10490090 GEAR SHAFT 16T $616.50
PSB10490091 PSB10490091 KEY 7 X 7 X 104 $7.00
PSB10490092 PSB10490092
Replaced By PK66M
KEY 7 X 7 X 55
N/A View Replacement
PSB10490093 PSB10490093
Replaced By PORP075
O-RING 74.6 X 5.7 P75
N/A View Replacement
PSB10490094 PSB10490094 FLANGE BEARING $173.25
PSB10490095 PSB10490095
Replaced By PR38M
INT RETAINING RING 62MM
N/A View Replacement
PSB10490096 PSB10490096 SPINDLE PULLEY $842.25
PSB10490097 PSB10490097 HEADSTOCK HOUSING $4,286.50
PSB10490098 PSB10490098 SPINDLE $2,793.75
PSB10490099 PSB10490099 CAMLOCK STUD $32.00
PSB10490100 PSB10490100 CAM SPRING $3.00
PSB10490101 PSB10490101 CAMLOCK CAP SCREW $4.00
PSB10490102 PSB10490102 CAMLOCK $40.75
PSB10490103 PSB10490103
Replaced By PK162M
KEY 10 X 6 X 85
N/A View Replacement
PSB10490104 PSB10490104
Replaced By PK109M
KEY 7 X 7 X 35
N/A View Replacement
PSB10490105 PSB10490105
Replaced By PCAP07M
CAP SCREW M6-1 X 30
N/A View Replacement
PSB10490106 PSB10490106 BEARING COVER $284.25
PSB10490107 PSB10490107 BEARING COVER GASKET $14.75
PSB10490108 PSB10490108
Replaced By P30213-T
TAPERED ROLLER BEARING 30213 NTN
N/A View Replacement
PSB10490109 PSB10490109 GEAR 72T $1,254.50
PSB10490110 PSB10490110 GEAR 41T $630.75
PSB10490111 PSB10490111
Replaced By PR71M
EXT RETAINING RING 60MM
N/A View Replacement
PSB10490112 PSB10490112 GEAR 42T $549.00
PSB10490113 PSB10490113
Replaced By PR91M
EXT RETAINING RING 56MM
N/A View Replacement
PSB10490114 PSB10490114
Replaced By P32011-T
TAPERED ROLLER BEARING 32011 NTN
N/A View Replacement
PSB10490115 PSB10490115 SPANNER NUT $91.50
PSB10490116 PSB10490116 COVER GASKET $11.75
PSB10490117 PSB10490117 OUTBOARD SPINDLE COVER $138.50

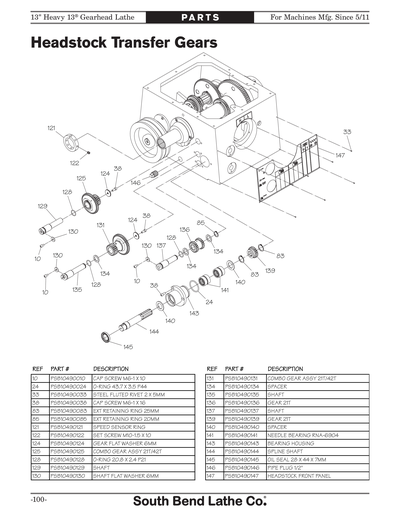

PSB10490121 PSB10490121 SPEED SENSOR RING $191.75
PSB10490122 PSB10490122
Replaced By PSS30M
SET SCREW M10-1.5 X 10
N/A View Replacement
PSB10490124 PSB10490124 GEAR FLAT WASHER 6MM $8.75
PSB10490125 PSB10490125 COMBO GEAR ASSY 21T/42T $810.75
PSB10490128 PSB10490128
Replaced By PORP021
O-RING 20.8 X 2.4 P21
N/A View Replacement
PSB10490129 PSB10490129 SHAFT $112.25
PSB10490130 PSB10490130 SHAFT FLAT WASHER 6MM $7.50
PSB10490131 PSB10490131 COMBO GEAR ASSY 21T/42T $827.75
PSB10490134 PSB10490134 SPACER $8.75
PSB10490135 PSB10490135 SHAFT $124.25
PSB10490136 PSB10490136 GEAR 21T $499.00
PSB10490137 PSB10490137 SHAFT $121.00
PSB10490139 PSB10490139 GEAR 21T $296.25
PSB10490140 PSB10490140 SPACER $20.50
PSB10490141 PSB10490141 NEEDLE BEARING RNA-6904 $159.00
PSB10490143 PSB10490143 BEARING HOUSING $155.75
PSB10490144 PSB10490144 SPLINE SHAFT $298.50
PSB10490145 PSB10490145 OIL SEAL 28 X 44 X 7MM $8.75
PSB10490146 PSB10490146 PIPE PLUG 1/2" $3.00
PSB10490147 PSB10490147 HEADSTOCK FRONT PANEL $130.75

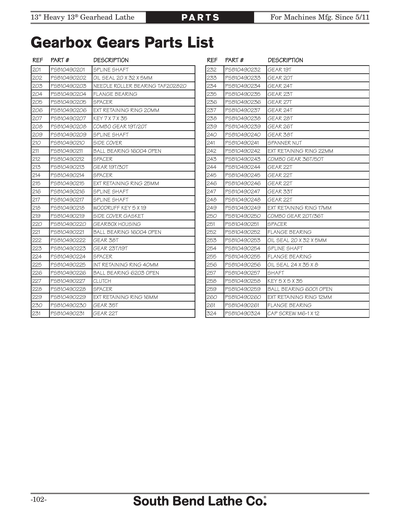

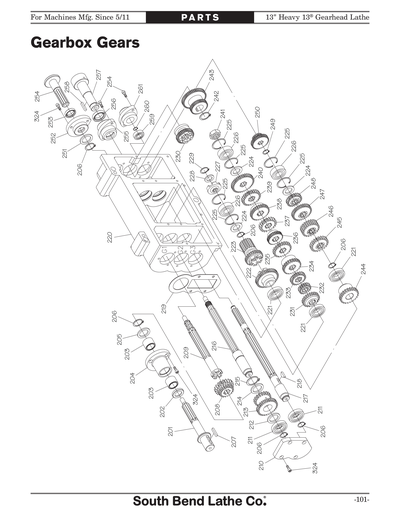

PSB10490201 PSB10490201 SPLINE SHAFT $275.75
PSB10490202 PSB10490202 OIL SEAL 20 X 32 X 5MM $5.25
PSB10490203 PSB10490203 NEEDLE ROLLER BEARING TAF202820 $126.50
PSB10490204 PSB10490204 FLANGE BEARING $120.00
PSB10490205 PSB10490205 SPACER $13.25
PSB10490206 PSB10490206
Replaced By PR09M
EXT RETAINING RING 20MM
N/A View Replacement
PSB10490207 PSB10490207
Replaced By PK109M
KEY 7 X 7 X 35
N/A View Replacement
PSB10490208 PSB10490208 COMBO GEAR 19T/20T $225.50
PSB10490209 PSB10490209 SPLINE SHAFT $501.00
PSB10490210 PSB10490210 SIDE COVER $72.00
PSB10490211 PSB10490211
Replaced By P16004ZZ
BALL BEARING 16004ZZ
N/A View Replacement
PSB10490212 PSB10490212 SPACER $46.50
PSB10490213 PSB10490213 GEAR 19T/30T $264.75
PSB10490214 PSB10490214 SPACER $13.25
PSB10490215 PSB10490215
Replaced By PR11M
EXT RETAINING RING 25MM
N/A View Replacement
PSB10490216 PSB10490216 SPLINE SHAFT $375.75
PSB10490217 PSB10490217 SPLINE SHAFT $576.50
PSB10490218 PSB10490218 WOODRUFF KEY 5 X 19 $4.00
PSB10490219 PSB10490219 SIDE COVER GASKET $14.75
PSB10490220 PSB10490220 GEARBOX HOUSING $1,185.50
PSB10490221 PSB10490221
Replaced By P16004ZZ
BALL BEARING 16004ZZ
N/A View Replacement
PSB10490222 PSB10490222 GEAR 38T $213.50
PSB10490223 PSB10490223 GEAR 23T/19T $263.75
PSB10490224 PSB10490224 SPACER $13.25
PSB10490225 PSB10490225
Replaced By PR23M
INT RETAINING RING 40MM
N/A View Replacement
PSB10490226 PSB10490226
Replaced By P6203-OPEN
BALL BEARING 6203-OPEN
N/A View Replacement
PSB10490227 PSB10490227 CLUTCH $81.75
PSB10490228 PSB10490228 SPACER $13.25
PSB10490229 PSB10490229
Replaced By PR06M
EXT RETAINING RING 16MM
N/A View Replacement
PSB10490230 PSB10490230 GEAR 35T $250.50
PSB10490231 PSB10490231 GEAR 22T $93.75
PSB10490232 PSB10490232 GEAR 19T $84.25
PSB10490233 PSB10490233 GEAR 20T $68.75
PSB10490234 PSB10490234 GEAR 24T $93.75
PSB10490235 PSB10490235 GEAR 23T $75.25
PSB10490236 PSB10490236 GEAR 27T $81.75
PSB10490237 PSB10490237 GEAR 24T $81.75
PSB10490238 PSB10490238 GEAR 28T $93.75
PSB10490239 PSB10490239 GEAR 26T $81.75
PSB10490240 PSB10490240 GEAR 38T $106.75
PSB10490241 PSB10490241 SPANNER NUT $40.75
PSB10490242 PSB10490242
Replaced By PR10M
EXT RETAINING RING 22MM
N/A View Replacement
PSB10490243 PSB10490243 COMBO GEAR 36T/50T $238.50
PSB10490244 PSB10490244 GEAR 22T $93.75
PSB10490245 PSB10490245 GEAR 22T $101.50
PSB10490246 PSB10490246 GEAR 22T $118.75
PSB10490247 PSB10490247 GEAR 33T $106.75
PSB10490248 PSB10490248 GEAR 22T $83.00
PSB10490249 PSB10490249
Replaced By PR18M
EXT RETAINING RING 17MM
N/A View Replacement
PSB10490250 PSB10490250 COMBO GEAR 20T/36T $143.75
PSB10490251 PSB10490251 SPACER $13.25
PSB10490252 PSB10490252 FLANGE BEARING $204.00
PSB10490253 PSB10490253 OIL SEAL 20 X 32 X 5MM $5.25
PSB10490254 PSB10490254 SPLINE SHAFT $288.75
PSB10490255 PSB10490255 FLANGE BEARING $160.25
PSB10490256 PSB10490256 OIL SEAL 24 X 35 X 8 $6.25
PSB10490257 PSB10490257 SHAFT $225.50
PSB10490258 PSB10490258
Replaced By PK15M
KEY 5 X 5 X 35
N/A View Replacement
PSB10490259 PSB10490259
Replaced By P6001-OPEN
BALL BEARING 6001-OPEN
N/A View Replacement
PSB10490260 PSB10490260
Replaced By PR03M
EXT RETAINING RING 12MM
N/A View Replacement
PSB10490261 PSB10490261 FLANGE BEARING $66.50
PSB10490262 PSB10490262 GEARBOX FRONT COVER GASKET $43.75
PSB10490263 PSB10490263 PARTITION SCREW $11.00
PSB10490264 PSB10490264 UPPER PARTITION SUPPORT $125.25
PSB10490265 PSB10490265 UPPER FORK SUPPORT $125.25
PSB10490266 PSB10490266 COMPRESSION SPRING 4 X 19 $3.00
PSB10490267 PSB10490267
Replaced By PSTB001
STEEL BALL 1/4
N/A View Replacement
PSB10490268 PSB10490268 PARTITION PLATE $14.75
PSB10490269 PSB10490269 UPPER MIDDLE PARTITION SUPPORT $125.25
PSB10490270 PSB10490270 LOWER MIDDLE PARTITION SUPPORT $125.25
PSB10490271 PSB10490271 LOWER PARTITION SUPPORT $125.25
PSB10490272 PSB10490272 REVERSE-STOP PLATE $54.50
PSB10490273 PSB10490273 SPACER $13.25
PSB10490274 PSB10490274 SHOULDER PLATE $29.25
PSB10490275 PSB10490275 INDENTED ALIGNMENT PLATE $29.25
PSB10490276 PSB10490276 ALIGNMENT PLATE $36.50
PSB10490277 PSB10490277 SHIFT FORK $114.50
PSB10490278 PSB10490278 SHIFT FORK $104.75
PSB10490279 PSB10490279 SHIFT FORK $104.75
PSB10490280 PSB10490280 SHIFT FORK $114.50
PSB10490281 PSB10490281
Replaced By PRP02M
ROLL PIN 3 X 16
N/A View Replacement
PSB10490282 PSB10490282 CAPTIVE PIN $22.00
PSB10490283 PSB10490283 ROCKER ARM $72.75
PSB10490284 PSB10490284 SHIFT CAM $283.25
PSB10490285 PSB10490285 CAM BRACKET $164.50
PSB10490286 PSB10490286
Replaced By PEC015M
E-CLIP 8MM
N/A View Replacement
PSB10490287 PSB10490287 SPACER $13.25
PSB10490288 PSB10490288
Replaced By PR18M
EXT RETAINING RING 17MM
N/A View Replacement
PSB10490289 PSB10490289 WOODRUFF KEY 4 X 13 $3.25
PSB10490290 PSB10490290 SHAFT $69.75
PSB10490291 PSB10490291 SHIFT PAD $72.75
PSB10490292 PSB10490292
Replaced By P0755317
KEY 5 X 25
N/A View Replacement
PSB10490293 PSB10490293 SHIFT FORK $85.00
PSB10490294 PSB10490294
Replaced By PSTB001
STEEL BALL 1/4
N/A View Replacement
PSB10490295 PSB10490295 COMPRESSION SPRING 4 X 19 $3.00
PSB10490296 PSB10490296 SHIFT PAD $69.75
PSB10490297 PSB10490297 PIVOT ARM $83.00
PSB10490298 PSB10490298 COMPRESSION SPRING 6 X 13 $3.00
PSB10490299 PSB10490299
Replaced By PSTB001
STEEL BALL 1/4
N/A View Replacement
PSB10490300 PSB10490300 SELECTOR BAR $196.25
PSB10490301 PSB10490301 WOODRUF KEY 4 X 13 $3.25
PSB10490302 PSB10490302 SHAFT $75.50
PSB10490303 PSB10490303
Replaced By PORP018
O-RING 17.8 X 2.4 P18
N/A View Replacement
PSB10490304 PSB10490304 BUSHING $17.50
PSB10490305 PSB10490305 SHIFT FORK $74.25
PSB10490306 PSB10490306
Replaced By PRP24M
ROLL PIN 5 X 16
N/A View Replacement
PSB10490307 PSB10490307 PIPE PLUG 1/2"PT $4.50
PSB10490308 PSB10490308 PIPE ELBOW 1/2"PT $8.00
PSB10490309 PSB10490309 PIPE NIPPLE 1/2" X 1" $5.25
PSB10490310 PSB10490310 GEARBOX FRONT COVER $934.50
PSB10490311 PSB10490311 SELECTOR SHAFT $51.00
PSB10490312 PSB10490312
Replaced By PORG040
O-RING 39.4 X 3.1 G40
N/A View Replacement
PSB10490313 PSB10490313 SELECTOR LEVER SUPPORT $85.00
PSB10490314 PSB10490314 COMPRESSION SPRING 9 X 38 $4.50
PSB10490315 PSB10490315 SELECTOR LEVER $155.75
PSB10490316 PSB10490316
Replaced By PORG030
O-RING 3.1 X 29.4 G30
N/A View Replacement
PSB10490317 PSB10490317 SELECTOR LEVER COVER $78.50
PSB10490318 PSB10490318 SELECTOR FRAME $80.00
PSB10490319 PSB10490319 SHIFT LEVER $69.75
PSB10490320 PSB10490320 LEVER FLAT WASHER 5MM $8.75
PSB10490321 PSB10490321 LEVER END CAP $10.25
PSB10490322 PSB10490322
Replaced By PSB10490055
OIL SIGHT GLASS 3/4"
N/A View Replacement
PSB10490323 PSB10490323 GEARBOX FRONT PANEL $72.75
PSB10490324 PSB10490324
Replaced By PCAP26M
CAP SCREW M6-1 X 12
N/A View Replacement
PSB10490325 PSB10490325
Replaced By PCAP15M
CAP SCREW M5-.8 X 20
N/A View Replacement
PSB10490326 PSB10490326
Replaced By PLW03M
LOCK WASHER 6MM
N/A View Replacement
PSB10490327 PSB10490327
Replaced By PCAP26M
CAP SCREW M6-1 X 12
N/A View Replacement
PSB10490328 PSB10490328
Replaced By PCAP48M
CAP SCREW M6-1 X 35
N/A View Replacement
PSB10490329 PSB10490329
Replaced By PRP04M
ROLL PIN 4 X 24
N/A View Replacement
PSB10490330 PSB10490330
Replaced By PSS03M
SET SCREW M6-1 X 8
N/A View Replacement
PSB10490331 PSB10490331
Replaced By PCAP02M
CAP SCREW M6-1 X 20
N/A View Replacement
PSB10490332 PSB10490332
Replaced By PCAP167M
CAP SCREW M6-1 X 70
N/A View Replacement
PSB10490333 PSB10490333
Replaced By PCAP190M
CAP SCREW M6-1 X 80
N/A View Replacement
PSB10490334 PSB10490334
Replaced By PCAP38M
CAP SCREW M5-.8 X 25
N/A View Replacement
PSB10490335 PSB10490335
Replaced By PCAP26M
CAP SCREW M6-1 X 12
N/A View Replacement
PSB10490336 PSB10490336
Replaced By PCAP33M
CAP SCREW M5-.8 X 12
N/A View Replacement
PSB10490337 PSB10490337
Replaced By PS17M
PHLP HD SCR M4-.7 X 6
N/A View Replacement
PSB10490338 PSB10490338
Replaced By PCAP66M
CAP SCREW M8-1.25 X 65
N/A View Replacement
PSB10490339 PSB10490339 TAPER PIN #7 X 3-1/4" $20.50

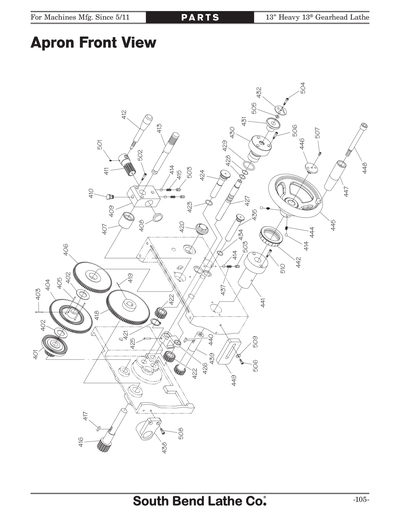

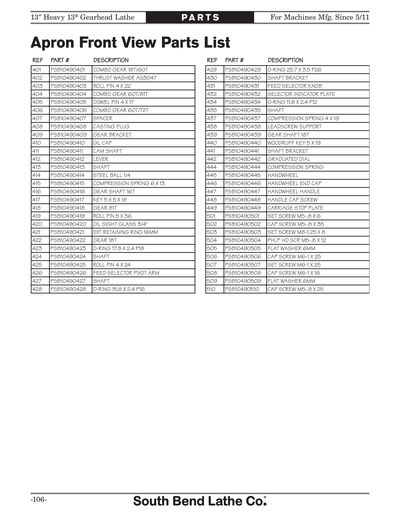

PSB10490401 PSB10490401 COMBO GEAR 18T/60T $185.25
PSB10490402 PSB10490402 THRUST WASHER AS3047 $10.25
PSB10490403 PSB10490403
Replaced By PRP20M
ROLL PIN 4 X 22
N/A View Replacement
PSB10490404 PSB10490404 COMBO GEAR 60T/81T $424.75
PSB10490405 PSB10490405 DOWEL PIN 4 X 17 $2.75
PSB10490406 PSB10490406 COMBO GEAR 60T/72T $261.50
PSB10490407 PSB10490407 SPACER $43.75
PSB10490408 PSB10490408 CASTING PLUG $11.75
PSB10490409 PSB10490409 GEAR BRACKET $230.00
PSB10490410 PSB10490410 OIL CAP $16.00
PSB10490411 PSB10490411 CAM SHAFT $120.00
PSB10490412 PSB10490412 LEVER $66.50
PSB10490413 PSB10490413 SHAFT $68.75
PSB10490414 PSB10490414
Replaced By PSTB001
STEEL BALL 1/4
N/A View Replacement
PSB10490415 PSB10490415 COMPRESSION SPRING 6 X 13 $3.00
PSB10490416 PSB10490416 GEAR SHAFT 16T $333.00
PSB10490417 PSB10490417
Replaced By PK14M
KEY 5 X 5 X 18
N/A View Replacement
PSB10490418 PSB10490418 GEAR 81T $264.75
PSB10490419 PSB10490419
Replaced By PRP10M
ROLL PIN 5 X 36
N/A View Replacement
PSB10490420 PSB10490420
Replaced By PSB10490055
OIL SIGHT GLASS 3/4"
N/A View Replacement
PSB10490421 PSB10490421
Replaced By PR06M
EXT RETAINING RING 16MM
N/A View Replacement
PSB10490422 PSB10490422 GEAR 18T $80.00
PSB10490423 PSB10490423
Replaced By PORP018
O-RING 17.8 X 2.4 P18
N/A View Replacement
PSB10490424 PSB10490424 SHAFT $79.50
PSB10490425 PSB10490425
Replaced By PRP04M
ROLL PIN 4 X 24
N/A View Replacement
PSB10490426 PSB10490426 FEED SELECTOR PIVOT ARM $181.00
PSB10490427 PSB10490427 SHAFT $111.25
PSB10490428 PSB10490428
Replaced By PORP016
O-RING 15.8 X 2.4 P16
N/A View Replacement
PSB10490429 PSB10490429
Replaced By PORP026
O-RING 25.7 X 3.5 P26
N/A View Replacement
PSB10490430 PSB10490430 SHAFT BRACKET $143.75
PSB10490431 PSB10490431 FEED SELECTOR KNOB $51.00
PSB10490432 PSB10490432 SELECTOR INDICATOR PLATE $11.75
PSB10490434 PSB10490434
Replaced By PORP012
O-RING 11.8 X 2.4 P12
N/A View Replacement
PSB10490435 PSB10490435 SHAFT $66.50
PSB10490437 PSB10490437 COMPRESSION SPRING 4 X 19 $3.00
PSB10490438 PSB10490438 LEADSCREW SUPPORT $73.00
PSB10490439 PSB10490439 GEAR SHAFT 18T $114.50
PSB10490440 PSB10490440 WOODRUFF KEY 5 X 19 $4.00
PSB10490441 PSB10490441 SHAFT BRACKET $186.25
PSB10490442 PSB10490442 GRADUATED DIAL $130.75
PSB10490444 PSB10490444 COMPRESSION SPRING $3.00
PSB10490445 PSB10490445 HANDWHEEL $326.75
PSB10490446 PSB10490446 HANDWHEEL END CAP $66.50
PSB10490447 PSB10490447 HANDWHEEL HANDLE $75.25
PSB10490448 PSB10490448 HANDLE CAP SCREW $38.00
PSB10490449 PSB10490449 CARRIAGE STOP PLATE $75.25
PSB10490450 PSB10490450 APRON PANEL $76.25
PSB10490451 PSB10490451 BEVEL GEAR 23T $215.75
PSB10490452 PSB10490452 THRUST BEARING NTB/AS-2542 $45.00
PSB10490453 PSB10490453 APRON $1,782.00
PSB10490454 PSB10490454 NEEDLE ROLLER BEARING NK29/30 $138.50
PSB10490455 PSB10490455 SPACER $64.00
PSB10490456 PSB10490456
Replaced By PR11M
EXT RETAINING RING 25MM
N/A View Replacement
PSB10490458 PSB10490458 GEAR 18T $65.50
PSB10490459 PSB10490459
Replaced By PRP88M
ROLL PIN 5 X 22
N/A View Replacement
PSB10490461 PSB10490461 GEAR 18T $67.00
PSB10490462 PSB10490462 SPACER $65.50
PSB10490463 PSB10490463 BEVEL GEAR $763.75
PSB10490464 PSB10490464 O-RING 17.8 X 2.4 $1.00
PSB10490465 PSB10490465 WOODRUFF KEY 4 X 13 $3.50
PSB10490466 PSB10490466 SHAFT $111.25
PSB10490467 PSB10490467 OIL FENCE $51.00
PSB10490468 PSB10490468 HALF NUT LEVER $58.25
PSB10490469 PSB10490469 LEVER HUB $73.00
PSB10490470 PSB10490470 COMPRESSION SPRING 6 X 27 $3.00
PSB10490472 PSB10490472
Replaced By PRP04M
ROLL PIN 4 X 24
N/A View Replacement
PSB10490473 PSB10490473
Replaced By PORP009
O-RING 8.8 X 1.9 P9
N/A View Replacement
PSB10490474 PSB10490474 STEP SCREW $36.50
PSB10490475 PSB10490475 HALF NUT PIVOT ROD $111.25
PSB10490476 PSB10490476 STEP PIN $22.00
PSB10490477 PSB10490477 PIVOT ARM $23.25
PSB10490478 PSB10490478 PIVOT STOP $159.00
PSB10490479 PSB10490479 HALF NUT $359.50
PSB10490480 PSB10490480 HALF NUT GIB $87.25
PSB10490481 PSB10490481 APRON BASE PLATE $316.00
PSB10490482 PSB10490482 PIPE PLUG 1/8"PT $3.00
PSB10490483 PSB10490483
Replaced By PRP102M
ROLL PIN 4 X 36
N/A View Replacement
PSB10490501 PSB10490501
Replaced By PSS26M
SET SCREW M5-.8 X 6
N/A View Replacement
PSB10490502 PSB10490502
Replaced By PCAP79M
CAP SCREW M5-.8 X 35
N/A View Replacement
PSB10490503 PSB10490503
Replaced By PSS20M
SET SCREW M8-1.25 X 8
N/A View Replacement
PSB10490504 PSB10490504
Replaced By PS08M
PHLP HD SCR M5-.8 X 12
N/A View Replacement
PSB10490505 PSB10490505
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
PSB10490506 PSB10490506
Replaced By PCAP06M
CAP SCREW M6-1 X 25
N/A View Replacement
PSB10490507 PSB10490507
Replaced By PSS12M
SET SCREW M6-1 X 25
N/A View Replacement
PSB10490508 PSB10490508
Replaced By PCAP01M
CAP SCREW M6-1 X 16
N/A View Replacement
PSB10490509 PSB10490509
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
PSB10490510 PSB10490510
Replaced By PCAP38M
CAP SCREW M5-.8 X 25
N/A View Replacement
PSB10490511 PSB10490511
Replaced By PS17M
PHLP HD SCR M4-.7 X 6
N/A View Replacement
PSB10490512 PSB10490512
Replaced By PCAP03M
CAP SCREW M5-.8 X 8
N/A View Replacement
PSB10490513 PSB10490513
Replaced By PSS02M
SET SCREW M6-1 X 6
N/A View Replacement
PSB10490514 PSB10490514
Replaced By PCAP24M
CAP SCREW M5-.8 X 16
N/A View Replacement

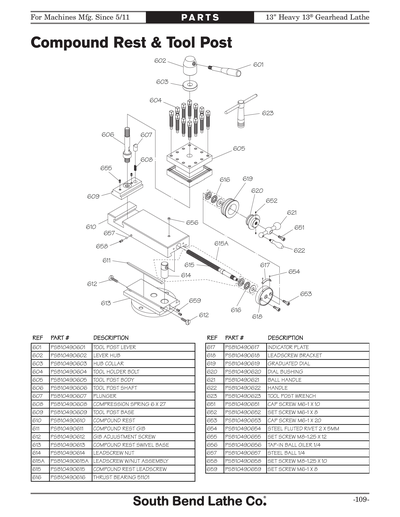

PSB10490601 PSB10490601 TOOL POST LEVER $98.25
PSB10490602 PSB10490602 LEVER HUB $98.25
PSB10490603 PSB10490603 HUB COLLAR $69.75
PSB10490604 PSB10490604 TOOL HOLDER BOLT $14.75
PSB10490605 PSB10490605 TOOL POST BODY $588.25
PSB10490606 PSB10490606 TOOL POST SHAFT $130.75
PSB10490607 PSB10490607 PLUNGER $43.75
PSB10490608 PSB10490608 COMPRESSION SPRING 6 X 27 $4.50
PSB10490609 PSB10490609 TOOL POST BASE $171.75
PSB10490610 PSB10490610
Replaced By PSB10490610A
COMPOUND REST ASSY
N/A View Replacement
PSB10490610A PSB10490610A COMPOUND REST ASSY $1,986.50
PSB10490611 PSB10490611 COMPOUND REST GIB $172.25
PSB10490612 PSB10490612 GIB ADJUSTMENT SCREW $23.25
PSB10490613 PSB10490613
Replaced By PSB10490610A
COMPOUND REST ASSY
N/A View Replacement
PSB10490614 PSB10490614
Replaced By PSB10490615A
LEADSCREW W/NUT ASSEMBLY
N/A View Replacement
PSB10490615 PSB10490615
Replaced By PSB10490615A
LEADSCREW W/NUT ASSEMBLY
N/A View Replacement
PSB10490615A PSB10490615A LEADSCREW W/NUT ASSEMBLY $417.25
PSB10490616 PSB10490616
Replaced By P51101
THRUST BEARING 51101
N/A View Replacement
PSB10490617 PSB10490617 INDICATOR PLATE $8.75
PSB10490618 PSB10490618 LEADSCREW BRACKET $130.75
PSB10490619 PSB10490619 GRADUATED DIAL $130.75
PSB10490620 PSB10490620 DIAL BUSHING $98.25
PSB10490621 PSB10490621 BALL HANDLE $69.75
PSB10490622 PSB10490622 HANDLE $61.00
PSB10490623 PSB10490623 TOOL POST WRENCH $65.50
PSB10490651 PSB10490651
Replaced By PCAP04M
CAP SCREW M6-1 X 10
N/A View Replacement
PSB10490652 PSB10490652
Replaced By PSS03M
SET SCREW M6-1 X 8
N/A View Replacement
PSB10490653 PSB10490653
Replaced By PCAP02M
CAP SCREW M6-1 X 20
N/A View Replacement
PSB10490654 PSB10490654
Replaced By PRIV001M
RIVET 2 X 5MM NAMEPLATE, STEEL
N/A View Replacement
PSB10490655 PSB10490655
Replaced By PSS14M
SET SCREW M8-1.25 X 12
N/A View Replacement
PSB10490656 PSB10490656
Replaced By PLUBE001
BALL OILER 1/4 PRESS-IN
N/A View Replacement
PSB10490657 PSB10490657
Replaced By PSTB001
STEEL BALL 1/4
N/A View Replacement
PSB10490658 PSB10490658
Replaced By PSS16M
SET SCREW M8-1.25 X 10
N/A View Replacement
PSB10490659 PSB10490659
Replaced By PSS03M
SET SCREW M6-1 X 8
N/A View Replacement

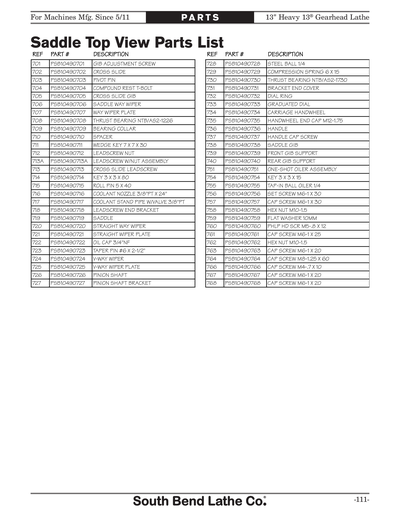

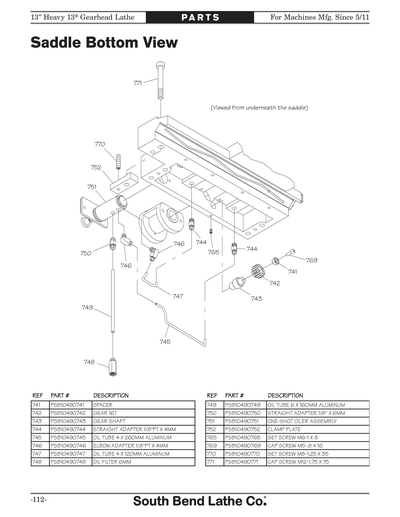

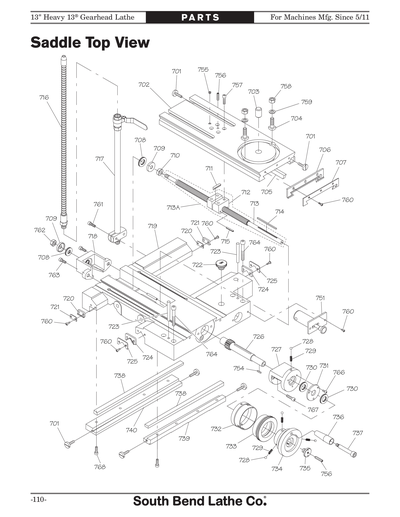

PSB10490701 PSB10490701 GIB ADJUSTMENT SCREW $14.75
PSB10490702 PSB10490702 CROSS SLIDE $1,312.00
PSB10490703 PSB10490703 PIVOT PIN $17.50
PSB10490704 PSB10490704 COMPOUND REST T-BOLT $32.25
PSB10490705 PSB10490705 CROSS SLIDE GIB $200.50
PSB10490706 PSB10490706 SADDLE WAY WIPER $46.50
PSB10490707 PSB10490707 WAY WIPER PLATE $36.50
PSB10490708 PSB10490708 THRUST BEARING NTB/AS2-1226 $33.75
PSB10490709 PSB10490709 BEARING COLLAR $22.00
PSB10490710 PSB10490710 SPACER $14.75
PSB10490711 PSB10490711 WEDGE KEY 7 X 7 X 30 $6.00
PSB10490712 PSB10490712
Replaced By PSB10490713A
LEADSCREW W/NUT ASSEMBLY
N/A View Replacement
PSB10490713 PSB10490713
Replaced By PSB10490713A
LEADSCREW W/NUT ASSEMBLY
N/A View Replacement
PSB10490713A PSB10490713A LEADSCREW W/NUT ASSEMBLY $853.25
PSB10490714 PSB10490714
Replaced By PK168M
KEY 3 X 3 X 80
N/A View Replacement
PSB10490715 PSB10490715
Replaced By PRP28M
ROLL PIN 5 X 40
N/A View Replacement
PSB10490716 PSB10490716 COOLANT NOZZLE 3/8"PT X 24" $130.75
PSB10490717 PSB10490717 COOLANT STAND PIPE W/VALVE 3/8"PT $130.75
PSB10490718 PSB10490718 LEADSCREW END BRACKET $133.00
PSB10490719 PSB10490719 SADDLE $2,927.25
PSB10490720 PSB10490720 STRAIGHT WAY WIPER $19.00
PSB10490721 PSB10490721 STRAIGHT WIPER PLATE $8.75
PSB10490722 PSB10490722 OIL CAP 3/4"NF $8.75
PSB10490723 PSB10490723 TAPER PIN #6 X 2-1/2" $7.50
PSB10490724 PSB10490724 V-WAY WIPER $19.00
PSB10490725 PSB10490725 V-WAY WIPER PLATE $8.75
PSB10490726 PSB10490726 PINION SHAFT $289.75
PSB10490727 PSB10490727 PINION SHAFT BRACKET $340.00
PSB10490728 PSB10490728
Replaced By PSTB001
STEEL BALL 1/4
N/A View Replacement
PSB10490729 PSB10490729 COMPRESSION SPRING 6 X 15 $3.00
PSB10490730 PSB10490730 THRUST BEARING NTB/AS2-1730 $35.00
PSB10490731 PSB10490731 BRACKET END COVER $29.25
PSB10490732 PSB10490732 DIAL RING $211.50
PSB10490733 PSB10490733 GRADUATED DIAL $294.25
PSB10490734 PSB10490734 CARRIAGE HANDWHEEL $244.00
PSB10490735 PSB10490735 HANDWHEEL END CAP M12-1.75 $61.00
PSB10490736 PSB10490736 HANDLE $52.50
PSB10490737 PSB10490737 HANDLE CAP SCREW $30.50
PSB10490738 PSB10490738 SADDLE GIB $104.75
PSB10490739 PSB10490739 FRONT GIB SUPPORT $276.75
PSB10490740 PSB10490740 REAR GIB SUPPORT $390.00
PSB10490741 PSB10490741 SPACER $13.25
PSB10490742 PSB10490742 GEAR 16T $58.25
PSB10490743 PSB10490743 GEAR SHAFT $84.25
PSB10490744 PSB10490744 STRAIGHT ADAPTER 1/8"PT X 4MM $6.25
PSB10490745 PSB10490745 OIL TUBE 4 X 260MM ALUMINUM $75.50
PSB10490746 PSB10490746 ELBOW ADAPTER 1/8"PT X 4MM $10.50
PSB10490747 PSB10490747 OIL TUBE 4 X 120MM ALUMINUM $35.00
PSB10490748 PSB10490748 OIL FILTER 6MM $28.00
PSB10490749 PSB10490749 OIL TUBE 6 X 160MM ALUMINUM $52.50
PSB10490750 PSB10490750 STRAIGHT ADAPTER 1/8" X 6MM $8.75
PSB10490751 PSB10490751 ONE-SHOT OILER ASSEMBLY $631.75
PSB10490752 PSB10490752 CLAMP PLATE $80.00
PSB10490754 PSB10490754
Replaced By PK52M
KEY 3 X 3 X 15
N/A View Replacement
PSB10490755 PSB10490755
Replaced By PLUBE001
BALL OILER 1/4 PRESS-IN
N/A View Replacement
PSB10490756 PSB10490756
Replaced By PSS28M
SET SCREW M6-1 X 30
N/A View Replacement
PSB10490757 PSB10490757
Replaced By PCAP07M
CAP SCREW M6-1 X 30
N/A View Replacement
PSB10490758 PSB10490758
Replaced By PN02M
HEX NUT M10-1.5
N/A View Replacement
PSB10490759 PSB10490759
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
PSB10490760 PSB10490760
Replaced By PS08M
PHLP HD SCR M5-.8 X 12
N/A View Replacement
PSB10490761 PSB10490761
Replaced By PCAP06M
CAP SCREW M6-1 X 25
N/A View Replacement
PSB10490762 PSB10490762
Replaced By PN02M
HEX NUT M10-1.5
N/A View Replacement
PSB10490763 PSB10490763
Replaced By PCAP02M
CAP SCREW M6-1 X 20
N/A View Replacement
PSB10490764 PSB10490764
Replaced By PCAP35M
CAP SCREW M8-1.25 X 60
N/A View Replacement
PSB10490765 PSB10490765
Replaced By PSS03M
SET SCREW M6-1 X 8
N/A View Replacement
PSB10490766 PSB10490766
Replaced By PCAP17M
CAP SCREW M4-.7 X 10
N/A View Replacement
PSB10490767 PSB10490767
Replaced By PCAP02M
CAP SCREW M6-1 X 20
N/A View Replacement
PSB10490768 PSB10490768
Replaced By PCAP02M
CAP SCREW M6-1 X 20
N/A View Replacement
PSB10490769 PSB10490769
Replaced By PCAP24M
CAP SCREW M5-.8 X 16
N/A View Replacement
PSB10490770 PSB10490770
Replaced By PSS74M
SET SCREW M8-1.25 X 35
N/A View Replacement
PSB10490771 PSB10490771
Replaced By PCAP169M
CAP SCREW M12-1.75 X 75
N/A View Replacement

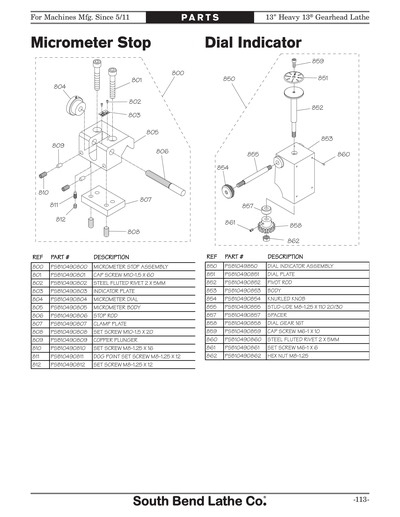

PSB10490800 PSB10490800 MICROMETER STOP ASSEMBLY $612.25
PSB10490801 PSB10490801
Replaced By PCAP71M
CAP SCREW M10-1.5 X 60
N/A View Replacement
PSB10490802 PSB10490802
Replaced By PRIV001M
RIVET 2 X 5MM NAMEPLATE, STEEL
N/A View Replacement
PSB10490803 PSB10490803 INDICATOR PLATE $1.50
PSB10490804 PSB10490804 MICROMETER DIAL $92.75
PSB10490805 PSB10490805 MICROMETER BODY $326.75
PSB10490806 PSB10490806 STOP ROD $65.50
PSB10490807 PSB10490807 CLAMP PLATE $91.50
PSB10490808 PSB10490808
Replaced By PSS10M
SET SCREW M10-1.5 X 20
N/A View Replacement
PSB10490809 PSB10490809 COPPER PLUNGER $4.50
PSB10490810 PSB10490810
Replaced By PSS06M
SET SCREW M8-1.25 X 16
N/A View Replacement
PSB10490811 PSB10490811 DOG PT SET SCR M8-1.25 X 12 $2.50
PSB10490812 PSB10490812
Replaced By PSS14M
SET SCREW M8-1.25 X 12
N/A View Replacement
PSB10490851 PSB10490851 DIAL PLATE $14.75
PSB10490852 PSB10490852 PIVOT ROD $117.75
PSB10490853 PSB10490853 BODY $139.50
PSB10490854 PSB10490854 KNURLED KNOB $46.50
PSB10490855 PSB10490855 STUD-UDE M8-1.25 X 110 20/30 $14.75
PSB10490857 PSB10490857 SPACER $13.25
PSB10490858 PSB10490858 DIAL GEAR 16T $111.25
PSB10490859 PSB10490859
Replaced By PCAP04M
CAP SCREW M6-1 X 10
N/A View Replacement
PSB10490860 PSB10490860
Replaced By PRIV001M
RIVET 2 X 5MM NAMEPLATE, STEEL
N/A View Replacement
PSB10490861 PSB10490861
Replaced By PSS02M
SET SCREW M6-1 X 6
N/A View Replacement
PSB10490862 PSB10490862
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement

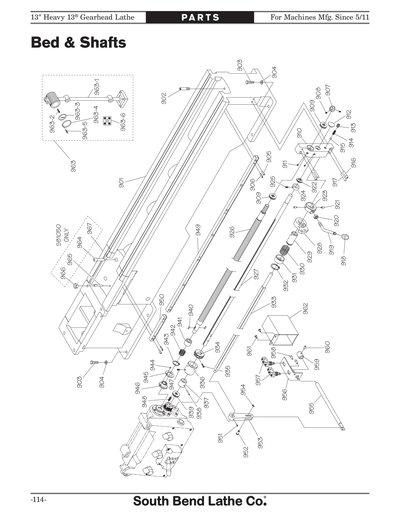

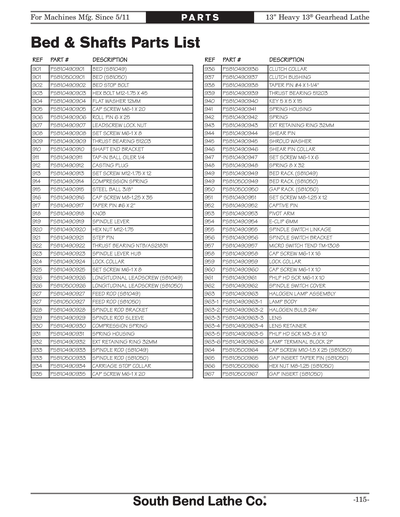

PSB10490901 PSB10490901 BED $8,657.00
PSB10490902 PSB10490902 BED STOP BOLT $11.00
PSB10490903 PSB10490903
Replaced By PB24M
HEX BOLT M12-1.75 X 45
N/A View Replacement
PSB10490904 PSB10490904
Replaced By PW06M
FLAT WASHER 12MM
N/A View Replacement
PSB10490905 PSB10490905
Replaced By PCAP02M
CAP SCREW M6-1 X 20
N/A View Replacement
PSB10490906 PSB10490906
Replaced By PRP93M
ROLL PIN 6 X 25
N/A View Replacement
PSB10490907 PSB10490907 LEADSCREW LOCK NUT $54.50
PSB10490908 PSB10490908
Replaced By PSS03M
SET SCREW M6-1 X 8
N/A View Replacement
PSB10490909 PSB10490909
Replaced By P51203
THRUST BEARING 51203
N/A View Replacement
PSB10490910 PSB10490910 SHAFT END BRACKET $468.50
PSB10490911 PSB10490911
Replaced By PLUBE001
BALL OILER 1/4 PRESS-IN
N/A View Replacement
PSB10490912 PSB10490912 CASTING PLUG $14.75
PSB10490913 PSB10490913
Replaced By PSS15M
SET SCREW M12-1.75 X 12
N/A View Replacement
PSB10490914 PSB10490914 COMPRESSION SPRING $3.00
PSB10490915 PSB10490915
Replaced By PSTB003
STEEL BALL 3/8
N/A View Replacement
PSB10490916 PSB10490916
Replaced By PCAP40M
CAP SCREW M8-1.25 X 35
N/A View Replacement
PSB10490917 PSB10490917 TAPER PIN #6 X 2" $11.75
PSB10490918 PSB10490918 KNOB $58.25
PSB10490919 PSB10490919 SPINDLE LEVER $67.00
PSB10490920 PSB10490920
Replaced By PN09M
HEX NUT M12-1.75
N/A View Replacement
PSB10490921 PSB10490921 STEP PIN $8.75
PSB10490922 PSB10490922 THRUST BEARING NTB/AS21831 $33.50
PSB10490923 PSB10490923 SPINDLE LEVER HUB $149.25
PSB10490924 PSB10490924 LOCK COLLAR $17.50
PSB10490925 PSB10490925
Replaced By PSS03M
SET SCREW M6-1 X 8
N/A View Replacement
PSB10490926 PSB10490926 LONGITUDINAL LEADSCREW $594.75
PSB10490927 PSB10490927 FEED ROD $236.50
PSB10490928 PSB10490928 SPINDLE ROD BRACKET $96.00
PSB10490929 PSB10490929 SPINDLE ROD SLEEVE $86.25
PSB10490930 PSB10490930 COMPRESSION SPRING $20.50
PSB10490931 PSB10490931 SPRING HOUSING $59.75
PSB10490932 PSB10490932
Replaced By PR37M
EXT RETAINING RING 32MM
N/A View Replacement
PSB10490933 PSB10490933 SPINDLE ROD $169.00
PSB10490934 PSB10490934 CARRIAGE STOP COLLAR $97.00
PSB10490935 PSB10490935
Replaced By PCAP02M
CAP SCREW M6-1 X 20
N/A View Replacement
PSB10490936 PSB10490936
Replaced By PSB10490936A
CLUTCH COLLAR ASSEMBLY
N/A View Replacement
PSB10490936A PSB10490936A CLUTCH COLLAR ASSEMBLY $381.25
PSB10490937 PSB10490937
Replaced By PSB10490936A
CLUTCH COLLAR ASSEMBLY
N/A View Replacement
PSB10490938 PSB10490938
Replaced By PSB10490936A
CLUTCH COLLAR ASSEMBLY
N/A View Replacement
PSB10490939 PSB10490939
Replaced By P51203
THRUST BEARING 51203
N/A View Replacement
PSB10490940 PSB10490940
Replaced By PK20M
KEY 5 X 5 X 15
N/A View Replacement
PSB10490941 PSB10490941 SPRING HOUSING $39.25
PSB10490942 PSB10490942 SPRING $10.25
PSB10490943 PSB10490943
Replaced By PR37M
EXT RETAINING RING 32MM
N/A View Replacement
PSB10490944 PSB10490944 SHEAR PIN $11.25
PSB10490945 PSB10490945 SHROUD WASHER $16.00
PSB10490946 PSB10490946 SHEAR PIN COLLAR $78.50
PSB10490947 PSB10490947
Replaced By PSS02M
SET SCREW M6-1 X 6
N/A View Replacement
PSB10490948 PSB10490948 COMPRESSION SPRING 9 X 32 $3.00
PSB10490949 PSB10490949 BED RACK $676.75
PSB10490951 PSB10490951
Replaced By PSS14M
SET SCREW M8-1.25 X 12
N/A View Replacement
PSB10490952 PSB10490952 CAPTIVE PIN $11.75
PSB10490953 PSB10490953 PIVOT ARM $124.25
PSB10490954 PSB10490954
Replaced By PEC09M
E-CLIP 6MM
N/A View Replacement
PSB10490955 PSB10490955 SPINDLE SWITCH LINKAGE $65.50
PSB10490956 PSB10490956 SPINDLE SWITCH BRACKET $65.50
PSB10490957 PSB10490957 MICRO SWITCH TEND TM-1308 $46.50
PSB10490958 PSB10490958
Replaced By PCAP01M
CAP SCREW M6-1 X 16
N/A View Replacement
PSB10490959 PSB10490959 LOCK COLLAR $36.50
PSB10490960 PSB10490960
Replaced By PCAP04M
CAP SCREW M6-1 X 10
N/A View Replacement
PSB10490961 PSB10490961
Replaced By PS68M
PHLP HD SCR M6-1 X 10
N/A View Replacement
PSB10490962 PSB10490962 SPINDLE SWITCH COVER $104.75
PSB10490963 PSB10490963 HALOGEN LAMP ASSEMBLY $329.00
PSB10490963-1 PSB10490963-1 LAMP BODY $163.50
PSB10490963-2 PSB10490963-2
Replaced By PBULB4
HALOGEN BULB OSRAM 24V 70WT H3U
N/A View Replacement
PSB10490963-3 PSB10490963-3 LENS $26.25
PSB10490963-4 PSB10490963-4 LENS RETAINER $26.25
PSB10490963-5 PSB10490963-5
Replaced By PS55M
PHLP HD SCR M3-.5 X 10
N/A View Replacement
PSB10490963-6 PSB10490963-6 LAMP TERMINAL BLOCK 2P $26.25

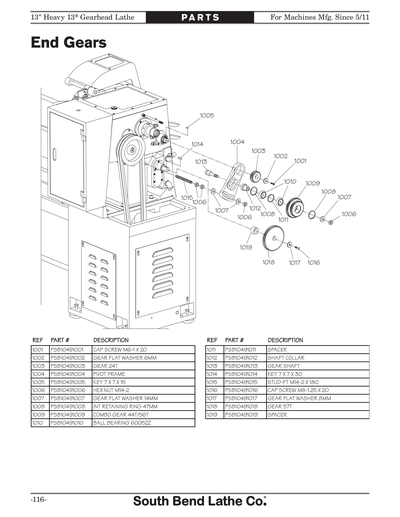

PSB10491001 PSB10491001
Replaced By PCAP02M
CAP SCREW M6-1 X 20
N/A View Replacement
PSB10491002 PSB10491002 GEAR FLAT WASHER 6MM $13.25
PSB10491003 PSB10491003 GEAR 24T $83.00
PSB10491004 PSB10491004 PIVOT FRAME $256.00
PSB10491005 PSB10491005
Replaced By PK166M
KEY 7 X 7 X 15
N/A View Replacement
PSB10491006 PSB10491006
Replaced By PN32M
HEX NUT M14-2
N/A View Replacement
PSB10491007 PSB10491007 GEAR FLAT WASHER 14MM $13.25
PSB10491008 PSB10491008
Replaced By PR25M
INT RETAINING RING 47MM
N/A View Replacement
PSB10491009 PSB10491009 COMBO GEAR 44T/56T $360.00
PSB10491010 PSB10491010
Replaced By P6005ZZ
BALL BEARING 6005ZZ
N/A View Replacement
PSB10491011 PSB10491011 SPACER $24.75
PSB10491012 PSB10491012 SHAFT COLLAR $58.25
PSB10491013 PSB10491013 GEAR SHAFT $75.25
PSB10491014 PSB10491014
Replaced By PK61M
KEY 7 X 7 X 30
N/A View Replacement
PSB10491015 PSB10491015 STUD-FT M14-2 X 180 $19.00
PSB10491016 PSB10491016
Replaced By PCAP14M
CAP SCREW M8-1.25 X 20
N/A View Replacement
PSB10491017 PSB10491017 GEAR FLAT WASHER 8MM $13.25
PSB10491018 PSB10491018 GEAR 57T $193.00
PSB10491019 PSB10491019 SPACER $48.00

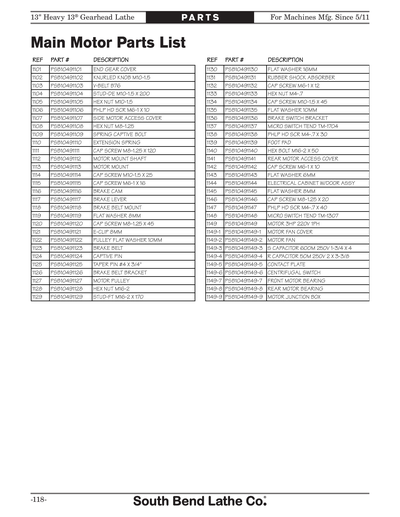

PSB10491101 PSB10491101 END GEAR COVER $906.25
PSB10491102 PSB10491102 KNURLED KNOB M10-1.5 $38.25
PSB10491103 PSB10491103
Replaced By PVB76
V-BELT B76
N/A View Replacement
PSB10491104 PSB10491104 STUD-DE M10-1.5 X 200 $19.75
PSB10491105 PSB10491105
Replaced By PN02M
HEX NUT M10-1.5
N/A View Replacement
PSB10491106 PSB10491106
Replaced By PS68M
PHLP HD SCR M6-1 X 10
N/A View Replacement
PSB10491107 PSB10491107 SIDE MOTOR ACCESS COVER $165.00
PSB10491108 PSB10491108
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
PSB10491109 PSB10491109 SPRING CAPTIVE BOLT $9.00
PSB10491110 PSB10491110 EXTENSION SPRING $25.00
PSB10491111 PSB10491111
Replaced By PCAP191M
CAP SCREW M8-1.25 X 120
N/A View Replacement
PSB10491112 PSB10491112 MOTOR MOUNT SHAFT $52.50
PSB10491113 PSB10491113 MOTOR MOUNT $315.00
PSB10491114 PSB10491114
Replaced By PCAP64M
CAP SCREW M10-1.5 X 25
N/A View Replacement
PSB10491115 PSB10491115
Replaced By PCAP01M
CAP SCREW M6-1 X 16
N/A View Replacement
PSB10491116 PSB10491116 BRAKE CAM $32.25
PSB10491117 PSB10491117 BRAKE LEVER $114.00
PSB10491118 PSB10491118 BRAKE BELT MOUNT $27.00
PSB10491119 PSB10491119
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
PSB10491120 PSB10491120
Replaced By PCAP45M
CAP SCREW M8-1.25 X 45
N/A View Replacement
PSB10491121 PSB10491121
Replaced By PEC015M
E-CLIP 8MM
N/A View Replacement
PSB10491122 PSB10491122 PULLEY FLAT WASHER 10MM $8.25
PSB10491123 PSB10491123 BRAKE BELT $105.00
PSB10491124 PSB10491124 CAPTIVE PIN $18.50
PSB10491125 PSB10491125 TAPER PIN #4 X 45L $4.00
PSB10491126 PSB10491126 BRAKE BELT BRACKET $10.00
PSB10491127 PSB10491127 MOTOR PULLEY $442.50
PSB10491128 PSB10491128
Replaced By PN13M
HEX NUT M16-2
N/A View Replacement
PSB10491129 PSB10491129 STUD-FT M16-2 X 170 $23.25
PSB10491130 PSB10491130
Replaced By PW08M
FLAT WASHER 16MM
N/A View Replacement
PSB10491131 PSB10491131 RUBBER SHOCK ABSORBER $10.00
PSB10491132 PSB10491132
Replaced By PCAP26M
CAP SCREW M6-1 X 12
N/A View Replacement
PSB10491133 PSB10491133
Replaced By PN04M
HEX NUT M4-.7
N/A View Replacement
PSB10491134 PSB10491134
Replaced By PCAP70M
CAP SCREW M10-1.5 X 45
N/A View Replacement
PSB10491135 PSB10491135
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
PSB10491136 PSB10491136 BRAKE SWITCH BRACKET $45.00
PSB10491137 PSB10491137 MICRO SWITCH TEND TM-1704 $25.00
PSB10491138 PSB10491138
Replaced By PS51M
PHLP HD SCR M4-.7 X 30
N/A View Replacement
PSB10491139 PSB10491139 FOOT PAD $17.25
PSB10491140 PSB10491140
Replaced By PB51M
HEX BOLT M16-2 X 50
N/A View Replacement
PSB10491141 PSB10491141 REAR MOTOR ACCESS COVER $120.00
PSB10491142 PSB10491142
Replaced By PCAP04M
CAP SCREW M6-1 X 10
N/A View Replacement
PSB10491143 PSB10491143
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
PSB10491144 PSB10491144 ELECTRICAL CABINET W/DOOR ASSY $663.00
PSB10491145 PSB10491145
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
PSB10491146 PSB10491146
Replaced By PCAP14M
CAP SCREW M8-1.25 X 20
N/A View Replacement
PSB10491147 PSB10491147
Replaced By PS65M
PHLP HD SCR M4-.7 X 40
N/A View Replacement
PSB10491148 PSB10491148 MICRO SWITCH TEND TM-1307 $18.75

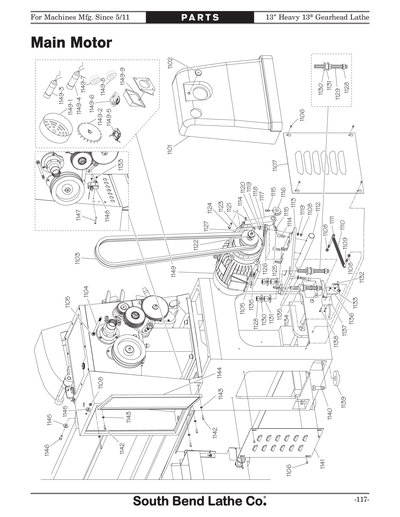

PSB10491149 PSB10491149 MOTOR 3HP 220V 1PH $1,459.00
PSB10491149-1 PSB10491149-1 MOTOR FAN COVER $37.50
PSB10491149-2 PSB10491149-2 MOTOR FAN $10.75
PSB10491149-3 PSB10491149-3 S CAPACITOR 600M 250V 1-3/4 X 4 $84.00
PSB10491149-4 PSB10491149-4 R CAPACITOR 50M 250V 2 X 3-3/8 $90.00
PSB10491149-5 PSB10491149-5
Replaced By PSB10491149-6A
CENTRIFUGAL SWITCH W/CONTACT PLATE
N/A View Replacement
PSB10491149-6 PSB10491149-6
Replaced By PSB10491149-6A
CENTRIFUGAL SWITCH W/CONTACT PLATE
N/A View Replacement
PSB10491149-6A PSB10491149-6A CENTRIFUGAL SWITCH W/CONTACT PLATE $82.50
PSB10491149-7 PSB10491149-7 FRONT MOTOR BEARING $36.00
PSB10491149-8 PSB10491149-8 REAR MOTOR BEARING $18.75
PSB10491149-9 PSB10491149-9 MOTOR JUNCTION BOX $36.00

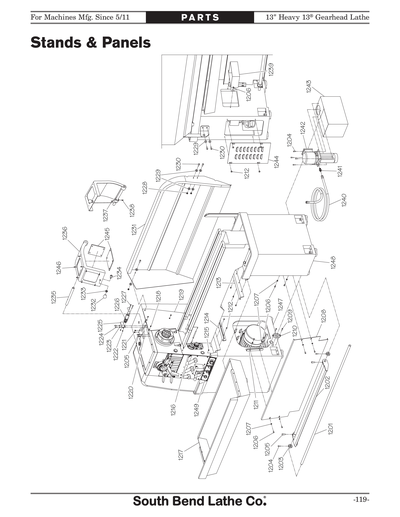

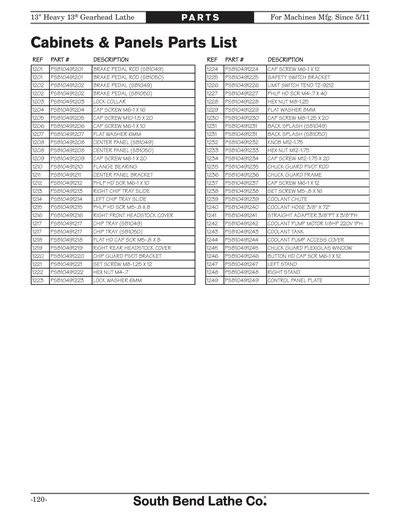

PSB10491201 PSB10491201 BRAKE PEDAL ROD $93.75
PSB10491202 PSB10491202 BRAKE PEDAL $330.00
PSB10491203 PSB10491203 LOCK COLLAR $17.25
PSB10491204 PSB10491204
Replaced By PCAP01M
CAP SCREW M6-1 X 16
N/A View Replacement
PSB10491205 PSB10491205
Replaced By PCAP61M
CAP SCREW M10-1.5 X 20
N/A View Replacement
PSB10491206 PSB10491206
Replaced By PCAP04M
CAP SCREW M6-1 X 10
N/A View Replacement
PSB10491207 PSB10491207
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
PSB10491208 PSB10491208 CENTER PANEL $202.50
PSB10491209 PSB10491209
Replaced By PCAP02M
CAP SCREW M6-1 X 20
N/A View Replacement
PSB10491210 PSB10491210 FLANGE BEARING $46.00
PSB10491211 PSB10491211 CENTER PANEL BRACKET $32.25
PSB10491212 PSB10491212
Replaced By PS68M
PHLP HD SCR M6-1 X 10
N/A View Replacement
PSB10491213 PSB10491213
Replaced By PSB10491217A
CHIP TRAY W/LEFT AND RIGHT SLIDES
N/A View Replacement
PSB10491214 PSB10491214
Replaced By PSB10491217A
CHIP TRAY W/LEFT AND RIGHT SLIDES
N/A View Replacement
PSB10491215 PSB10491215
Replaced By PS05M
PHLP HD SCR M5-.8 X 8
N/A View Replacement
PSB10491216 PSB10491216 RIGHT FRONT HEADSTOCK COVER $120.00
PSB10491217 PSB10491217
Replaced By PSB10491217A
CHIP TRAY W/LEFT AND RIGHT SLIDES
N/A View Replacement
PSB10491217A PSB10491217A CHIP TRAY W/LEFT AND RIGHT SLIDES $539.50
PSB10491218 PSB10491218
Replaced By PFH71M
FLAT HD CAP SCR M5-.8 X 8
N/A View Replacement
PSB10491219 PSB10491219 RIGHT REAR HEADSTOCK COVER $156.00
PSB10491220 PSB10491220 CHIP GUARD PIVOT BRACKET $90.00
PSB10491221 PSB10491221
Replaced By PSS14M
SET SCREW M8-1.25 X 12
N/A View Replacement
PSB10491222 PSB10491222
Replaced By PN04M
HEX NUT M4-.7
N/A View Replacement
PSB10491223 PSB10491223
Replaced By PLW03M
LOCK WASHER 6MM
N/A View Replacement
PSB10491224 PSB10491224
Replaced By PCAP26M
CAP SCREW M6-1 X 12
N/A View Replacement
PSB10491225 PSB10491225 SAFETY SWITCH BRACKET $39.00
PSB10491226 PSB10491226 LIMIT SWITCH TEND TZ-9212 $102.50
PSB10491227 PSB10491227
Replaced By PS65M
PHLP HD SCR M4-.7 X 40
N/A View Replacement
PSB10491228 PSB10491228
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
PSB10491229 PSB10491229
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
PSB10491230 PSB10491230
Replaced By PCAP14M
CAP SCREW M8-1.25 X 20
N/A View Replacement
PSB10491231 PSB10491231 BACK SPLASH $780.00
PSB10491232 PSB10491232 KNOB M12-1.75 $4.00
PSB10491233 PSB10491233
Replaced By PN09M
HEX NUT M12-1.75
N/A View Replacement
PSB10491234 PSB10491234
Replaced By PCAP129M
CAP SCREW M12-1.75 X 20
N/A View Replacement
PSB10491235 PSB10491235 CHUCK GUARD PIVOT ROD $40.00
PSB10491236 PSB10491236 CHUCK GUARD FRAME $490.25
PSB10491237 PSB10491237
Replaced By PCAP26M
CAP SCREW M6-1 X 12
N/A View Replacement
PSB10491238 PSB10491238
Replaced By PSS34M
SET SCREW M5-.8 X 16
N/A View Replacement
PSB10491239 PSB10491239 COOLANT CHUTE $126.50
PSB10491240 PSB10491240 COOLANT HOSE 3/8" X 72" $78.50
PSB10491241 PSB10491241 STRAIGHT ADAPTER 3/8"PT X 3/8"PH $10.50
PSB10491242 PSB10491242 COOLANT PUMP MOTOR 1/8HP 220V 1PH $280.00
PSB10491243 PSB10491243 COOLANT TANK $355.25
PSB10491244 PSB10491244 COOLANT PUMP ACCESS COVER $174.25
PSB10491245 PSB10491245 CHUCK GUARD PLEXIGLAS WINDOW $23.25
PSB10491246 PSB10491246
Replaced By PBHS09M
BUTTON HD CAP SCR M6-1 X 12
N/A View Replacement
PSB10491247 PSB10491247 LEFT STAND $5,079.25
PSB10491248 PSB10491248 RIGHT STAND $4,443.25
PSB10491249 PSB10491249 CONTROL PANEL PLATE $65.50
PSB10491300 PSB10491300 TAILSTOCK ASSEMBLY $4,321.25
PSB10491301 PSB10491301
Replaced By PSB10491301A
TAILSTOCK LEADSCREW W/NUT
N/A View Replacement
PSB10491301A PSB10491301A TAILSTOCK LEADSCREW W/NUT $470.50
PSB10491302 PSB10491302
Replaced By PSB10491301A
TAILSTOCK LEADSCREW W/NUT
N/A View Replacement
PSB10491303 PSB10491303
Replaced By PK34M
KEY 5 X 5 X 20
N/A View Replacement
PSB10491304 PSB10491304 THRUST BEARING NTB/AS2035 $36.50
PSB10491305 PSB10491305 BEARING SEAT $143.75
PSB10491306 PSB10491306
Replaced By PR37M
EXT RETAINING RING 32MM
N/A View Replacement
PSB10491307 PSB10491307 SPACER $55.25
PSB10491308 PSB10491308 GRADUATED RING $196.25
PSB10491309 PSB10491309 HANDWHEEL $277.75
PSB10491310 PSB10491310 HANDWHEEL END CAP $64.00
PSB10491311 PSB10491311 HANDLE CAP SCREW M8-1.25 X 90 $29.25
PSB10491312 PSB10491312 HANDLE $69.75
PSB10491313 PSB10491313 COMPRESSION SPRING 6.2 X 16 $4.50
PSB10491314 PSB10491314
Replaced By PSTB001
STEEL BALL 1/4
N/A View Replacement
PSB10491317 PSB10491317
Replaced By PSB10491317A
TAILSTOCK LOCK LEVER ASSEMBLY
N/A View Replacement
PSB10491317A PSB10491317A TAILSTOCK LOCK LEVER ASSEMBLY $185.25
PSB10491318 PSB10491318
Replaced By PSB10491317A
TAILSTOCK LOCK LEVER ASSEMBLY
N/A View Replacement
PSB10491319 PSB10491319
Replaced By PRP04M
ROLL PIN 4 X 24
N/A View Replacement
PSB10491321 PSB10491321
Replaced By PLUBE001
BALL OILER 1/4 PRESS-IN
N/A View Replacement
PSB10491322 PSB10491322 TAILSTOCK CASTING $1,359.25
PSB10491323 PSB10491323 QUILL $566.50
PSB10491324 PSB10491324 QUILL GUIDE KEY $65.50
PSB10491325 PSB10491325 OFFSET SCALE 2PC $8.75
PSB10491327 PSB10491327 OFFSET ALIGNMENT PIN $20.50
PSB10491328 PSB10491328 ALIGNMENT BLOCK $65.50
PSB10491329 PSB10491329 DOG PT SET SCREW $1.25
PSB10491330 PSB10491330 TAILSTOCK BASE $588.25
PSB10491331 PSB10491331 GIB ADJUSTMENT SCREW $14.75
PSB10491332 PSB10491332 V-WAY WIPER $19.00
PSB10491333 PSB10491333 V-WAY WIPER PLATE $8.75
PSB10491334 PSB10491334 STRAIGHT WAY WIPER PLATE $8.75
PSB10491335 PSB10491335 STRAIGHT WAY WIPER $19.00
PSB10491336 PSB10491336 TAILSTOCK GIB $79.50
PSB10491337 PSB10491337 COMPRESSION SPRING 25 X 45 $14.75
PSB10491338 PSB10491338 CLAMP PLATE $116.75
PSB10491339 PSB10491339 STUD-FT M14-2 X 110 $17.50
PSB10491341 PSB10491341 QUILL LOCK SHAFT 2PC $76.25
PSB10491342 PSB10491342 QUILL LOCK BOLT $105.75
PSB10491343 PSB10491343 QUILL LOCK LEVER $67.00
PSB10491344 PSB10491344 LOCK SHAFT FLAT WASHER 12MM $29.25
PSB10491345 PSB10491345 GUIDE KEY BASE $6.00
PSB10491346 PSB10491346
Replaced By PCAP01M
CAP SCREW M6-1 X 16
N/A View Replacement
PSB10491347 PSB10491347
Replaced By PSS04M
SET SCREW M6-1 X 12
N/A View Replacement
PSB10491348 PSB10491348
Replaced By PCAP128M
CAP SCREW M8-1.25 X 70
N/A View Replacement
PSB10491349 PSB10491349
Replaced By PCAP35M
CAP SCREW M8-1.25 X 60
N/A View Replacement
PSB10491350 PSB10491350
Replaced By PCAP68M
CAP SCREW M6-1 X 8
N/A View Replacement
PSB10491351 PSB10491351
Replaced By PCAP01M
CAP SCREW M6-1 X 16
N/A View Replacement
PSB10491352 PSB10491352
Replaced By PS08M
PHLP HD SCR M5-.8 X 12
N/A View Replacement
PSB10491353 PSB10491353
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
PSB10491354 PSB10491354
Replaced By PCAP47M
CAP SCREW M10-1.5 X 40
N/A View Replacement
PSB10491355 PSB10491355
Replaced By PW10M
FLAT WASHER 14MM
N/A View Replacement
PSB10491356 PSB10491356
Replaced By PN32M
HEX NUT M14-2
N/A View Replacement
PSB10491357 PSB10491357
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
PSB10491358 PSB10491358
Replaced By PRIV001M
RIVET 2 X 5MM NAMEPLATE, STEEL
N/A View Replacement
PSB10491359 PSB10491359
Replaced By PLW06M
LOCK WASHER 10MM
N/A View Replacement
PSB10491400 PSB10491400 STEADY REST ASSEMBLY $1,361.00
PSB10491401 PSB10491401 FINGER ADJUSTMENT KNOB $43.75
PSB10491402 PSB10491402
Replaced By PRP51M
ROLL PIN 4 X 40
N/A View Replacement
PSB10491403 PSB10491403 SPACER $35.00
PSB10491404 PSB10491404 FINGER SCREW $38.00
PSB10491405 PSB10491405 FINGER $130.75
PSB10491406 PSB10491406 DOWEL PIN $8.75
PSB10491407 PSB10491407
Replaced By P627ZZ
BALL BEARING 627ZZ
N/A View Replacement
PSB10491408 PSB10491408
Replaced By PSS20M
SET SCREW M8-1.25 X 8
N/A View Replacement
PSB10491409 PSB10491409 KNURLED KNOB $49.50
PSB10491410 PSB10491410 CLAMPING SCREW $20.50
PSB10491411 PSB10491411 DOWEL PIN $20.50
PSB10491414 PSB10491414 HINGE PIN $20.50
PSB10491415 PSB10491415 DOG PT LEAF SCREW $14.75
PSB10491416 PSB10491416
Replaced By PN09M
HEX NUT M12-1.75
N/A View Replacement
PSB10491417 PSB10491417
Replaced By PLW05M
LOCK WASHER 12MM
N/A View Replacement
PSB10491418 PSB10491418 STUD-FT M12-1.75 X 75 $46.50
PSB10491419 PSB10491419 CLAMP PLATE $196.25
PSB10491450 PSB10491450 FOLLOW REST ASSEMBLY $604.25
PSB10491451 PSB10491451 FINGER ADJUSTMENT KNOB $43.75
PSB10491452 PSB10491452
Replaced By PRP51M
ROLL PIN 4 X 40
N/A View Replacement
PSB10491453 PSB10491453 SPACER $35.00
PSB10491454 PSB10491454 FINGER SCREW $29.25
PSB10491455 PSB10491455 FINGER $69.75
PSB10491456 PSB10491456 FINGER BRASS TIP $35.00
PSB10491457 PSB10491457
Replaced By PSS20M
SET SCREW M8-1.25 X 8
N/A View Replacement
PSB10491501 PSB10491501 ELECTRICAL CABINET BACK PLATE $174.25
PSB10491502 PSB10491502 CONTACTOR AB C09400 220V $76.25
PSB10491503 PSB10491503 MASTER POWER SWITCH GZ SE16 $93.00
PSB10491504 PSB10491504 OL RELAY AB 193T1AC25 21-25A $167.00
PSB10491505 PSB10491505 OL RELAY AB 193T1AB10 0.75-1A $152.50
PSB10491506 PSB10491506
Replaced By PSB10531606
CIRCUIT BREAKER 25A AB 1492-SP D25 3P
N/A View Replacement
PSB10491507 PSB10491507
Replaced By PSB10531607
CIRCUIT BREAKER 6A AB 1489-A D6 1P
N/A View Replacement
PSB10491508 PSB10491508 TRANSFORMER TBSW11 140VA 220/440-24/220V $130.75
PSB10491509 PSB10491509 TERMINAL BLOCK MACK IN20C 3-POST $8.00
PSB10491510 PSB10491510 TERMINAL BLOCK MACK IN13C 3-POST $6.00
PSB10491511 PSB10491511 STOP BUTTON ASSEMBLY $48.00
PSB10491512 PSB10491512
Replaced By PSB10122221
JOG BUTTON AB 800FP-F3 22MM GRN
N/A View Replacement
PSB10491513 PSB10491513 COOLANT PUMP SWITCH ASSEMBLY $34.00
PSB10491514 PSB10491514
Replaced By PSB10122219
POWER INDICATOR LIGHT AB 800FD P7N3 22MM
N/A View Replacement
PSB10491515 PSB10491515 FUSE HOLDER W/4A FUSE $2.00
PSB10491516 PSB10491516 FUSE HOLDER W/0.5 FUSE $1.00
PSB10491517 PSB10491517 CONTACTOR AB C2301 220V $203.50
PSB10491552 PSB10491552
Replaced By SB1308
7" High Precision 3 Jaw Scroll Chuck
N/A View Replacement
PSB10491553 PSB10491553 FACEPLATE ASSEMBLY 10" $708.00
PSB10491553-1 PSB10491553-1 FACEPLATE BODY 10" $572.00
PSB10491553-2 PSB10491553-2 FACEPLATE CAMLOCK STUD SET $157.00
PSB10491554 PSB10491554
