Parts for SB1054F - 16" x 40" Gearhead Lathe with DRO

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref # Part # Description Price Qty
PSB1054F0001 PSB1054F0001
Replaced By PSB10530001
OIL FILL CAP
 N/A View Replacement
PSB1054F0002 PSB1054F0002
Replaced By PCAP194M
CAP SCREW M6-1 X 16 CHROME
 N/A View Replacement
PSB1054F0003 PSB1054F0003
Replaced By PSB10530003
HEADSTOCK COVER
 N/A View Replacement
PSB1054F0004 PSB1054F0004
Replaced By PSB10530004
HEADSTOCK COVER SEAL
 N/A View Replacement
PSB1054F0005 PSB1054F0005
Replaced By PSB10530005
HEADSTOCK CATCH TRAY
 N/A View Replacement
PSB1054F0006 PSB1054F0006
Replaced By PCAP04M
CAP SCREW M6-1 X 10
 N/A View Replacement
PSB1054F0007 PSB1054F0007
Replaced By PSB10530007
MAGNET
 N/A View Replacement
PSB1054F0008 PSB1054F0008
Replaced By PSB10530008
HEADSTOCK FRONT PANEL
 N/A View Replacement
PSB1054F0009 PSB1054F0009
Replaced By PRIV001M
RIVET 2 X 5MM NAMEPLATE, STEEL
 N/A View Replacement
PSB1054F0010 PSB1054F0010
Replaced By PSS30M
SET SCREW M10-1.5 X 10
 N/A View Replacement
PSB1054F0011 PSB1054F0011
Replaced By PSB10530011
THREADED INSERT M10-1.5
 N/A View Replacement
PSB1054F0012 PSB1054F0012
Replaced By PSB10530012
THREADED INSERT M10-1.5
 N/A View Replacement
PSB1054F0013 PSB1054F0013
Replaced By PSB10530013
COMPRESSION SPRING 8 X 37MM
 N/A View Replacement
PSB1054F0014 PSB1054F0014
Replaced By PSB10530014
COMPRESSION SPRING 8 X 52.5MM
 N/A View Replacement
PSB1054F0015 PSB1054F0015
Replaced By PSTB001M
STEEL BALL 8.5MM
 N/A View Replacement
PSB1054F0016 PSB1054F0016
Replaced By PORP016
O-RING 15.8 X 2.4 P16
 N/A View Replacement
PSB1054F0017 PSB1054F0017
Replaced By PSB10530017
SHIFT ROCKER ARM
 N/A View Replacement
PSB1054F0018 PSB1054F0018
Replaced By PR03M
EXT RETAINING RING 12MM
 N/A View Replacement
PSB1054F0019 PSB1054F0019
Replaced By PSB10530019
SHIFT FORK
 N/A View Replacement
PSB1054F0020 PSB1054F0020
Replaced By PRP31M
ROLL PIN 6 X 36
 N/A View Replacement
PSB1054F0021 PSB1054F0021
Replaced By PSB10530021
SHIFT ROD
 N/A View Replacement
PSB1054F0022 PSB1054F0022
Replaced By PRP32M
ROLL PIN 6 X 40
 N/A View Replacement
PSB1054F0023 PSB1054F0023
Replaced By PSB10530023
SHIFT ROD BRACKET
 N/A View Replacement
PSB1054F0024 PSB1054F0024
Replaced By PK01M
KEY 5 X 5 X 22
 N/A View Replacement
PSB1054F0025 PSB1054F0025
Replaced By PRP105M
ROLL PIN 3 X 24
 N/A View Replacement
PSB1054F0026 PSB1054F0026
Replaced By PSB1053027
N/A View Replacement
PSB1054F0027 PSB1054F0027
Replaced By PSB10530027
SHIFT LEVER W/HUB
 N/A View Replacement
PSB1054F0028 PSB1054F0028
Replaced By PSB10530028
HUB RETAINING WASHER
 N/A View Replacement
PSB1054F0029 PSB1054F0029
Replaced By PCAP01M
CAP SCREW M6-1 X 16
 N/A View Replacement
PSB1054F0030 PSB1054F0030
Replaced By PSB10530030
SHIFT ROCKER ARM
 N/A View Replacement
PSB1054F0031 PSB1054F0031
Replaced By PSB10530031
SHIFT FORK
 N/A View Replacement
PSB1054F0032 PSB1054F0032
Replaced By PSB10530032
SHIFT ROD BRACKET
 N/A View Replacement
PSB1054F0033 PSB1054F0033
Replaced By PSB10530033
SHIFT FORK
 N/A View Replacement
PSB1054F0034 PSB1054F0034
Replaced By PSB10530034
SHIFT FORK
 N/A View Replacement
PSB1054F0035 PSB1054F0035
Replaced By PR05M
EXT RETAINING RING 15MM
 N/A View Replacement
PSB1054F0036 PSB1054F0036
Replaced By PSB10530036
SHIFT ROCKER ARM
 N/A View Replacement
PSB1054F0037 PSB1054F0037
Replaced By PEC015M
E-CLIP 8MM
 N/A View Replacement
PSB1054F0038 PSB1054F0038
Replaced By PK12M
KEY 5 X 5 X 30
 N/A View Replacement
PSB1054F0039 PSB1054F0039
Replaced By PSB10530039
SHIFT ROD
 N/A View Replacement
PSB1054F0040 PSB1054F0040
Replaced By PK164M
KEY 5 X 5 X 17
 N/A View Replacement
PSB1054F0041 PSB1054F0041
Replaced By PSTB001
STEEL BALL 1/4
 N/A View Replacement
PSB1054F0042 PSB1054F0042
Replaced By PSB10530042
SHIFT HUB
 N/A View Replacement
PSB1054F0043 PSB1054F0043
Replaced By PSB10530043
SHIFT LEVER
 N/A View Replacement
PSB1054F0044 PSB1054F0044
Replaced By PSB10530044
COMPRESSION SPRING 6 X 27.5MM
 N/A View Replacement
PSB1054F0045 PSB1054F0045
Replaced By PSS20M
SET SCREW M8-1.25 X 8
 N/A View Replacement
PSB1054F0046 PSB1054F0046
Replaced By PSB10530046
HUB RETAINING WASHER
 N/A View Replacement
PSB1054F0047 PSB1054F0047
Replaced By PSB10390055
OIL SIGHT GLASS 3/4"
 N/A View Replacement
PSB1054F0048 PSB1054F0048
Replaced By PLW05M
LOCK WASHER 12MM
 N/A View Replacement
PSB1054F0049 PSB1054F0049
Replaced By PCAP92M
CAP SCREW M12-1.75 X 40
 N/A View Replacement
PSB1054F0055 PSB1054F0055
Replaced By PSB10530055
HOUSING PLUG
 N/A View Replacement
PSB1054F0056 PSB1054F0056
Replaced By PORG050
O-RING 49.4 X 3.1 G50
 N/A View Replacement
PSB1054F0057 PSB1054F0057
Replaced By PR38M
INT RETAINING RING 62MM
 N/A View Replacement
PSB1054F0058 PSB1054F0058
Replaced By P6206-OPEN
BALL BEARING 6206-OPEN
 N/A View Replacement
PSB1054F0059 PSB1054F0059
Replaced By PR31M
EXT RETAINING RING 38MM
 N/A View Replacement
PSB1054F0060 PSB1054F0060
Replaced By PSB10530062A
GEAR ASSEMBLY 24/67T
 N/A View Replacement
PSB1054F0061 PSB1054F0061
Replaced By PK175M
KEY 10 X 6 X 20
 N/A View Replacement
PSB1054F0062 PSB1054F0062
Replaced By PSB10530062A
GEAR ASSEMBLY 24/67T
 N/A View Replacement
PSB1054F0062A PSB1054F0062A
Replaced By PSB10530062A
GEAR ASSEMBLY 24/67T
 N/A View Replacement
PSB1054F0063 PSB1054F0063
Replaced By PR76M
EXT RETAINING RING 52MM
 N/A View Replacement
PSB1054F0064 PSB1054F0064
Replaced By PSB10530064
GEAR COLLAR
 N/A View Replacement
PSB1054F0065 PSB1054F0065
Replaced By PSB10530065
BUSHING
 N/A View Replacement
PSB1054F0066 PSB1054F0066
Replaced By PR78M
EXT RETAINING RING 55MM
 N/A View Replacement
PSB1054F0067 PSB1054F0067
Replaced By PSB10530070A
GEAR ASSEMBLY 38/46/50/30T
 N/A View Replacement
PSB1054F0068 PSB1054F0068
Replaced By PSB10530070A
GEAR ASSEMBLY 38/46/50/30T
 N/A View Replacement
PSB1054F0069 PSB1054F0069
Replaced By PSB10530070A
GEAR ASSEMBLY 38/46/50/30T
 N/A View Replacement
PSB1054F0070 PSB1054F0070
Replaced By PSB10530070A
GEAR ASSEMBLY 38/46/50/30T
 N/A View Replacement
PSB1054F0070A PSB1054F0070A
Replaced By PSB10530070A
GEAR ASSEMBLY 38/46/50/30T
 N/A View Replacement
PSB1054F0071 PSB1054F0071
Replaced By PK176M
KEY 7 X 7 X 70
 N/A View Replacement
PSB1054F0072 PSB1054F0072
Replaced By PSB10530072
DRIVE SHAFT
 N/A View Replacement
PSB1054F0073 PSB1054F0073
Replaced By P6205-OPEN
BALL BEARING 6205-OPEN
 N/A View Replacement
PSB1054F0074 PSB1054F0074
Replaced By PR11M
EXT RETAINING RING 25MM
 N/A View Replacement
PSB1054F0075 PSB1054F0075
Replaced By PSB10530075
BEARING SEAT
 N/A View Replacement
PSB1054F0076 PSB1054F0076
HEADSTOCK HOUSING
 N/A
PSB1054F0077 PSB1054F0077
Replaced By PR15M
EXT RETAINING RING 30MM
 N/A View Replacement
PSB1054F0078 PSB1054F0078
Replaced By PSB10530078
GEAR 30T
 N/A View Replacement
PSB1054F0079 PSB1054F0079
Replaced By PSB10530079
GEAR 22T
 N/A View Replacement
PSB1054F0080 PSB1054F0080
Replaced By PK66M
KEY 7 X 7 X 55
 N/A View Replacement
PSB1054F0081 PSB1054F0081
Replaced By PSB10530081
GEAR SHAFT 18T
 N/A View Replacement
PSB1054F0082 PSB1054F0082
Replaced By PK177M
KEY 7 X 7 X 16
 N/A View Replacement
PSB1054F0083 PSB1054F0083
Replaced By PK62M
KEY 7 X 7 X 45
 N/A View Replacement
PSB1054F0084 PSB1054F0084
Replaced By PSB10530084
GEAR 38T
 N/A View Replacement
PSB1054F0085 PSB1054F0085
Replaced By P6206-2RS
BALL BEARING 6206-2RS
 N/A View Replacement
PSB1054F0086 PSB1054F0086
Replaced By PORG085
O-RING 84.4 X 3.1 G85
 N/A View Replacement
PSB1054F0087 PSB1054F0087
Replaced By PSB10530087
FLANGED BEARING
 N/A View Replacement
PSB1054F0088 PSB1054F0088
Replaced By PSB10530088
OIL SEAL 305008
 N/A View Replacement
PSB1054F0089 PSB1054F0089
Replaced By PSB10530089
SPINDLE PULLEY
 N/A View Replacement
PSB1054F0090 PSB1054F0090
Replaced By PSB10530090
PULLEY RETAINING WASHER
 N/A View Replacement
PSB1054F0091 PSB1054F0091
Replaced By PLW04M
LOCK WASHER 8MM
 N/A View Replacement
PSB1054F0092 PSB1054F0092
Replaced By PCAP31M
CAP SCREW M8-1.25 X 25
 N/A View Replacement
PSB1054F0093 PSB1054F0093
Replaced By PSB10530093
SPINDLE NOSE STEP BOLT
 N/A View Replacement
PSB1054F0094 PSB1054F0094
Replaced By PSB10530094
SPINDLE D1-6 MT#6
 N/A View Replacement
PSB1054F0095 PSB1054F0095
Replaced By PSB10530095
CAMLOCK SPRING
 N/A View Replacement
PSB1054F0096 PSB1054F0096
Replaced By PSB10530096
CAMLOCK
 N/A View Replacement
PSB1054F0097 PSB1054F0097
Replaced By PK162M
KEY 10 X 6 X 85
 N/A View Replacement
PSB1054F0098 PSB1054F0098
Replaced By PK28M
KEY 7 X 7 X 29
 N/A View Replacement
PSB1054F0099 PSB1054F0099
Replaced By PCAP48M
CAP SCREW M6-1 X 35
 N/A View Replacement
PSB1054F0100 PSB1054F0100
Replaced By PSB10530100
SPINDLE BEARING FRONT COVER
 N/A View Replacement
PSB1054F0101 PSB1054F0101
Replaced By PSB10530101
FRONT BEARING COVER GASKET
 N/A View Replacement
PSB1054F0102 PSB1054F0102
Replaced By P32019-T
TAPER BEARING 32019 NTN
 N/A View Replacement
PSB1054F0103 PSB1054F0103
Replaced By PSB10530103
GEAR 79T
 N/A View Replacement
PSB1054F0104 PSB1054F0104
Replaced By PSB10530104
GEAR 36T
 N/A View Replacement
PSB1054F0105 PSB1054F0105
Replaced By P30214-T
TAPERED BEARING 30214 NTN
 N/A View Replacement
PSB1054F0106 PSB1054F0106
Replaced By PSB10530106
SPANNER NUT YSR70
 N/A View Replacement
PSB1054F0107 PSB1054F0107
Replaced By PR13M
EXT RETAINING RING 65MM
 N/A View Replacement
PSB1054F0108 PSB1054F0108
Replaced By PSB10530108
GEAR 42T
 N/A View Replacement
PSB1054F0109 PSB1054F0109
Replaced By P6013-OPEN
BALL BEARING 6013 OPEN
 N/A View Replacement
PSB1054F0110 PSB1054F0110
Replaced By PSB10530110
REAR SPINDLE COVER GASKET
 N/A View Replacement
PSB1054F0111 PSB1054F0111
Replaced By PSB10530111
REAR SPINDLE COVER
 N/A View Replacement
PSB1054F0116 PSB1054F0116
Replaced By PSB10530116
GEAR FLAT WASHER
 N/A View Replacement
PSB1054F0117 PSB1054F0117
Replaced By PSB10530118A
GEAR ASSEMBLY 21/42T
 N/A View Replacement
PSB1054F0118 PSB1054F0118
Replaced By PSB10530118A
GEAR ASSEMBLY 21/42T
 N/A View Replacement
PSB1054F0118A PSB1054F0118A
Replaced By PSB10530118A
GEAR ASSEMBLY 21/42T
 N/A View Replacement
PSB1054F0119 PSB1054F0119
Replaced By PK144M
KEY 6 X 6 X 16
 N/A View Replacement
PSB1054F0120 PSB1054F0120
Replaced By PR12M
EXT RETAINING RING 35MM
 N/A View Replacement
PSB1054F0121 PSB1054F0121
Replaced By PORP021
O-RING 20.8 X 2.4 P21
 N/A View Replacement
PSB1054F0122 PSB1054F0122
Replaced By PSB10530122
GEAR SHAFT
 N/A View Replacement
PSB1054F0123 PSB1054F0123
Replaced By PSB10530123
SHAFT FLAT WASHER
 N/A View Replacement
PSB1054F0124 PSB1054F0124
Replaced By PSB10530124A
GEAR ASSEMBLY 21/42T
 N/A View Replacement
PSB1054F0124A PSB1054F0124A
Replaced By PSB10530124A
GEAR ASSEMBLY 21/42T
 N/A View Replacement
PSB1054F0125 PSB1054F0125
Replaced By PSB10530124A
GEAR ASSEMBLY 21/42T
 N/A View Replacement
PSB1054F0126 PSB1054F0126
Replaced By PSB10530126
THRUST WASHER
 N/A View Replacement
PSB1054F0127 PSB1054F0127
Replaced By PSB10530127
GEAR SHAFT
 N/A View Replacement
PSB1054F0128 PSB1054F0128
Replaced By PR09M
EXT RETAINING RING 20MM
 N/A View Replacement
PSB1054F0129 PSB1054F0129
Replaced By PSB10530129
GEAR 21T
 N/A View Replacement
PSB1054F0130 PSB1054F0130
Replaced By PSB10530130
GEAR SHAFT
 N/A View Replacement
PSB1054F0131 PSB1054F0131
Replaced By PSB10530131
GEAR 21T
 N/A View Replacement
PSB1054F0132 PSB1054F0132
Replaced By PSB10530132
THRUST WASHER
 N/A View Replacement
PSB1054F0133 PSB1054F0133
Replaced By PSB10530133
NEEDLE BEARING RNA 6904
 N/A View Replacement
PSB1054F0134 PSB1054F0134
Replaced By PSB10530134
GEAR SHAFT
 N/A View Replacement
PSB1054F0135 PSB1054F0135
Replaced By PORP044
O-RING 43.7 X 3.5 P44
 N/A View Replacement
PSB1054F0136 PSB1054F0136
Replaced By PSB10530136
FLANGED BEARING
 N/A View Replacement
PSB1054F0137 PSB1054F0137
Replaced By PCAP26M
CAP SCREW M6-1 X 12
 N/A View Replacement
PSB1054F0138 PSB1054F0138
Replaced By PSB10530138
OIL SEAL 28 X 44 X 7MM
 N/A View Replacement
PSB1054F0139 PSB1054F0139
Replaced By PSB10120127
OIL SEAL 28 X 44 X 7
 N/A View Replacement

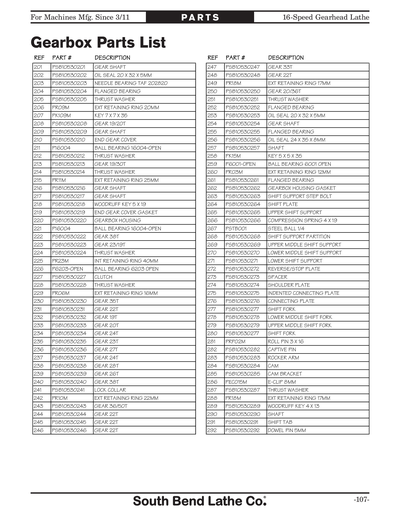

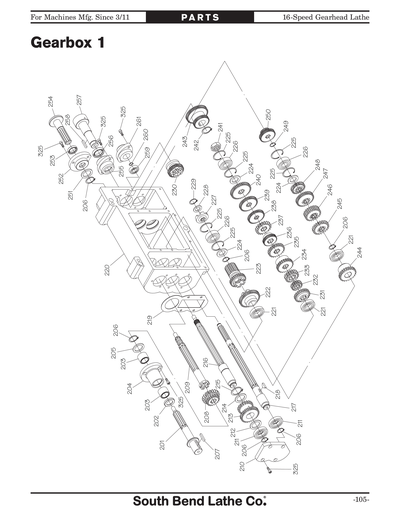

PSB1054F0201 PSB1054F0201
Replaced By PSB10530201
GEAR SHAFT
 N/A View Replacement
PSB1054F0202 PSB1054F0202
Replaced By PSB10120202
OIL SEAL 20 X 32 X 5
 N/A View Replacement
PSB1054F0203 PSB1054F0203
Replaced By PSB10530203
NEEDLE BEARING TAF 202820
 N/A View Replacement
PSB1054F0204 PSB1054F0204
Replaced By PSB10530204
FLANGED BEARING
 N/A View Replacement
PSB1054F0205 PSB1054F0205
Replaced By PSB10530205
THRUST WASHER
 N/A View Replacement
PSB1054F0206 PSB1054F0206
Replaced By PR09M
EXT RETAINING RING 20MM
 N/A View Replacement
PSB1054F0207 PSB1054F0207
Replaced By PK109M
KEY 7 X 7 X 35
 N/A View Replacement
PSB1054F0208 PSB1054F0208
Replaced By PSB10530208
GEAR 19/20T
 N/A View Replacement
PSB1054F0209 PSB1054F0209
Replaced By PSB10530209
GEAR SHAFT
 N/A View Replacement
PSB1054F0210 PSB1054F0210
Replaced By PSB10530210
END GEAR COVER
 N/A View Replacement
PSB1054F0211 PSB1054F0211
Replaced By P16004ZZ
BALL BEARING 16004ZZ
 N/A View Replacement
PSB1054F0212 PSB1054F0212
Replaced By PSB10530212
THRUST WASHER
 N/A View Replacement
PSB1054F0213 PSB1054F0213
Replaced By PSB10530213
GEAR 19/30T
 N/A View Replacement
PSB1054F0214 PSB1054F0214
Replaced By PSB10530214
THRUST WASHER
 N/A View Replacement
PSB1054F0215 PSB1054F0215
Replaced By PR11M
EXT RETAINING RING 25MM
 N/A View Replacement
PSB1054F0216 PSB1054F0216
Replaced By PSB10530216
GEAR SHAFT
 N/A View Replacement
PSB1054F0217 PSB1054F0217
Replaced By PSB10530217
GEAR SHAFT
 N/A View Replacement
PSB1054F0218 PSB1054F0218
Replaced By PSB10530218
WOODRUFF KEY 5 X 19
 N/A View Replacement
PSB1054F0219 PSB1054F0219
Replaced By PSB10530219
END GEAR COVER GASKET
 N/A View Replacement
PSB1054F0220 PSB1054F0220
Replaced By PSB10530220
GEARBOX HOUSING
 N/A View Replacement
PSB1054F0221 PSB1054F0221
Replaced By P16004ZZ
BALL BEARING 16004ZZ
 N/A View Replacement
PSB1054F0222 PSB1054F0222
Replaced By PSB10530222
GEAR 38T
 N/A View Replacement
PSB1054F0223 PSB1054F0223
Replaced By PSB10530223
GEAR 23/19T
 N/A View Replacement
PSB1054F0224 PSB1054F0224
Replaced By PSB10530224
THRUST WASHER
 N/A View Replacement
PSB1054F0225 PSB1054F0225
Replaced By PR23M
INT RETAINING RING 40MM
 N/A View Replacement
PSB1054F0226 PSB1054F0226
Replaced By P6203-OPEN
BALL BEARING 6203-OPEN
 N/A View Replacement
PSB1054F0227 PSB1054F0227
Replaced By PSB10530227
CLUTCH
 N/A View Replacement
PSB1054F0228 PSB1054F0228
Replaced By PSB10530228
THRUST WASHER
 N/A View Replacement
PSB1054F0229 PSB1054F0229
Replaced By PR06M
EXT RETAINING RING 16MM
 N/A View Replacement
PSB1054F0230 PSB1054F0230
Replaced By PSB10530230
GEAR 35T
 N/A View Replacement
PSB1054F0231 PSB1054F0231
Replaced By PSB10530231
GEAR 22T
 N/A View Replacement
PSB1054F0232 PSB1054F0232
Replaced By PSB10530232
GEAR 19T
 N/A View Replacement
PSB1054F0233 PSB1054F0233
Replaced By PSB10530233
GEAR 20T
 N/A View Replacement
PSB1054F0234 PSB1054F0234
Replaced By PSB10530234
GEAR 24T
 N/A View Replacement
PSB1054F0235 PSB1054F0235
Replaced By PSB10530235
GEAR 23T
 N/A View Replacement
PSB1054F0236 PSB1054F0236
Replaced By PSB10530236
GEAR 27T
 N/A View Replacement
PSB1054F0237 PSB1054F0237
Replaced By PSB10530237
GEAR 24T
 N/A View Replacement
PSB1054F0238 PSB1054F0238
Replaced By PSB10530238
GEAR 28T
 N/A View Replacement
PSB1054F0239 PSB1054F0239
Replaced By PSB10530239
GEAR 26T
 N/A View Replacement
PSB1054F0240 PSB1054F0240
Replaced By PSB10530240
GEAR 38T
 N/A View Replacement
PSB1054F0241 PSB1054F0241
Replaced By PSB10530241
LOCK COLLAR
 N/A View Replacement
PSB1054F0242 PSB1054F0242
Replaced By PR10M
EXT RETAINING RING 22MM
 N/A View Replacement
PSB1054F0243 PSB1054F0243
Replaced By PSB10530243
GEAR 36/50T
 N/A View Replacement
PSB1054F0244 PSB1054F0244
Replaced By PSB10530244
GEAR 22T
 N/A View Replacement
PSB1054F0245 PSB1054F0245
Replaced By PSB10530245
GEAR 22T
 N/A View Replacement
PSB1054F0246 PSB1054F0246
Replaced By PSB10530246
GEAR 22T
 N/A View Replacement
PSB1054F0247 PSB1054F0247
Replaced By PSB10530247
GEAR 33T
 N/A View Replacement
PSB1054F0248 PSB1054F0248
Replaced By PSB10530248
GEAR 22T
 N/A View Replacement
PSB1054F0249 PSB1054F0249
Replaced By PR18M
EXT RETAINING RING 17MM
 N/A View Replacement
PSB1054F0250 PSB1054F0250
Replaced By PSB10530250
GEAR 20/36T
 N/A View Replacement
PSB1054F0251 PSB1054F0251
Replaced By PSB10530251
THRUST WASHER
 N/A View Replacement
PSB1054F0252 PSB1054F0252
Replaced By PSB10530252
FLANGED BEARING
 N/A View Replacement
PSB1054F0253 PSB1054F0253
Replaced By PSB10120202
OIL SEAL 20 X 32 X 5
 N/A View Replacement
PSB1054F0254 PSB1054F0254
Replaced By PSB10530254
GEAR SHAFT
 N/A View Replacement
PSB1054F0255 PSB1054F0255
Replaced By PSB10530255
FLANGED BEARING
 N/A View Replacement
PSB1054F0256 PSB1054F0256
Replaced By PSB10120256
OIL SEAL 24 X 35 X 8
 N/A View Replacement
PSB1054F0257 PSB1054F0257
Replaced By PSB10530257
SHAFT
 N/A View Replacement
PSB1054F0258 PSB1054F0258
Replaced By PK15M
KEY 5 X 5 X 35
 N/A View Replacement
PSB1054F0259 PSB1054F0259
Replaced By P6001-OPEN
BALL BEARING 6001-OPEN
 N/A View Replacement
PSB1054F0260 PSB1054F0260
Replaced By PR03M
EXT RETAINING RING 12MM
 N/A View Replacement
PSB1054F0261 PSB1054F0261
Replaced By PSB10530261
FLANGED BEARING
 N/A View Replacement
PSB1054F0262 PSB1054F0262
Replaced By PSB10530262
GEARBOX HOUSING GASKET
 N/A View Replacement
PSB1054F0263 PSB1054F0263
Replaced By PSB10530263
SHIFT SUPPORT STEP BOLT
 N/A View Replacement
PSB1054F0264 PSB1054F0264
Replaced By PSB10530264
SHIFT PLATE
 N/A View Replacement
PSB1054F0265 PSB1054F0265
Replaced By PSB10530265
UPPER SHIFT SUPPORT
 N/A View Replacement
PSB1054F0266 PSB1054F0266
Replaced By PSB10530266
COMPRESSION SPRING 4 X 19
 N/A View Replacement
PSB1054F0267 PSB1054F0267
Replaced By PSTB001
STEEL BALL 1/4
 N/A View Replacement
PSB1054F0268 PSB1054F0268
Replaced By PSB10530268
SHIFT SUPPORT PARTITION
 N/A View Replacement
PSB1054F0269 PSB1054F0269
Replaced By PSB10530269
UPPER MIDDLE SHIFT SUPPORT
 N/A View Replacement
PSB1054F0270 PSB1054F0270
Replaced By PSB10530270
LOWER MIDDLE SHIFT SUPPORT
 N/A View Replacement
PSB1054F0271 PSB1054F0271
Replaced By PSB10530271
LOWER SHIFT SUPPORT
 N/A View Replacement
PSB1054F0272 PSB1054F0272
Replaced By PSB10530272
REVERSE/STOP PLATE
 N/A View Replacement
PSB1054F0273 PSB1054F0273
Replaced By PSB10530273
SPACER
 N/A View Replacement
PSB1054F0274 PSB1054F0274
Replaced By PSB10530274
SHOULDER PLATE
 N/A View Replacement
PSB1054F0275 PSB1054F0275
Replaced By PSB10530275
INDENTED CONNECTING PLATE
 N/A View Replacement
PSB1054F0276 PSB1054F0276
Replaced By PSB10530276
CONNECTING PLATE
 N/A View Replacement
PSB1054F0277 PSB1054F0277
Replaced By PSB10530277
SHIFT FORK
 N/A View Replacement
PSB1054F0278 PSB1054F0278
Replaced By PSB10530278
LOWER MIDDLE SHIFT FORK
 N/A View Replacement
PSB1054F0279 PSB1054F0279
Replaced By PSB10530279
UPPER MIDDLE SHIFT FORK
 N/A View Replacement
PSB1054F0280 PSB1054F0280
Replaced By PSB10530277
SHIFT FORK
 N/A View Replacement
PSB1054F0281 PSB1054F0281
Replaced By PRP02M
ROLL PIN 3 X 16
 N/A View Replacement
PSB1054F0282 PSB1054F0282
Replaced By PSB10530282
CAPTIVE PIN
 N/A View Replacement
PSB1054F0283 PSB1054F0283
Replaced By PSB10530283
ROCKER ARM
 N/A View Replacement
PSB1054F0284 PSB1054F0284
Replaced By PSB10530284
CAM
 N/A View Replacement
PSB1054F0285 PSB1054F0285
Replaced By PSB10530285
CAM BRACKET
 N/A View Replacement
PSB1054F0286 PSB1054F0286
Replaced By PEC015M
E-CLIP 8MM
 N/A View Replacement
PSB1054F0287 PSB1054F0287
Replaced By PSB10530287
THRUST WASHER
 N/A View Replacement
PSB1054F0288 PSB1054F0288
Replaced By PR18M
EXT RETAINING RING 17MM
 N/A View Replacement
PSB1054F0289 PSB1054F0289
Replaced By PSB10530289
WOODRUFF KEY 4 X 13
 N/A View Replacement
PSB1054F0290 PSB1054F0290
Replaced By PSB10530290
SHAFT
 N/A View Replacement
PSB1054F0291 PSB1054F0291
Replaced By PSB10530291
SHIFT TAB
 N/A View Replacement
PSB1054F0292 PSB1054F0292
Replaced By PSB10530292
DOWEL PIN 5MM
 N/A View Replacement
PSB1054F0293 PSB1054F0293
Replaced By PSB10530293
SHIFT FORK
 N/A View Replacement
PSB1054F0294 PSB1054F0294
Replaced By PSTB001
STEEL BALL 1/4
 N/A View Replacement
PSB1054F0295 PSB1054F0295
Replaced By PSB10530295
COMPRESSION SPRING 6.35 X 18
 N/A View Replacement
PSB1054F0296 PSB1054F0296
Replaced By PSB10530296
SHIFT TAB
 N/A View Replacement
PSB1054F0297 PSB1054F0297
Replaced By PSB10530297
PIVOT ARM
 N/A View Replacement
PSB1054F0298 PSB1054F0298
Replaced By PSB10530298
COMPRESSION SPRING 6 X 13
 N/A View Replacement
PSB1054F0299 PSB1054F0299
Replaced By PSTB001

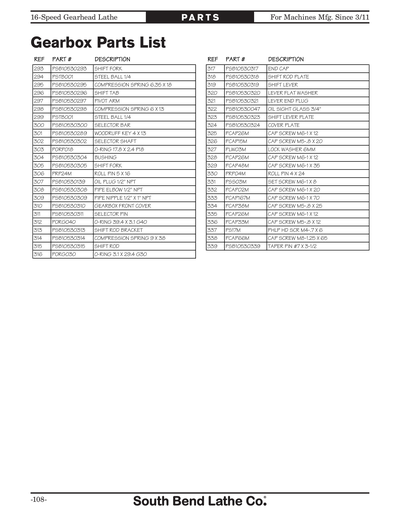

STEEL BALL 1/4
 N/A View Replacement
PSB1054F0300 PSB1054F0300
Replaced By PSB10530300

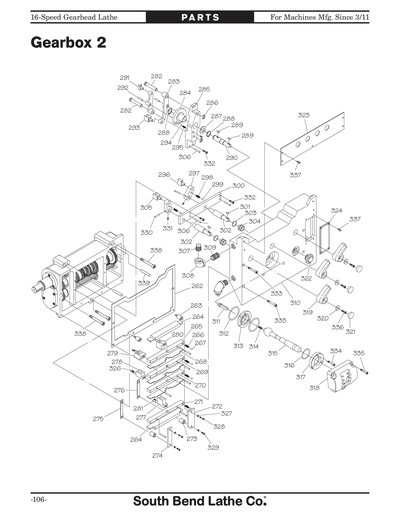

SELECTOR BAR
 N/A View Replacement
PSB1054F0301 PSB1054F0301
Replaced By PSB10530289
WOODRUFF KEY 4 X 13
 N/A View Replacement
PSB1054F0302 PSB1054F0302
Replaced By PSB10530302
SELECTOR SHAFT
 N/A View Replacement
PSB1054F0303 PSB1054F0303
Replaced By PORP018
O-RING 17.8 X 2.4 P18
 N/A View Replacement
PSB1054F0304 PSB1054F0304
Replaced By PSB10530304
BUSHING
 N/A View Replacement
PSB1054F0305 PSB1054F0305
Replaced By PSB10530305
SHIFT FORK
 N/A View Replacement
PSB1054F0306 PSB1054F0306
Replaced By PRP24M
ROLL PIN 5 X 16
 N/A View Replacement
PSB1054F0307 PSB1054F0307
Replaced By PSB10120127
OIL SEAL 28 X 44 X 7
 N/A View Replacement
PSB1054F0308 PSB1054F0308
Replaced By PSB10530308
PIPE ELBOW 1/2" NPT
 N/A View Replacement
PSB1054F0309 PSB1054F0309
Replaced By PSB10530309
PIPE NIPPLE 1/2" X 1" NPT
 N/A View Replacement
PSB1054F0310 PSB1054F0310
Replaced By PSB10530310
GEARBOX FRONT COVER
 N/A View Replacement
PSB1054F0311 PSB1054F0311
Replaced By PSB10530311
SELECTOR PIN
 N/A View Replacement
PSB1054F0312 PSB1054F0312
Replaced By PORG040
O-RING 39.4 X 3.1 G40
 N/A View Replacement
PSB1054F0313 PSB1054F0313
Replaced By PSB10530313
SHIFT ROD BRACKET
 N/A View Replacement
PSB1054F0314 PSB1054F0314
Replaced By PSB10530314
COMPRESSION SPRING 9 X 38
 N/A View Replacement
PSB1054F0315 PSB1054F0315
Replaced By PSB10530315
SHIFT ROD
 N/A View Replacement
PSB1054F0316 PSB1054F0316
Replaced By PORG030
O-RING 3.1 X 29.4 G30
 N/A View Replacement
PSB1054F0317 PSB1054F0317
Replaced By PSB10530317
END CAP
 N/A View Replacement
PSB1054F0318 PSB1054F0318
Replaced By PSB10530318
SHIFT ROD PLATE
 N/A View Replacement
PSB1054F0319 PSB1054F0319
Replaced By PSB10530319
SHIFT LEVER
 N/A View Replacement
PSB1054F0320 PSB1054F0320
Replaced By PSB10530320
LEVER FLAT WASHER
 N/A View Replacement
PSB1054F0321 PSB1054F0321
Replaced By PSB10530321
LEVER END PLUG
 N/A View Replacement
PSB1054F0322 PSB1054F0322
Replaced By PSB10390055
OIL SIGHT GLASS 3/4"
 N/A View Replacement
PSB1054F0323 PSB1054F0323
Replaced By PSB10530323
SHIFT LEVER PLATE
 N/A View Replacement
PSB1054F0324 PSB1054F0324
Replaced By PSB10530324
COVER PLATE
 N/A View Replacement
PSB1054F0325 PSB1054F0325
Replaced By PCAP26M
CAP SCREW M6-1 X 12
 N/A View Replacement
PSB1054F0326 PSB1054F0326
Replaced By PCAP15M
CAP SCREW M5-.8 X 20
 N/A View Replacement
PSB1054F0327 PSB1054F0327
Replaced By PLW03M
LOCK WASHER 6MM
 N/A View Replacement
PSB1054F0328 PSB1054F0328
Replaced By PCAP26M
CAP SCREW M6-1 X 12
 N/A View Replacement
PSB1054F0329 PSB1054F0329
Replaced By PCAP48M
CAP SCREW M6-1 X 35
 N/A View Replacement
PSB1054F0330 PSB1054F0330
Replaced By PRP04M
ROLL PIN 4 X 24
 N/A View Replacement
PSB1054F0331 PSB1054F0331
Replaced By PSS03M
SET SCREW M6-1 X 8
 N/A View Replacement
PSB1054F0332 PSB1054F0332
Replaced By PCAP02M
CAP SCREW M6-1 X 20
 N/A View Replacement
PSB1054F0333 PSB1054F0333
Replaced By PCAP167M
CAP SCREW M6-1 X 70
 N/A View Replacement
PSB1054F0334 PSB1054F0334
Replaced By PCAP38M
CAP SCREW M5-.8 X 25
 N/A View Replacement
PSB1054F0335 PSB1054F0335
Replaced By PCAP26M
CAP SCREW M6-1 X 12
 N/A View Replacement
PSB1054F0336 PSB1054F0336
Replaced By PCAP33M
CAP SCREW M5-.8 X 12
 N/A View Replacement
PSB1054F0337 PSB1054F0337
Replaced By PS17M
PHLP HD SCR M4-.7 X 6
 N/A View Replacement
PSB1054F0338 PSB1054F0338
Replaced By PCAP66M
CAP SCREW M8-1.25 X 65
 N/A View Replacement
PSB1054F0339 PSB1054F0339
Replaced By PSB10530339
TAPER PIN #7 X 3-1/2
 N/A View Replacement
PSB1054F0401 PSB1054F0401
Replaced By PSB10530401

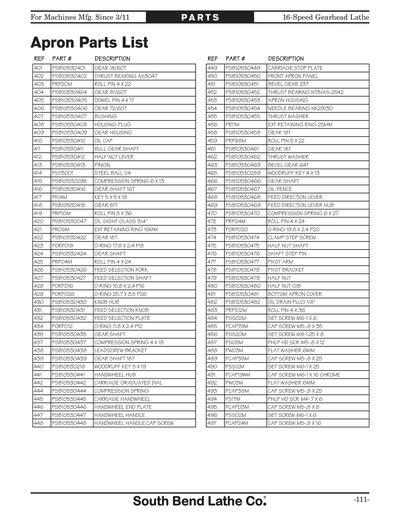

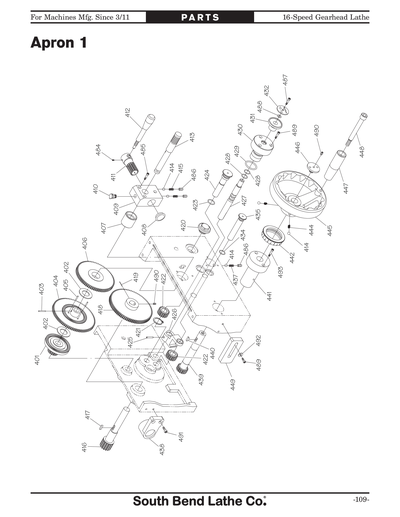

GEAR 18/60T
 N/A View Replacement
PSB1054F0402 PSB1054F0402
Replaced By PSB10530402
THRUST BEARING AS3047
 N/A View Replacement
PSB1054F0403 PSB1054F0403
Replaced By PRP20M
ROLL PIN 4 X 22
 N/A View Replacement
PSB1054F0404 PSB1054F0404
Replaced By PSB10530404
GEAR 81/60T
 N/A View Replacement
PSB1054F0405 PSB1054F0405
Replaced By PSB10530405
DOWEL PIN 4 X 17
 N/A View Replacement
PSB1054F0406 PSB1054F0406
Replaced By PSB10530406
GEAR 72/60T
 N/A View Replacement
PSB1054F0407 PSB1054F0407
Replaced By PSB10530407
BUSHING
 N/A View Replacement
PSB1054F0408 PSB1054F0408
Replaced By PSB10530408
HOUSING PLUG
 N/A View Replacement
PSB1054F0409 PSB1054F0409
Replaced By PSB10530409
GEAR HOUSING
 N/A View Replacement
PSB1054F0410 PSB1054F0410
Replaced By PSB10530410
OIL CAP
 N/A View Replacement
PSB1054F0411 PSB1054F0411
Replaced By PSB10530411
BULL GEAR SHAFT
 N/A View Replacement
PSB1054F0412 PSB1054F0412
Replaced By PSB10530412
HALF NUT LEVER
 N/A View Replacement
PSB1054F0413 PSB1054F0413
Replaced By PSB10530413
PINION
 N/A View Replacement
PSB1054F0414 PSB1054F0414
Replaced By PSTB001
STEEL BALL 1/4
 N/A View Replacement
PSB1054F0415 PSB1054F0415
Replaced By PSB10530298
COMPRESSION SPRING 6 X 13
 N/A View Replacement
PSB1054F0416 PSB1054F0416
Replaced By PSB10530416
GEAR SHAFT 16T
 N/A View Replacement
PSB1054F0417 PSB1054F0417
Replaced By PK14M
KEY 5 X 5 X 18
 N/A View Replacement
PSB1054F0418 PSB1054F0418
Replaced By PSB10530418
GEAR 81T
 N/A View Replacement
PSB1054F0419 PSB1054F0419
Replaced By PRP10M
ROLL PIN 5 X 36
 N/A View Replacement
PSB1054F0420 PSB1054F0420
Replaced By PSB10390055
OIL SIGHT GLASS 3/4"
 N/A View Replacement
PSB1054F0421 PSB1054F0421
Replaced By PR06M
EXT RETAINING RING 16MM
 N/A View Replacement
PSB1054F0422 PSB1054F0422
Replaced By PSB10530422
GEAR 18T
 N/A View Replacement
PSB1054F0423 PSB1054F0423
Replaced By PORP018
O-RING 17.8 X 2.4 P18
 N/A View Replacement
PSB1054F0424 PSB1054F0424
Replaced By PSB10530424
GEAR SHAFT
 N/A View Replacement
PSB1054F0425 PSB1054F0425
Replaced By PRP04M
ROLL PIN 4 X 24
 N/A View Replacement
PSB1054F0426 PSB1054F0426
Replaced By PSB10530426
FEED SELECTION FORK
 N/A View Replacement
PSB1054F0427 PSB1054F0427
Replaced By PSB10530427
FEED SELECTION SHAFT
 N/A View Replacement
PSB1054F0428 PSB1054F0428
Replaced By PORP016
O-RING 15.8 X 2.4 P16
 N/A View Replacement
PSB1054F0429 PSB1054F0429
Replaced By PORP026
O-RING 25.7 X 3.5 P26
 N/A View Replacement
PSB1054F0430 PSB1054F0430
Replaced By PSB10530430
KNOB HUB
 N/A View Replacement
PSB1054F0431 PSB1054F0431
Replaced By PSB10530431
FEED SELECTION KNOB
 N/A View Replacement
PSB1054F0432 PSB1054F0432
Replaced By PSB10530432
FEED SELECTION PLATE
 N/A View Replacement
PSB1054F0434 PSB1054F0434
Replaced By PORP012
O-RING 11.8 X 2.4 P12
 N/A View Replacement
PSB1054F0435 PSB1054F0435
Replaced By PSB10530435
GEAR SHAFT
 N/A View Replacement
PSB1054F0437 PSB1054F0437
Replaced By PSB10530437
COMPRESSION SPRING 4 X 19
 N/A View Replacement
PSB1054F0438 PSB1054F0438
Replaced By PSB10530438
LEADSCREW BRACKET
 N/A View Replacement
PSB1054F0439 PSB1054F0439
Replaced By PSB10530439
GEAR SHAFT 18T
 N/A View Replacement
PSB1054F0440 PSB1054F0440
Replaced By PSB10530218
WOODRUFF KEY 5 X 19
 N/A View Replacement
PSB1054F0441 PSB1054F0441
Replaced By PSB10530441
HANDWHEEL HUB
 N/A View Replacement
PSB1054F0442 PSB1054F0442
Replaced By PSB10530442
CARRIAGE GRADUATED DIAL
 N/A View Replacement
PSB1054F0444 PSB1054F0444
Replaced By PSB10530444
COMPRESSION SPRING
 N/A View Replacement
PSB1054F0445 PSB1054F0445
Replaced By PSB10530445
CARRIAGE HANDWHEEL
 N/A View Replacement
PSB1054F0446 PSB1054F0446
Replaced By PSB10530446
HANDWHEEL END PLATE
 N/A View Replacement
PSB1054F0447 PSB1054F0447
Replaced By PSB10530447
HANDWHEEL HANDLE
 N/A View Replacement
PSB1054F0448 PSB1054F0448
Replaced By PSB10530448
HANDWHEEL HANDLE CAP SCREW
 N/A View Replacement
PSB1054F0449 PSB1054F0449
Replaced By PSB10530449
CARRIAGE STOP PLATE
 N/A View Replacement
PSB1054F0450 PSB1054F0450
Replaced By PSB10530450

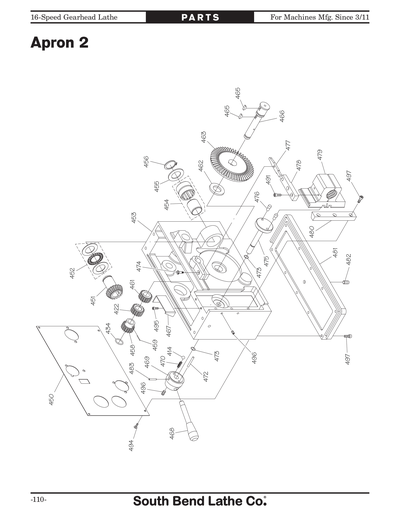

FRONT APRON PANEL
 N/A View Replacement
PSB1054F0451 PSB1054F0451
Replaced By PSB10530451
BEVEL GEAR 23T
 N/A View Replacement
PSB1054F0452 PSB1054F0452
Replaced By PSB10530452
THRUST BEARING NTB/AS-2542
 N/A View Replacement
PSB1054F0453 PSB1054F0453
Replaced By PSB10530453
APRON HOUSING
 N/A View Replacement
PSB1054F0454 PSB1054F0454
Replaced By PSB10530454
NEEDLE BEARING NK29/30
 N/A View Replacement
PSB1054F0455 PSB1054F0455
Replaced By PSB10530455
THRUST WASHER
 N/A View Replacement
PSB1054F0456 PSB1054F0456
Replaced By PR11M
EXT RETAINING RING 25MM
 N/A View Replacement
PSB1054F0458 PSB1054F0458
Replaced By PSB10530458
GEAR 18T
 N/A View Replacement
PSB1054F0459 PSB1054F0459
Replaced By PRP88M
ROLL PIN 5 X 22
 N/A View Replacement
PSB1054F0461 PSB1054F0461
Replaced By PSB10530461
GEAR 18T
 N/A View Replacement
PSB1054F0462 PSB1054F0462
Replaced By PSB10530462
THRUST WASHER
 N/A View Replacement
PSB1054F0463 PSB1054F0463
Replaced By PSB10530463
BEVEL GEAR 64T
 N/A View Replacement
PSB1054F0465 PSB1054F0465
Replaced By PSB10530289
WOODRUFF KEY 4 X 13
 N/A View Replacement
PSB1054F0466 PSB1054F0466
Replaced By PSB10530466
GEAR SHAFT
 N/A View Replacement
PSB1054F0467 PSB1054F0467
Replaced By PSB10530467
OIL FENCE
 N/A View Replacement
PSB1054F0468 PSB1054F0468
Replaced By PSB10530468
FEED DIRECTION LEVER
 N/A View Replacement
PSB1054F0469 PSB1054F0469
Replaced By PSB10530469
FEED DIRECTION LEVER HUB
 N/A View Replacement
PSB1054F0470 PSB1054F0470
Replaced By PSB10530470
COMPRESSION SPRING 6 X 27
 N/A View Replacement
PSB1054F0472 PSB1054F0472
Replaced By PRP04M
ROLL PIN 4 X 24
 N/A View Replacement
PSB1054F0473 PSB1054F0473
Replaced By PORP020
O-RING 19.8 X 2.4 P20
 N/A View Replacement
PSB1054F0474 PSB1054F0474
Replaced By PSB10530474
CLAMP STEP SCREW
 N/A View Replacement
PSB1054F0475 PSB1054F0475
Replaced By PSB10530475
HALF NUT SHAFT
 N/A View Replacement
PSB1054F0476 PSB1054F0476
Replaced By PSB10530476
SHAFT STEP PIN
 N/A View Replacement
PSB1054F0477 PSB1054F0477
Replaced By PSB10530477
PIVOT ARM
 N/A View Replacement
PSB1054F0478 PSB1054F0478
Replaced By PSB10530478
PIVOT BRACKET
 N/A View Replacement
PSB1054F0479 PSB1054F0479
Replaced By PSB10530479
HALF NUT
 N/A View Replacement
PSB1054F0480 PSB1054F0480
Replaced By PSB10530480
HALF NUT GIB
 N/A View Replacement
PSB1054F0481 PSB1054F0481
Replaced By PSB10530481
BOTTOM APRON COVER
 N/A View Replacement
PSB1054F0482 PSB1054F0482
Replaced By PSB10530482
OIL DRAIN PLUG 1/8"
 N/A View Replacement
PSB1054F0483 PSB1054F0483
Replaced By PRP102M
ROLL PIN 4 X 36
 N/A View Replacement
PSB1054F0484 PSB1054F0484
Replaced By PSS02M
SET SCREW M6-1 X 6
 N/A View Replacement
PSB1054F0485 PSB1054F0485
Replaced By PCAP79M
CAP SCREW M5-.8 X 35
 N/A View Replacement
PSB1054F0486 PSB1054F0486
Replaced By PSS20M
SET SCREW M8-1.25 X 8
 N/A View Replacement
PSB1054F0487 PSB1054F0487
Replaced By PS08M
PHLP HD SCR M5-.8 X 12
 N/A View Replacement
PSB1054F0488 PSB1054F0488
Replaced By PW03M
FLAT WASHER 6MM
 N/A View Replacement
PSB1054F0489 PSB1054F0489
Replaced By PCAP38M
CAP SCREW M5-.8 X 25
 N/A View Replacement
PSB1054F0490 PSB1054F0490
Replaced By PSS12M
SET SCREW M6-1 X 25
 N/A View Replacement
PSB1054F0491 PSB1054F0491
Replaced By PCAP194M
CAP SCREW M6-1 X 16 CHROME
 N/A View Replacement
PSB1054F0492 PSB1054F0492
Replaced By PW03M
FLAT WASHER 6MM
 N/A View Replacement
PSB1054F0493 PSB1054F0493
Replaced By PCAP38M
CAP SCREW M5-.8 X 25
 N/A View Replacement
PSB1054F0494 PSB1054F0494
Replaced By PS17M
PHLP HD SCR M4-.7 X 6
 N/A View Replacement
PSB1054F0495 PSB1054F0495
Replaced By PCAP03M
CAP SCREW M5-.8 X 8
 N/A View Replacement
PSB1054F0496 PSB1054F0496
Replaced By PSS02M
SET SCREW M6-1 X 6
 N/A View Replacement
PSB1054F0497 PSB1054F0497
Replaced By PCAP24M
CAP SCREW M5-.8 X 16
 N/A View Replacement

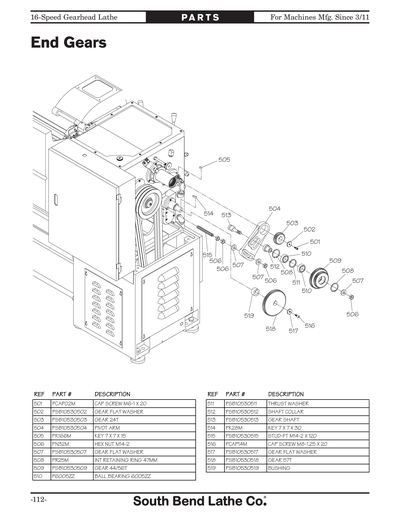

PSB1054F0501 PSB1054F0501
Replaced By PCAP02M
CAP SCREW M6-1 X 20
 N/A View Replacement
PSB1054F0502 PSB1054F0502
Replaced By PSB10530502
GEAR FLAT WASHER
 N/A View Replacement
PSB1054F0503 PSB1054F0503
GEAR 24T
 N/A
PSB1054F0504 PSB1054F0504
Replaced By PSB10530504
PIVOT ARM
 N/A View Replacement
PSB1054F0505 PSB1054F0505
Replaced By PK166M
KEY 7 X 7 X 15
 N/A View Replacement
PSB1054F0506 PSB1054F0506
Replaced By PN32M
HEX NUT M14-2
 N/A View Replacement
PSB1054F0507 PSB1054F0507
Replaced By PSB10530507
GEAR FLAT WASHER
 N/A View Replacement
PSB1054F0508 PSB1054F0508
Replaced By PR25M
INT RETAINING RING 47MM
 N/A View Replacement
PSB1054F0509 PSB1054F0509
GEAR 44/56T
 N/A
PSB1054F0510 PSB1054F0510
Replaced By P6005ZZ
BALL BEARING 6005ZZ
 N/A View Replacement
PSB1054F0511 PSB1054F0511
Replaced By PSB10530511
THRUST WASHER
 N/A View Replacement
PSB1054F0512 PSB1054F0512
Replaced By PSB10530512
SHAFT COLLAR
 N/A View Replacement
PSB1054F0513 PSB1054F0513
Replaced By PSB10530513
GEAR SHAFT
 N/A View Replacement
PSB1054F0514 PSB1054F0514
Replaced By PK28M
KEY 7 X 7 X 29
 N/A View Replacement
PSB1054F0515 PSB1054F0515
Replaced By PSB10530515
STUD-FT M14-2 X 120
 N/A View Replacement
PSB1054F0516 PSB1054F0516
Replaced By PCAP14M
CAP SCREW M8-1.25 X 20
 N/A View Replacement
PSB1054F0517 PSB1054F0517
Replaced By PSB10530517
GEAR FLAT WASHER
 N/A View Replacement
PSB1054F0518 PSB1054F0518
GEAR 57T
 N/A
PSB1054F0519 PSB1054F0519
Replaced By PSB10530519
BUSHING
 N/A View Replacement

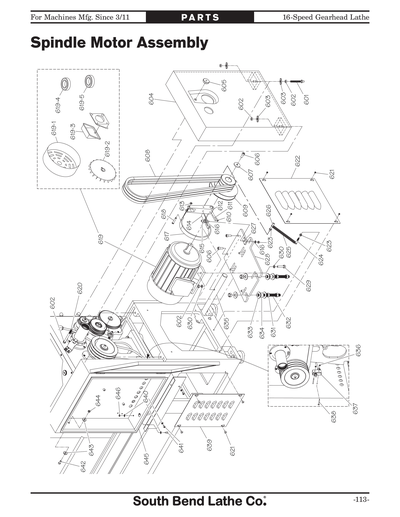

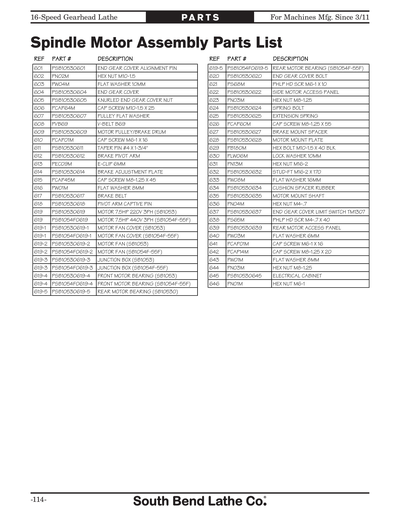

PSB1054F0601 PSB1054F0601
Replaced By PSB10530601
END GEAR COVER ALIGNMENT PIN
 N/A View Replacement
PSB1054F0602 PSB1054F0602
Replaced By PN02M
HEX NUT M10-1.5
 N/A View Replacement
PSB1054F0603 PSB1054F0603
Replaced By PW04M
FLAT WASHER 10MM
 N/A View Replacement
PSB1054F0604 PSB1054F0604
Replaced By PSB10530604
END GEAR COVER
 N/A View Replacement
PSB1054F0605 PSB1054F0605
Replaced By PSB10530605
KNURLED END GEAR COVER NUT
 N/A View Replacement
PSB1054F0606 PSB1054F0606
Replaced By PCAP64M
CAP SCREW M10-1.5 X 25
 N/A View Replacement
PSB1054F0607 PSB1054F0607
Replaced By PSB10530607
PULLEY FLAT WASHER
 N/A View Replacement
PSB1054F0608 PSB1054F0608
Replaced By PVB69
V-BELT B69
 N/A View Replacement
PSB1054F0609 PSB1054F0609
Replaced By PSB10530609
MOTOR PULLEY/BRAKE DRUM
 N/A View Replacement
PSB1054F0610 PSB1054F0610
Replaced By PCAP01M
CAP SCREW M6-1 X 16
 N/A View Replacement
PSB1054F0611 PSB1054F0611
Replaced By PSB10530611
TAPER PIN #4 X 1-3/4"
 N/A View Replacement
PSB1054F0612 PSB1054F0612
Replaced By PSB10530612
BRAKE PIVOT ARM
 N/A View Replacement
PSB1054F0613 PSB1054F0613
Replaced By PEC09M
E-CLIP 6MM
 N/A View Replacement
PSB1054F0614 PSB1054F0614
Replaced By PSB10530614
BRAKE ADJUSTMENT PLATE
 N/A View Replacement
PSB1054F0615 PSB1054F0615
Replaced By PCAP45M
CAP SCREW M8-1.25 X 45
 N/A View Replacement
PSB1054F0616 PSB1054F0616
Replaced By PW01M
FLAT WASHER 8MM
 N/A View Replacement
PSB1054F0617 PSB1054F0617
Replaced By PSB10530617
BRAKE BELT
 N/A View Replacement
PSB1054F0618 PSB1054F0618
Replaced By PSB10530618
PIVOT ARM CAPTIVE PIN
 N/A View Replacement
PSB1054F0619 PSB1054F0619 MOTOR 7.5HP 440V 3PH $1,244.55
PSB1054F0619-1 PSB1054F0619-1
MOTOR FAN COVER
 N/A
PSB1054F0619-2 PSB1054F0619-2
MOTOR FAN
 N/A
PSB1054F0619-3 PSB1054F0619-3
JUNCTION BOX
 N/A
PSB1054F0619-4 PSB1054F0619-4
FRONT MOTOR BEARING
 N/A
PSB1054F0619-5 PSB1054F0619-5
REAR MOTOR BEARING
 N/A
PSB1054F0620 PSB1054F0620
Replaced By PSB10530620
END GEAR COVER BOLT
 N/A View Replacement
PSB1054F0621 PSB1054F0621
Replaced By PS68M
PHLP HD SCR M6-1 X 10
 N/A View Replacement
PSB1054F0622 PSB1054F0622
Replaced By PSB10530622
SIDE MOTOR ACCESS PANEL
 N/A View Replacement
PSB1054F0623 PSB1054F0623
Replaced By PN03M
HEX NUT M8-1.25
 N/A View Replacement
PSB1054F0624 PSB1054F0624
Replaced By PSB10530624
SPRING BOLT
 N/A View Replacement
PSB1054F0625 PSB1054F0625
Replaced By PSB10530625
EXTENSION SPRING
 N/A View Replacement
PSB1054F0626 PSB1054F0626
Replaced By PCAP60M
CAP SCREW M8-1.25 X 55
 N/A View Replacement
PSB1054F0627 PSB1054F0627
Replaced By PSB10530627
BRAKE MOUNT SPACER
 N/A View Replacement
PSB1054F0628 PSB1054F0628
Replaced By PSB10530628
MOTOR MOUNT PLATE
 N/A View Replacement
PSB1054F0629 PSB1054F0629
Replaced By PB180M
HEX BOLT M10-1.5 X 40 BLK C8.8
 N/A View Replacement
PSB1054F0630 PSB1054F0630
Replaced By PLW06M
LOCK WASHER 10MM
 N/A View Replacement
PSB1054F0631 PSB1054F0631
Replaced By PN13M
HEX NUT M16-2
 N/A View Replacement
PSB1054F0632 PSB1054F0632
Replaced By PSB10530632
STUD-FT M16-2 X 170
 N/A View Replacement
PSB1054F0633 PSB1054F0633
Replaced By PW08M
FLAT WASHER 16MM
 N/A View Replacement
PSB1054F0634 PSB1054F0634
Replaced By PSB10530634
CUSHION SPACER RUBBER
 N/A View Replacement
PSB1054F0635 PSB1054F0635
Replaced By PSB10530635
MOTOR MOUNT SHAFT
 N/A View Replacement
PSB1054F0636 PSB1054F0636
Replaced By PN04M
HEX NUT M4-.7
 N/A View Replacement
PSB1054F0637 PSB1054F0637
Replaced By PSB10530637
END GEAR COVER LIMIT SWITCH TM1307
 N/A View Replacement
PSB1054F0638 PSB1054F0638
Replaced By PS65M
PHLP HD SCR M4-.7 X 40
 N/A View Replacement
PSB1054F0639 PSB1054F0639
Replaced By PSB10530639
REAR MOTOR ACCESS PANEL
 N/A View Replacement
PSB1054F0640 PSB1054F0640
Replaced By PW03M
FLAT WASHER 6MM
 N/A View Replacement
PSB1054F0641 PSB1054F0641
Replaced By PCAP01M
CAP SCREW M6-1 X 16
 N/A View Replacement
PSB1054F0642 PSB1054F0642
Replaced By PCAP14M
CAP SCREW M8-1.25 X 20
 N/A View Replacement
PSB1054F0643 PSB1054F0643
Replaced By PW01M
FLAT WASHER 8MM
 N/A View Replacement
PSB1054F0644 PSB1054F0644
Replaced By PN03M
HEX NUT M8-1.25
 N/A View Replacement
PSB1054F0645 PSB1054F0645
Replaced By PSB10530645
ELECTRICAL CABINET
 N/A View Replacement
PSB1054F0646 PSB1054F0646
Replaced By PN01M
HEX NUT M6-1
 N/A View Replacement

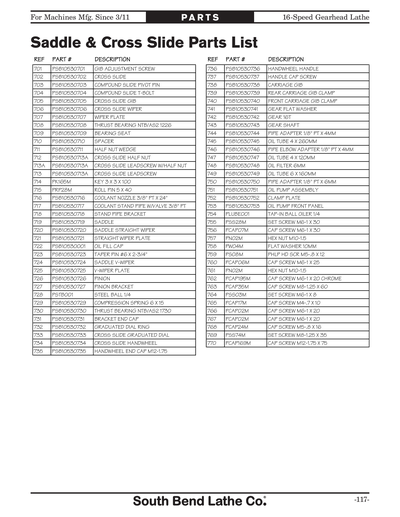

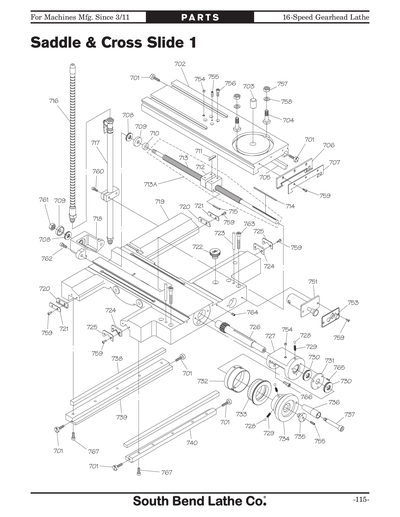

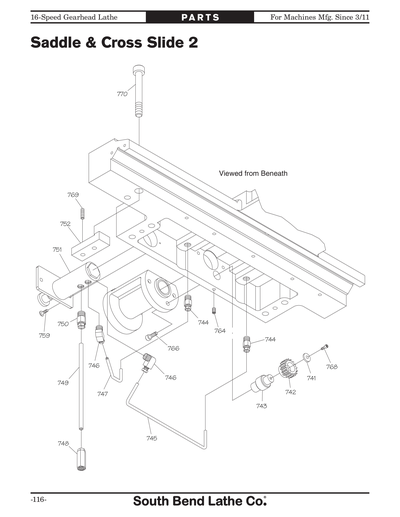

PSB1054F0701 PSB1054F0701
Replaced By PSB10530701
GIB ADJUSTMENT SCREW
 N/A View Replacement
PSB1054F0702 PSB1054F0702
Replaced By PSB10530702
CROSS SLIDE
 N/A View Replacement
PSB1054F0703 PSB1054F0703
Replaced By PSB10530703
COMPOUND SLIDE PIVOT PIN
 N/A View Replacement
PSB1054F0704 PSB1054F0704
Replaced By PSB10530704
COMPOUND SLIDE T-BOLT
 N/A View Replacement
PSB1054F0705 PSB1054F0705
Replaced By PSB10530705
CROSS SLIDE GIB
 N/A View Replacement
PSB1054F0706 PSB1054F0706
Replaced By PSB10530706
CROSS SLIDE WIPER
 N/A View Replacement
PSB1054F0707 PSB1054F0707
Replaced By PSB10530707
WIPER PLATE
 N/A View Replacement
PSB1054F0708 PSB1054F0708
Replaced By PSB10530708
THRUST BEARING NTB/AS2 1226
 N/A View Replacement
PSB1054F0709 PSB1054F0709
Replaced By PSB10530709
BEARING SEAT
 N/A View Replacement
PSB1054F0710 PSB1054F0710
Replaced By PSB10530710
SPACER
 N/A View Replacement
PSB1054F0711 PSB1054F0711
Replaced By PSB10530713A
CROSS SLIDE LEADSCREW W/HALF NUT
 N/A View Replacement
PSB1054F0712 PSB1054F0712
Replaced By PSB10530713A
CROSS SLIDE LEADSCREW W/HALF NUT
 N/A View Replacement
PSB1054F0713 PSB1054F0713
Replaced By PSB10530713A
CROSS SLIDE LEADSCREW W/HALF NUT
 N/A View Replacement
PSB1054F0713A PSB1054F0713A
Replaced By PSB10530713A
CROSS SLIDE LEADSCREW W/HALF NUT
 N/A View Replacement
PSB1054F0714 PSB1054F0714
Replaced By PK165M
KEY 3 X 3 X 100
 N/A View Replacement
PSB1054F0715 PSB1054F0715
Replaced By PRP28M
ROLL PIN 5 X 40
 N/A View Replacement
PSB1054F0716 PSB1054F0716
Replaced By PSB10530716
COOLANT NOZZLE 3/8" PT X 24"
 N/A View Replacement
PSB1054F0717 PSB1054F0717
Replaced By PSB10530717
COOLANT STAND PIPE W/VALVE 3/8" PT
 N/A View Replacement
PSB1054F0718 PSB1054F0718
Replaced By PSB10530718
STAND PIPE BRACKET
 N/A View Replacement
PSB1054F0719 PSB1054F0719
Replaced By PSB10530719
SADDLE
 N/A View Replacement
PSB1054F0720 PSB1054F0720
Replaced By PSB10530720
SADDLE STRAIGHT WIPER
 N/A View Replacement
PSB1054F0721 PSB1054F0721
Replaced By PSB10530721
STRAIGHT WIPER PLATE
 N/A View Replacement
PSB1054F0722 PSB1054F0722
Replaced By PSB10530001
OIL FILL CAP
 N/A View Replacement
PSB1054F0723 PSB1054F0723
Replaced By PSB10530723
TAPER PIN #6 X 2-3/4"
 N/A View Replacement
PSB1054F0724 PSB1054F0724
Replaced By PSB10530724
SADDLE V-WIPER
 N/A View Replacement
PSB1054F0725 PSB1054F0725
Replaced By PSB10530725
V-WIPER PLATE
 N/A View Replacement
PSB1054F0726 PSB1054F0726
Replaced By PSB10530726
PINION
 N/A View Replacement
PSB1054F0727 PSB1054F0727
Replaced By PSB10530727
PINION BRACKET
 N/A View Replacement
PSB1054F0728 PSB1054F0728
Replaced By PSTB001
STEEL BALL 1/4
 N/A View Replacement
PSB1054F0729 PSB1054F0729
Replaced By PSB10530729
COMPRESSION SPRING 6 X 15
 N/A View Replacement
PSB1054F0730 PSB1054F0730
Replaced By PSB10530730
THRUST BEARING NTB/AS2 1730
 N/A View Replacement
PSB1054F0731 PSB1054F0731
Replaced By PSB10530731
BRACKET END CAP
 N/A View Replacement
PSB1054F0732 PSB1054F0732
Replaced By PSB10530732
GRADUATED DIAL RING
 N/A View Replacement
PSB1054F0733 PSB1054F0733
Replaced By PSB10530733
CROSS SLIDE GRADUATED DIAL
 N/A View Replacement
PSB1054F0734 PSB1054F0734
Replaced By PSB10530734
CROSS SLIDE HANDWHEEL
 N/A View Replacement
PSB1054F0735 PSB1054F0735
Replaced By PSB10530735
HANDWHEEL END CAP M12-1.75
 N/A View Replacement
PSB1054F0736 PSB1054F0736
Replaced By PSB10530736
HANDWHEEL HANDLE
 N/A View Replacement
PSB1054F0737 PSB1054F0737
Replaced By PSB10530737
HANDLE CAP SCREW
 N/A View Replacement
PSB1054F0738 PSB1054F0738
Replaced By PSB10530738
CARRIAGE GIB
 N/A View Replacement
PSB1054F0739 PSB1054F0739
Replaced By PSB10530739
REAR CARRIAGE GIB CLAMP
 N/A View Replacement
PSB1054F0740 PSB1054F0740
Replaced By PSB10530740
FRONT CARRIAGE GIB CLAMP
 N/A View Replacement
PSB1054F0741 PSB1054F0741
Replaced By PSB10530741
GEAR FLAT WASHER
 N/A View Replacement
PSB1054F0742 PSB1054F0742
Replaced By PSB10530742
GEAR 16T
 N/A View Replacement
PSB1054F0743 PSB1054F0743
Replaced By PSB10530743
GEAR SHAFT
 N/A View Replacement
PSB1054F0744 PSB1054F0744
Replaced By PSB10530744
PIPE ADAPTER 1/8" PT X 4MM
 N/A View Replacement
PSB1054F0745 PSB1054F0745
Replaced By PSB10530745
OIL TUBE 4 X 260MM
 N/A View Replacement
PSB1054F0746 PSB1054F0746
Replaced By PSB10530746
PIPE ELBOW ADAPTER 1/8" PT X 4MM
 N/A View Replacement
PSB1054F0747 PSB1054F0747
Replaced By PSB10530747
OIL TUBE 4 X 120MM
 N/A View Replacement
PSB1054F0748 PSB1054F0748
Replaced By PSB10121048
OIL FILTER 6MM
 N/A View Replacement
PSB1054F0749 PSB1054F0749
Replaced By PSB10530749
OIL TUBE 6 X 160MM
 N/A View Replacement
PSB1054F0750 PSB1054F0750
Replaced By PSB10530750
PIPE ADAPTER 1/8" PT X 6MM
 N/A View Replacement
PSB1054F0751 PSB1054F0751
Replaced By PSB10530751
OIL PUMP ASSEMBLY
 N/A View Replacement
PSB1054F0752 PSB1054F0752
Replaced By PSB10530752
CLAMP PLATE
 N/A View Replacement
PSB1054F0753 PSB1054F0753
Replaced By PSB10530753
OIL PUMP FRONT PANEL
 N/A View Replacement
PSB1054F0754 PSB1054F0754
Replaced By PLUBE001
BALL OILER 1/4 PRESS-IN
 N/A View Replacement
PSB1054F0755 PSB1054F0755
Replaced By PSS28M
SET SCREW M6-1 X 30
 N/A View Replacement
PSB1054F0756 PSB1054F0756
Replaced By PCAP07M
CAP SCREW M6-1 X 30
 N/A View Replacement
PSB1054F0757 PSB1054F0757
Replaced By PN02M
HEX NUT M10-1.5
 N/A View Replacement
PSB1054F0758 PSB1054F0758
Replaced By PW04M
FLAT WASHER 10MM
 N/A View Replacement
PSB1054F0759 PSB1054F0759
Replaced By PS08M
PHLP HD SCR M5-.8 X 12
 N/A View Replacement
PSB1054F0760 PSB1054F0760
Replaced By PCAP06M
CAP SCREW M6-1 X 25
 N/A View Replacement
PSB1054F0761 PSB1054F0761
Replaced By PN02M
HEX NUT M10-1.5
 N/A View Replacement
PSB1054F0762 PSB1054F0762
Replaced By PCAP195M
CAP SCREW M6-1 X 20 CHROME
 N/A View Replacement
PSB1054F0763 PSB1054F0763
Replaced By PCAP35M
CAP SCREW M8-1.25 X 60
 N/A View Replacement
PSB1054F0764 PSB1054F0764
Replaced By PSS03M
SET SCREW M6-1 X 8
 N/A View Replacement
PSB1054F0765 PSB1054F0765
Replaced By PCAP17M
CAP SCREW M4-.7 X 10
 N/A View Replacement
PSB1054F0766 PSB1054F0766
Replaced By PCAP02M
CAP SCREW M6-1 X 20
 N/A View Replacement
PSB1054F0767 PSB1054F0767
Replaced By PCAP02M
CAP SCREW M6-1 X 20
 N/A View Replacement
PSB1054F0768 PSB1054F0768
Replaced By PCAP24M
CAP SCREW M5-.8 X 16
 N/A View Replacement
PSB1054F0769 PSB1054F0769
Replaced By PSS74M
SET SCREW M8-1.25 X 35
 N/A View Replacement
PSB1054F0770 PSB1054F0770
Replaced By PCAP169M
CAP SCREW M12-1.75 X 75
 N/A View Replacement
PSB1054F0801 PSB1054F0801
Replaced By PSB10530801
TOOL POST LEVER
 N/A View Replacement
PSB1054F0802 PSB1054F0802
Replaced By PSB10530802
POST NUT
 N/A View Replacement
PSB1054F0803 PSB1054F0803
Replaced By PSB10530803
POST FLAT WASHER
 N/A View Replacement
PSB1054F0804 PSB1054F0804
Replaced By PSB10530804
TOOL CLAMP BOLT
 N/A View Replacement
PSB1054F0805 PSB1054F0805
Replaced By PSB10530805
TOOL POST BODY
 N/A View Replacement
PSB1054F0806 PSB1054F0806
Replaced By PSB10530806
TOOL POST
 N/A View Replacement
PSB1054F0807 PSB1054F0807
Replaced By PSB10530807
PLUNGER
 N/A View Replacement
PSB1054F0808 PSB1054F0808
Replaced By PSB10530808
COMPRESSION SPRING 6 X 27
 N/A View Replacement
PSB1054F0809 PSB1054F0809
Replaced By PSB10530809
TOOL POST T-SLIDE
 N/A View Replacement
PSB1054F0810 PSB1054F0810
Replaced By PSB10530810A
N/A View Replacement
PSB1054F0811 PSB1054F0811
Replaced By PSB10530811
COMPOUND SLIDE GIB
 N/A View Replacement
PSB1054F0812 PSB1054F0812
Replaced By PSB10530812
GIB ADJUSTMENT SCREW
 N/A View Replacement
PSB1054F0813 PSB1054F0813
COMPOUND SLIDE SWIVEL BASE
 N/A
PSB1054F0814 PSB1054F0814
Replaced By PSB10530815A
COMPOUND SLIDE LEADSCREW W/NUT
 N/A View Replacement
PSB1054F0815 PSB1054F0815
Replaced By PSB10530815A
COMPOUND SLIDE LEADSCREW W/NUT
 N/A View Replacement
PSB1054F0815A PSB1054F0815A
Replaced By PSB10530815A
COMPOUND SLIDE LEADSCREW W/NUT
 N/A View Replacement
PSB1054F0816 PSB1054F0816
Replaced By P51101
THRUST BEARING 51101
 N/A View Replacement
PSB1054F0817 PSB1054F0817
Replaced By PSB10530817
GRADUATED DIAL POINTER
 N/A View Replacement
PSB1054F0818 PSB1054F0818
Replaced By PSB10530818
LEADSCREW BRACKET
 N/A View Replacement
PSB1054F0819 PSB1054F0819
Replaced By PSB10530819
COMPOUND SLIDE GRADUATED DIAL
 N/A View Replacement
PSB1054F0820 PSB1054F0820
Replaced By PSB10530820
WAVY WASHER 35 X 45 X 0.3MM
 N/A View Replacement
PSB1054F0821 PSB1054F0821
Replaced By PSB10530821
HANDLE HUB
 N/A View Replacement
PSB1054F0822 PSB1054F0822
Replaced By PSB10530822
BALL HANDLE
 N/A View Replacement
PSB1054F0823 PSB1054F0823
Replaced By PSB10530823
HANDLE
 N/A View Replacement
PSB1054F0824 PSB1054F0824
Replaced By PSB10530824
TOOL POST WRENCH
 N/A View Replacement
PSB1054F0825 PSB1054F0825
Replaced By PCAP01M
CAP SCREW M6-1 X 16
 N/A View Replacement
PSB1054F0826 PSB1054F0826
Replaced By PSS04M
SET SCREW M6-1 X 12
 N/A View Replacement
PSB1054F0827 PSB1054F0827
Replaced By PCAP26M
CAP SCREW M6-1 X 12
 N/A View Replacement
PSB1054F0828 PSB1054F0828
Replaced By PRIV001M
RIVET 2 X 5MM NAMEPLATE, STEEL
 N/A View Replacement
PSB1054F0829 PSB1054F0829
Replaced By PSS14M
SET SCREW M8-1.25 X 12
 N/A View Replacement
PSB1054F0830 PSB1054F0830
Replaced By PLUBE001
BALL OILER 1/4 PRESS-IN
 N/A View Replacement
PSB1054F0831 PSB1054F0831
Replaced By PSTB001
STEEL BALL 1/4
 N/A View Replacement
PSB1054F0832 PSB1054F0832
Replaced By PSS14M
SET SCREW M8-1.25 X 12
 N/A View Replacement
PSB1054F0833 PSB1054F0833
Replaced By PSS03M
SET SCREW M6-1 X 8
 N/A View Replacement
PSB1054F0901 PSB1054F0901
Replaced By PSB10530901
BED
 N/A View Replacement
PSB1054F0902 PSB1054F0902
Replaced By PSB10530902
CARRIAGE STOP BOLT
 N/A View Replacement
PSB1054F0903 PSB1054F0903
Replaced By PSB10530903
SHAFT END BRACKET COVER
 N/A View Replacement
PSB1054F0904 PSB1054F0904
Replaced By PSB10530904
RATCHET STOP
 N/A View Replacement
PSB1054F0905 PSB1054F0905
Replaced By PSTB002
STEEL BALL 5/16
 N/A View Replacement
PSB1054F0906 PSB1054F0906
Replaced By PSB10530906
COMPRESSION SPRING 8 X 23
 N/A View Replacement
PSB1054F0907 PSB1054F0907
Replaced By PSB10530907
RATCHET COLLAR
 N/A View Replacement
PSB1054F0908 PSB1054F0908
Replaced By PSB10530908
SHAFT END BRACKET
 N/A View Replacement
PSB1054F0909 PSB1054F0909
Replaced By PSB10530909
LOCK COLLAR
 N/A View Replacement
PSB1054F0910 PSB1054F0910
Replaced By PSB10530910
SPINDLE ON/OFF LEVER HUB
 N/A View Replacement
PSB1054F0911 PSB1054F0911
Replaced By PSB10530911
HUB STEP PIN
 N/A View Replacement
PSB1054F0912 PSB1054F0912
Replaced By PSB10530912
SPINDLE ON/OFF LEVER
 N/A View Replacement
PSB1054F0913 PSB1054F0913
Replaced By PSB10530913
LEVER KNOB
 N/A View Replacement
PSB1054F0914 PSB1054F0914
Replaced By PSB10530914
SPINDLE ROD BRACKET
 N/A View Replacement
PSB1054F0915 PSB1054F0915
Replaced By PSB10530915
SPINDLE ROD SLEEVE
 N/A View Replacement
PSB1054F0916 PSB1054F0916
Replaced By PSB10530916
COMPRESSION SPRING 38 X 75
 N/A View Replacement
PSB1054F0917 PSB1054F0917
Replaced By PSB10530917
SPRING HOUSING
 N/A View Replacement
PSB1054F0918 PSB1054F0918
Replaced By PR37M
EXT RETAINING RING 32MM
 N/A View Replacement
PSB1054F0919 PSB1054F0919
Replaced By PSB10530919
SPINDLE ROD
 N/A View Replacement
PSB1054F0920 PSB1054F0920
Replaced By PSB10530920
THRUST BEARING NTB/AS2 1831
 N/A View Replacement
PSB1054F0921 PSB1054F0921
Replaced By PSB10530921
FEED ROD
 N/A View Replacement
PSB1054F0922 PSB1054F0922
Replaced By PSB10530922
FEED ROD STOP COLLAR
 N/A View Replacement
PSB1054F0923 PSB1054F0923
Replaced By PSB10530923A
CLUTCH W/TAPERED BUSHING
 N/A View Replacement
PSB1054F0924 PSB1054F0924
Replaced By PSB10530923A
CLUTCH W/TAPERED BUSHING
 N/A View Replacement
PSB1054F0925 PSB1054F0925
Replaced By P51203
THRUST BEARING 51203
 N/A View Replacement
PSB1054F0926 PSB1054F0926
Replaced By PSB10530926
COMPRESSIONS SPRING 9 X 32
 N/A View Replacement
PSB1054F0927 PSB1054F0927
Replaced By PSB10530927
LEADSCREW LOCK COLLAR
 N/A View Replacement
PSB1054F0928 PSB1054F0928
Replaced By P51105
THRUST BEARING 51105
 N/A View Replacement
PSB1054F0929 PSB1054F0929
Replaced By PSB10530001
OIL FILL CAP
 N/A View Replacement
PSB1054F0930 PSB1054F0930
Replaced By PSB10530930
LONGITUDINAL LEADSCREW
 N/A View Replacement
PSB1054F0931 PSB1054F0931
Replaced By PSB10530931
SPRING COVER
 N/A View Replacement
PSB1054F0932 PSB1054F0932
Replaced By PSB10530932
COMPRESSION SPRING 27 X 55
 N/A View Replacement
PSB1054F0934 PSB1054F0934
Replaced By PSB10360927
SHEAR PIN
 N/A View Replacement
PSB1054F0935 PSB1054F0935
Replaced By PSB10530935
SHROUD COLLAR
 N/A View Replacement
PSB1054F0936 PSB1054F0936
Replaced By PSB10530936
COLLAR
 N/A View Replacement
PSB1054F0937 PSB1054F0937
Replaced By PSB10530937
RACK
 N/A View Replacement
PSB1054F0938 PSB1054F0938
Replaced By PSB10530938
GAP RACK
 N/A View Replacement
PSB1054F0939 PSB1054F0939
Replaced By PCAP83M
CAP SCREW M6-1 X 55
 N/A View Replacement
PSB1054F0940 PSB1054F0940
Replaced By PSS11M
SET SCREW M6-1 X 16
 N/A View Replacement
PSB1054F0941 PSB1054F0941
Replaced By PCAP06M
CAP SCREW M6-1 X 25
 N/A View Replacement
PSB1054F0942 PSB1054F0942
Replaced By PSS30M
SET SCREW M10-1.5 X 10
 N/A View Replacement
PSB1054F0943 PSB1054F0943
Replaced By PCAP128M
CAP SCREW M8-1.25 X 70
 N/A View Replacement
PSB1054F0944 PSB1054F0944
Replaced By PSB10530944
TAPER PIN #7 X 3-1/4"
 N/A View Replacement
PSB1054F0945 PSB1054F0945
Replaced By PSB10530945
TAPER PIN #7 X 1-3/4"L
 N/A View Replacement
PSB1054F0946 PSB1054F0946
Replaced By PCAP40M
CAP SCREW M8-1.25 X 35
 N/A View Replacement
PSB1054F0947 PSB1054F0947
Replaced By PN09M
HEX NUT M12-1.75
 N/A View Replacement
PSB1054F0948 PSB1054F0948
Replaced By PK20M
KEY 5 X 5 X 15
 N/A View Replacement
PSB1054F0949 PSB1054F0949
Replaced By PCAP02M
CAP SCREW M6-1 X 20
 N/A View Replacement
PSB1054F0950 PSB1054F0950
Replaced By PSB10530950
TAPER PIN #4 X 30
 N/A View Replacement
PSB1054F0951 PSB1054F0951
Replaced By PRP93M
ROLL PIN 6 X 25
 N/A View Replacement
PSB1054F0952 PSB1054F0952
Replaced By PCAP02M
CAP SCREW M6-1 X 20
 N/A View Replacement
PSB1054F0953 PSB1054F0953
Replaced By PSS02M
SET SCREW M6-1 X 6
 N/A View Replacement
PSB1054F0954 PSB1054F0954
Replaced By PW06M
FLAT WASHER 12MM
 N/A View Replacement
PSB1054F0955 PSB1054F0955
Replaced By PB187M
HEX BOLT M16-2 X 55 BLK C12.9
 N/A View Replacement
PSB1054F0956 PSB1054F0956
Replaced By PSS03M
SET SCREW M6-1 X 8
 N/A View Replacement
PSB1054F0957 PSB1054F0957
Replaced By PSB10530957
LOCK COLLAR
 N/A View Replacement
PSB1054F0967 PSB1054F0967
Replaced By PSB10530967
SPINDLE SWITCH
 N/A View Replacement
PSB1054F1001 PSB1054F1001
Replaced By PSB10531001
CHIP DRAWER
 N/A View Replacement
PSB1054F1002 PSB1054F1002
Replaced By PSB10531002
ECCENTRIC LOCK COLLAR
 N/A View Replacement
PSB1054F1003 PSB1054F1003
Replaced By PCAP85M
CAP SCREW M6-1 X 6
 N/A View Replacement
PSB1054F1004 PSB1054F1004
Replaced By PCAP56M
CAP SCREW M3-.5 X 10
 N/A View Replacement
PSB1054F1005 PSB1054F1005
Replaced By PSB10531005
BRAKE PEDAL
 N/A View Replacement
PSB1054F1006 PSB1054F1006
Replaced By PSB10531006
BRAKE PEDAL ROD
 N/A View Replacement
PSB1054F1007 PSB1054F1007
Replaced By PSB10531007
LOCK COLLAR
 N/A View Replacement
PSB1054F1008 PSB1054F1008
Replaced By PSB10531008
ROD BRACKET
 N/A View Replacement
PSB1054F1009 PSB1054F1009
Replaced By PSB10531009
RIGHT CABINET STAND
 N/A View Replacement
PSB1054F1010 PSB1054F1010
Replaced By PSB10531010
RIGHT CABINET FRONT PANEL
 N/A View Replacement
PSB1054F1011 PSB1054F1011
Replaced By PCAP196M
CAP SCREW M8-1.25 X 25 CHROME
 N/A View Replacement
PSB1054F1012 PSB1054F1012
Replaced By PSB10531012
CHIP DRAWER SUPPORT
 N/A View Replacement
PSB1054F1013 PSB1054F1013
Replaced By PW01M
FLAT WASHER 8MM
 N/A View Replacement
PSB1054F1014 PSB1054F1014
Replaced By PSB10531014
LEFT CABINET STAND
 N/A View Replacement
PSB1054F1015 PSB1054F1015
Replaced By PSB10531015
LEFT CABINET FRONT PANEL
 N/A View Replacement
PSB1054F1016 PSB1054F1016
Replaced By PS05M
PHLP HD SCR M5-.8 X 8
 N/A View Replacement
PSB1054F1017 PSB1054F1017
Replaced By PSB10531017
FEED ROD CLUTCH SIDE COVER
 N/A View Replacement
PSB1054F1018 PSB1054F1018
Replaced By PSB10531018
BACK SPLASH SUPPORT
 N/A View Replacement
PSB1054F1019 PSB1054F1019
Replaced By PSB10531019
ROD BRACKET
 N/A View Replacement
PSB1054F1020 PSB1054F1020
Replaced By PCAP195M
CAP SCREW M6-1 X 20 CHROME
 N/A View Replacement
PSB1054F1021 PSB1054F1021
Replaced By PSS01M
SET SCREW M6-1 X 10
 N/A View Replacement
PSB1054F1022 PSB1054F1022
Replaced By PSB10531022
BACK SPLASH ROD
 N/A View Replacement
PSB1054F1023 PSB1054F1023
Replaced By PFH71M
FLAT HD CAP SCR M5-.8 X 8
 N/A View Replacement
PSB1054F1024 PSB1054F1024
HEADSTOCK SIDE COVER
 N/A
PSB1054F1025 PSB1054F1025
Replaced By PSB10531025
CHUCK GUARD PIVOT BRACKET
 N/A View Replacement
PSB1054F1026 PSB1054F1026
Replaced By PSS14M
SET SCREW M8-1.25 X 12
 N/A View Replacement
PSB1054F1027 PSB1054F1027
Replaced By PSB10531027
CHUCK GUARD PIVOT ROD
 N/A View Replacement
PSB1054F1028 PSB1054F1028
Replaced By PSB10531028
CHUCK GUARD
 N/A View Replacement
PSB1054F1029 PSB1054F1029
Replaced By PSB10531029
KNOB 1/2-13
 N/A View Replacement
PSB1054F1030 PSB1054F1030
Replaced By PN06
HEX NUT 1/2-12
 N/A View Replacement
PSB1054F1031 PSB1054F1031
Replaced By PB107
HEX BOLT 1/2-20 X 1 BLK
 N/A View Replacement
PSB1054F1032 PSB1054F1032
Replaced By PCAP26M
CAP SCREW M6-1 X 12
 N/A View Replacement
PSB1054F1033 PSB1054F1033
Replaced By PN04M
HEX NUT M4-.7
 N/A View Replacement
PSB1054F1034 PSB1054F1034
Replaced By PLW03M
LOCK WASHER 6MM
 N/A View Replacement
PSB1054F1035 PSB1054F1035
Replaced By PSB10531035
LIMIT SWITCH BRACKET
 N/A View Replacement
PSB1054F1036 PSB1054F1036
Replaced By PSB10531036
CHUCK GUARD LIMIT SWITCH TZ9212
 N/A View Replacement
PSB1054F1037 PSB1054F1037
Replaced By PS40M
PHLP HD SCR M5-.8 X 16
 N/A View Replacement
PSB1054F1038 PSB1054F1038
Replaced By PSS34M
SET SCREW M5-.8 X 16
 N/A View Replacement
PSB1054F1039 PSB1054F1039
Replaced By PN03M
HEX NUT M8-1.25
 N/A View Replacement
PSB1054F1040 PSB1054F1040
Replaced By PSB10531040
BACK SPLASH
 N/A View Replacement
PSB1054F1041 PSB1054F1041
Replaced By PSB10531041
COOLANT PUMP ACCESS PANEL
 N/A View Replacement
PSB1054F1042 PSB1054F1042
Replaced By PS68M
PHLP HD SCR M6-1 X 10
 N/A View Replacement
PSB1054F1043 PSB1054F1043
Replaced By PSB10531043
COOLANT TANK 11.3 LITER
 N/A View Replacement
PSB1054F1044 PSB1054F1044
COOLANT PUMP 1/8HP 440V 3PH
 N/A
PSB1054F1045 PSB1054F1045
Replaced By PSB10531045
PIPE NIPPLE 3/8" PT X 3/8" PH
 N/A View Replacement
PSB1054F1046 PSB1054F1046
Replaced By PSB10531046
COOLANT HOSE 3/8" X 72"
 N/A View Replacement
PSB1054F1047 PSB1054F1047
Replaced By PSB10531047
LOCK COLLAR
 N/A View Replacement
PSB1054F1048 PSB1054F1048
Replaced By PSS03M
SET SCREW M6-1 X 8
 N/A View Replacement
PSB1054F1049 PSB1054F1049
Replaced By PSB10531049
CABINET STAND SUPPORT ROD
 N/A View Replacement
PSB1054F1050 PSB1054F1050
Replaced By PSB10531050
COOLANT CATCH TRAY
 N/A View Replacement
PSB1054F1051 PSB1054F1051
Replaced By PSB10531051
LEVELING PAD
 N/A View Replacement
PSB1054F1052 PSB1054F1052
Replaced By PB188M
HEX BOLT M16-2 X 60 BLK C12.9
 N/A View Replacement
PSB1054F1056 PSB1054F1056
Replaced By PSB10531056
2-SPEED MOTOR SWITCH 4P/8P 25A
 N/A View Replacement
PSB1054F1057 PSB1054F1057
Replaced By PSB10531057
SWITCH BOX
 N/A View Replacement
PSB1054F1058 PSB1054F1058
Replaced By PSB10531058
CHUCK GUARD CLEAR PANEL
 N/A View Replacement
PSB1054F1059 PSB1054F1059
Replaced By PS14M
PHLP HD SCR M6-1 X 12
 N/A View Replacement
PSB1054F1060 PSB1054F1060
Replaced By PSB10531060
HALOGEN LAMP ASSEMBLY
 N/A View Replacement
PSB1054F1060-1 PSB1054F1060-1
Replaced By PSB10531060-1
LAMP BODY
 N/A View Replacement
PSB1054F1060-2 PSB1054F1060-2
Replaced By PBULB3
HALOGEN BULB 50W 24V BI-PIN
 N/A View Replacement
PSB1054F1060-3 PSB1054F1060-3
Replaced By PSB10531060-3
LENS
 N/A View Replacement
PSB1054F1060-4 PSB1054F1060-4
Replaced By PSB10531060-4
LENS RETAINER
 N/A View Replacement
PSB1054F1060-5 PSB1054F1060-5
Replaced By PS55M
PHLP HD SCR M3-.5 X 10
 N/A View Replacement
PSB1054F1060-6 PSB1054F1060-6
Replaced By PSB10531060-6
LAMP TERMINAL BLOCK 2P
 N/A View Replacement
PSB1054F1100 PSB1054F1100
TAILSTOCK ASSEMBLY
 N/A
PSB1054F1101 PSB1054F1101
Replaced By PSB10531101A
TAILSTOCK LEADSCREW W/NUT
 N/A View Replacement
PSB1054F1101A PSB1054F1101A
Replaced By PSB10531101A
TAILSTOCK LEADSCREW W/NUT
 N/A View Replacement
PSB1054F1102 PSB1054F1102
Replaced By PSB10531101A
TAILSTOCK LEADSCREW W/NUT
 N/A View Replacement
PSB1054F1103 PSB1054F1103
Replaced By PK34M
KEY 5 X 5 X 20
 N/A View Replacement
PSB1054F1104 PSB1054F1104
Replaced By PSB10531104
THRUST BEARING MTB/AS2 2035
 N/A View Replacement
PSB1054F1105 PSB1054F1105
Replaced By PSB10531105
LEADSCREW BRACKET
 N/A View Replacement
PSB1054F1106 PSB1054F1106
Replaced By PR37M
EXT RETAINING RING 32MM
 N/A View Replacement
PSB1054F1107 PSB1054F1107
Replaced By PSB10531107
THRUST WASHER
 N/A View Replacement
PSB1054F1108 PSB1054F1108
Replaced By PSB10531108
GRADUATED DIAL
 N/A View Replacement
PSB1054F1109 PSB1054F1109
Replaced By PSB10531109
HANDWHEEL
 N/A View Replacement
PSB1054F1110 PSB1054F1110
Replaced By PSB10531110
HANDWHEEL END CAP
 N/A View Replacement
PSB1054F1111 PSB1054F1111
Replaced By PSB10531111
HANDLE CAP SCREW M8-1.25 X 90
 N/A View Replacement
PSB1054F1112 PSB1054F1112
Replaced By PSB10531112
HANDLE
 N/A View Replacement
PSB1054F1113 PSB1054F1113
Replaced By PSB10531113
COMPRESSION SPRING 6.2 X 16
 N/A View Replacement
PSB1054F1114 PSB1054F1114
Replaced By PSTB001
STEEL BALL 1/4
 N/A View Replacement
PSB1054F1115 PSB1054F1115
Replaced By PSB10531115
QUILL LOCK LEVER
 N/A View Replacement
PSB1054F1116 PSB1054F1116
Replaced By PSB10531116
QUILL LOCK SHAFT
 N/A View Replacement
PSB1054F1117 PSB1054F1117
Replaced By PSB10531117
TAILSTOCK LOCK LEVER
 N/A View Replacement
PSB1054F1118 PSB1054F1118
Replaced By PSB10531118
TAILSTOCK LOCK SHAFT
 N/A View Replacement
PSB1054F1119 PSB1054F1119
Replaced By PRP04M
ROLL PIN 4 X 24
 N/A View Replacement
PSB1054F1121 PSB1054F1121
Replaced By PSB10531121
OIL SEAL DH53
 N/A View Replacement
PSB1054F1122 PSB1054F1122
Replaced By PLUBE001
BALL OILER 1/4 PRESS-IN
 N/A View Replacement
PSB1054F1123 PSB1054F1123
TAILSTOCK CASTING
 N/A
PSB1054F1124 PSB1054F1124
Replaced By PSB10531124
QUILL
 N/A View Replacement
PSB1054F1125 PSB1054F1125
Replaced By PSB10531125
QUILL ALIGNMENT KEY
 N/A View Replacement
PSB1054F1126 PSB1054F1126
Replaced By PSB10531126
UPPER OFFSET INDICATOR
 N/A View Replacement
PSB1054F1126A PSB1054F1126A
Replaced By PSB10531126A
OFFSET INDICATOR ASSEMBLY
 N/A View Replacement
PSB1054F1127 PSB1054F1127
Replaced By PSB10531127
LOWER OFFSET INDICATOR
 N/A View Replacement
PSB1054F1128 PSB1054F1128
Replaced By PSB10531128
ALIGNMENT PIN
 N/A View Replacement
PSB1054F1129 PSB1054F1129
Replaced By PSB10531129
ALIGNMENT BLOCK
 N/A View Replacement
PSB1054F1130 PSB1054F1130
PILOT SET SCREW M8-1.25 X 50
 N/A
PSB1054F1131 PSB1054F1131
TAILSTOCK BASE
 N/A
PSB1054F1132 PSB1054F1132
Replaced By PSB10531132
GIB ADJUSTMENT SCREW
 N/A View Replacement
PSB1054F1133 PSB1054F1133
Replaced By PSB10531133
TAILSTOCK V-WIPER
 N/A View Replacement
PSB1054F1134 PSB1054F1134
Replaced By PSB10531134
V-WIPER PLATE
 N/A View Replacement
PSB1054F1135 PSB1054F1135
Replaced By PSB10531135
STRAIGHT WIPER PLATE
 N/A View Replacement
PSB1054F1136 PSB1054F1136
Replaced By PSB10531136
TAILSTOCK STRAIGHT WIPER
 N/A View Replacement
PSB1054F1137 PSB1054F1137
Replaced By PSB10531137
TAILSTOCK GIB
 N/A View Replacement
PSB1054F1138 PSB1054F1138
Replaced By PSB10531138
COMPRESSION SPRING 25 X 45
 N/A View Replacement
PSB1054F1139 PSB1054F1139
Replaced By PSB10531139
CLAMP PLATE
 N/A View Replacement
PSB1054F1140 PSB1054F1140
STUD-FT M14-2 X 125
 N/A
PSB1054F1141 PSB1054F1141
Replaced By PCAP01M
CAP SCREW M6-1 X 16
 N/A View Replacement
PSB1054F1142 PSB1054F1142
Replaced By PSS04M
SET SCREW M6-1 X 12
 N/A View Replacement
PSB1054F1143 PSB1054F1143
Replaced By PCAP26M
CAP SCREW M6-1 X 12
 N/A View Replacement
PSB1054F1144 PSB1054F1144
Replaced By PCAP128M
CAP SCREW M8-1.25 X 70
 N/A View Replacement
PSB1054F1145 PSB1054F1145
Replaced By PCAP35M
CAP SCREW M8-1.25 X 60
 N/A View Replacement
PSB1054F1146 PSB1054F1146
Replaced By PCAP68M
CAP SCREW M6-1 X 8
 N/A View Replacement
PSB1054F1147 PSB1054F1147
Replaced By PCAP01M
CAP SCREW M6-1 X 16
 N/A View Replacement
PSB1054F1148 PSB1054F1148
Replaced By PS08M
PHLP HD SCR M5-.8 X 12
 N/A View Replacement
PSB1054F1149 PSB1054F1149
Replaced By PSB10531149
CLAMP FLAT WASHER
 N/A View Replacement
PSB1054F1150 PSB1054F1150
Replaced By PB186M
HEX BOLT M10-1.5 X 55 BLK
 N/A View Replacement
PSB1054F1151 PSB1054F1151
Replaced By PW10M
FLAT WASHER 14MM
 N/A View Replacement
PSB1054F1152 PSB1054F1152
Replaced By PN32M
HEX NUT M14-2
 N/A View Replacement
PSB1054F1153 PSB1054F1153
Replaced By PN03M
HEX NUT M8-1.25
 N/A View Replacement
PSB1054F1154 PSB1054F1154
Replaced By PRIV001M
RIVET 2 X 5MM NAMEPLATE, STEEL
 N/A View Replacement
PSB1054F1155 PSB1054F1155
Replaced By PLW06M
LOCK WASHER 10MM
 N/A View Replacement
PSB1054F1200 PSB1054F1200
Replaced By PSB10531200
THREAD DIAL ASSEMBLY
 N/A View Replacement
PSB1054F1201 PSB1054F1201
Replaced By PSB10531201
DIAL INDICATOR
 N/A View Replacement
PSB1054F1202 PSB1054F1202
Replaced By PSB10531202
PIVOT SHAFT
 N/A View Replacement
PSB1054F1203 PSB1054F1203
Replaced By PSB10531203
THREAD DIAL BODY
 N/A View Replacement
PSB1054F1204 PSB1054F1204
Replaced By PSB10531204
KNURLED KNOB
 N/A View Replacement
PSB1054F1205 PSB1054F1205
Replaced By PSB10531205
STUD-DE M8-1.25 X 100 18/12
 N/A View Replacement
PSB1054F1206 PSB1054F1206
Replaced By PSB10531206
DIAL CHART PANEL
 N/A View Replacement
PSB1054F1207 PSB1054F1207
Replaced By PSB10531207
SPACER
 N/A View Replacement
PSB1054F1208 PSB1054F1208
Replaced By PSB10531208
DIAL GEAR 16T
 N/A View Replacement
PSB1054F1209 PSB1054F1209
Replaced By PCAP04M
CAP SCREW M6-1 X 10
 N/A View Replacement
PSB1054F1210 PSB1054F1210
Replaced By PRIV001M
RIVET 2 X 5MM NAMEPLATE, STEEL
 N/A View Replacement
PSB1054F1211 PSB1054F1211
Replaced By PSS02M
SET SCREW M6-1 X 6
 N/A View Replacement
PSB1054F1212 PSB1054F1212
Replaced By PN03M
HEX NUT M8-1.25
 N/A View Replacement
PSB1054F1300 PSB1054F1300
Replaced By PSB10531300
MICROMETER STOP ASSEMBLY
 N/A View Replacement
PSB1054F1301 PSB1054F1301
Replaced By PCAP71M
CAP SCREW M10-1.5 X 60
 N/A View Replacement
PSB1054F1302 PSB1054F1302
Replaced By PRIV001M
RIVET 2 X 5MM NAMEPLATE, STEEL
 N/A View Replacement
PSB1054F1303 PSB1054F1303
Replaced By PSB10531303
INDICATOR PLATE
 N/A View Replacement
PSB1054F1304 PSB1054F1304
Replaced By PSB10531304
MICROMETER DIAL
 N/A View Replacement
PSB1054F1305 PSB1054F1305
Replaced By PSB10531305
MICROMETER DIAL BODY
 N/A View Replacement
PSB1054F1306 PSB1054F1306
Replaced By PSB10531306
MICROMETER ROD
 N/A View Replacement
PSB1054F1307 PSB1054F1307
Replaced By PSB10531307
CLAMP PLATE
 N/A View Replacement
PSB1054F1308 PSB1054F1308
Replaced By PSS10M
SET SCREW M10-1.5 X 20
 N/A View Replacement
PSB1054F1309 PSB1054F1309
Replaced By PSB10531309
PLUNGER COPPER
 N/A View Replacement
PSB1054F1310 PSB1054F1310
Replaced By PSS06M
SET SCREW M8-1.25 X 16
 N/A View Replacement
PSB1054F1311 PSB1054F1311
Replaced By PSB10531311
PILOT SET SCREW M8-1.25 X 12
 N/A View Replacement
PSB1054F1312 PSB1054F1312
Replaced By PSS14M
SET SCREW M8-1.25 X 12
 N/A View Replacement
PSB1054F1400 PSB1054F1400
Replaced By PSB10531400
STEADY REST ASSEMBLY
 N/A View Replacement
PSB1054F1401 PSB1054F1401
Replaced By PSB10531401
FINGER ADJUSTMENT KNOB
 N/A View Replacement
PSB1054F1402 PSB1054F1402
Replaced By PRP51M
ROLL PIN 4 X 40
 N/A View Replacement
PSB1054F1403 PSB1054F1403
Replaced By PSB10531403
SPACER
 N/A View Replacement
PSB1054F1404 PSB1054F1404
Replaced By PSB10531404
FINGER ADJUSTMENT BOLT
 N/A View Replacement
PSB1054F1405 PSB1054F1405
Replaced By PSB10531405
FINGER
 N/A View Replacement
PSB1054F1406 PSB1054F1406
Replaced By PSB10531406
DOWEL PIN
 N/A View Replacement
PSB1054F1407 PSB1054F1407
Replaced By P627ZZ
BALL BEARING 627ZZ
 N/A View Replacement
PSB1054F1408 PSB1054F1408
Replaced By PSS20M
SET SCREW M8-1.25 X 8
 N/A View Replacement
PSB1054F1409 PSB1054F1409
Replaced By PSB10531409
CLAMP KNOB
 N/A View Replacement
PSB1054F1410 PSB1054F1410
Replaced By PSB10531410
CLAMP SCREW
 N/A View Replacement
PSB1054F1411 PSB1054F1411
Replaced By PSB10531411
DOWEL PIN
 N/A View Replacement
PSB1054F1412 PSB1054F1412
Replaced By PSB10531400
STEADY REST ASSEMBLY
 N/A View Replacement
PSB1054F1413 PSB1054F1413
Replaced By PSB10531400
STEADY REST ASSEMBLY
 N/A View Replacement
PSB1054F1414 PSB1054F1414
Replaced By PSB10531414
HINGE PIN
 N/A View Replacement
PSB1054F1415 PSB1054F1415
Replaced By PSB10531415
DOG PT LEAF SCREW
 N/A View Replacement
PSB1054F1416 PSB1054F1416
Replaced By PN09M
HEX NUT M12-1.75
 N/A View Replacement
PSB1054F1417 PSB1054F1417
Replaced By PLW05M
LOCK WASHER 12MM
 N/A View Replacement
PSB1054F1418 PSB1054F1418
Replaced By PSB10531418
STUD-FT M12-1.75 X 75
 N/A View Replacement
PSB1054F1419 PSB1054F1419
Replaced By PSB10531419
CLAMP PLATE
 N/A View Replacement
PSB1054F1500 PSB1054F1500
Replaced By PSB10531500
FOLLOW REST ASSEMBLY
 N/A View Replacement
PSB1054F1501 PSB1054F1501
Replaced By PSB10531401
FINGER ADJUSTMENT KNOB
 N/A View Replacement
PSB1054F1502 PSB1054F1502
Replaced By PRP51M
ROLL PIN 4 X 40
 N/A View Replacement
PSB1054F1503 PSB1054F1503
Replaced By PSB10531403
SPACER
 N/A View Replacement
PSB1054F1504 PSB1054F1504
Replaced By PSB10531404
FINGER ADJUSTMENT BOLT
 N/A View Replacement
PSB1054F1505 PSB1054F1505
Replaced By PSB10531405
FINGER
 N/A View Replacement
PSB1054F1506 PSB1054F1506
Replaced By PSB10531406
DOWEL PIN
 N/A View Replacement
PSB1054F1507 PSB1054F1507
Replaced By PSS20M
SET SCREW M8-1.25 X 8
 N/A View Replacement
PSB1054F1508 PSB1054F1508
Replaced By PSS20M
SET SCREW M8-1.25 X 8
 N/A View Replacement
PSB1054F1601 PSB1054F1601
Replaced By PSB10531601
ELECTRICAL MOUNTING PLATE
 N/A View Replacement
PSB1054F1602 PSB1054F1602 CONTACTOR AB C1601 440V $82.50
PSB1054F1603 PSB1054F1603
Replaced By PSB10531603
MASTER POWER SWITCH
 N/A View Replacement
PSB1054F1604 PSB1054F1604
Replaced By PSB10391404
OL RELAY AB 193-T1AC21 17.5-21.5A
 N/A View Replacement
PSB1054F1605 PSB1054F1605
Replaced By PSB10122208
OL RELAY AB193-T1AA40 0.25-0.4A
 N/A View Replacement
PSB1054F1606 PSB1054F1606 CIRCUIT BREAKER 20A AB 1492-SP D20 3P $86.50
PSB1054F1607 PSB1054F1607
Replaced By PSB10531607
CIRCUIT BREAKER 6A AB 1489-A D6 1P
 N/A View Replacement
PSB1054F1608 PSB1054F1608
Replaced By PSB10531608
TRANSFORMER TBSW11 140VA 220/440-24/220V
 N/A View Replacement
PSB1054F1609 PSB1054F1609
Replaced By PSB10531609
TERMINAL BLOCK 3 POST 7PCS ASSY
 N/A View Replacement
PSB1054F1610 PSB1054F1610
Replaced By PSB10531610
CONTROL PANEL PLATE
 N/A View Replacement
PSB1054F1611 PSB1054F1611
Replaced By PSB10122221
JOG BUTTON AB 800FP-F3 22MM GRN
 N/A View Replacement
PSB1054F1612 PSB1054F1612
Replaced By PSB10122222
E-STOP BUTTON AB 800FD-MT44X01
 N/A View Replacement
PSB1054F1613 PSB1054F1613
Replaced By PSB10122219
POWER INDICATOR LIGHT AB 800FD P7N3 22MM
 N/A View Replacement
PSB1054F1614 PSB1054F1614
Replaced By PSB10391414
CUTTING FLUID SWITCH
 N/A View Replacement
PSB1054F1615 PSB1054F1615
Replaced By PSB10531615
FUSE 4A 250V TIME-DELAY 5 X 20MM
 N/A View Replacement
PSB1054F1616 PSB1054F1616
Replaced By PSB10531616
FUSE .5A 250V TIME DELAY 5 X 20MM
 N/A View Replacement
PSB1054F1617 PSB1054F1617
Replaced By PSB10531617
CONTACTOR AB C09400
 N/A View Replacement
PSB1054F1701 PSB1054F1701
Replaced By SB1310
9" High Precision 3 Jaw Scroll Chuck
 N/A View Replacement
PSB1054F1702 PSB1054F1702
Replaced By PSB10531702
FACEPLATE ASSEMBLY 12"
 N/A View Replacement
PSB1054F1703 PSB1054F1703
Replaced By SB1228
10" 4 Jaw Ind. Chuck D1-6
 N/A View Replacement
PSB1054F1704 PSB1054F1704
Replaced By PSB10531704
DEAD CENTER MT#4
 N/A View Replacement
PSB1054F1705 PSB1054F1705
Replaced By PSB10531705
DEAD CENTER CARBIDE-TIPPED MT#4
 N/A View Replacement
PSB1054F1706 PSB1054F1706
Replaced By PSB10531706
SPINDLE SLEEVE MT#6-MT#4
 N/A View Replacement
PSB1054F1707 PSB1054F1707
Replaced By PSB10531718
TOOL BOX
 N/A View Replacement
PSB1054F1708 PSB1054F1708
Replaced By PAW10M
HEX WRENCH 10MM
 N/A View Replacement
PSB1054F1709 PSB1054F1709
Replaced By PAW1510M
HEX WRENCH 1.5-10MM 10PC SET
 N/A View Replacement
PSB1054F1710 PSB1054F1710
Replaced By PSB10531710
FOOT CAST-IRON
 N/A View Replacement
PSB1054F1711 PSB1054F1711
Replaced By PSDF2
SCREWDRIVER FLAT #2
 N/A View Replacement
PSB1054F1712 PSB1054F1712
Replaced By PSDP2
SCREWDRIVER PHILLIPS #2
 N/A View Replacement
PSB1054F1713 PSB1054F1713
Replaced By PWR1012
WRENCH 10 X 12MM OPEN-ENDS
 N/A View Replacement
PSB1054F1714 PSB1054F1714
Replaced By PWR1417
WRENCH 14 X 17MM OPEN-ENDS
 N/A View Replacement
PSB1054F1715 PSB1054F1715
Replaced By PWR2224
WRENCH 22 X 24MM OPEN-ENDS
 N/A View Replacement
PSB1054F1716 PSB1054F1716
*DISCD*COMBO WRENCH 27MM
Item is no longer available
 N/A
PSB1054F1717 PSB1054F1717
Replaced By PSB1037F2318
DRO ASSEMBLY FAGOR 2-AXIS
 N/A View Replacement
PSB1054F1718 PSB1054F1718
Replaced By PSB10531718
TOOL BOX
 N/A View Replacement
PSB1054F1801 PSB1054F1801
MACHINE ID LABEL
 N/A
PSB1054F1802 PSB1054F1802
Replaced By PSB10531802
CHANGING SPEEDS LABEL
 N/A View Replacement
PSB1054F1803 PSB1054F1803
Replaced By PSB10531803
CHANGING GEARS LABEL
 N/A View Replacement
PSB1054F1804 PSB1054F1804
Replaced By PSB10531804
BEDWAY DESCRIPTION LABEL
 N/A View Replacement
PSB1054F1805 PSB1054F1805
TOOLROOM SERIES LABEL
 N/A
PSB1054F1806 PSB1054F1806
Replaced By PSBPAINT03
*DISCD*SB DARK BLUE TOUCH-UP PAINT
 N/A View Replacement
PSB1054F1807 PSB1054F1807
Replaced By PSB10531807
CARRIAGE LOCK NOTICE LABEL
 N/A View Replacement
PSB1054F1808 PSB1054F1808
Replaced By PSB10531808
DIAL CHART LABEL
 N/A View Replacement
PSB1054F1809 PSB1054F1809
Replaced By PSB10531809
ONE-SHOT OILER LABEL
 N/A View Replacement
PSB1054F1810 PSB1054F1810
Replaced By PSBPAINT02
*DISCD*SB LIGHT BLUE TOUCH-UP PAINT
 N/A View Replacement
PSB1054F1811 PSB1054F1811
LOGO MODEL NUMBER LABEL
 N/A
PSB1054F1812 PSB1054F1812
Replaced By PSBLABEL08HL
ENTANGLEMENT LABEL 3.25 X 2
 N/A View Replacement
PSB1054F1813 PSB1054F1813
Replaced By PSBLABEL04HL
SAFETY GLASSES 3.25W X 2H
 N/A View Replacement
PSB1054F1814 PSB1054F1814
Replaced By SB1322
Nameplate 255mm
 N/A View Replacement
PSB1054F1815 PSB1054F1815
Replaced By PSB10531815
CHUCK KEY HAZARD LABEL
 N/A View Replacement
PSB1054F1816 PSB1054F1816
Replaced By PSBLABEL01HL
READ MANUAL LABEL 3.25 X 2
 N/A View Replacement
PSB1054F1817 PSB1054F1817
Replaced By PSB10531817
PROPER PERSONNEL NOTICE LABEL
 N/A View Replacement
PSB1054F1818 PSB1054F1818
Replaced By PSBLABEL15M
ELECTRICITY LABEL 0.7
 N/A View Replacement
PSB1054F1819 PSB1054F1819
Replaced By PSBLABEL02HL
DISC POWER LABEL 3.25 X 2
 N/A View Replacement
PSB1054F1820 PSB1054F1820
440V 3PH LABEL
 N/A
PSB1054F1821 PSB1054F1821
Replaced By PSBLABEL06HL
BIOHAZARD LABEL 3.25 X 2
 N/A View Replacement
PSB1054F1822 PSB1054F1822
MACHINE DATA PLATE
 N/A
PSB1054F1823 PSB1054F1823
Replaced By PSBPAINT01
*DISCD*SB GRAY TOUCH-UP PAINT
 N/A View Replacement
PSB1054F1824 PSB1054F1824
Replaced By PSB10531824
CHUCK SPEED LABEL
 N/A View Replacement
PSB1054F1825 PSB1054F1825
Replaced By PSB10531825
FLUID CAPACITIES LABEL
 N/A View Replacement
PSB1054FMAN PSB1054FMAN
Replaced By PSB1053MAN
MANUAL FOR SB1053-54F-55F 05/11
 N/A View Replacement
