Parts for SB1055F - 16" x 60" Gearhead Lathe with DRO
IMPORTANT: Parts may have multiple versions. This will be indicated by V1 , V2 , or V3 on the part number and/or description, followed by the version month
and year that it was first used. Example: V2.01.17 indicates version 2 beginning in January 2017. Please reference your machine's manufacture date on the ID
Label to ensure you are selecting the correct part when multiple versions are indicated.
If you cannot locate your part below, please contact our tech support
department at
techsupport@grizzly.com
or 570-546-9663.
Please note: All parts ship out of our Springfield, Missouri facility.
PSB1055F0002
CAP SCREW M6-1 X 16 CHROME
PSB1055F0009
RIVET 2 X 5MM NAMEPLATE, STEEL
PSB1055F0013
COMPRESSION SPRING 8 X 37MM
PSB1055F0014
COMPRESSION SPRING 8 X 52.5MM
PSB1055F0044
COMPRESSION SPRING 6 X 27.5MM
PSB1055F0067
GEAR ASSEMBLY 38/46/50/30T
PSB1055F0068
GEAR ASSEMBLY 38/46/50/30T
PSB1055F0069
GEAR ASSEMBLY 38/46/50/30T
PSB1055F0070
GEAR ASSEMBLY 38/46/50/30T
PSB1055F0070A
GEAR ASSEMBLY 38/46/50/30T

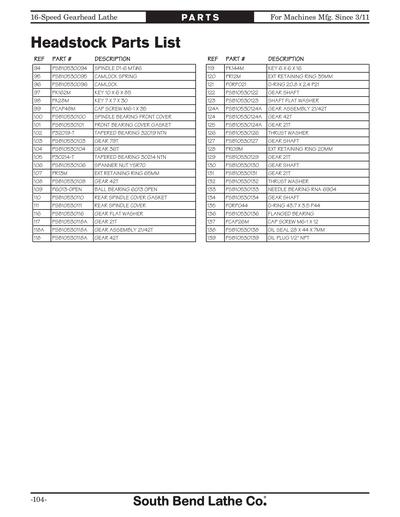

PSB1055F0100
SPINDLE BEARING FRONT COVER
PSB1055F0101
FRONT BEARING COVER GASKET
PSB1055F0105
TAPERED BEARING 30214 NTN
PSB1055F0110
REAR SPINDLE COVER GASKET
PSB1055F0203
NEEDLE BEARING TAF 202820
PSB1055F0266
COMPRESSION SPRING 4 X 19
PSB1055F0269
UPPER MIDDLE SHIFT SUPPORT
PSB1055F0270
LOWER MIDDLE SHIFT SUPPORT
PSB1055F0275
INDENTED CONNECTING PLATE
PSB1055F0295
COMPRESSION SPRING 6.35 X 18
PSB1055F0298
COMPRESSION SPRING 6 X 13
PSB1055F0309
PIPE NIPPLE 1/2" X 1" NPT
PSB1055F0314
COMPRESSION SPRING 9 X 38
PSB1055F0415
COMPRESSION SPRING 6 X 13
PSB1055F0437
COMPRESSION SPRING 4 X 19
PSB1055F0448
HANDWHEEL HANDLE CAP SCREW
PSB1055F0452
THRUST BEARING NTB/AS-2542
PSB1055F0470
COMPRESSION SPRING 6 X 27
PSB1055F0491
CAP SCREW M6-1 X 16 CHROME
PSB1055F0601
END GEAR COVER ALIGNMENT PIN
PSB1055F0605
KNURLED END GEAR COVER NUT
PSB1055F0629
HEX BOLT M10-1.5 X 40 BLK C8.8
PSB1055F0637
END GEAR COVER LIMIT SWITCH TM1307
PSB1055F0708
THRUST BEARING NTB/AS2 1226
PSB1055F0711
CROSS SLIDE LEADSCREW W/HALF NUT
PSB1055F0712
CROSS SLIDE LEADSCREW W/HALF NUT
PSB1055F0713
CROSS SLIDE LEADSCREW W/HALF NUT
PSB1055F0713A
CROSS SLIDE LEADSCREW W/HALF NUT
PSB1055F0716
COOLANT NOZZLE 3/8" PT X 24"
PSB1055F0717
COOLANT STAND PIPE W/VALVE 3/8" PT
PSB1055F0729
COMPRESSION SPRING 6 X 15
PSB1055F0730
THRUST BEARING NTB/AS2 1730
PSB1055F0733
CROSS SLIDE GRADUATED DIAL
PSB1055F0735
HANDWHEEL END CAP M12-1.75

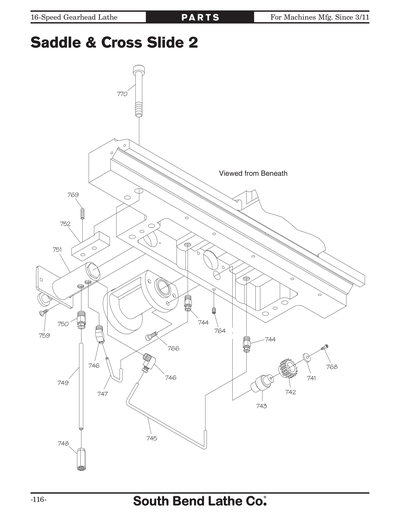

PSB1055F0744
PIPE ADAPTER 1/8" PT X 4MM
PSB1055F0746
PIPE ELBOW ADAPTER 1/8" PT X 4MM
PSB1055F0750
PIPE ADAPTER 1/8" PT X 6MM
PSB1055F0762
CAP SCREW M6-1 X 20 CHROME
PSB1055F0808
COMPRESSION SPRING 6 X 27

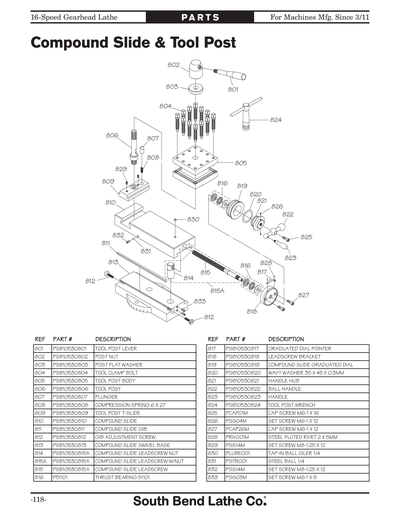

PSB1055F0813
COMPOUND SLIDE SWIVEL BASE
PSB1055F0814
COMPOUND SLIDE LEADSCREW W/NUT
PSB1055F0815
COMPOUND SLIDE LEADSCREW W/NUT
PSB1055F0815A
COMPOUND SLIDE LEADSCREW W/NUT
PSB1055F0819
COMPOUND SLIDE GRADUATED DIAL
PSB1055F0820
WAVY WASHER 35 X 45 X 0.3MM
PSB1055F0828
RIVET 2 X 5MM NAMEPLATE, STEEL
PSB1055F0906
COMPRESSION SPRING 8 X 23
PSB1055F0916
COMPRESSION SPRING 38 X 75
PSB1055F0920
THRUST BEARING NTB/AS2 1831
PSB1055F0926
COMPRESSIONS SPRING 9 X 32
PSB1055F0932
COMPRESSION SPRING 27 X 55
PSB1055F0955
HEX BOLT M16-2 X 55 BLK C12.9

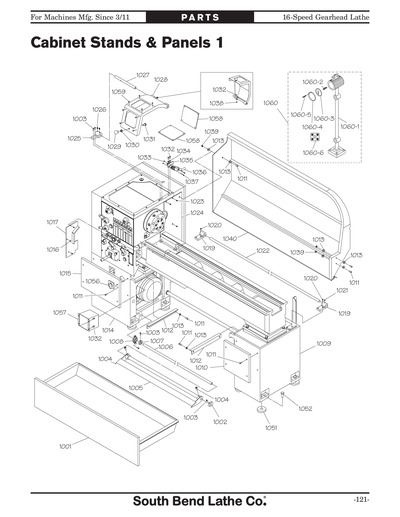

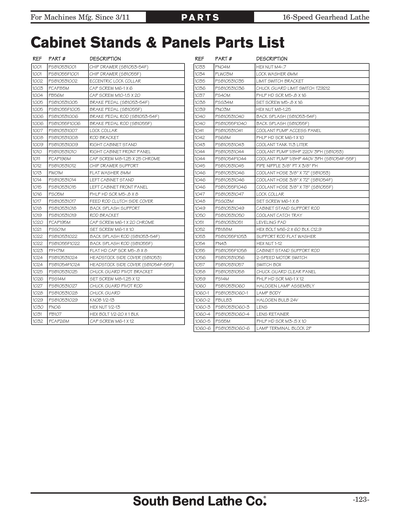

PSB1055F1010
RIGHT CABINET FRONT PANEL
PSB1055F1011
CAP SCREW M8-1.25 X 25 CHROME
PSB1055F1017
FEED ROD CLUTCH SIDE COVER
PSB1055F1020
CAP SCREW M6-1 X 20 CHROME
PSB1055F1023
FLAT HD CAP SCR M5-.8 X 8
PSB1055F1025
CHUCK GUARD PIVOT BRACKET
PSB1055F1036
CHUCK GUARD LIMIT SWITCH TZ9212
PSB1055F1041
COOLANT PUMP ACCESS PANEL
PSB1055F1044
COOLANT PUMP 1/8HP 440V 3PH
PSB1055F1045
PIPE NIPPLE 3/8" PT X 3/8" PH
PSB1055F1052
HEX BOLT M16-2 X 60 BLK C12.9
P
CABINET STAND SUPPORT ROD
Add to Cart
PSB1055F1056
2-SPEED MOTOR SWITCH 4P/8P 25A
PSB1055F1060-2
HALOGEN BULB 50W 24V BI-PIN

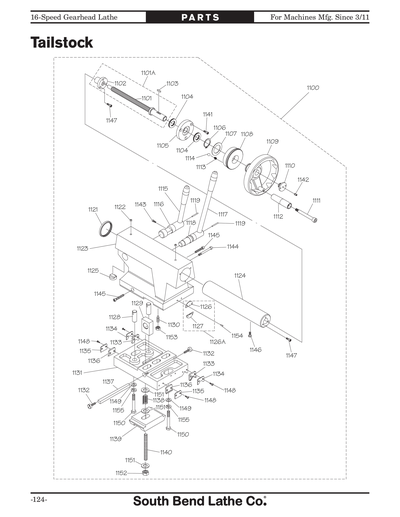

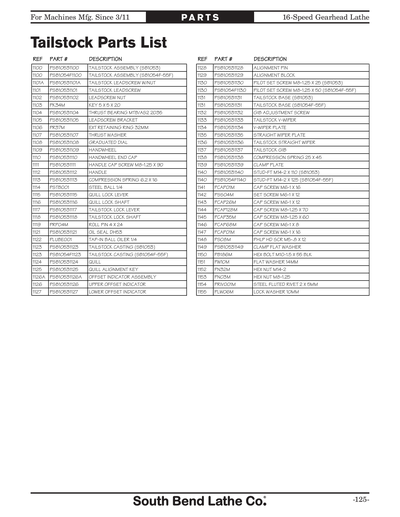

PSB1055F1101
TAILSTOCK LEADSCREW W/NUT
PSB1055F1101A
TAILSTOCK LEADSCREW W/NUT
PSB1055F1102
TAILSTOCK LEADSCREW W/NUT
PSB1055F1104
THRUST BEARING MTB/AS2 2035
PSB1055F1111
HANDLE CAP SCREW M8-1.25 X 90
PSB1055F1113
COMPRESSION SPRING 6.2 X 16
PSB1055F1126A
OFFSET INDICATOR ASSEMBLY
PSB1055F1130
PILOT SET SCREW M8-1.25 X 50
PSB1055F1138
COMPRESSION SPRING 25 X 45
PSB1055F1150
HEX BOLT M10-1.5 X 55 BLK
PSB1055F1154
RIVET 2 X 5MM NAMEPLATE, STEEL
PSB1055F1205
STUD-DE M8-1.25 X 100 18/12
PSB1055F1210
RIVET 2 X 5MM NAMEPLATE, STEEL

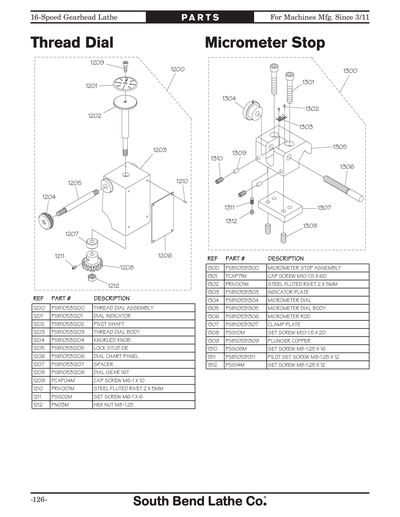

PSB1055F1302
RIVET 2 X 5MM NAMEPLATE, STEEL
PSB1055F1311
PILOT SET SCREW M8-1.25 X 12

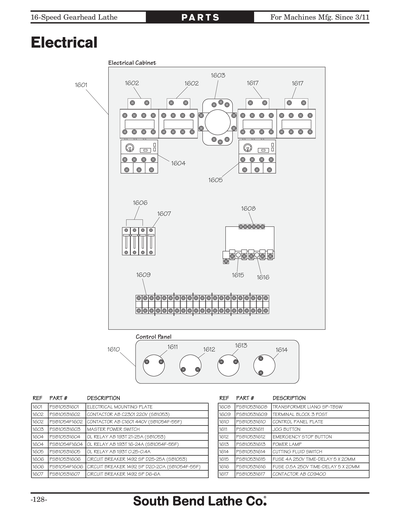

PSB1055F1601
ELECTRICAL MOUNTING PLATE
PSB1055F1604
OL RELAY AB 193-T1AC21 17.5-21.5A
PSB1055F1605
OL RELAY AB193-T1AA40 0.25-0.4A
PSB1055F1606
CIRCUIT BREAKER 20A AB 1492-SP D20 3P
PSB1055F1607
CIRCUIT BREAKER 6A AB 1489-A D6 1P
PSB1055F1608
TRANSFORMER TBSW11 140VA 220/440-24/220V
PSB1055F1609
TERMINAL BLOCK 3 POST 7PCS ASSY
PSB1055F1611
JOG BUTTON AB 800FP-F3 22MM GRN
PSB1055F1612
E-STOP BUTTON AB 800FD-MT44X01
PSB1055F1613
POWER INDICATOR LIGHT AB 800FD P7N3 22MM
PSB1055F1615
FUSE 4A 250V TIME-DELAY 5 X 20MM
PSB1055F1616
FUSE .5A 250V TIME DELAY 5 X 20MM

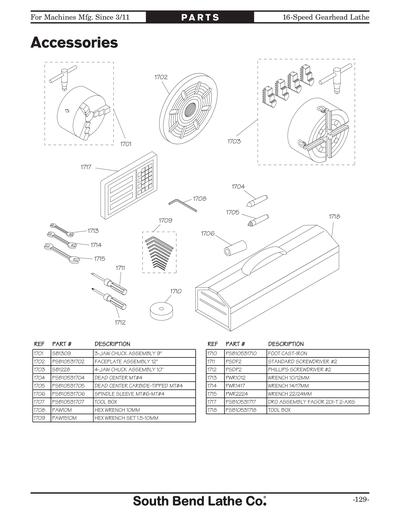

PSB1055F1705
DEAD CENTER CARBIDE-TIPPED MT#4
PSB1055F1709
HEX WRENCH 1.5-10MM 10PC SET
PSB1055F1713
WRENCH 10 X 12MM OPEN-ENDS
PSB1055F1714
WRENCH 14 X 17MM OPEN-ENDS
PSB1055F1715
WRENCH 22 X 24MM OPEN-ENDS
PSB1055F1717
DRO ASSEMBLY FAGOR 2-AXIS

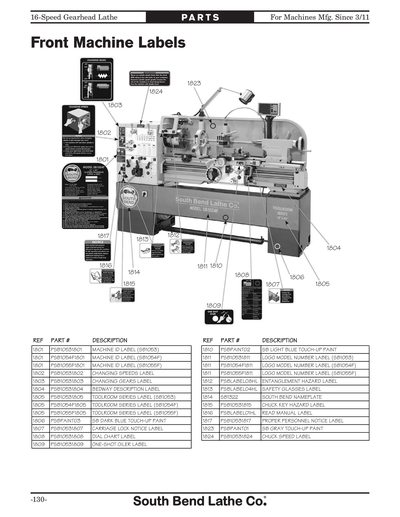

PSB1055F1807
CARRIAGE LOCK NOTICE LABEL
PSB1055F1812
ENTANGLEMENT LABEL 3.25 X 2
PSB1055F1813
SAFETY GLASSES LABEL 3.25 X 2
PSB1055F1816
READ MANUAL LABEL 3.25 X 2
PSB1055F1817
PROPER PERSONNEL NOTICE LABEL

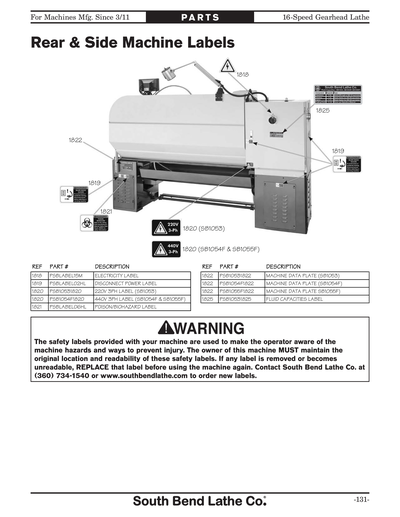

PSB1055F1819
DISCONNECT POWER LABEL 3.25 X 2
PSB1055FMAN
MANUAL FOR SB1053-54F-55F 05/11
