Parts for SB1057F - 18" x 60" Turn-Nado Gearhead Lathe with Fagor DRO
1/34
IMPORTANT: Parts may have multiple versions. This will be indicated by V1, V2, or V3 on the part number and/or description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 beginning in January 2017. Please reference your machine's manufacture date on the ID Label to ensure you are selecting the correct part when multiple versions are indicated.
If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.
Please note: All parts ship out of our Springfield, Missouri facility.
Ref #
Part #
Description
PSB1057F0165
NEEDLE ROLLER BEARING NK22/20
Price
N/APSB1057F0211
NEEDLE ROLLER BEARING NAX3030
Price
N/APSB1057F0534
NEEDLE ROLLER BEARING TLA3016
Price
N/APSB1057F0622
COMPRESSION PLATE FLAT WASHER
Price
N/APSB1057F0835
PULLEY FLAT WASHER 12 X 45 X 5
Price
N/APSB1057F0863
END COVER SAFETY SWITCH TM1307
Price
N/APSB1057F0915
COOLANT STAND PIPE ASSY 3/8 PT
Price
N/APSB1057F0921
SADDLE STRAIGHT WAY WIPER PLATE
Price
N/APSB1057F1020

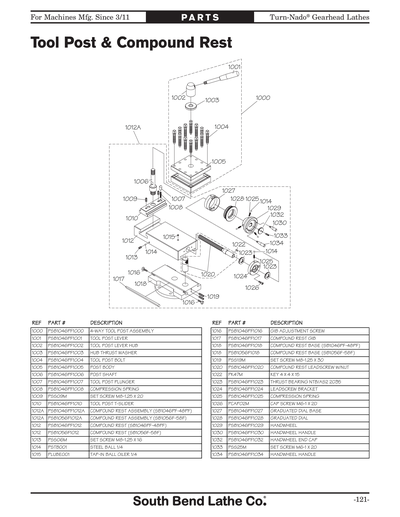

COMPOUND REST LEADSCREW W/NUT
Price
N/APSB1057F1150
SPINLE LEVER SELECTOR BRACKET
Price
N/APSB1057F1156
SPINDLE ROD COMPRESSION SPRING
Price
N/APSB1057F1221
CHUCK GUARD SAFETY SWITCH TZ9212
Price
N/APSB1057F1346
SPINDLE LEVER/BRAKE CONTROL ARM
Price
N/APSB1057F1369
ACTUATOR ROD JAM NUT M12-1.75
Price
N/APSB1057F1370
ACTUATOR ROD COUPLER M12-1.75
Price
N/APSB1057F1421

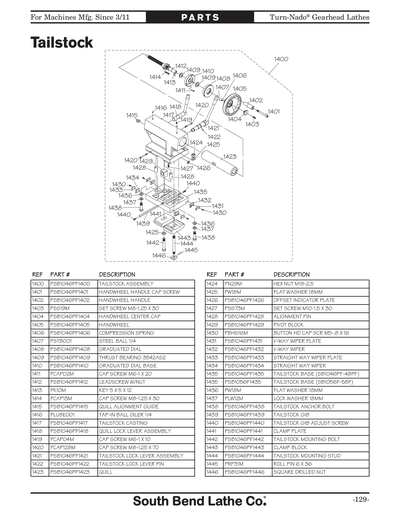

TAILSTOCK LOCK LEVER ASSEMBLY
Price
N/APSB1057F1505
PIVOT STUD-DE M8-125 X 115 12/18
Price
N/APSB1057F1701

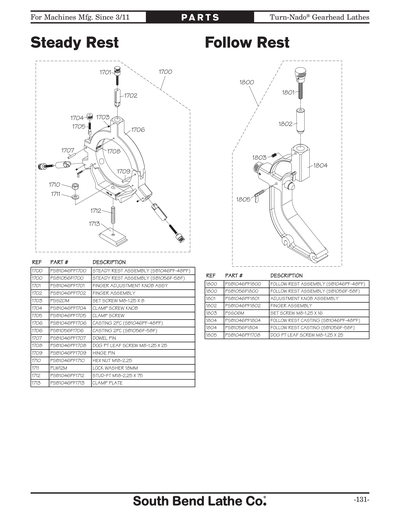

FINGER AND ADJUSTMENT KNOB ASSY
Price
N/A
