Parts for SB1059F - 18" x 40" Electronic Variable-Speed Lathe with DRO
IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.
If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.
Please note: All parts ship out of our Springfield, Missouri facility.
Ref #
Part #
Description
PSB1059F0532
*DISCD*NEEDLE BEARING TLA1616
Price
N/APSB1059F0582
*DISCD*THRUST BEARING NTB3047/AS2
Price
N/APSB1059F0618
THREADED SHAFT W/DOMED BEARING
Price
N/APSB1059F0621
THREADED SHAFT W/DOMED BEARING
Price
N/APSB1059F0814
COOLANT STAND PIPE 3/8" NPT X 24"
Price
N/APSB1059F0847
PIPE STRAIGHT ADAPTER 1/8" NPT X 4MM
Price
N/APSB1059F0849
PIPE ELBOW ADAPTER 1/8" NPT X 4MM
Price
N/APSB1059F0852
PIPE STRAIGHT ADAPTER 1/8" NPT X 6MM
Price
N/APSB1059F0946
SPINDLE LEVER BRACKET ASSEMBLY
Price
N/APSB1059F0947
SPINDLE LEVER BRACKET ASSEMBLY
Price
N/APSB1059F0955
SPINDLE LEVER BRACKET ASSEMBLY
Price
N/APSB1059F1109
PIPE ELBOW 5/8" NPT X 1/2" NPT
Price
N/APSB1059F1115
PIPE ELBOW 1/4" NPT X 1/4" NPT
Price
N/APSB1059F1116
PIPE ADAPTER 3/4" NPT X 1/2" NPT
Price
N/APSB1059F1128
MOTOR PULLEY FLAT WASHER 10MM
Price
N/APSB1059F1147
PIPE ADAPTER 3/8" NPT X 1/4" NPT
Price
N/APSB1059F1148
OIL PUMP MOTOR 1/4HP 440V 3PH 60HZ
Price
N/APSB1059F1149
PIPE ADAPTER 3/8" NPT X 1/2" NPT
Price
N/APSB1059F1160
END COVER SAFETY SWITCH TM1307
Price
N/APSB1059F1214
CHUCK GUARD PIVOT ROD BRACKET
Price
N/APSB1059F1221
CHUCK GUARD SAFETY SWITCH TZ9212
Price
N/APSB1059F1236
PIPE ADAPTER 3/8" NPT X 3/8" PH
Price
N/APSB1059F1321
TAILSTOCK LOCK LEVER ASSEMBLY
Price
N/APSB1059F1401
ADJUSTMENT KNOB BOLT ASSEMBLY
Price
N/APSB1059F1402
FINGER ASSEMBLY W/627 BEARING
Price
N/APSB1059F1451
ADJUSTMENT KNOB BOLT ASSEMBLY
Price
N/APSB1059F1704
TRANSFORMER TBSW11 140VA 220/440-24/220V
Price
N/APSB1059F1707
INVERTER YASKAWA VARISPEED G7
Price
N/APSB1059F1720
FUSE 4A 250V TIME-DELAY 5 X 20MM
Price
N/APSB1059F1721
FUSE 0.5A 250V FAST-ACTING 5 X 20MM
Price
N/APSB1059F1805

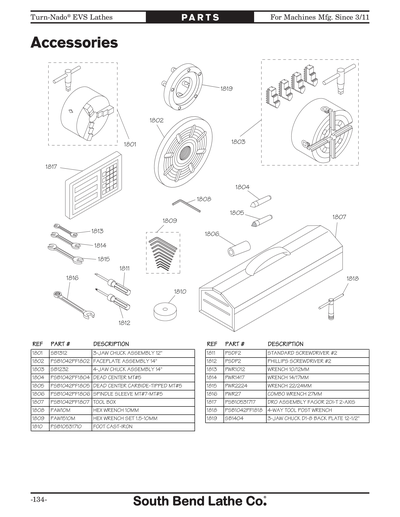

DEAD CENTER CARBIDE-TIPPED MT#5
Price
N/APSB1059F1902

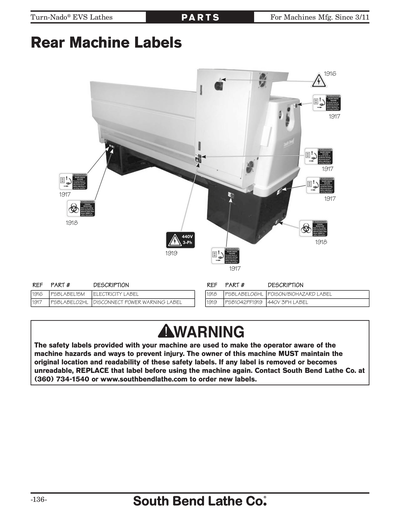

PROPER PERSONNEL NOTICE LABEL
Price
N/A
