Parts for SB1060PF - 18" x 60" Turn-Nado EVS Lathe with DRO
IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.
If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.
Please note: All parts ship out of our Springfield, Missouri facility.
Ref #
Part #
Description
PSB1060PF0043
LEVER SUPPORT FRAME ASSEMBLY
Price
N/APSB1060PF0532
*DISCD*NEEDLE BEARING TLA1616
Price
N/APSB1060PF0582
*DISCD*THRUST BEARING NTB3047/AS2
Price
N/APSB1060PF0618
THREADED SHAFT W/DOMED BEARING
Price
N/APSB1060PF0621
THREADED SHAFT W/DOMED BEARING
Price
N/APSB1060PF0705A

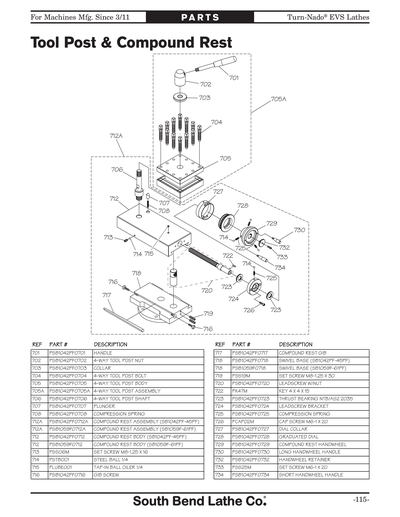

TOOL POST ASSEMBLY 4-WAY
Price
N/APSB1060PF0723
THRUST BEARING NTB/AS2 2035
Price
N/APSB1060PF0808
THRUST BEARING NTB/AS2 1730
Price
N/APSB1060PF0814
COOLANT STAND PIPE 3/8" NPT X 24"
Price
N/APSB1060PF0832
THRUST BEARING NTB/AS2 2035
Price

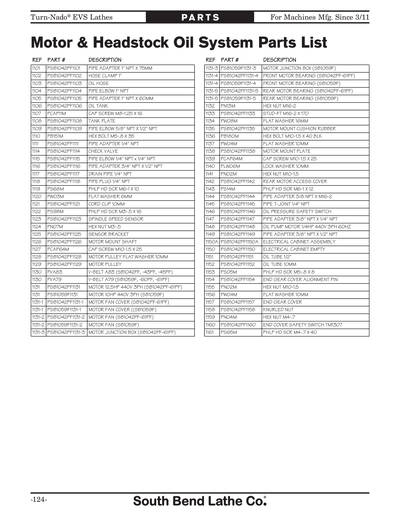

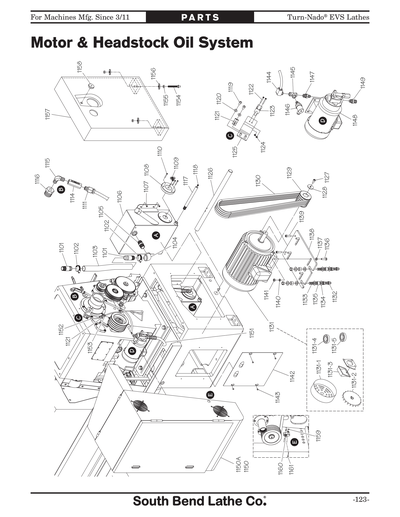

N/APSB1060PF0847
PIPE STRAIGHT ADAPTER 1/8" NPT X 4MM
Price
N/APSB1060PF0848
OIL TUBE ALUMINUM 4 X 258MM
Price
N/APSB1060PF0849
PIPE ELBOW ADAPTER 1/8" NPT X 4MM
Price
N/APSB1060PF0850
OIL TUBE ALUMINUM 4 X 121MM
Price
N/APSB1060PF0852
PIPE STRAIGHT ADAPTER 1/8" NPT X 6MM
Price
N/APSB1060PF0853
OIL TUBE ALUMINUM 6 X 175MM
Price
N/APSB1060PF0946
SPINDLE LEVER BRACKET ASSEMBLY
Price
N/APSB1060PF0947
SPINDLE LEVER BRACKET ASSEMBLY
Price
N/APSB1060PF0955
SPINDLE LEVER BRACKET ASSEMBLY
Price
N/APSB1060PF1109
PIPE ELBOW 5/8" NPT X 1/2" NPT
Price
N/APSB1060PF1115
PIPE ELBOW 1/4" NPT X 1/4" NPT
Price
N/APSB1060PF1116
PIPE ADAPTER 3/4" NPT X 1/2" NPT
Price
N/APSB1060PF1128
MOTOR PULLEY FLAT WASHER 10MM
Price
N/APSB1060PF1144
PIPE ADAPTER 3/8 NPT X M16-2
Price
N/APSB1060PF1147
PIPE ADAPTER 3/8" NPT X 1/4" NPT
Price
N/APSB1060PF1148
OIL PUMP MOTOR 1/4HP 440V 3PH 60HZ
Price
N/APSB1060PF1149
PIPE ADAPTER 3/8" NPT X 1/2" NPT
Price
N/APSB1060PF1154
END GEAR COVER ALIGNMENT PIN
Price
N/APSB1060PF1160
END COVER SAFETY SWITCH TM1307
Price
N/APSB1060PF1214
CHUCK GUARD PIVOT ROD BRACKET
Price
N/APSB1060PF1221
CHUCK GUARD SAFETY SWITCH TZ9212
Price
N/APSB1060PF1236
PIPE ADAPTER 3/8" NPT X 3/8" PH
Price
N/APSB1060PF1321

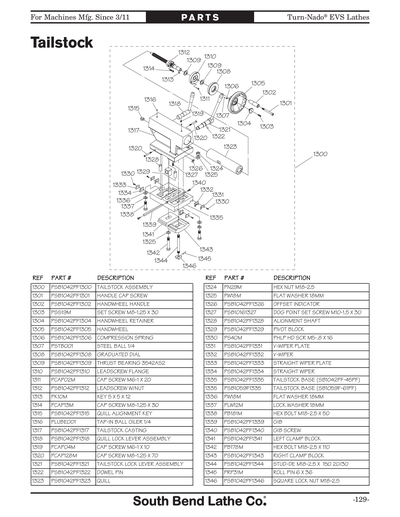

TAILSTOCK LOCK LEVER ASSEMBLY
Price
N/APSB1060PF1344
STUD-DE M18-2.5 X 150 20/30
Price
N/APSB1060PF1401
ADJUSTMENT KNOB BOLT ASSEMBLY
Price
N/APSB1060PF1402
FINGER ASSEMBLY W/627 BEARING
Price
N/APSB1060PF1451
ADJUSTMENT KNOB BOLT ASSEMBLY
Price
N/APSB1060PF1555
STUD-DE M10-1.5 X 120 20/40
Price
N/APSB1060PF1701

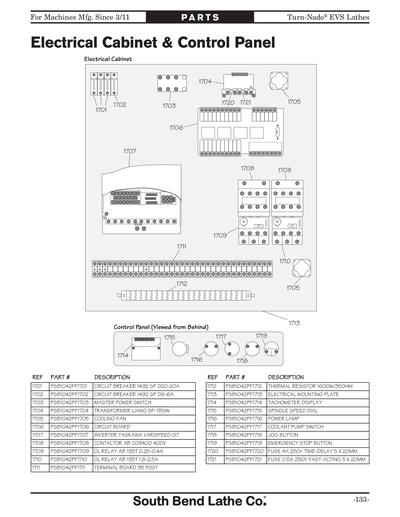

CIRCUIT BREAKER 20A AB 1492-SP D20 3P
Price
N/APSB1060PF1704
TRANSFORMER TBSW11 140VA 220/440-24/220V
Price
N/APSB1060PF1707
INVERTER YASKAWA VARISPEED G7
Price
N/APSB1060PF1712
THERMAL RESISTOR 1600W/35OHM
Price
N/APSB1060PF1720
FUSE 4A 250V TIME-DELAY 5 X 20MM
Price
N/APSB1060PF1721
FUSE 0.5A 250V FAST-ACTING 5 X 20MM
Price
N/APSB1060PF1805
DEAD CENTER CARBIDE-TIPPED MT#5
Price
N/APSB1060PF1902

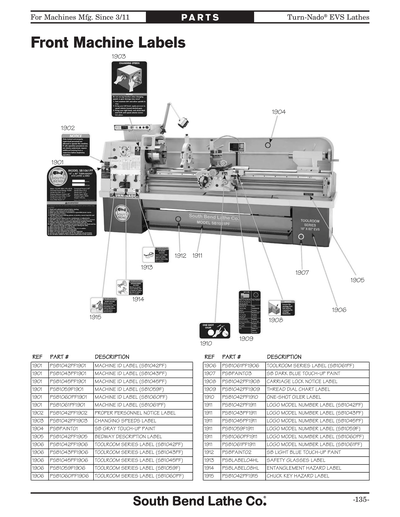

PROPER PERSONNEL NOTICE LABEL
Price
N/APSB1060PF1913
SAFETY GLASSES LABEL 3.25 X 2
Price
N/APSB1060PF1917
DISCONNECT POWER LABEL 3.25 X 2
Price
N/A
