Parts for SB1063 12" x 58" CNC Knee Mill

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

P
BALL KNOB 3/8-16
P
LEVER HANDLE AND HUB ASSEMBLY
P
LEVER HANDLE
P
DOWNFEED SHAFT HUB
PSB10630004
STEEL BALL 3/16
Price
N/A
P
COMPRESSION SPRING
PSB10630006
CAP SCREW 5/16-18 X 1/4
Price
N/A
P
HUB RETAINER
P
PINION SHAFT HUB SLEEVE
PSB10630009
CAP SCREW M5-.8 X 12
Price
N/A
P
RETURN SPRING COVER
P
FLAT COIL SPRING
PSB10630012
KEY 3 X 3 X 18
Price
N/A
P
BLOCK HEAD STUD
P
QUILL PINION GEAR SHAFT 10T/16T
P
BALL KNOB 1/4-20
P
SHIFT CRANK
PSB10630017
Now: PSS11
SET SCREW 1/4-20 X 1/4
Price
N/A
P
COMPRESSION SPRING
P
GEAR SHIFT PLUNGER
P
SHIFT SLEEVE
P
WORM LINK
P
WORM SHAFT
PSB10630023
SET SCREW M6-1 X 10
Price
N/A
PSB10630024
KEY 4 X 4 X 18
Price
N/A
P
WORM GEAR
P
CLUSTER GEAR BEARING
P
FEED CLUSTER GEAR 17T/28T/22T
PSB10630028
Now: PR06M
EXT RETAINING RING 16MM
Price
N/A
P
BUSHING
P
THRUST SPACER
P
FEED REVERSE PINION GEAR
PSB10630032
Now: PK53M
KEY 3 X 3 X 45
Price
N/A
P
FEED ENGAGE PIN
P
WORM GEAR CRADLE
P
WORM GEAR CRADLE ASSEMBLY
PSB10630035
SET SCREW M5-.8 X 6
Price
N/A
PSB10630036
FEED DRIVE WORM GEAR ASSY
Price
N/A
P
FEED DRIVE WORM GEAR ASSY
PSB10630037
FEED DRIVE WORM GEAR ASSY
Price
N/A
PSB10630038
FEED DRIVE WORM GEAR ASSY
Price
N/A
P
EXT RETAINING RING 18MM
P
KEY 4 X 4 X 12 RE
PSB10630041
FEED DRIVE WORM GEAR ASSY
Price
N/A
PSB10630042
CAP SCREW 5/16-18 X 1/2
Price
N/A
P
FLAT WASHER 8 X 21 X 2
PSB10630044
FEED DRIVE WORM GEAR ASSY
Price
N/A
PSB10630045
Now: PK03M
KEY 3 X 3 X 8
Price
N/A
P
CLUSTER GEAR SHAFT & FEED DRIVE GEAR
PSB10630047
CLUSTER GEAR SHAFT & FEED DRIVE GEAR
Price
N/A
P
NEEDLE BEARING BZ66Z
P
REVERSE CLUTCH ROD
PSB10630050
FEED REVERSE GEAR SET
Price
N/A
P
FEED REVERSE GEAR SET
P
FEED REVERSE CLUTCH
PSB10630052
ROLL PIN 3 X 20
Price
N/A
PSB10630053
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
P
BUSHING
PSB10630055
Now: PK39M
KEY 3 X 3 X 10
Price
N/A
PSB10630056
Now: PK52M
KEY 3 X 3 X 15
Price
N/A
P
WORM SHAFT
P
BUSHING
PSB10630059
CAP SCREW M6-1 X 20
Price
N/A
PSB10630060
SET SCREW M6-1 X 10
Price
N/A
P
FEED GEAR SHIFTER FORK
P
CLUSTER GEAR SHIFT CRANK
P
FEED SHIFT ROD
P
CLUSTER GEAR COVER
P
QUILL PINION SHAFT BUSHING
P
OVERLOAD CLUTCH WORM GEAR 30T
PSB10630067
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
PSB10630068
PINION OVERLOAD CLUTCH ASSY
Price
N/A
P
PINION OVERLOAD CLUTCH ASSY
PSB10630069
PINION OVERLOAD CLUTCH ASSY
Price
N/A
P
COMPRESSION SPRING
PSB10630071
SET SCREW M5-.8 X 10
Price
N/A
PSB10630072
PINION OVERLOAD CLUTCH ASSY
Price
N/A
P
CLUTCH RING
P
CLUTCH WASHER
PSB10630075
Now: PR01M
EXT RETAINING RING 10MM
Price
N/A
P
PIVOT STUD
P
OVERLOAD CLUTCH TRIP LEVER
PSB10630078
ROLL PIN 5 X 20
Price
N/A
P
CLUTCH ARM COVER
PSB10630080
CAP SCREW M5-.8 X 35
Price
N/A
PSB10630081
Now: PN05
HEX NUT 1/4-20
Price
N/A
PSB10630082
Now: PSS06
SET SCREW 1/4-20 X 3/4
Price
N/A
P
COMPRESSION SPRING
P
OVERLOAD CLUTCH PLUNGER
PSB10630085
OIL CUP 1/8"
Price
N/A
P
INDICATOR ROD LOCK KNOB
P
INDICATOR ROD
P
REVERSE TRIP HEAD STUD
P
FEED REVERSE TRIP PLUNGER
P
REVERSE TRIP BALL LEVER
P
QUILL STOP BLOCK
PSB10630092
CAP SCREW 3/8-16 X 5/8
Price
N/A
P
QUILL MICRO STOP (INCH)
P
STOP TRIP BAR
P
FEED TRIP BRACKET
P
LEVER HANDLE (STOP SHAFT TRIP)
P
TRIP PLUNGER BUSHING
P
FEED TRIP PLUNGER
P
FEED TRIP LEVER
P
TRIP LEVER PIN
PSB10630101
Now: PN04M
HEX NUT M4-.7
Price
N/A
PSB10630102
SET SCREW M4-.7 X 16
Price
N/A
P
HANDWHEEL CLUTCH
PSB10630104
STEEL BALL 5MM
Price
N/A
P
COMPRESSION SPRING
PSB10630106
SET SCREW M8-1.25 X 6
Price
N/A
PSB10630107
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
P
QUILL DEPTH SCALE
PSB10630109
ROLL PIN 3 X 16
Price
N/A
P
HANDWHEEL TYPE 3
P
FIXED HANDLE
P
KNURLED SLEEVE
PSB10630113
QUILL HOUSING
Price
N/A
PSB10630114
QUILL HOUSING
Price
N/A
P
ADJUSTABLE LOCK HANDLE
P
SQUARE HEAD HARDENED BOLT
P
SPACER
P
HARD WASHER
P
HIGH NUT
PSB10630120
QUILL HOUSING
Price
N/A

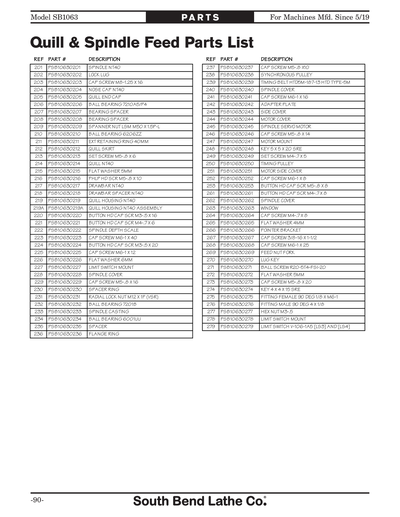

P
SPINDLE NT40
P
LOCK LUG
PSB10630203
CAP SCREW M8-1.25 X 16
Price
N/A
P
NOSE CAP NT40
P
QUILL END CAP
P
BALL BEARING 7210A5/P4
PSB10630207
BEARING SPACER ASSEMBLY
Price
N/A
P
BEARING SPACER ASSEMBLY
PSB10630208
BEARING SPACER ASSEMBLY
Price
N/A
P
SPANNER NUT LSM M50 X 1.5P-L
PSB10630210
BALL BEARING 6206ZZ
Price
N/A
PSB10630211
Now: PR68M
EXT RETAINING RING 40MM
Price
N/A
P
QUILL SKIRT
PSB10630213
SET SCREW M5-.8 X 6
Price
N/A
P
QUILL NT40
PSB10630215
Now: PW02M
FLAT WASHER 5MM
Price
N/A
PSB10630216
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
P
DRAWBAR NT40
P
DRAWBAR SPACER NT40
P
QUILL HOUSING
P
QUILL HOUSING NT40 ASSEMBLY
PSB10630220
BUTTON HD CAP SCR M3-.5 X 16
Price
N/A
PSB10630221
BUTTON HD CAP SCR M4-.7 X 6
Price
N/A
P
SPINDLE DEPTH SCALE
PSB10630223
CAP SCREW M6-1 X 40
Price
N/A
PSB10630224
BUTTON HD CAP SCR M3-.5 X 20
Price
N/A
PSB10630225
CAP SCREW M6-1 X 12
Price
N/A
PSB10630226
Now: PW03M
FLAT WASHER 6MM
Price
N/A
P
LIMIT SWITCH MOUNT
P
SPINDLE COVER
PSB10630229
CAP SCREW M5-.8 X 16
Price
N/A
P
SPACER RING
P
RADIAL LOCK NUT M12 X 1P (VSR)
P
BALL BEARING 7201B
P
SPINDLE CASTING
P
BALL BEARING 6001UU
P
SPACER
P
FLANGE RING
PSB10630237
CAP SCREW M5-.8 X 10
Price
N/A
P
SYNCHRONOUS PULLEY
P
TIMING BELT HTD5M-187-13 HTD TYPE-5M
P
SPINDLE COVER
PSB10630241
CAP SCREW M6-1 X 16
Price
N/A
P
ADAPTER PLATE
P
SIDE COVER
P
MOTOR COVER
PSB10630246
CAP SCREW M5-.8 X 14
Price
N/A
P
MOTOR MOUNT
P
KEY 5 X 5 X 20 SRE
PSB10630249
SET SCREW M4-.7 X 5
Price
N/A
P
SYNCHRONOUS PULLEY
P
MOTOR SIDE COVER
PSB10630252
CAP SCREW M6-1 X 8
Price
N/A
PSB10630253
BUTTON HD CAP SCR M5-.8 X 8
Price
N/A
PSB10630261
BUTTON HD CAP SCR M4-.7 X 8
Price
N/A
P
SPINDLE COVER
P
WINDOW
PSB10630264
CAP SCREW M4-.7 X 8
Price
N/A
PSB10630265
Now: PW05M
FLAT WASHER 4MM
Price
N/A
P
POINTER BRACKET
PSB10630267
CAP SCREW M5-.8 X 20
Price
N/A
PSB10630268
CAP SCREW M6-1 X 25
Price
N/A
P
FEED NUT FORK
P
LUG KEY
P
BALL SCREW R20-5T4-FSI-20
PSB10630272
Now: PW02M
FLAT WASHER 5MM
Price
N/A
P
CAP SCREW M5-.8 X 20
PSB10630274
Now: PK47M
KEY 4 X 4 X 15
Price
N/A
P
FITTING FEMALE 90 DEG 1/8 X M6-1
P
FITTING MALE 90 DEG 4 X 1/8
PSB10630277
Now: PN07M
HEX NUT M3-.5
Price
N/A
P
LIMIT SWITCH MOUNT
P
LIMIT SWITCH V-106-1A5
P
KEY 8 X 8 X 15 RE
PSB10630302
SPINDLE GEAR HUB ASSEMBLY
Price
N/A
P
SPINDLE GEAR HUB ASSEMBLY
P
SPINDLE BULL GEAR
P
BEARING SLEEVE
P
BALL BEARING 6910VV
PSB10630306
BULL GEAR SPACER ASSEMBLY
Price
N/A
PSB10630307
BULL GEAR SPACER ASSEMBLY
Price
N/A
P
BULL GEAR SPACER ASSEMBLY
PSB10630308
Now: PR38M
INT RETAINING RING 62MM
Price
N/A
P
SPACER
P
EXT TOOTH WASHER
P
SPANNER NUT
P
BEARING SLEEVE WASHER
P
HEADED STEP PIN
P
COMPRESSION SPRING
PSB10630315
FLAT HD CAP SCR M5-.8 X 10
Price
N/A
P
SQUARE BLOCK TAB
PSB10630317
OIL CUP 1/8"
Price
N/A
PSB10630318
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
P
GEARBOX ID PLATE
P
STUD 1/2-13
PSB10630321
Now: PLW07
LOCK WASHER 1/2
Price
N/A
PSB10630322
Now: PN13
HEX NUT 1/2-13
Price
N/A
PSB10630323
Now: PN04
HEX NUT 5/8-11
Price
N/A
P
BELT PULLEY GEAR
PSB10630325
CAP SCREW M5-.8 X 16
Price
N/A
P
BULL GEAR PINION BEARING CAP
P
WAVEY WASHER
PSB10630328
BALL BEARING 6203VV NSK
Price
N/A
P
PINION GEAR 26T W/SHAFT
PSB10630330
SET SCREW M8-1.25 X 8
Price
N/A
PSB10630331
PINION GEAR 26T W/SHAFT
Price
N/A
PSB10630332
Now: PK20M
KEY 5 X 5 X 15
Price
N/A
PSB10630333
GREASE FITTING 1/8" NPT STRAIGHT
Price
N/A
P
GEARBOX HOUSING
PSB10630335
CAP SCREW M6-1 X 20
Price
N/A
P
DATA PLATE
P
BULL GEAR SHIFT PINION
P
HIGH-LOW DETENT PLATE
PSB10630339
CAP SCREW M5-.8 X 12
Price
N/A
P
ROLL PIN 3 X 15
PSB10630341
SET SCREW M4-.7 X 5
Price
N/A
P
HIGH-LOW PINION BLOCK
PSB10630343
CAP SCREW M4-.7 X 16
Price
N/A
P
HIGH-LOW DETENT PLUNGER
P
COMPRESSION SPRING
P
LEVER HANDLE (HIGH-LOW)
P
BALL KNOB 1/4-20
PSB10630348
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
PSB10630349
CAP SCREW M4-.7 X 30
Price
N/A
P
SPINDLE GEAR CHANGE LIMIT SW
P
LIMIT SWITCH MOUNT
P
LIMIT SWITCH BOOT RUBBER
PSB10630401
BUTTON HD CAP SCR M4-.7 X 6
Price
N/A
P
MOTOR FAN COVER
P
MOTOR FAN
PSB10630404
CAP SCREW M12-1.75 X 35
Price
N/A
PSB10630405
Now: PW06M
FLAT WASHER 12MM
Price
N/A
P
MOTOR 5HP 220V 3-PH
P
BELT TENSION ADJUSTMENT LEVER
P
BALL KNOB 5/16-18
P
MOTOR PULLEY
PSB10630410
KEY 8 X 7 X 30
Price
N/A
P
HARD WASHER
PSB10630412
CAP SCREW M8-1.25 X 20
Price
N/A
PSB10630413
CAP SCREW M6-1 X 20
Price
N/A
P
MOTOR ADJUSTMENT BLOCK
PSB10630415
CAP SCREW M8-1.25 X 40
Price
N/A
PSB10630416
SET SCREW M4-.7 X 16
Price
N/A
P
BEARING COVER
P
BELT HOUSING COVER
PSB10630419
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
P
LIMIT SWITCH MOUNTING BLOCK
PSB10630421
CAP SCREW M5-.8 X 16
Price
N/A
P
LIMIT SWITCH MJ2-1701
PSB10630423
Now: PW05M
FLAT WASHER 4MM
Price
N/A
PSB10630424
CAP SCREW M4-.7 X 30
Price
N/A
P
LIMIT SWITCH COVER
PSB10630426
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
P

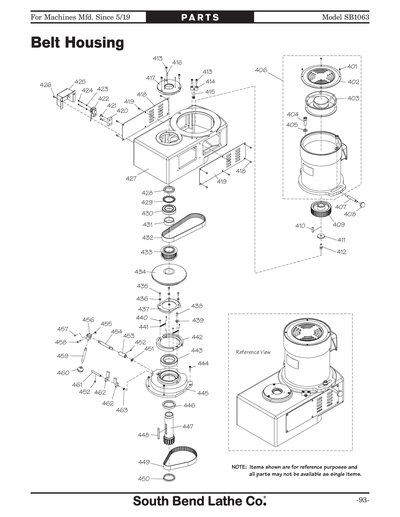

BELT HOUSING
P
SPANNER NUT M45 X 1.5P
P
EXT TOOTH WASHER 45MM
P
BALL BEARING 6009VV
P
BEARING SPACER
PSB10630432
TIMING BELT 800-8YU-25
Price
N/A
P
SPINDLE PULLEY
P
BRAKE ASSEMBLY COVER
PSB10630435
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
PSB10630436
Now: PW03M
FLAT WASHER 6MM
Price
N/A
P
BRAKE BEARING CAP
PSB10630438
BUTTON HD CAP SCR M6-1 X 16
Price
N/A
P
BRAKE SHOE PIVOT SLEEVE
PSB10630440
Now: PS12M
PHLP HD SCR M3-.5 X 6
Price
N/A
P
EXTENSION SPRING
P
BRAKE SHOE SET
P
BALL BEARING 6012VV
PSB10630444
CAP SCREW M6-1 X 16
Price
N/A
P
BRAKE SEAT
P
SPACER
P
SPINDLE PULLEY HUB
P
KEY 8 X 7 X 70 RE
P
TIMING BELT 230L-100
P
SPINDLE PULLEY HUB COLLAR
PSB10630451
Now: PR47M
EXT RETAINING RING 13MM
Price
N/A
PSB10630452
SET SCREW M6-1 X 8
Price
N/A
P
BRAKE SHAFT SLEEVE
P
BRAKE SHAFT
PSB10630455
E-CLIP 4MM
Price
N/A
P
BRAKE LEVER PIVOT BRACKET
PSB10630457
SET SCREW M5-.8 X 6
Price
N/A
P
HEADED PIN
P
LEVER HANDLE (BRAKE)
P
BALL KNOB 3/8-16
P
BRAKE OPERATING FINGER
P
BRAKE FINGER PIVOT STUD
PSB10630463
Now: PR36M
EXT RETAINING RING 7MM
Price
N/A
PSB10630501
CAP SCREW M8-1.25 X 25
Price
N/A
P
DOWEL PIN 8 X 30
P
GEAR 33T
PSB10630504
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
P
HEAD ROTATION SCALE
P

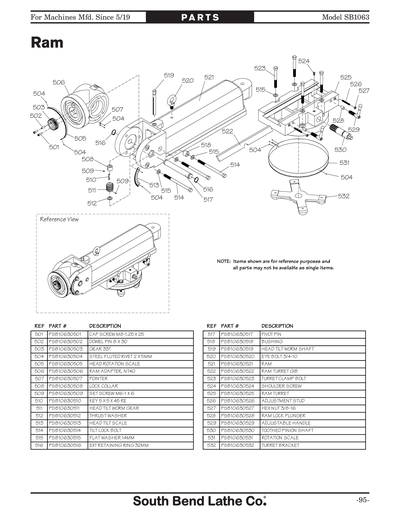

RAM ADAPTER, NT40
P
POINTER
P
LOCK COLLAR
PSB10630509
SET SCREW M6-1 X 6
Price
N/A
P
KEY 5 X 5 X 45 RE
P
HEAD TILT WORM GEAR
P
THRUST WASHER
P
HEAD TILT SCALE
P
TILT LOCK BOLT
PSB10630515
Now: PW10M
FLAT WASHER 14MM
Price
N/A
PSB10630516
Now: PR37M
EXT RETAINING RING 32MM
Price
N/A
P
PIVOT PIN
P
BUSHING
P
HEAD TILT WORM SHAFT
PSB10630520
LIFTING EYE BOLT 3/4-10
Price
N/A
P
RAM
P
RAM TURRET GIB
P
TURRET CLAMP BOLT
P
SHOULDER SCREW
P
RAM TURRET
P
ADJUSTMENT STUD
PSB10630527
Now: PN08
HEX NUT 3/8-16
Price
N/A
P
RAM LOCK PLUNGER
P
ADJUSTABLE HANDLE
P
TOOTHED PINION SHAFT
P
ROTATION SCALE
P
TURRET BRACKET
P

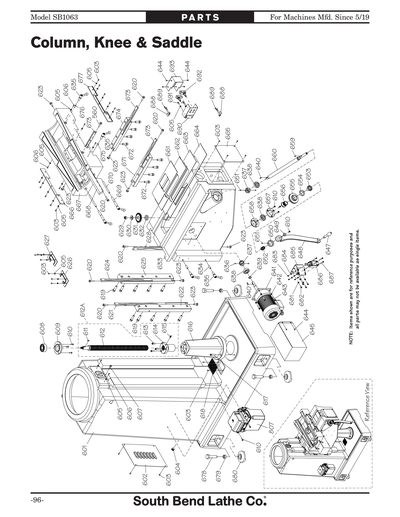

COLUMN
P
COOLANT RESERVOIR COVER
PSB10630603
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
P
DRAIN PLUG 1/2 PT
PSB10630605
Now: PW02M
FLAT WASHER 5MM
Price
N/A
PSB10630606
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
PSB10630607
CAP SCREW M8-1.25 X 16
Price
N/A
PSB10630608
Now: P3305
ANGULAR CONTACT BEARING 3305
Price
N/A
P
BEARING CAP
PSB10630610
CAP SCREW M6-1 X 16
Price
N/A
PSB10630611
Now: PK20M
KEY 5 X 5 X 15
Price
N/A
PSB10630612
ELEVATION BALLSCREW ASSEMBLY
Price
N/A
P
ELEVATION BALLSCREW ASSEMBLY
PSB10630613
CAP SCREW M8-1.25 X 20
Price
N/A
PSB10630614
ELEVATION BALLSCREW ASSEMBLY
Price
N/A
PSB10630615
GREASE FITTING 1/8" NPT STRAIGHT
Price
N/A
P
ELEVATING BALLSCREW HOUSING
P
CAP SCREW 3/8-16 X 1-1/2
P
DRAIN SCREEN
PSB10630619
CAP SCREW 1/2-13 X 1-3/4
Price
N/A
P
GIB ADJUSTMENT SCREW
P
KNEE GIB (LH)
P
KNEE GIB PLATE (LH)
P
GIB PLATE SCREW
P
KNEE GIB (RH)
P
KNEE GIB PLATE (RH)
P
COLUMN WIPER (LH)
P
COLUMN WIPER (RH)
P
KNEE GIB (CENT)
PSB10630629
Now: PN01
HEX NUT 1/2-20
Price
N/A
P
HARD WASHER
P
BEVEL GEAR
P
SPACER
P
KNEE
P
KNEE LOCK HANDLE PLUNGER
P
ADJUSTABLE HANDLE
PSB10630636
SET SCREW M6-1 X 8
Price
N/A
P
BEVEL PINION GEAR
PSB10630638
BALL BEARING 6204ZZ
Price
N/A
PSB10630639
Now: PR09M
EXT RETAINING RING 20MM
Price
N/A
PSB10630640
Now: PK48M
KEY 4 X 4 X 20
Price
N/A
P
MOTOR 3-PH 220V
PSB10630642
LOCK WASHER 8MM
Price
N/A
PSB10630643
CAP SCREW M8-1.25 X 25
Price
N/A
PSB10630644
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
P
ELEVATION MOTOR COVER
P
FIXED HANDLE
P
ELEVATION CRANK
PSB10630649
Now: PW03M
FLAT WASHER 6MM
Price
N/A
P
BUSHING
PSB10630651
SET SCREW M6-1 X 6
Price
N/A
P
COMPRESSION SPRING
P
ELEVATION SHAFT CLUTCH
P
DIAL RETAINER (FR)
P
VERTICAL DIAL (INCH)
P
DIAL RETAINER (RR)
P
BEARING RETAINER
P
BEARING SEAT
PSB10630659
Now: PK47M
KEY 4 X 4 X 15
Price
N/A
P
ELEVATION SHAFT
P
CHIP GUARDS 4-PC SET
P
CHIP GUARD (MIDDLE)
P
CHIP GUARD (MIDDLE)
P
CHIP GUARD (BOTTOM)
P
KNEE COVER (FR)
P
SADDLE WIPER (RR)
P
SADDLE
P
SADDLE GIB
P
ADJUSTABLE HANDLE
P
SADDLE LOCK PLUNGER
P
SADDLE GIB PLATE (LH)
PSB10630672
CAP SCREW M12-1.75 X 35
Price
N/A
P
SADDLE GIB
P
SADDLE GIB PLATE (RH)
P
HANDLE PLUNGER (LH)
P
HANDLE PLUNGER (RH)
P
SADDLE WIPER (FR)
P
HEX BOLT 3/4-10 X 4
PSB10630679
Now: PN17
HEX NUT 3/4-10
Price
N/A
P
FOOT PAD
PSB10630681
Now: PW03M
FLAT WASHER 6MM
Price
N/A
PSB10630682
CAP SCREW M6-1 X 10
Price
N/A
PSB10630683
Now: PN06M
HEX NUT M5-.8
Price
N/A
PSB10630684
Now: PW02M
FLAT WASHER 5MM
Price
N/A
P
LIMIT SWITCH BRACKET (LH)
P
ELEV CRANK LIMIT SWITCH TZ-5109
PSB10630687
CAP SCREW M5-.8 X 40
Price
N/A
P
TRAVEL STOP BRACKET
PSB10630689
CAP SCREW M5-.8 X 16
Price
N/A
P
LIMIT SWITCH BRACKET (RH)
PSB10630691
CAP SCREW M5-.8 X 12
Price
N/A
P
LIMIT SWITCH MJ2-1308
P
LIMIT SWITCH COVER
PSB10630701
Now: PN01
HEX NUT 1/2-20
Price
N/A
P
HANDWHEEL TYPE-3 W/HANDLE
P
OUTER DIAL RETAINER
P
DIAL SCALE
P
INNER DIAL RETAINR (LH)
P
PULLEY COVER (FR)
PSB10630707
Now: PW02M
FLAT WASHER 5MM
Price
N/A
PSB10630708
CAP SCREW M5-.8 X 10
Price
N/A
PSB10630709
CAP SCREW M6-1 X 20
Price
N/A
P
BEARING RETAINER OUTER
P
RING KEY SGE 300 17 X 21
P
TIMING BELT 5-M TYPE, HTD5M-460-20 HTD
P
PULLEY WHEEL HTD5M44T-17
P
BEARING LOCK NUT YSR M20-1
P
SPACER
PSB10630716
CAP SCREW M6-1 X 16
Price
N/A
P
INNER BEARING RETAINER
P
ANGULAR CONTACT BEARING
P
ROLL PIN
PSB10630720
CAP SCREW 3/8-16 X 1
Price
N/A
P
CROSSFEED BEARING BRACKET
P
KEY 3 X 3 X 20 RE
P

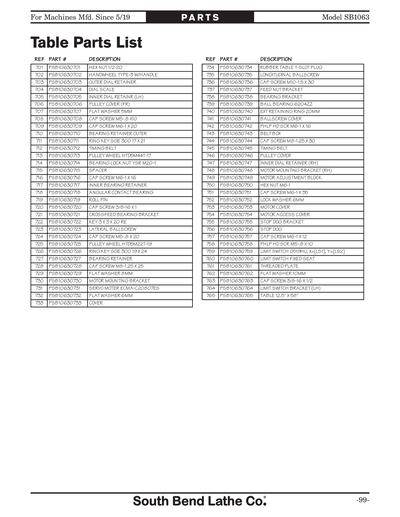

LATERAL BALLSCREW
PSB10630724
CAP SCREW M5-.8 X 20
Price
N/A
P
PULLEY WHEEL HTD5M22T-19
P
RING KEY SGE 300 19 X 24
P
BEARING RETAINER
PSB10630728
CAP SCREW M8-1.25 X 25
Price
N/A
PSB10630729
Now: PW01M
FLAT WASHER 8MM
Price
N/A
P
MOTOR MOUNTING BRACKET
PSB10630732
Now: PW03M
FLAT WASHER 6MM
Price
N/A
P
COVER
P
RUBBER TABLE T-SLOT PLUG
P
LONGITUDINAL BALLSCREW
PSB10630736
CAP SCREW M10-1.5 X 30
Price
N/A
P
FEED NUT BRACKET
P
BEARING BRACKET
PSB10630739
BALL BEARING 6204ZZ
Price
N/A
PSB10630740
Now: PR09M
EXT RETAINING RING 20MM
Price
N/A
P
BALLSCREW COVER
PSB10630742
Now: PS11M
PHLP HD SCR M6-1 X 16
Price
N/A
P
BELT BOX
PSB10630744
CAP SCREW M8-1.25 X 30
Price
N/A
P
TIMING BELT 5M-TYPE, HTD5M-615-20 HTD
P
PULLEY COVER
P
INNER DIAL RETAINER (RH)
P
MOTOR MOUNTING BRACKET (RH)
P
MOTOR ADJUSTMENT BLOCK
PSB10630750
Now: PN01M
HEX NUT M6-1
Price
N/A
PSB10630751
CAP SCREW M6-1 X 35
Price
N/A
PSB10630752
LOCK WASHER 6MM
Price
N/A
P
MOTOR COVER
P
MOTOR ACCESS COVER
P
STOP DOG BRACKET
P
STOP DOG
PSB10630757
CAP SCREW M6-1 X 12
Price
N/A
PSB10630758
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
P
LIMIT SWITCH 0519HU
P
LIMIT SWITCH FIXED SEAT
P
THREADED PLATE
PSB10630762
Now: PW04M
FLAT WASHER 10MM
Price
N/A
PSB10630763
CAP SCREW 3/8-16 X 1/2
Price
N/A
P
LIMIT SWITCH BRACKET (LH)
P

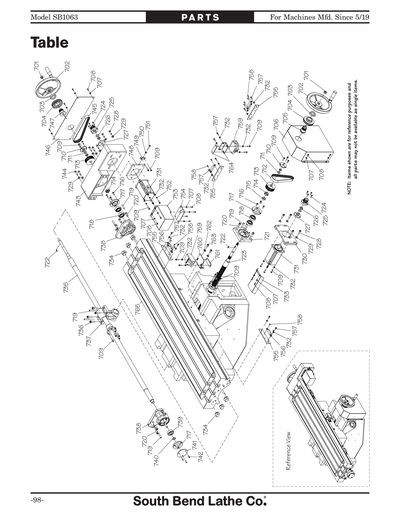

TABLE 12.5 X 58"
P
ELBOW JOINT M4 X 1/8PT
P
STRAIGHT TUBE ADAPTER NO 3
PSB10630803
CAP SCREW M6-1 X 25
Price
N/A
P
TUBE T-ADAPTER 4 X 4MM
P

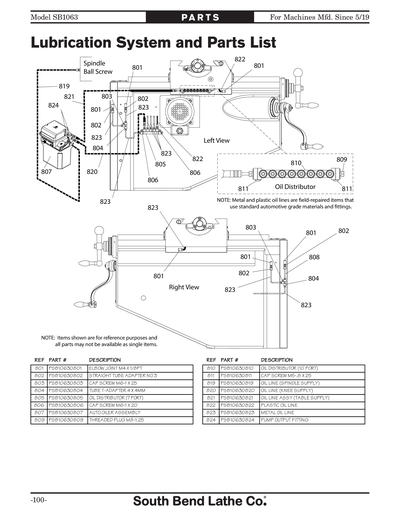

OIL DISTRIBUTOR (7 PORT)
PSB10630806
CAP SCREW M6-1 X 20
Price
N/A
P
AUTO OILER ASSEMBLY
P
THREADED PLUG M8-1.25
P
OIL DISTRIBUTOR (10 PORT)
PSB10630811
CAP SCREW M5-.8 X 25
Price
N/A
P
OIL LINE
P
OIL LINE
P
OIL LINE ASSY
P
PLASTIC OIL LINE
P
METAL OIL LINE
P
PUMP OUTPUT FITTING ASSEMBLY
PSB10630901
CAP SCREW M6-1 X 20
Price
N/A
PSB10630902
Now: PW03M
FLAT WASHER 6MM
Price
N/A
P

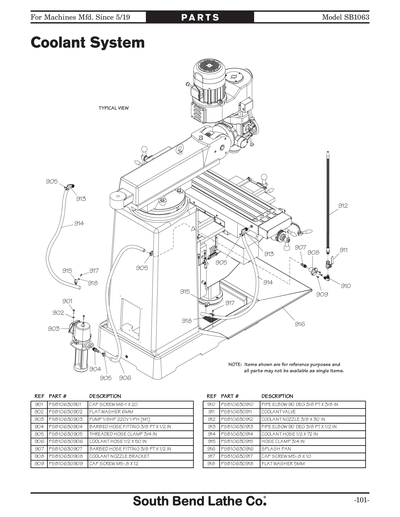

PUMP 1/8HP 220V 1-PH
PSB10630904
BARBED HOSE FITTING 3/4 PT X 1/2 IN
Price
N/A
PSB10630905
THREADED HOSE CLAMP 3/4 IN
Price
N/A
P
COOLANT HOSE 1/2 X 50 IN
PSB10630907
BARBED HOSE FITTING 3/4 PT X 1/2 IN
Price
N/A
P
COOLANT NOZZLE BRACKET
PSB10630909
CAP SCREW M5-.8 X 12
Price
N/A
P
PIPE ELBOW 90 DEG 3/8 PT X 3/8 IN
P
COOLANT VALVE
P
COOLANT NOZZLE 3/8 X 30 IN
P
PIPE ELBOW 90 DEG 3/8 PT X 1/2 IN
P
COOLANT HOSE 1/2 X 72 IN
P
HOSE CLAMP 3/4 IN
P
SPLASH PAN
PSB10630917
CAP SCREW M5-.8 X 10
Price
N/A
PSB10630918
Now: PW02M
FLAT WASHER 5MM
Price
N/A
P

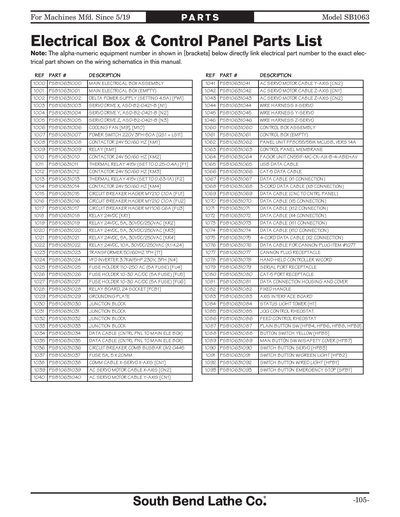

MAIN ELECTRICAL BOX (EMPTY)
P
DELTA POWER SUPPLY (SET TO 4.5A)
P
SERVO DRIVE
PSB10631004
SERVO DRIVE
Price
N/A
PSB10631005
SERVO DRIVE
Price
N/A
P
COOLING FAN
P
POWER SWITCH 220V 3PH-50A
P
CONTACTOR 24V 50/60 HZ
P
RELAY
P
CONTACTOR 24V 50/60 HZ
P
THERMAL RELAY 415V (SET TO 0.25-0.4A)
P
CONTACTOR 24V 50/60 HZ
P
THERMAL RELAY 415V (SET TO 0.63-1A)
P
CONTACTOR 24V 50/60 HZ
P
CIRCUIT BREAKER
PSB10631016
CIRCUIT BREAKER
Price
N/A
P
CIRCUIT BREAKER HAGER MY106 C6A
P
RELAY 24VDC
P
RELAY 24VDC, 5A 30VDC/250VAC
PSB10631020
RELAY 24VDC, 5A 30VDC/250VAC
Price
N/A
PSB10631021
RELAY 24VDC, 5A 30VDC/250VAC
Price
N/A
P
RELAY 24VDC, 10A 30VDC/250VAC
P
TRANSFORMER 50/60HZ 1PH
P
VFD INVERTER 3.7KW/5HP 230V, 3PH
P
FUSE HOLDER 110-250 AC (5A FUSE)
P
FUSE HOLDER 10-30 AC/DC (5A FUSE)
PSB10631027
FUSE HOLDER 10-30 AC/DC (5A FUSE)
Price
N/A
P
RELAY BOARD, 24 SOCKET
P
GROUNDING PLATE
P
JUNCTION BLOCK
P
JUNCTION BLOCK
P
JUNCTION BLOCK
P
JUNCTION BLOCK
P
DATA CABLE (CNTRL PNL TO MAIN ELE BOX)
P
DATA CABLE (CNTRL PNL TO MAIN ELE BOX)
P
CIRCUIT BREAKER COMB BUSBAR GV2 G445
P
FUSE 5A, 5 X 20MM
P
COMM CABLE SERVO SET
P
AC SERVO MOTOR CABLE, X-AXIS
PSB10631040
COMM CABLE SERVO SET
Price
N/A
P
AC SERVO MOTOR CABLE, Y-AXIS
PSB10631042
COMM CABLE SERVO SET
Price
N/A
P
AC SERVO MOTOR CABLE, Z-AXIS
P
WIRE HARNESS X-SERVO
P
WIRE HARNESS Y-SERVO
P
WIRE HARNESS Z-SERVO
P

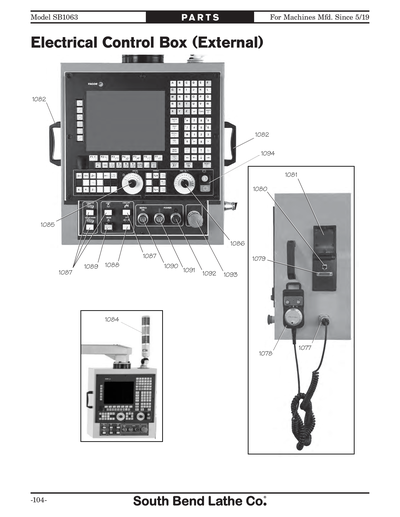

CONTROL BOX (EMPTY)
P
PANEL UNIT FP8055/55IK MCUSB, VERS 14A
P
FAGOR UNIT CN55IF-MC-CK-AIX-B-4-ABEHAV
P
CAT-5 DATA CABLE
P
DATA CABLE SET
PSB10631068
COMM CABLE SERVO SET
Price
N/A
P
DATA CABLE (X5 CONNECTION)
PSB10631071
COMM CABLE SERVO SET
Price
N/A
P
DATA CABLE (X4 CONNECTION)
PSB10631073
COMM CABLE SERVO SET
Price
N/A
PSB10631074
COMM CABLE SERVO SET
Price
N/A
P
4-CORD DATA CABLE (X2 CONNECTION)
PSB10631076
DATA CABLE SET
Price
N/A
P
CANNON PLUG (RECEPTACLE)
P
HAND-HELD CONTROLLER W/CORD
P
CAT-5 PORT (RECEPTACLE)
P
DATA CONNECTION HOUSING/COVER SET
P
FIXED HANDLE
P
AXIS INTERFACE BOARD
P
STATUS LIGHT TOWER
P
JOG CONTROL RHEOSTAT
P
FEED CONTROL RHEOSTAT
P
PLAIN BUTTON SW
P
YELLOW BUTTON SWITCH
P
MAN BUTTON SW W/SAFETY COVER
P
SERVO BUTTON SWITCH
P
BUTTON SWITCH W/GREEN LIGHT
P
BUTTON SWITCH W/RED LIGHT
P
EMERGENCY STOP BUTTON SWITCH
P
FEED POWER SWITCH

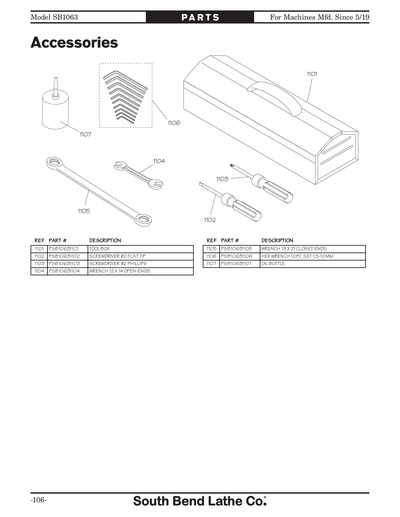

PSB10631101
TOOL BOX
Price
N/A
PSB10631102
Now: PSDF2
SCREWDRIVER FLAT #2
Price
N/A
PSB10631103
Now: PSDP2
SCREWDRIVER PHILLIPS #2
Price
N/A
PSB10631104
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
PSB10631105
WRENCH 19 X 21MM CLOSED ENDS
Price
N/A
PSB10631106
HEX WRENCH 1.5-10MM 10PC SET
Price
N/A
PSB10631107
OIL BOTTLE
Price
N/A
PSB10631201

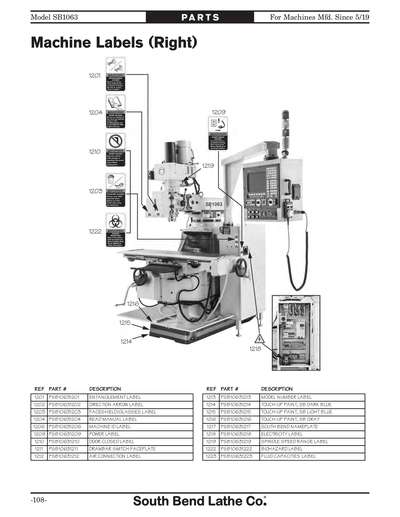

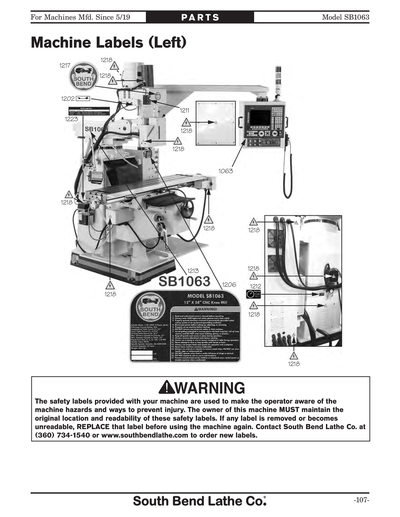

ENTANGLEMENT LABEL 3.25 X 2
Price
N/A
P
DIRECTION ARROW LABEL
PSB10631203
FACE SHIELD/GLASSES LABEL 3.25 X 2
Price
N/A
PSB10631204
READ MANUAL LABEL 3.25 X 2
Price
N/A
P
MACHINE ID LABEL
PSB10631209
DISCONNECT POWER LABEL 3.25 X 2
Price
N/A
PSB10631210
KEEP DOOR CLOSED LABEL 3.25 X 2
Price
N/A
P
DRAWBAR SWITCH FACEPLATE
P
AIR CONNECTION LABEL
P
MODEL NUMBER LABEL
PSB10631214
SB DK BLUE TOUCH-UP AEROSOL 5oz
Price
N/A
PSB10631215
SB LT BL FOR SB1003 TOUCH-UP PAINT
Price
N/A
PSB10631216
SB GRAY TOUCH-UP AEROSOL 5oz
Price
N/A
PSB10631217
Nameplate 90mm
Price
N/A
PSB10631218
ELECTRICITY LABEL 1.4
Price
N/A
PSB10631219
SPEED RANGE LABEL
Price
N/A
PSB10631222
BIOHAZARD LABEL 3.25 X 2
Price
N/A
P
FLUID CAPACITIES LABEL
P
MANUAL SB1063 MFD-06.19+ V1.05.20
