Parts for SB1091 8" Parallelogram Jointer with Helical Cutterhead

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

P
HANDWHEEL TYPE-10 97D X 9.5B-S X 5/16-18
PSB1091002
Now: PSS03
SET SCREW 1/4-20 X 3/8
Price
N/A
PSB1091003
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
PSB1091004
ROLL PIN 4 X 25
Price
N/A
PSB1091005
GEAR SHAFT
Price
N/A

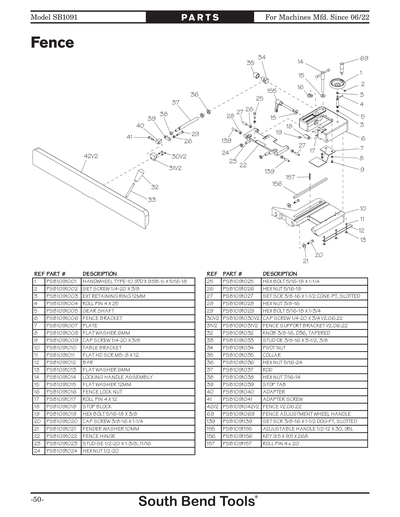

P
FENCE BRACKET
PSB1091007
PLATE
Price
N/A
PSB1091008
Now: PW03M
FLAT WASHER 6MM
Price
N/A
PSB1091009
CAP SCREW 1/4-20 X 3/8
Price
N/A
P
TABLE BRACKET
PSB1091011
FLAT HD SCR M5-.8 X 12
Price
N/A
PSB1091012
BAR
Price
N/A
PSB1091013
Now: PW03M
FLAT WASHER 6MM
Price
N/A
PSB1091014
LOCK HANDLE ASSY
Price
N/A
PSB1091015
Now: PW06M
FLAT WASHER 12MM
Price
N/A
PSB1091016
FENCE LOCK NUT
Price
N/A
PSB1091017
ROLL PIN 4 X 12
Price
N/A
PSB1091018
STOP BLOCK
Price
N/A
PSB1091019
Now: PB15
HEX BOLT 5/16-18 X 3/8
Price
N/A
PSB1091020
CAP SCREW 3/8-16 X 1-1/4
Price
N/A
PSB1091021
FENDER WASHER 10MM
Price
N/A
P
FENCE HINGE
PSB1091023
CAM LOCK BOLT
Price
N/A
PSB1091024
Now: PN01
HEX NUT 1/2-20
Price
N/A
PSB1091025
Now: PB12
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
PSB1091026
Now: PN02
HEX NUT 5/16-18
Price
N/A
PSB1091027
FENCE HINGE BOLT
Price
N/A
PSB1091028
Now: PN08
HEX NUT 3/8-16
Price
N/A
PSB1091029
Now: PB22
HEX BOLT 5/16-18 X 1-3/4
Price
N/A
PSB1091030
CAP SCREW 1/4-20 X 1
Price
N/A
PSB1091030V2
CAP SCREW 1/4-20 X 3/4
Price
N/A
PSB1091031
BRACKET V1
Price
N/A
PSB1091031V2
BRACKET V2.06.22
Price
N/A
P
KNOB 3/8-16, D36, TAPERED
P
STUD-DE 3/8-16 X 3-1/2, 3/8
PSB1091034
PIVOT NUT
Price
N/A
PSB1091035
COLLAR
Price
N/A
PSB1091036
Now: PN20
HEX NUT 5/16-24
Price
N/A
PSB1091037
ROD
Price
N/A
PSB1091038
Now: PN19
HEX NUT 7/16-14
Price
N/A
PSB1091039
STOP TAB
Price
N/A
PSB1091040
ADAPTER
Price
N/A
PSB1091041
ADAPTER SCREW
Price
N/A
P
FENCE V1
P
FENCE V2.06.22
PSB1091043
Now: PSS02
SET SCREW 5/16-18 X 3/8
Price
N/A
PSB1091044
ECCENTRIC BUSHING
Price
N/A

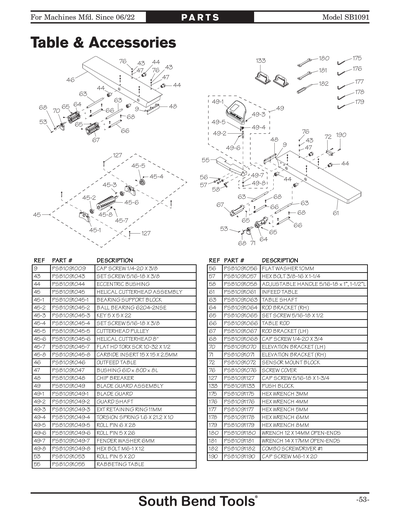

P
HELICAL CUTTERHEAD ASSEMBLY
PSB1091045-1
BEARING SUPPORT BLOCK LEFT
Price
N/A
PSB1091045-2
BALL BEARING 6204-2NSE
Price
N/A
PSB1091045-3
Now: PK01M
KEY 5 X 5 X 22
Price
N/A
PSB1091045-4
Now: PSS02
SET SCREW 5/16-18 X 3/8
Price
N/A
PSB1091045-5
CUTTERHEAD PULLEY
Price
N/A
PSB1091045-6
HELICAL CUTTERHEAD
Price
N/A
PSB1091045-7
Now: PFH32
FLAT HEAD TORX 10-32 X 1/2
Price
N/A
PSB1091045-8
Now: H9893
Indexable Carbide Insert - 15 x 15 x 2.5mm, 10-Pk.
Price
N/A
P
OUTFEED TABLE
PSB1091047
BUSHING
Price
N/A
PSB1091048
CHIPBREAKER
Price
N/A
P
BLADE GUARD ASSEMBLY
P
BLADE GUARD
PSB1091049-2
SHAFT V2.06.19
Price
N/A
PSB1091049-3
Now: PR48M
EXT RETAINING RING 11MM
Price
N/A
PSB1091049-4
TORSION SPRING V2.07.19
Price
N/A
PSB1091049-5
ROLL PIN 6 X 28
Price
N/A
PSB1091049-6
ROLL PIN 5 X 26
Price
N/A
PSB1091049-7
FENDER WASHER 6MM
Price
N/A
PSB1091049-8
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
PSB1091053
ROLL PIN 5 X 20
Price
N/A
P
RABBETING TABLE
PSB1091056
Now: PW04M
FLAT WASHER 10MM
Price
N/A
PSB1091057
Now: PB24
HEX BOLT 3/8-16 X 1-1/4
Price
N/A
PSB1091058
ADJUSTABLE HANDLE 5/16-18 X 1", 1-1/2"L
Price
N/A
P
DRO SENSOR PLATE
P
INFEED TABLE
PSB1091062
DIGITAL READOUT
Price
N/A
PSB1091063
SHAFT
Price
N/A
PSB1091064
BRACKET V2.02.19
Price
N/A
PSB1091065
Now: PSS08
SET SCREW 5/16-18 X 1/2
Price
N/A
PSB1091066
ROD SHAFT
Price
N/A
PSB1091067
ROD BRACKET
Price
N/A
PSB1091068
CAP SCREW 1/4-20 X 3/4
Price
N/A
PSB1091069
FENCE ADJUSTMENT WHEEL HANDLE
Price
N/A
PSB1091070
LEFT ELEVATE BRACKET V2.02.19
Price
N/A
PSB1091071
RIGHT ELEVATE BRACKET V2.02.19
Price
N/A
PSB1091072
SENSOR MOUNT BLOCK V3.02.19
Price
N/A
P
DRO SENSOR COVER
PSB1091076
SCREW COVER
Price
N/A
PSB1091077
KNOB 5/16-18 LOBED
Price
N/A
P
GUARD COVER
PSB1091079
STANDOFF-HEX DOUBLE END STUD
Price
N/A
PSB1091080
Now: PN06
HEX NUT 1/2-12
Price
N/A
PSB1091081
BALL BEARING 6000ZZ
Price
N/A
PSB1091082
PINION GEAR
Price
N/A
PSB1091083
SHAFT V2.08.20
Price
N/A
PSB1091084
CAP SCREW 5/16-18 X 3/4
Price
N/A
PSB1091087
Now: PB42
HEX BOLT 1/2-12 X 2
Price
N/A
PSB1091088
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
PSB1091089
Now: PB25
HEX BOLT 3/8-16 X 1-3/4
Price
N/A
PSB1091090
Now: PW04M
FLAT WASHER 10MM
Price
N/A
PSB1091091
***SEE EXT DESCRIPTION***
Price
N/A
P
KNOB M4-.7, D46, 7-LOBE
P
HANDWHEEL TYPE-13 160D X 12B-K X M6-1
PSB1091094
BALL BEARING 6002ZZ
Price
N/A
PSB1091095
Now: PK06M
KEY 5 X 5 X 10
Price
N/A
PSB1091096
SPIRAL GEAR SHAFT V2.08.20
Price
N/A
PSB1091097
MAGNETIC SCALE
Price
N/A
P
TABLE BASE
PSB1091099
CAP SCREW M5-.8 X 10
Price
N/A
PSB1091100
Now: PW02M
FLAT WASHER 5MM
Price
N/A
PSB1091101
Now: PVA51
V-BELT A51
Price
N/A

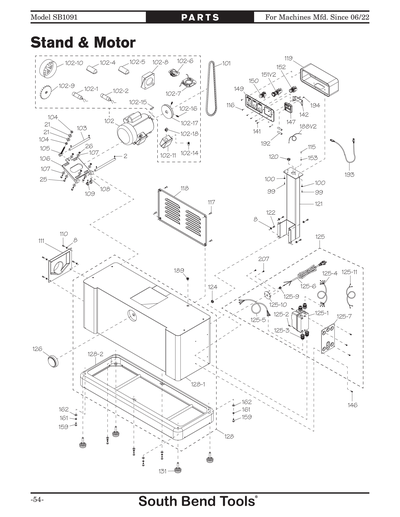

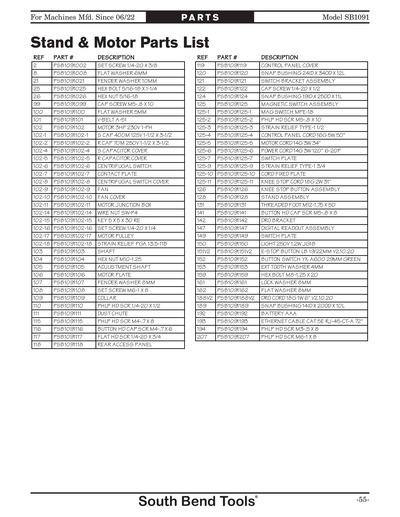

P
MOTOR 3HP 230V 1-PH
PSB1091102-1
S CAPACITOR 400M 125V 1-9/16 X 3-1/2
Price
N/A
PSB1091102-10
MOTOR FAN COVER
Price
N/A
PSB1091102-11
JUNCTION BOX
Price
N/A
P
WIRE NUT SW-P4
PSB1091102-15
Now: PK12M
KEY 5 X 5 X 30
Price
N/A
PSB1091102-16
Now: PSS11
SET SCREW 1/4-20 X 1/4
Price
N/A
PSB1091102-17
MOTOR PULLEY
Price
N/A
PSB1091102-18
STRAIN RELIEF M15 TYPE-6 ST
Price
N/A
PSB1091102-2
***USE P1021Z016V2-7V2***
Price
N/A
PSB1091102-4
CAPACITOR COVER (RUN)
Price
N/A
PSB1091102-5
CAPACITOR COVER (RUN)
Price
N/A
PSB1091102-6
CENTRIFUGAL SWITCH
Price
N/A
PSB1091102-7
CONTACT PLATE
Price
N/A
P
CENTRIFUGAL SWITCH COVER
PSB1091102-9
MOTOR FAN
Price
N/A
PSB1091103
SHAFT
Price
N/A
PSB1091104
Now: PN08M
HEX NUT M10-1.25
Price
N/A
PSB1091105
ADJUSTING SHAFT
Price
N/A
PSB1091106
MOTOR PLATE
Price
N/A
PSB1091107
FENDER WASHER 8MM
Price
N/A
PSB1091108
SET SCREW M6-1 X 8
Price
N/A
PSB1091109
COLLAR
Price
N/A
PSB1091110
Now: PS04
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
PSB1091111
***USE P0586084***
Price
N/A
PSB1091115
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
PSB1091116
BUTTON HD CAP SCR M4-.7 X 6
Price
N/A
PSB1091117
Now: PFH05
FLAT HD SCR 1/4-20 X 3/4
Price
N/A
P
REAR ACCESS PANEL
P
CONTROL PANEL COVER
PSB1091120
GROMMET M11 TYPE-2 SNAP-IN
Price
N/A
P
SWITCH BRACKET ASSEMBLY
PSB1091122
CAP SCREW 1/4-20 X 1/2
Price
N/A
PSB1091123
Now: PW01M
FLAT WASHER 8MM
Price
N/A
PSB1091124
GROMMET M11 TYPE-2 SNAP-IN
Price
N/A
P
MAGNETIC SWITCH ASSEMBLY
P
MAG SWITCH MPE-18
PSB1091125-10
BACKING BOARD
Price
N/A
P
KNEE STOP CORD 18G 2W 31"
PSB1091125-2
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
PSB1091125-3
STRAIN RELIEF 1/2"
Price
N/A
PSB1091125-4
CONTROL PANEL CORD 16AWG X 5C
Price
N/A
P
MOTOR CORD 14G 3W 34"
PSB1091125-6
POWER CORD 14G 3W 10' 6-20P V2.02.19
Price
N/A
PSB1091125-7
SWITCH PLATE
Price
N/A
PSB1091125-9
STRAIN RELIEF 1/2"-3/4" SNAP-IN ST
Price
N/A
P
KNEE STOP BUTTON ASSEMBLY
PSB1091127
CAP SCREW 5/16-18 X 1-3/4
Price
N/A
P
STAND ASSEMBLY
P
UPPER STAND
P
STAND BASE
P
THREADED FOOT M12-1.75 X 50
PSB1091133
Now: W1400
Safety Push Block - Small
Price
N/A
PSB1091139
BOLT
Price
N/A
PSB1091140
BUSHING
Price
N/A
PSB1091141
BUTTON HD CAP SCR M5-.8 X 8
Price
N/A
PSB1091142
DIGITAL READOUT BRACKET V3.02.19
Price
N/A
PSB1091144
DUST PLATE RIGHT
Price
N/A
PSB1091145
DUST PLATE LEFT
Price
N/A
PSB1091146
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
PSB1091147
DIGITAL READOUT ASSEMBLY V3.02.19
Price
N/A
P
SWITCH PLATE
PSB1091150
LIGHT 250V 1.2W JG18
Price
N/A
PSB1091151
STOP SWITCH
Price
N/A
P
E-STOP BUTTON LB 19/22MM V2.10.20
PSB1091152
START SWITCH
Price
N/A
PSB1091153
EXT TOOTH WASHER 4MM
Price
N/A
PSB1091154
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
PSB1091155
TILT LOCK
Price
N/A
PSB1091156
***USE P0855033***
Price
N/A
PSB1091157
ROLL PIN 4 X 20
Price
N/A
PSB1091158
POINTER
Price
N/A
PSB1091159
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
PSB1091161
LOCK WASHER 8MM
Price
N/A
PSB1091162
Now: PW01M
FLAT WASHER 8MM
Price
N/A
PSB1091164
Now: PW03M
FLAT WASHER 6MM
Price
N/A
PSB1091165
FENDER WASHER 5MM
Price
N/A
PSB1091166
CAP SCREW 10-24 X 1/2
Price
N/A
PSB1091167
Now: PW01M
FLAT WASHER 8MM
Price
N/A
PSB1091169
CAP SCREW 5/16-18 X 1/2
Price
N/A
PSB1091170
Now: PS50M
PHLP HD SCR M3-.5 X 12
Price
N/A
P
NYLON MARKER TIE ALC-110S
PSB1091174
Now: PB02
HEX BOLT 1/4-20 X 5/8
Price
N/A
PSB1091175
HEX WRENCH 3MM
Price
N/A
PSB1091176
HEX WRENCH 4MM
Price
N/A
PSB1091177
HEX WRENCH 5MM
Price
N/A
PSB1091178
HEX WRENCH 6MM
Price
N/A
PSB1091179
HEX WRENCH 8MM
Price
N/A
PSB1091180
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
PSB1091181
WRENCH 14 X 17MM OPEN-ENDS
Price
N/A
PSB1091182
SCREWDRIVER PHLP/FLAT HEAD #1
Price
N/A
PSB1091183
T-HANDLE TORX DRIVER T-25
Price
N/A
P
DRO CORD 18G 1W 3" V1
P
DRO CORD 18G 1W 6" V2.10.20
PSB1091189
STRAIN RELIEF 1/2"-3/4" SNAP-IN ST
Price
N/A
PSB1091190
CAP SCREW M6-1 X 20
Price
N/A
PSB1091191
Now: PW01M
FLAT WASHER 8MM
Price
N/A
PSB1091192
BATTERY AAA V1
Price
N/A
PSB1091193
DRO CORD
Price
N/A
PSB1091194
Now: PS79M
PHLP HD SCR M3-.5 X 8
Price
N/A
PSB1091195
CAP SCREW M5-.8 X 12
Price
N/A
PSB1091196
FENDER WASHER 5MM
Price
N/A
PSB1091197
Now: PW02M
FLAT WASHER 5MM
Price
N/A
P
DRO SENSOR BRACKET V1
P
DRO SENSOR BRACKET V2.06.24
PSB1091199
BALL BEARING 606ZZ
Price
N/A
PSB1091200
Now: PW07M
FLAT WASHER 3MM
Price
N/A
PSB1091201
BUSHING
Price
N/A
PSB1091202
Now: PN07M
HEX NUT M3-.5
Price
N/A
PSB1091203
Now: PS98M
PHLP HD SCR M3-.5 X 16
Price
N/A
PSB1091204
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
PSB1091205
Now: PW03M
FLAT WASHER 6MM
Price
N/A
PSB1091206
Now: PN01M
HEX NUT M6-1
Price
N/A
PSB1091207
Now: PS03M
PHLP HD SCR M6-1 X 8
Price
N/A
PSB1091208
Now: PR01M
EXT RETAINING RING 10MM
Price
N/A
P

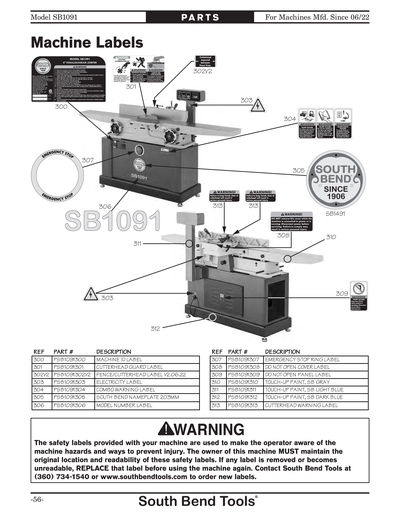

MACHINE ID LABEL
P
CUTTERHEAD GUARD LABEL
P
FENCE/CUTTERHEAD LABEL V1
P
FENCE/CUTTERHEAD LABEL V2.06.22
PSB1091303
ELECTRICITY LABEL 0.5
Price
N/A
P
COMBO WARNING LABEL
PSB1091305
Nameplate 203mm
Price
N/A
P
MODEL NUMBER LABEL
P
EMERGENCY STOP RING LABEL
P
DO NOT OPEN COVER LABEL
P
DO NOT OPEN PANEL LABEL
PSB1091310
SB GRAY TOUCH-UP AEROSOL 5oz
Price
N/A
PSB1091311
SB LT BL FOR SB1003 TOUCH-UP PAINT
Price
N/A
PSB1091312
SB DK BLUE TOUCH-UP AEROSOL 5oz
Price
N/A
P
CUTTERHEAD WARNING LABEL
P
MANUAL SB1091 MFD 06.20-09.20 V1.06.20
P
MANUAL SB1091 MFD 10.20-05.22 V2.10.20
P
MANUAL SB1091 MFD 06.22+ V3.03.22
