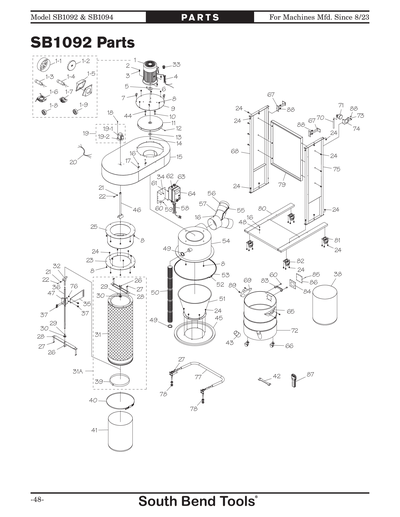

Parts for SB1092 2 HP Cyclone Dust Collector

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

P
MOTOR 2HP 220V 1-PH
P
MOTOR FAN COVER
P
MOTOR FAN
P
S CAPACITOR 300M 125V
P
R CAPACITOR 30M 250V
P
JUNCTION BOX
P
CONTACT PLATE
P
CENTRIFUGAL SWITCH
P
BALL BEARING 6205RZ
P
BALL BEARING 6203RZ
PSB1092002
Now: PN02
HEX NUT 5/16-18
Price
N/A
PSB1092003
Now: PLW01
LOCK WASHER 5/16
Price
N/A
P
MOTOR CORD 12G 3W 18"
PSB1092005
Now: PK61M
KEY 7 X 7 X 30
Price
N/A
P
RUBBER GASKET
P
EYE BOLT 3/4", 5/16-18 X 5/8
PSB1092008
Now: PFB02
FLANGE BOLT 5/16-18 X 3/4
Price
N/A
P
MOTOR PLATE
PSB1092010
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
P
IMPELLER 14.5 ALUMINUM
P
SET SCREW 3/8-16 X 3/4
P
IMPELLER WASHER
PSB1092014
CAP SCREW M6-1 X 25
Price
N/A
P
MAIN HOUSING
PSB1092016
TAP SCREW #10 X 3/8
Price
N/A
P
WIRE CLIP UC4
P
CAP SCREW M4-.7 X 60
P
FILTER BRUSH MOTOR ASSEMBLY
P
MOTOR 6W 220V 1-PH
P
GEAR REDUCER LUYANG 2GN90(B1)
P
MOTOR CORD 14G 4W 22"
PSB1092021
Now: PN06M
HEX NUT M5-.8
Price
N/A
PSB1092022
SET SCREW M5-.8 X 12
Price
N/A
P
CANISTER MOUNTING PLATE
PSB1092024
Now: PFB01
FLANGE BOLT 5/16-18 X 1/2
Price
N/A
P
MUFFLER
PSB1092026
Now: PS19M
PHLP HD SCR M5-.8 X 6
Price
N/A
PSB1092027
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
P
SELF-ALIGNING SPINDLE MOUNTING PLATE
P
BALL BEARING 1206
P
BEARING RETAINER
PSB1092031
Replacement Filter for SB1092
Price
N/A
P
FILTER BRUSH SPINDLE CAP
P
STRAIN RELIEF TYPE-3 M16-2
PSB1092034
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
P
SCRAPER
P
FILTER BRUSH SPINDLE
PSB1092037
FLANGE BOLT M5-.8 X 12
Price
N/A
PSB1092038
Collection Bag 19-1/2" x 32-11/16" for SB1092
Price
N/A
P
FOAM TAPE 3/4"
P
BAG CLAMP
PSB1092041
Filter Bag 20" x 23"
Price
N/A
PSB1092042
WRENCH 10 X 12MM OPEN-ENDS
Price
N/A
P
QUICK CONNECTOR
PSB1092044
Now: PWF02
FENDER WASHER 3/8
Price
N/A
P
DRUM LID
P
FILTER BRUSH MOTOR SHAFT
P
SCRAPER MOUNT
PSB1092048
EXT TOOTH WASHER 4MM
Price
N/A
P
HOSE CLAMP 2"
P
FLEXIBLE HOSE 2"
P
CYCLONE FUNNEL
PSB1092052
Now: PB98
HEX BOLT 1/4-20 X 2-1/2
Price
N/A
P
CONE CLAMP
P
INTAKE HOUSING
P
CHAIN
P
INLET CAP 4"
P
INLET ADAPTER 8" X 4" X 2
P
POWER CORD 14G 3W 130" 6-15P
PSB1092059
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
PSB1092060
Now: PFH03
FLAT HD SCR 1/4-20 X 1/2
Price
N/A
P
SWITCH BOX MOUNTING PLATE
P
STRAIN RELIEF TYPE-3 M16-2
P
STRAIN RELIEF TYPE-3 M20-2.5
P
MAGNETIC SWITCH
P
REMOTE RECEIVER
P
CIRCUIT BOARD
P
LEFT DRUM BRACKET
P
DRUM CASTER 2"
P
HANDLE BRACKET
P
RIGHT SIDE PANEL
P
RIGHT DRUM BRACKET
P
CLEAR TUBE 6 X 175MM
P
VACUUM PRESSURE GAUGE
P
COLLECTION DRUM
PSB1092073
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
P
VACUUM GAUGE MOUNT
P
LEFT SIDE PANEL
PSB1092076
FLANGE NUT M5-.8
Price
N/A
P
DRUM LOCK HANDLE
PSB1092078
LOCK NUT M10-1.5
Price
N/A
P
SUPPORT PANEL
P
BASE
P
CASTER 3"
P
LOCKING CASTER 3"
P
DRUM HANDLE
P
WINDOW SEAL
P
RIVET 9 X 3 BLIND
P
DRUM WINDOW
P
REMOTE CONTROL
PSB1092088
Now: PFB03
FLANGE BOLT 1/4-20 X 1/2
Price
N/A
P
FLANGE BOLT 5/16-18 X 3/8
P

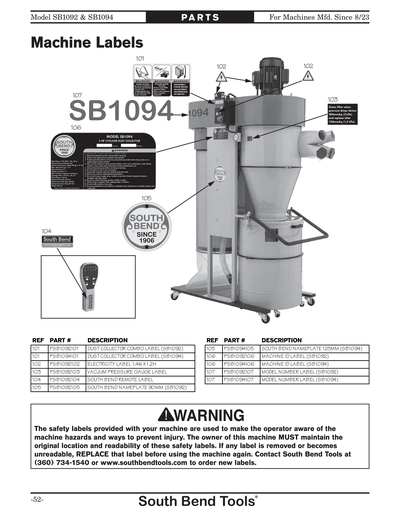

DUST COLLECTOR COMBO LABEL
PSB1092102
ELECTRICITY LABEL 0.5
Price
N/A
P
VACUUM PRESSURE GAUGE LABEL
P
SOUTH BEND REMOTE LABEL
PSB1092105
New South Bend Nameplates 90mm (3-1/2")
Price
N/A
P
MACHINE ID LABEL
P
MODEL NUMBER LABEL
P
MANUAL SB1092/94 MFD-9.20-11.21 V1.10.20
P
MANUAL SB1092/94 MFD-12.21-7.23 V2.06.22
P
MANUAL SB1092/94 MFD-8.23+ V3.08.23
