Parts for SB1093 - 6" x 48" Belt / 12" Disc Combination Sander

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref # Part # Description Price Qty

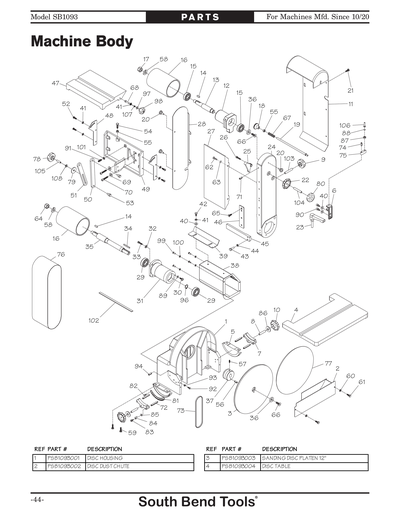

PSB1093001 PSB1093001
DISC HOUSING
 N/A
PSB1093002 PSB1093002
DISC DUST CHUTE
 N/A
PSB1093003 PSB1093003
SANDING DISC PLATEN 12"
 N/A
PSB1093004 PSB1093004
DISC TABLE
 N/A
PSB1093005 PSB1093005
TRUNNION
 N/A
PSB1093006 PSB1093006
TABLE BRACKET
 N/A
PSB1093007 PSB1093007
TRUNNION BRACKET
 N/A
PSB1093008 PSB1093008
SET SCREW M10-1.5 X 55
 N/A
PSB1093009 PSB1093009
KNOB M10-1.5, 6-LOBE, D52
 N/A
PSB1093010 PSB1093010
KNOB M10-1.5, 8-LOBE, D64
 N/A
PSB1093011 PSB1093011
SANDING BELT GUARD
 N/A
PSB1093012 PSB1093012
IDLER BEARING HOUSING
 N/A
PSB1093013 PSB1093013
IDLER SHAFT
 N/A
PSB1093014 PSB1093014
KEY 6 X 6 X 25 RE
 N/A
PSB1093015 PSB1093015
***USE P6204ZZ***
Item is no longer available
PSB1093015 Replaced By P6204ZZ 		N/A View Replacement
PSB1093016 PSB1093016
BELT ROLLER
 N/A
PSB1093017 PSB1093017
***USE PN21M***
Item is no longer available
PSB1093017 Replaced By PN21M 		N/A View Replacement
PSB1093018 PSB1093018 KNOB M8-1.25, D25, ROUND $8.00
PSB1093019 PSB1093019 BELT INDEX SHAFT $18.25
PSB1093020 PSB1093020
KNOB BOLT M6-1 X 12, 6-LOBE, D21
 N/A
PSB1093021 PSB1093021
***USE PFS02M***
Item is no longer available
PSB1093021 Replaced By PFS02M 		N/A View Replacement
PSB1093022 PSB1093022
KNOB M10-1.25, 8-LOBE, D63
 N/A
PSB1093023 PSB1093023
ADJUSTABLE HANDLE M10-1.5 X 45, 70L
 N/A
PSB1093024 PSB1093024
BELT FRAME
 N/A
PSB1093025 PSB1093025
PIVOT BLOCK
 N/A
PSB1093026 PSB1093026
***USE PB05M***
Item is no longer available
PSB1093026 Replaced By PB05M 		N/A View Replacement
PSB1093027 PSB1093027
SANDING BELT PLATEN
 N/A
PSB1093028 PSB1093028
BELT ACCESS DOOR
 N/A
PSB1093029 PSB1093029
***USE P6205ZZ***
Item is no longer available
PSB1093029 Replaced By P6205ZZ 		N/A View Replacement
PSB1093030 PSB1093030
***USE PFS01M***
Item is no longer available
PSB1093030 Replaced By PFS01M 		N/A View Replacement
PSB1093031 PSB1093031
DRIVE BEARING HOUSING
 N/A
PSB1093032 PSB1093032
***USE PLW04M***
Item is no longer available
PSB1093032 Replaced By PLW04M 		N/A View Replacement
PSB1093033 PSB1093033
***USE PB07M***
Item is no longer available
PSB1093033 Replaced By PB07M 		N/A View Replacement
PSB1093034 PSB1093034
KEY 6 X 6 X 40 RE
 N/A
PSB1093035 PSB1093035
DRIVE SHAFT
 N/A
PSB1093036 PSB1093036
FLAT WASHER 8 X 29 X 4.5MM
 N/A
PSB1093037 PSB1093037
DISC PULLEY
 N/A
PSB1093038 PSB1093038
BELT DUST CHUTE
 N/A
PSB1093039 PSB1093039
PINCH SHIELD
 N/A
PSB1093040 PSB1093040
***USE PW03M***
Item is no longer available
PSB1093040 Replaced By PW03M 		N/A View Replacement
PSB1093041 PSB1093041
***USE PLW03M***
Item is no longer available
PSB1093041 Replaced By PLW03M 		N/A View Replacement
PSB1093042 PSB1093042
***USE PB02M***
Item is no longer available
PSB1093042 Replaced By PB02M 		N/A View Replacement
PSB1093043 PSB1093043
***USE PB08M***
Item is no longer available
PSB1093043 Replaced By PB08M 		N/A View Replacement
PSB1093044 PSB1093044
***USE PLW03M***
Item is no longer available
PSB1093044 Replaced By PLW03M 		N/A View Replacement
PSB1093045 PSB1093045
BACK STOP
 N/A
PSB1093046 PSB1093046
PIVOT PLATE
 N/A
PSB1093047 PSB1093047
BELT TABLE
 N/A
PSB1093048 PSB1093048
TABLE BRACKET
 N/A
PSB1093049 PSB1093049
TABLE BASE
 N/A
PSB1093050 PSB1093050
TABLE ANGLE ADJUST BRACKET
 N/A
PSB1093051 PSB1093051
TABLE ANGLE BRACKET
 N/A
PSB1093052 PSB1093052
***USE PBHS09M***
Item is no longer available
PSB1093052 Replaced By PBHS09M 		N/A View Replacement
PSB1093053 PSB1093053
SHOULDER BOLT M8-1.25 X 14, 9 X 18
 N/A
PSB1093054 PSB1093054
***USE PB07M***
Item is no longer available
PSB1093054 Replaced By PB07M 		N/A View Replacement
PSB1093055 PSB1093055
***USE PN03M***
Item is no longer available
PSB1093055 Replaced By PN03M 		N/A View Replacement
PSB1093056 PSB1093056
***USE PRP07M***
Item is no longer available
PSB1093056 Replaced By PRP07M 		N/A View Replacement
PSB1093057 PSB1093057
***USE PSS03M***
Item is no longer available
PSB1093057 Replaced By PSS03M 		N/A View Replacement
PSB1093058 PSB1093058
***USE PLW10M***
Item is no longer available
PSB1093058 Replaced By PLW10M 		N/A View Replacement
PSB1093059 PSB1093059
***USE PFB01M***
Item is no longer available
PSB1093059 Replaced By PFB01M 		N/A View Replacement
PSB1093060 PSB1093060
***USE PLW03M***
Item is no longer available
PSB1093060 Replaced By PLW03M 		N/A View Replacement
PSB1093061 PSB1093061
***USE PB05M***
Item is no longer available
PSB1093061 Replaced By PB05M 		N/A View Replacement
PSB1093062 PSB1093062
***USE PB09M***
Item is no longer available
PSB1093062 Replaced By PB09M 		N/A View Replacement
PSB1093063 PSB1093063
***USE PLW04M***
Item is no longer available
PSB1093063 Replaced By PLW04M 		N/A View Replacement
PSB1093064 PSB1093064
***USE PN21M***
Item is no longer available
PSB1093064 Replaced By PN21M 		N/A View Replacement
PSB1093065 PSB1093065
***USE PFH86M***
Item is no longer available
PSB1093065 Replaced By PFH86M 		N/A View Replacement
PSB1093066 PSB1093066
***USE PFH68M***
Item is no longer available
PSB1093066 Replaced By PFH68M 		N/A View Replacement
PSB1093067 PSB1093067 COMPRESSION SPRING 1 X 9 X 26 $2.00
PSB1093068 PSB1093068
***USE PCAP07M***
Item is no longer available
PSB1093068 Replaced By PCAP07M 		N/A View Replacement
PSB1093069 PSB1093069
***USE PWF10M***
Item is no longer available
PSB1093069 Replaced By PWF10M 		N/A View Replacement
PSB1093070 PSB1093070
***USE PCAP72M***
Item is no longer available
PSB1093070 Replaced By PCAP72M 		N/A View Replacement
PSB1093071 PSB1093071
ROLL PIN 6 X 24
 N/A
PSB1093072 PSB1093072
***USE PRP58M***
Item is no longer available
PSB1093072 Replaced By PRP58M 		N/A View Replacement
PSB1093073 PSB1093073
***USE PVA49***
Item is no longer available
PSB1093073 Replaced By PVA49 		N/A View Replacement
PSB1093074 PSB1093074
***USE PRP05M***
Item is no longer available
PSB1093074 Replaced By PRP05M 		N/A View Replacement
PSB1093075 PSB1093075
STOP BLOCK
 N/A
PSB1093076 PSB1093076
SANDING BELT 6" X 48" 60-GRIT
 N/A
PSB1093077 PSB1093077
SANDING DISC 12" 60-GRIT PSA
 N/A
PSB1093078 PSB1093078
KNOB M8-1.25, 6-LOBE, D21
 N/A
PSB1093079 PSB1093079
FENDER WASHER 8 X 30 X 3MM
 N/A
PSB1093080 PSB1093080
KNOB M10-1.25, 6-LOBE, D52
 N/A
PSB1093081 PSB1093081
TABLE TILT SCALE
 N/A
PSB1093082 PSB1093082
RIVET 2 X 5MM NAMEPLATE
 N/A
PSB1093083 PSB1093083
***USE PS03M***
Item is no longer available
PSB1093083 Replaced By PS03M 		N/A View Replacement
PSB1093084 PSB1093084
POINTER
 N/A
PSB1093085 PSB1093085
***USE PW03M***
Item is no longer available
PSB1093085 Replaced By PW03M 		N/A View Replacement
PSB1093086 PSB1093086
***USE PW04M***
Item is no longer available
PSB1093086 Replaced By PW04M 		N/A View Replacement
PSB1093087 PSB1093087
***USE PN01M***
Item is no longer available
PSB1093087 Replaced By PN01M 		N/A View Replacement
PSB1093088 PSB1093088
GASKET 1 X 10MM
 N/A
PSB1093089 PSB1093089
FENDER WASHER 5 X 19 X 1.5
 N/A
PSB1093090 PSB1093090
***USE PCAP02M***
Item is no longer available
PSB1093090 Replaced By PCAP02M 		N/A View Replacement
PSB1093091 PSB1093091
***USE PSS09M***
Item is no longer available
PSB1093091 Replaced By PSS09M 		N/A View Replacement
PSB1093092 PSB1093092
***USE PB10M***
Item is no longer available
PSB1093092 Replaced By PB10M 		N/A View Replacement
PSB1093093 PSB1093093
***USE PN01M***
Item is no longer available
PSB1093093 Replaced By PN01M 		N/A View Replacement
PSB1093094 PSB1093094
DOWEL PIN 6 X 20
 N/A
PSB1093096 PSB1093096
***USE PR11M***
Item is no longer available
PSB1093096 Replaced By PR11M 		N/A View Replacement
PSB1093097 PSB1093097
***USE PWF06M***
Item is no longer available
PSB1093097 Replaced By PWF06M 		N/A View Replacement
PSB1093098 PSB1093098
KNOB M6-1, 4-LOBE, D40
 N/A
PSB1093099 PSB1093099
***USE PBHS09M***
Item is no longer available
PSB1093099 Replaced By PBHS09M 		N/A View Replacement
PSB1093100 PSB1093100
***USE PLW03M***
Item is no longer available
PSB1093100 Replaced By PLW03M 		N/A View Replacement
PSB1093101 PSB1093101
***USE PN46M***
Item is no longer available
PSB1093101 Replaced By PN46M 		N/A View Replacement
PSB1093102 PSB1093102
FOAM SEAL 2 X 7 X 10MM
 N/A
PSB1093103 PSB1093103
***USE PSS71M***
Item is no longer available
PSB1093103 Replaced By PSS71M 		N/A View Replacement
PSB1093104 PSB1093104
SET SCREW M10-1.25 X 60
 N/A
PSB1093105 PSB1093105
***USE PSS74M***
Item is no longer available
PSB1093105 Replaced By PSS74M 		N/A View Replacement
PSB1093106 PSB1093106
***USE PB10M***
Item is no longer available
PSB1093106 Replaced By PB10M 		N/A View Replacement
PSB1093107 PSB1093107
BUSHING
 N/A
PSB1093108 PSB1093108
FLAT WASHER 8MM THIN
 N/A

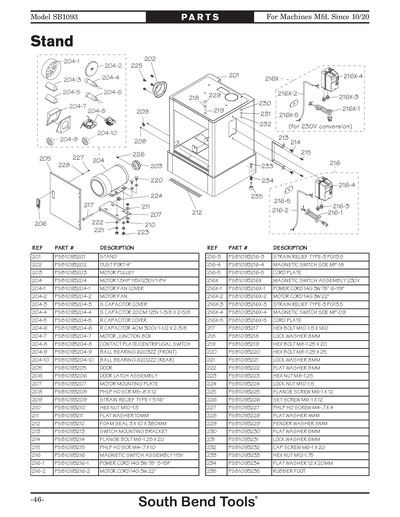

PSB1093201 PSB1093201
STAND
 N/A
PSB1093202 PSB1093202
DUST PORT 4"
 N/A
PSB1093203 PSB1093203
MOTOR PULLEY
 N/A
PSB1093204 PSB1093204
MOTOR 1.5HP 115V/230V 1-PH
 N/A
PSB1093204-1 PSB1093204-1
MOTOR FAN COVER
 N/A
PSB1093204-10 PSB1093204-10
***USE P6202ZZ***
Item is no longer available
PSB1093204-10 Replaced By P6202ZZ 		N/A View Replacement
PSB1093204-2 PSB1093204-2
MOTOR FAN
 N/A
PSB1093204-3 PSB1093204-3
S CAPACITOR COVER
 N/A
PSB1093204-4 PSB1093204-4
S CAPACITOR 200M 125V 1-3/8 X 2-5/8
 N/A
PSB1093204-5 PSB1093204-5
R CAPACITOR COVER
 N/A
PSB1093204-6 PSB1093204-6
R CAPACITOR 40M 300V 1-1/2 X 2-3/8
 N/A
PSB1093204-7 PSB1093204-7
MOTOR JUNCTION BOX
 N/A
PSB1093204-8 PSB1093204-8
CONTACT PLATE/CENTRIFUGAL SWITCH
 N/A
PSB1093204-9 PSB1093204-9
***USE P6203ZZ***
Item is no longer available
PSB1093204-9 Replaced By P6203ZZ 		N/A View Replacement
PSB1093205 PSB1093205
DOOR
 N/A
PSB1093206 PSB1093206
DOOR LATCH ASSEMBLY
 N/A
PSB1093207 PSB1093207
MOTOR MOUNTING PLATE
 N/A
PSB1093208 PSB1093208
***USE PS08M***
Item is no longer available
PSB1093208 Replaced By PS08M 		N/A View Replacement
PSB1093209 PSB1093209
STRAIN RELIEF TYPE-1 5/16"
 N/A
PSB1093210 PSB1093210
***USE PN02M***
Item is no longer available
PSB1093210 Replaced By PN02M 		N/A View Replacement
PSB1093211 PSB1093211
***USE PW04M***
Item is no longer available
PSB1093211 Replaced By PW04M 		N/A View Replacement
PSB1093212 PSB1093212
FOAM SEAL 3 X 10 X 380MM
 N/A
PSB1093213 PSB1093213
SWITCH MOUNTING BRACKET
 N/A
PSB1093214 PSB1093214
***USE PFB18M***
Item is no longer available
PSB1093214 Replaced By PFB18M 		N/A View Replacement
PSB1093215 PSB1093215
***USE PS38M***
Item is no longer available
PSB1093215 Replaced By PS38M 		N/A View Replacement
PSB1093216 PSB1093216
MAGNETIC SWITCH ASSEMBLY 115V
 N/A
PSB1093216-1 PSB1093216-1
POWER CORD 14G 3W 78" 5-15P
 N/A
PSB1093216-2 PSB1093216-2
MOTOR CORD 14G 3W 22"
 N/A
PSB1093216-3 PSB1093216-3
STRAIN RELIEF TYPE-3 PG13.5
 N/A
PSB1093216-4 PSB1093216-4
***USE PSB1093216***
 N/A
PSB1093216-5 PSB1093216-5
CORD PLATE
 N/A
PSB1093216X PSB1093216X
MAGNETIC SWITCH ASSEMBLY 230V
 N/A
PSB1093216X-1 PSB1093216X-1
POWER CORD 14G 3W 78" 6-15P
 N/A
PSB1093216X-2 PSB1093216X-2
MOTOR CORD 14G 3W 22"
Item is no longer available
PSB1093216X-2 Replaced By PSB1093216-2 		N/A View Replacement
PSB1093216X-3 PSB1093216X-3
STRAIN RELIEF TYPE-3 PG13.5
Item is no longer available
PSB1093216X-3 Replaced By PSB1093216-3 		N/A View Replacement
PSB1093216X-4 PSB1093216X-4
***USE PSB1093216X***
 N/A
PSB1093216X-5 PSB1093216X-5
CORD PLATE
Item is no longer available
PSB1093216X-5 Replaced By PSB1093216-5 		N/A View Replacement
PSB1093217 PSB1093217
HEX BOLT M10-1.5 X 160
 N/A
PSB1093218 PSB1093218
***USE PLW04M***
Item is no longer available
PSB1093218 Replaced By PLW04M 		N/A View Replacement
PSB1093219 PSB1093219
***USE PB09M***
Item is no longer available
PSB1093219 Replaced By PB09M 		N/A View Replacement
PSB1093220 PSB1093220
***USE PB07M***
Item is no longer available
PSB1093220 Replaced By PB07M 		N/A View Replacement
PSB1093221 PSB1093221
***USE PLW04M***
Item is no longer available
PSB1093221 Replaced By PLW04M 		N/A View Replacement
PSB1093222 PSB1093222
***USE PW01M***
Item is no longer available
PSB1093222 Replaced By PW01M 		N/A View Replacement
PSB1093223 PSB1093223
***USE PN03M***
Item is no longer available
PSB1093223 Replaced By PN03M 		N/A View Replacement
PSB1093224 PSB1093224
***USE PLN05M***
Item is no longer available
PSB1093224 Replaced By PLN05M 		N/A View Replacement
PSB1093225 PSB1093225
***USE PFS02M***
Item is no longer available
PSB1093225 Replaced By PFS02M 		N/A View Replacement
PSB1093226 PSB1093226
***USE PSS04M***
Item is no longer available
PSB1093226 Replaced By PSS04M 		N/A View Replacement
PSB1093227 PSB1093227
***USE PS110M***
Item is no longer available
PSB1093227 Replaced By PS110M 		N/A View Replacement
PSB1093228 PSB1093228
***USE PW05M***
Item is no longer available
PSB1093228 Replaced By PW05M 		N/A View Replacement
PSB1093229 PSB1093229
***USE PWF08M***
Item is no longer available
PSB1093229 Replaced By PWF08M 		N/A View Replacement
PSB1093230 PSB1093230
***USE PW03M***
Item is no longer available
PSB1093230 Replaced By PW03M 		N/A View Replacement
PSB1093231 PSB1093231
***USE PLW03M***
Item is no longer available
PSB1093231 Replaced By PLW03M 		N/A View Replacement
PSB1093232 PSB1093232
***USE PCAP02M***
Item is no longer available
PSB1093232 Replaced By PCAP02M 		N/A View Replacement
PSB1093233 PSB1093233
***USE PN09M***
Item is no longer available
PSB1093233 Replaced By PN09M 		N/A View Replacement
PSB1093234 PSB1093234
FLAT WASHER 12 X 20MM
 N/A
PSB1093235 PSB1093235
RUBBER FOOT
 N/A

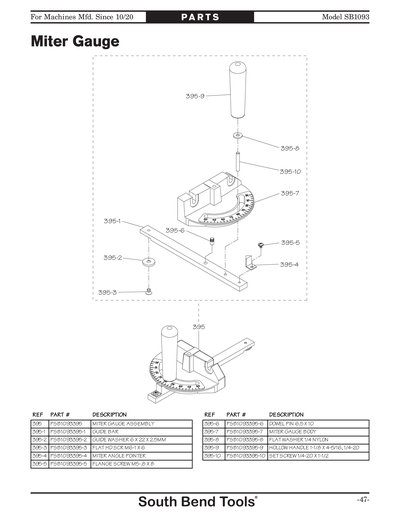

PSB1093395 PSB1093395
MITER GAUGE ASSEMBLY
 N/A
PSB1093395-1 PSB1093395-1
GUIDE BAR
 N/A
PSB1093395-10 PSB1093395-10
***USE PSS16***
Item is no longer available
PSB1093395-10 Replaced By PSS16 		N/A View Replacement
PSB1093395-2 PSB1093395-2
GUIDE WASHER 6 X 22 X 2.5MM
 N/A
PSB1093395-3 PSB1093395-3
***USE PFH9M***
Item is no longer available
PSB1093395-3 Replaced By PFH9M 		N/A View Replacement
PSB1093395-4 PSB1093395-4
MITER ANGLE POINTER
 N/A
PSB1093395-5 PSB1093395-5
***USE PFS01M***
Item is no longer available
PSB1093395-5 Replaced By PFS01M 		N/A View Replacement
PSB1093395-6 PSB1093395-6
DOWEL PIN 6.5 X 10
 N/A
PSB1093395-7 PSB1093395-7
MITER GAUGE BODY
 N/A
PSB1093395-8 PSB1093395-8
FLAT WASHER 1/4 NYLON
 N/A
PSB1093395-9 PSB1093395-9
HOLLOW HANDLE 1-1/8 X 4-5/16, 1/4-20
 N/A

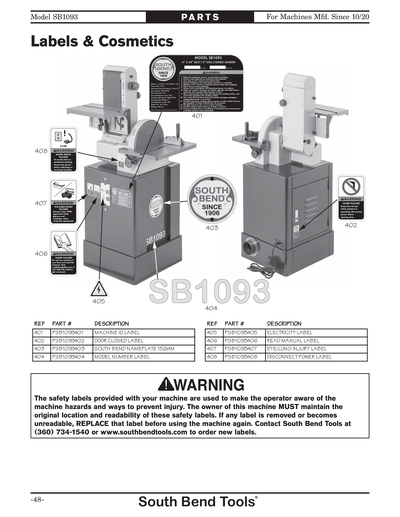

PSB1093401 PSB1093401
MACHINE ID LABEL
 N/A
PSB1093402 PSB1093402
***USE PSBLABEL13VL***
Item is no longer available
PSB1093402 Replaced By PSBLABEL13VL 		N/A View Replacement
PSB1093403 PSB1093403
***USE SB1490***
Item is no longer available
PSB1093403 Replaced By SB1490 		N/A View Replacement
PSB1093404 PSB1093404
MODEL NUMBER LABEL
 N/A
PSB1093405 PSB1093405
***USE PLABEL-14***
Item is no longer available
PSB1093405 Replaced By PLABEL-14 		N/A View Replacement
PSB1093406 PSB1093406
***USE PSBLABEL01VL***
Item is no longer available
PSB1093406 Replaced By PSBLABEL01VL 		N/A View Replacement
PSB1093407 PSB1093407
***USE PSBLABEL10VL***
Item is no longer available
PSB1093407 Replaced By PSBLABEL10VL 		N/A View Replacement
PSB1093408 PSB1093408
***USE PSBLABEL02VL***
Item is no longer available
PSB1093408 Replaced By PSBLABEL02VL 		N/A View Replacement
PSB1093MAN PSB1093MAN
MANUAL SB1093 MFD-09.20+ V1.10.20
 N/A
