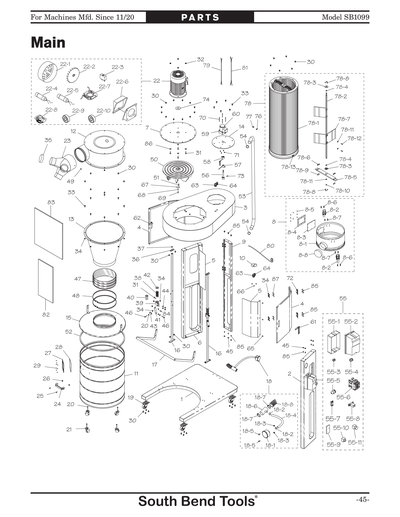

Parts for SB1099 3 HP Cyclone Dust Collector

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

P
BASE
P
RIGHT SIDE PANEL
P
IMPELLER HOUSING
P
FILTER DOOR
P
SOUNDPROOF COVER
P
LEFT SIDE PANEL
P
MOTOR PLATE
P
END CAP ASSEMBLY
P
END CAP
P
DRAW LATCH
PSB1099008-3
DRUM WINDOW, 120 X 140MM ACRYLIC
Price
N/A
PSB1099008-4
FOAM GASKET, 120 X 140MM
Price
N/A
PSB1099008-5
RIVET 2 X 4MM NAMEPLATE AL
Price
N/A
PSB1099008-6
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
PSB1099008-7
Now: PLN04
LOCK NUT 10-24
Price
N/A
P
OUTLET COVER 4"
P
REAR PANEL
P
STRAIN RELIEF PLATE
P
COLLECTION DRUM
P
INTAKE BARREL
P
CYCLONE FUNNEL
P
FILTER COVER
P
COLLECTION DRUM LID
P
LOCK HANDLE GUIDE
P
DRUM LOCK HANDLE
P
NEGATIVE PRESSURE GAUGE ASSEMBLY
P
PRESSURE GAUGE
P
HOSE CLAMP 3/4"
PSB1099018-3
Now: PFN01
FLANGE NUT 1/4-20
Price
N/A
P
HOSE 1/2" X 26"
PSB1099018-5
BUTTON HD CAP SCR 1/4-20 X 1/2
Price
N/A
P
T CONNECTOR 1-1/2 X 1-1/2 X 1/2"
P
HOSE CLAMP 1-1/2"
P
DUST HOSE 1-1/2" X 67"
P
CASTER 2-1/2" LOCKING SWIVEL
PSB1099020
Now: PN02
HEX NUT 5/16-18
Price
N/A
P
CASTER 2" SWIVEL
P
MOTOR 3HP 220V 1-PH
P
MOTOR FAN COVER
PSB1099022-10
BALL BEARING 6206ZZ
Price
N/A
P
MOTOR FAN
P
CIRCUIT BREAKER 25A ZING EAR ZE-900
P
R CAPACITOR 45M 250V 1-1/2 X 2-1/2
PSB1099022-5
S CAPACITOR 200M 250V 1-1/2 X 3-1/8
Price
N/A
P
JUNCTION BOX
P
CONTACT PLATE 16 X 70, 6MM
PSB1099022-8
CENTRIFUGAL SWITCH
Price
N/A
PSB1099022-9
BALL BEARING 6203ZZ
Price
N/A
P
INLET ADAPTER 8" X 4" X 4"
PSB1099023V2
INLET ADAPTER 8" X 4" X 3 (PC) V2.01.22
Price
N/A
P
COLLECTION DRUM HANDLE
PSB1099025
Now: PS12
PHLP HD SCR 1/4-20 X 5/8
Price
N/A
PSB1099026
ACORN NUT 1/4-20
Price
N/A
P
FOAM GASKET 120 X 140MM
P
DRUM WINDOW 120 X 140MM
P
RIVET 2 X 4MM NAMEPLATE AL
PSB1099030
Now: PFB01
FLANGE BOLT 5/16-18 X 1/2
Price
N/A
PSB1099031
Now: PFB16
FLANGE BOLT 5/16-18 X 1
Price
N/A
PSB1099032
Now: PFN02
FLANGE NUT 5/16-18
Price
N/A
PSB1099033
Now: PFB02
FLANGE BOLT 5/16-18 X 3/4
Price
N/A
PSB1099034
Now: PLN03
LOCK NUT 5/16-18
Price
N/A
P
INLET CAP 4"
P
LOCK HANDLE GUIDE MOUNTING PLATE
PSB1099037
Now: PFH25
FLAT HD SCR 5/16-18 X 1
Price
N/A
P
LOCK HANDLE SPRING 3 X 32.5 X 86MM
P
LOCK HANDLE BRACKET
P
COPPER PLATE
P
LOCK HANDLE LINK
PSB1099042
Now: PW07
FLAT WASHER 5/16
Price
N/A
P
STOPPER
P
FLAT WASHER 5/16 PL
PSB1099045
Now: PW07
FLAT WASHER 5/16
Price
N/A
PSB1099046
Now: PB11
HEX BOLT 5/16-18 X 1-1/2
Price
N/A
PSB1099047
FLEX HOSE 12" X 7-1/2"
Price
N/A
P
HOSE CLAMP 12"
PSB1099049
Now: PFS03
FLANGE SCREW 10-24 X 3/8
Price
N/A
P
IMPELLER 16" ALUMINUM
PSB1099051
Now: PK61M
KEY 7 X 7 X 30
Price
N/A
PSB1099052
COLLECTION DRUM GASKET
Price
N/A
P
HOSE 1-1/2"
P
HOSE CLAMP 1-1/2"
P
MAGNETIC SWITCH SDE 220V
P
MAG SWITCH REAR COVER
P
BUTTON SWITCH GRN
P
E-STOP BUTTON
P
MAG SWITCH FRONT COVER
PSB1099055-3
STRAIN RELIEF TYPE-3 M16
Price
N/A
P
STRAIN RELIEF TYPE-3 M20
P
STRAIN RELIEF TYPE-3 M30
P
CONTACTOR SDE-MA15-MA09 220V
P
AUX CONTACTOR SDE-AP2-11 220V
PSB1099055-8
TIMER PUNA H3Y-2 240V
Price
N/A
P
REMOTE CONTROL RECEIVER
P
CONNECTING SPINDLE
P
LOWER ALIGNMENT ARM
P
UPPER ALIGNMENT ARM
P
GEAR REDUCER LUYANG 2GN90
P
MOTOR 15W 220V 1-PH
P
RIGHT LATCH
P
LEFT LATCH
P
STRAIN RELIEF TYPE-3 M16-1.5
PSB1099064
STRAIN RELIEF TYPE-3 M20-1.5
Price
N/A
PSB1099065
BUTTON HD CAP SCR 1/4-20 X 1/2
Price
N/A
PSB1099066
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
P
IMPELLER WASHER
PSB1099068
Now: PLW02
LOCK WASHER 1/4
Price
N/A
PSB1099069
CAP SCREW M6-1 X 30
Price
N/A
P
CAP SCREW M5-.8 X 60
PSB1099071
Now: PN06M
HEX NUT M5-.8
Price
N/A
P
HINGE
PSB1099073
CAP SCREW M6-1 X 16
Price
N/A
P
RUBBER BUSHING
P
CLAMP HOOK
PSB1099077
TAP SCREW M4 X 16
Price
N/A
P
CANISTER FILTER ASSEMBLY
P
CANISTER FILTER
PSB1099078-10
Now: PS68M
PHLP HD SCR M6-1 X 10
Price
N/A
PSB1099078-11
Now: PW06
FLAT WASHER 1/4
Price
N/A
PSB1099078-12
Now: PS11M
PHLP HD SCR M6-1 X 16
Price
N/A
P
LATCH HOOK
P
FOAM GASKET
P
MAIN SPINDLE
P
UPPER BEARING RETAINER
P
BALL BEARING 1206ZZ
PSB1099078-5
PADDLE SPINDLE BRACKET
Price
N/A
P
RETAINER
P
FILTER PADDLE
PSB1099078-8
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
PSB1099078-9
Now: PS20M
PHLP HD SCR M5-.8 X 15
Price
N/A
P
MOTOR CORD 18G 2W 59"
P
POWER CORD 14G 3W 66" L6-16P
P
MOTOR CORD 12G 3W 59"
P
SOUND INSULATION COTTON 270 X 580
P
SOUND INSULATION COTTON 520 X 580
PSB1099084
BUTTON HD CAP SCR 5/16-18 X 3/4
Price
N/A
PSB1099085
BUTTON HD CAP SCR 5/16-18 X 3/4
Price
N/A
PSB1099086
Now: PW07
FLAT WASHER 5/16
Price
N/A
PSB1099087
EXT TOOTH WASHER 5/16
Price
N/A
P
VACUUM RING
P
REMOTE
P

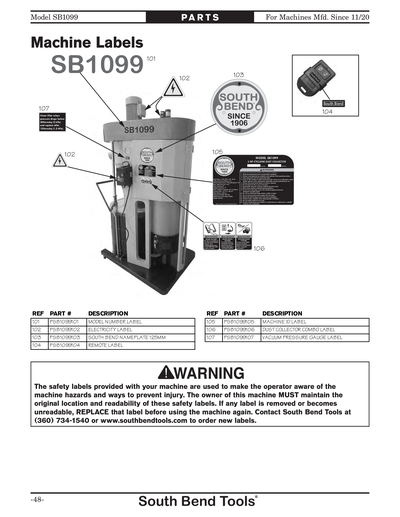

MODEL NUMBER LABEL
PSB1099102
ELECTRICITY LABEL 0.5
Price
N/A
PSB1099103
New South Bend Nameplates 125mm (5")
Price
N/A
P
REMOTE LABEL
P
MACHINE ID LABEL
PSB1099106
DUST COLLECTOR COMBO LABEL
Price
N/A
P
VACUUM PRESSURE GAUGE LABEL
P
MANUAL SB1099 MFD-11.20+ V1.01.21
