Parts for SB1100 - 2 HP Canister Dust Collector

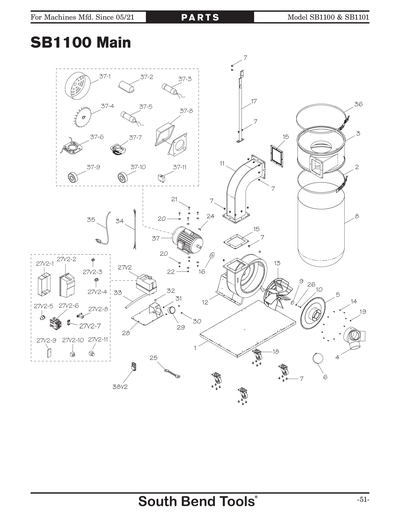

Part Diagram for SB1100
Part Diagram for SB1100
Part Diagram for SB1100
Part Diagram for SB1100
Part Diagram for SB1100
Part Diagram for SB1100
Part Diagram for SB1100
Part Diagram for SB1100
Part Diagram for SB1100
Part Diagram for SB1100
Part Diagram for SB1100
Part Diagram for SB1100

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
P
BASE
Price
$244.90
P
BAG CLAMP 500MM
Price
$24.80
P
COLLECTOR
Price
$103.35
P
INLET ADAPTER 6" X 4" X 3
Price
$89.15
PSB1100004V2
INLET ADAPTER 6" X 4" X 3 (PC) V2.01.22
Price
N/A
P
HOUSING COVER
Price
$53.45
PSB1100006
INLET CAP 4"
Item is no longer available
Price
N/A
PSB1100007
FLANGE BOLT 5/16-18 X 1/2
Price
N/A
PSB1100008
19-3/4 D x 41" L Plastic Bottom Bag
Price
N/A
P
IMPELLER WASHER
Price
$4.30
P
CAP SCREW M6-1 X 30 LH
Price
$2.95
P
L-SHAPE OUTLET TUBE
Price
$92.75
P
IMPELLER HOUSING
Price
$303.75
P
IMPELLER 12-3/4"
Price
$258.45
PSB1100014
PHLP HD SCR 10-24 X 3/8
Price
N/A
P
SQUARE GASKET
Price
$9.70
P
MOTOR GASKET
Price
$3.65
P
CANISTER SUPPORT
Price
$34.80
P
CASTER 2-1/2", SWIVEL
Price
$16.65
PSB1100019
PHLP HD SCR 10-24 X 3/8
Price
N/A
PSB1100020
FENDER WASHER 5/16
Price
N/A
PSB1100021
HEX BOLT 5/16-18 X 1
Price
N/A
PSB1100022
LOCK NUT 5/16-18
Price
N/A
PSB1100024
KEY 7 X 7 X 25
Price
N/A
PSB1100025
WRENCH 10 X 12MM OPEN-ENDS
Price
N/A
PSB1100026
LOCK WASHER 1/4
Price
N/A
PSB1100027
***SEE EXT DESC***
Item is no longer available
Price
N/A
P
MAG SWITCH REAR COVER
Price
$36.25
P
BUTTON SWITCH NHD NPB-22F 22MM GRN
Price
$13.05
P
E-STOP BUTTON NHD NPB-22T 22MM
Price
$54.70
P
MAG SWITCH FRONT COVER
Price
$25.40
P
STRAIN RELIEF TYPE-3 M16
Price
$5.50
P
STRAIN RELIEF TYPE-3 M20
Price
$7.50
PSB1100027-5
STRAIN RELIEF TYPE-3 M20
Price
N/A
P
CONTACTOR NHD C-18D 220V
Price
$114.45
P
AUX CONTACTOR NHD CA1-D11 220V
Price
$44.45
PSB1100027-8
*DISCD*TIMER ANLY AMY-2 240V
Item is no longer available
Price
N/A
P
REMOTE CONTROL RECEIVER
Price
$86.05
P
MAGNETIC SWITCH SDE MP-30 220V V2.5.21
Price
$371.35
P
MAG SWITCH REAR COVER
Price
$25.10
P
BUTTON SDE CP GRN
Price
$15.15
P
E-STOP BUTTON SDE HY57B 22MM
Price
$38.10
P
MAG SWITCH FRONT COVER
Price
$38.40
PSB1100027V2-3
STRAIN RELIEF TYPE-3 M16
Price
N/A
PSB1100027V2-4
STRAIN RELIEF TYPE-3 M20
Price
N/A
PSB1100027V2-5
STRAIN RELIEF TYPE-3 M20
Price
N/A
P
CONTACTOR SDE MA-09 220V
Price
$111.75
P
AUX CONTACTOR SDE AP2-11
Price
$68.85
P
TIMER PUNA H3Y-2 240V
Price
$93.70
P
REMOTE CONTROL RECEIVER
Price
$96.20
P
GAUGE BRACKET
Price
$61.05
P
PRESSURE GAUGE
Price
$202.60
PSB1100030
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
PSB1100031
HEX NUT 1/4-20
Price
N/A
P
HOSE CLAMP 3/4"
Price
$5.20
P
HOSE 1/2"
Price
$16.05
P
MOTOR CORD 14G 3W 26"
Price
$44.10
P
POWER CORD 14G 3W 65" 6-15P
Price
$35.65
P
CANISTER CLAMP 520MM
Price
$34.80
P
MOTOR 2HP 220V 1-PH
Price
$462.50
P
MOTOR FAN COVER
Price
$24.15
PSB1100037-10
BALL BEARING 6203ZZ
Price
N/A
P
CIRCUIT BREAKER 15A KUOYUH 88 SERIES
Price
$15.15
P
CAPACITOR COVER
Price
$5.80
P
S CAPACITOR 300M 125V 1-3/4 X 3-1/2
Price
$32.35
PSB1100037-4
MOTOR FAN
Price
N/A
P
R CAPACITOR 30M 250V 1-3/8 X 2-3/8
Price
$15.45
P
CONTACT PLATE
Price
$9.40
P
CENTRIFUGAL SWITCH
Price
$12.75
P
JUNCTION BOX
Price
$13.05
PSB1100037-9
BALL BEARING 6205ZZ
Price
N/A
P
REMOTE V2.5.21
Price
$87.30
P
UPPER SPINDLE LEVER
Price
$36.25
P
LOWER SPINDLE LEVER
Price
$25.10
P

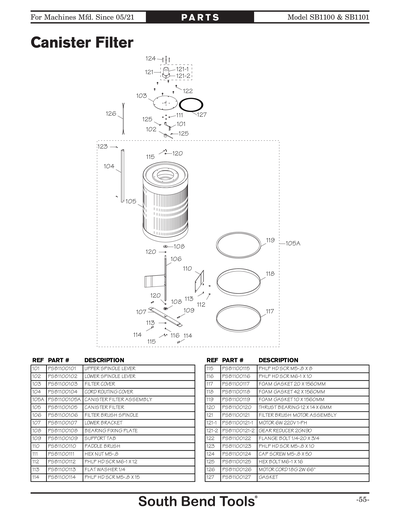

FILTER COVER
Price
$40.90
P
CORD ROUTING COVER
Price
$33.55
P
CANISTER FILTER
Price
$466.75
PSB1100105A
Replacement Filter for SB1100 and SB1101
Price
N/A
P
FILTER BRUSH SPINDLE
Price
$46.85
P
LOWER BRACKET
Price
$28.10
P
BEARING FIXING PLATE
Price
$8.20
P
SUPPORT TAB
Price
$4.30
P
PADDLE BRUSH
Price
$23.65
PSB1100111
HEX NUT M5-.8
Price
N/A
PSB1100112
HEX BOLT M6-1 X 10
Price
N/A
PSB1100113
FLAT WASHER 1/4
Price
N/A
PSB1100114
PHLP HD SCR M5-.8 X 15
Price
N/A
PSB1100115
PHLP HD SCR M5-.8 X 8
Price
N/A
PSB1100116
PHLP HD SCR M6-1 X 10
Price
N/A
P
FOAM GASKET 20 X 1560MM
Price
$19.35
P
FOAM GASKET 42 X 1560MM
Price
$13.30
P
FOAM GASKET 10 X 1560MM
Price
$13.60
P
THRUST BEARING 12 X 14 X 6MM
Price
$5.15
P
FILTER BRUSH MOTOR ASSEMBLY
Price
$382.80
P
MOTOR 6W 220V 1-PH
Price
$236.80
P
GEAR REDUCER 2GN90
Price
$23.65
PSB1100122
FLAT HD SCR 1/4-20 X 3/4
Price
N/A
PSB1100123
PHLP HD SCR M5-.8 X 10
Price
N/A
PSB1100124
CAP SCREW M5-.8 X 50
Price
N/A
PSB1100125
HEX BOLT M6-1 X 16
Price
N/A
P
MOTOR CORD 18G 2W 66"
Price
$24.15
P
GASKET
Price
$5.50
P

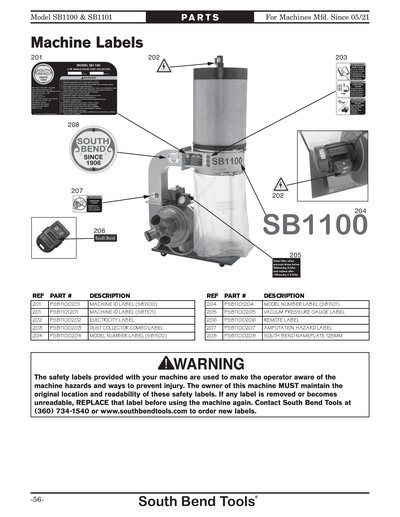

MACHINE ID LABEL
Price
$16.40
PSB1100202
ELECTRICITY LABEL 0.5
Price
N/A
P
DUST COLLECTOR COMBO LABEL
Price
$6.10
P
MODEL NUMBER LABEL
Price
$11.85
P
VACUUM PRESSURE GAUGE LABEL
Price
$2.65
P
REMOTE LABEL
Price
$1.05
P
AMPUTATION HAZARD LABEL
Price
$3.70
PSB1100208
New South Bend Nameplates 90mm (3-1/2")
Price
N/A
P
MANUAL SB1100/SB1101 MFD-10.20-04.21 V1.
Price
$18.00
P
MANUAL SB1100/SB1101 MFD-05.21+ V2.05.21
Price
$5.75
