Parts for SB1102 - 26" 5 HP Single-Phase Drum Sander

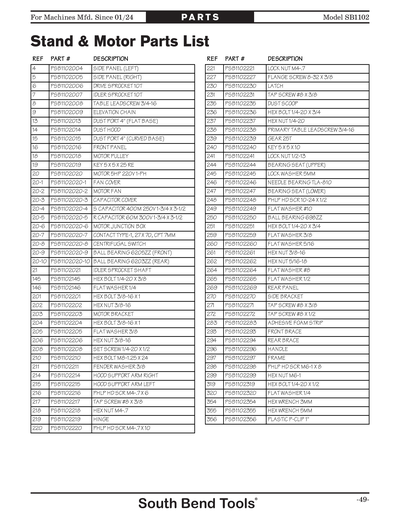

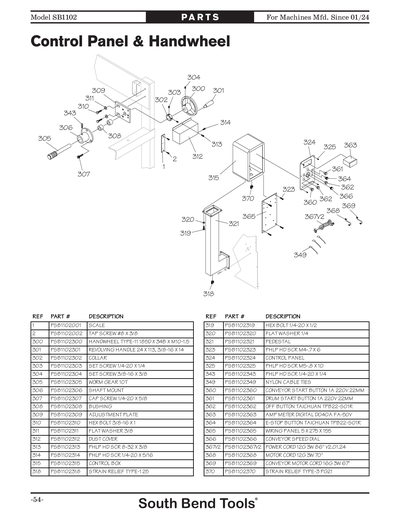

Part Diagram for SB1102

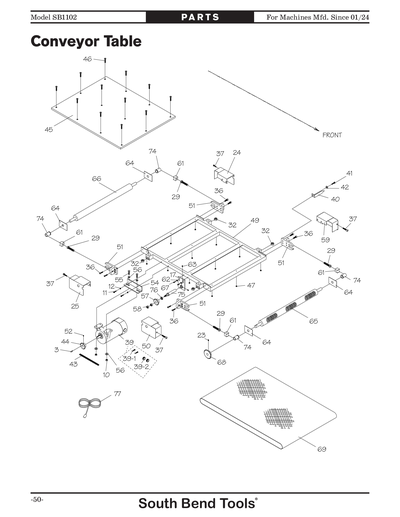

Part Diagram for SB1102

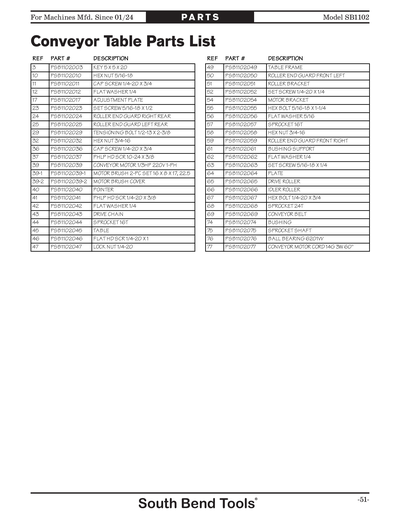

Part Diagram for SB1102

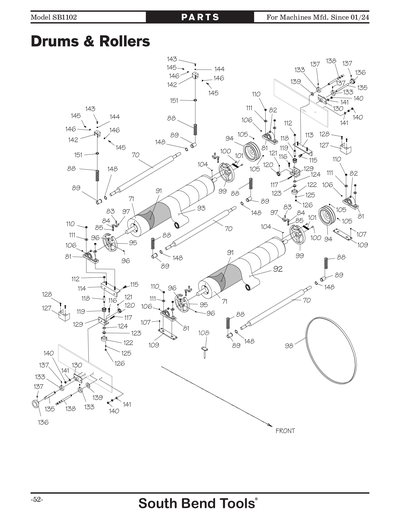

Part Diagram for SB1102

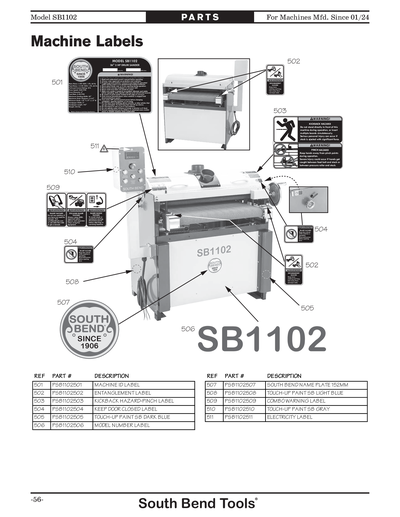

Part Diagram for SB1102

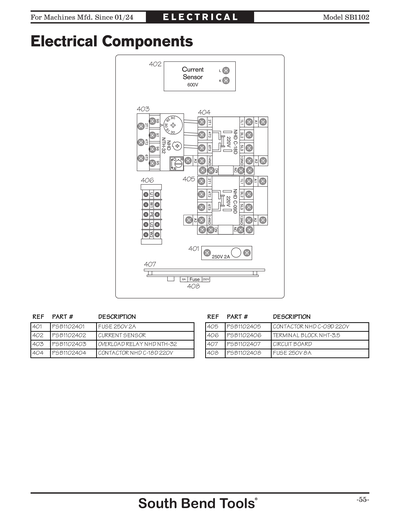

Part Diagram for SB1102

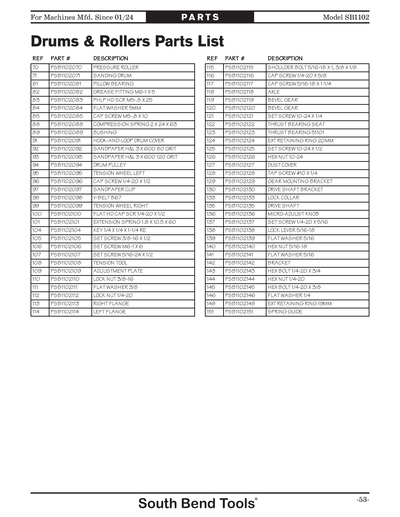

Part Diagram for SB1102

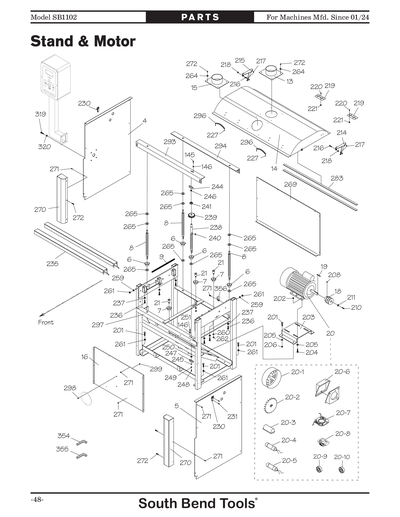

Part Diagram for SB1102
Part Diagram for SB1102
Part Diagram for SB1102
Part Diagram for SB1102
Part Diagram for SB1102
Part Diagram for SB1102
Part Diagram for SB1102
Part Diagram for SB1102
Part Diagram for SB1102
Part Diagram for SB1102
Part Diagram for SB1102

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
P
SCALE
Price
$3.95
PSB1102002
TAP SCREW #8 X 3/8
Price
N/A
PSB1102003
KEY 5 X 5 X 20
Price
N/A
P
SIDE PANEL LEFT
Price
$130.45
P
SIDE PANEL RIGHT
Price
$126.80
P
DRIVE SPROCKET 10T
Price
$5.15
P
IDLER SPROCKET 10T
Price
$5.15
P
TABLE LEADSCREW 3/4-16
Price
$18.15
P
ELEVATION CHAIN
Price
$43.50
PSB1102010
HEX NUT 5/16-18
Price
N/A
PSB1102011
CAP SCREW 1/4-20 X 3/4
Price
N/A
PSB1102012
FLAT WASHER 1/4
Price
N/A
P
DUST PORT 4" FLAT BASE
Price
$6.70
P
DUST HOOD
Price
$225.55
P
DUST PORT 4" CURVED BASE
Price
$25.40
P
FRONT PANEL
Price
$101.45
P
ADJUSTMENT PLATE
Price
$17.85
P
MOTOR PULLEY
Price
$36.25
P
KEY 5 X 5 X 25 RE
Price
$2.75
P
MOTOR 5HP 220V 1-PH
Price
$1,046.95
P
FAN COVER
Price
$13.30
PSB1102020-10
BALL BEARING 6203ZZ
Price
N/A
P
MOTOR FAN
Price
$10.00
P
CAPACITOR COVER
Price
$7.25
P
S CAPACITOR 400M 250V 1-3/4 X 3-1/2
Price
$25.10
P
R CAPACITOR 60M 300V 1-3/4 X 3-1/2
Price
$35.35
P
MOTOR JUNCTION BOX
Price
$8.80
PSB1102020-7
CONTACT PLT-TUNGSTEN 5HP OR LESS
Price
N/A
P
CENTRIFUGAL SWITCH
Price
$10.30
PSB1102020-9
BALL BEARING 6205ZZ
Price
N/A
P
IDLER SPROCKET SHAFT
Price
$4.85
PSB1102023
SET SCREW 5/16-18 X 1/2
Price
N/A
P
ROLLER END GUARD RIGHT REAR
Price
$16.05
P
ROLLER END GUARD RIGHT FRONT/LEFT REAR
Price
$16.05
P
TENSIONING BOLT 1/2-13 X 2-3/8
Price
$3.65
PSB1102032
HEX NUT 3/4-16
Price
N/A
PSB1102036
CAP SCREW 1/4-20 X 3/4
Price
N/A
PSB1102037
PHLP HD SCR 10-24 X 3/8
Price
N/A
PSB1102039
CONVEYOR MOTOR 1/3HP 220V 1-PH V4.12.24
Price
N/A
P
MOTOR BRUSH 2-PC SET 16 X 8 X 17, 22.5
Price
$14.25
P
MOTOR BRUSH COVER
Price
$70.35
P
***USE P1066Z039V4***
Price
$717.30
P
MOTOR BRUSH 2-PC SET
Price
$16.35
P
MOTOR BRUSH COVER
Price
$4.75
P
POINTER
Price
$1.85
PSB1102041
PHLP HD SCR 1/4-20 X 3/8
Price
N/A
PSB1102042
FLAT WASHER 1/4
Price
N/A
P
DRIVE CHAIN
Price
$39.85
P
SPROCKET 16T
Price
$10.90
P
TABLE
Price
$47.10
PSB1102046
FLAT HD SCR 1/4-20 X 1
Price
N/A
PSB1102047
LOCK NUT 1/4-20
Price
N/A
P
TABLE FRAME
Price
$152.50
P
ROLLER END GUARD LEFT FRONT/RIGHT REAR
Price
$15.70
P
ROLLER BRACKET
Price
$43.50
PSB1102052
SET SCREW 1/4-20 X 1/4
Price
N/A
P
MOTOR BRACKET
Price
$14.50
PSB1102055
HEX BOLT 5/16-18 X 1-1/4
Price
N/A
PSB1102056
FLAT WASHER 5/16
Price
N/A
P
SPROCKET 16T
Price
$8.80
PSB1102058
HEX NUT 3/4-16
Price
N/A
PSB1102059
ROLLER END GUARD RIGHT FRONT/LEFT REAR
Price
N/A
P
BUSHING SUPPORT
Price
$4.30
PSB1102062
FLAT WASHER 1/4
Price
N/A
PSB1102063
SET SCREW 5/16-18 X 1/4
Price
N/A
P
PLATE
Price
$4.60
P
DRIVE ROLLER
Price
$61.05
P
IDLER ROLLER
Price
$50.50
PSB1102067
HEX BOLT 1/4-20 X 3/4
Price
N/A
P
SPROCKET 24T
Price
$15.45
P
CONVEYOR BELT
Price
$394.90
P
PRESSURE ROLLER
Price
$93.95
P
SANDING DRUM
Price
$427.50
P
SANDING DRUM FRONT W/TENSION WHEEL (2 PC)
Price
$221.00
P
SANDING DRUM REAR W/TENSION WHEEL (2 PC)
Price
$213.75
PSB1102074
BUSHING V2.12.23
Price
N/A
P
SPROCKET SHAFT
Price
$12.40
P
BALL BEARING 6201VV
Price
$3.95
P
CONVEYOR MOTOR CORD 14G 3W 60"
Price
$29.65
P
PILLOW BEARING
Price
$26.00
PSB1102082
GREASE FITTING M6-1 X 5
Price
N/A
PSB1102083
PHLP HD SCR M5-.8 X 25
Price
N/A
PSB1102084
FLAT WASHER 5MM
Price
N/A
PSB1102085
CAP SCREW M5-.8 X 10
Price
N/A
P
COMPRESSION SPRING 2 X 24 X 63
Price
$2.45
PSB1102089
***USE P1066Z074V2***
Price
N/A
P
HOOK-AND-LOOP DRUM COVER
Price
$48.65
PSB1102092
3" x 50' A/O Sanding Roll 80 Grit, H&L
Price
N/A
PSB1102093
3" x 50' A/O Sanding Roll 120 Grit, H&L
Price
N/A
P
DRUM PULLEY
Price
$43.80
P
TENSION WHEEL LEFT
Price
$49.55
PSB1102096
CAP SCREW 1/4-20 X 1/2
Price
N/A
P
SANDPAPER CLIP
Price
$5.80
PSB1102098
V-BELT B67
Price
N/A
P
TENSION WHEEL RIGHT
Price
$40.40
PSB1102100
FLAT HD ALLEN SCR 1/4-20 X 1/2
Price
N/A
P
EXTENSION SPRING 1.8 X 10.5 X 60
Price
$1.85
P
KEY 1/4 X 1/4 X 1-1/4 RE
Price
$1.85
PSB1102105
SET SCREW 3/8-16 X 1/2
Price
N/A
PSB1102106
SET SCREW M6-1 X 6
Price
N/A
PSB1102107
SET SCREW 5/16-24 X 1/2
Price
N/A
P
TENSION TOOL
Price
$8.20
P
ADJUSTMENT PLATE
Price
$6.70
PSB1102110
LOCK NUT 3/8-16
Price
N/A
PSB1102111
FLAT WASHER 3/8
Price
N/A
PSB1102112
LOCK NUT 1/4-20
Price
N/A
P
RIGHT FLANGE
Price
$11.20
P
LEFT FLANGE
Price
$11.20
P
SHOULDER BOLT 5/16-18 X 1, 3/8 X 1/8
Price
$2.45
PSB1102116
CAP SCREW 1/4-20 X 5/8
Price
N/A
PSB1102117
CAP SCREW 5/16-18 X 1-1/4
Price
N/A
P
AXLE
Price
$3.95
P
BEVEL GEAR
Price
$4.60
P
BEVEL GEAR
Price
$4.85
PSB1102121
SET SCREW 10-24 X 1/4
Price
N/A
P
THRUST BEARING SEAT
Price
$12.40
PSB1102123
THRUST BEARING 51101
Price
N/A
PSB1102124
EXT RETAINING RING 20MM
Price
N/A
PSB1102125
SET SCREW 10-24 X 1/2
Price
N/A
PSB1102126
HEX NUT 10-24
Price
N/A
P
DUST COVER
Price
$10.00
P
TAP SCREW #10 X 1/4
Price
$1.60
P
GEAR MOUNTING BRACKET
Price
$13.60
P
DRIVE SHAFT BRACKET
Price
$14.25
P
LOCK COLLAR
Price
$3.05
P
DRIVE SHAFT
Price
$3.05
P
MICRO-ADJUST KNOB
Price
$20.55
PSB1102137
SET SCREW 1/4-20 X 5/16
Price
N/A
P
LOCK LEVER 5/16-18
Price
$7.00
PSB1102139
FLAT WASHER 5/16
Price
N/A
PSB1102140
HEX NUT 5/16-18
Price
N/A
PSB1102141
FLAT WASHER 5/16
Price
N/A
P
BRACKET
Price
$3.95
PSB1102143
HEX BOLT 1/4-20 X 3/4
Price
N/A
PSB1102144
HEX NUT 1/4-20
Price
N/A
PSB1102145
HEX BOLT 1/4-20 X 3/4
Price
N/A
PSB1102146
FLAT WASHER 1/4
Price
N/A
PSB1102148
EXT RETAINING RING 19MM
Price
N/A
P
SPRING GUIDE
Price
$2.45
PSB1102201
HEX BOLT 3/8-16 X 1
Price
N/A
PSB1102202
HEX NUT 3/8-16
Price
N/A
P
MOTOR BRACKET
Price
$45.35
PSB1102204
HEX BOLT 3/8-16 X 1
Price
N/A
PSB1102205
FLAT WASHER 3/8
Price
N/A
PSB1102206
HEX NUT 3/8-16
Price
N/A
PSB1102208
SET SCREW 1/4-20 X 1/2
Price
N/A
PSB1102210
HEX BOLT M8-1.25 X 24
Price
N/A
PSB1102211
FENDER WASHER 3/8
Price
N/A
P
HOOD SUPPORT ARM RIGHT
Price
$13.60
P
HOOD SUPPORT ARM LEFT
Price
$13.60
PSB1102216
PHLP HD SCR M4-.7 X 6
Price
N/A
PSB1102217
TAP SCREW #8 X 3/8
Price
N/A
PSB1102218
HEX NUT M4-.7
Price
N/A
P
HINGE
Price
$5.15
PSB1102220
PHLP HD SCR M4-.7 X 10
Price
N/A
PSB1102221
LOCK NUT M4-.7
Price
N/A
P
FLANGE SCREW 8-32 X 1/4
Price
$1.60
P
LATCH
Price
$3.95
PSB1102231
TAP SCREW #8 X 3/8
Price
N/A
P
DUST SCOOP
Price
$45.00
PSB1102236
HEX BOLT 1/4-20 X 3/4
Price
N/A
PSB1102237
HEX NUT 1/4-20
Price
N/A
P
PRIMARY TABLE LEADSCREW 3/4-16
Price
$8.80
P
GEAR 25T
Price
$17.25
PSB1102240
KEY 5 X 5 X 10
Price
N/A
PSB1102241
LOCK NUT 1/2-13
Price
N/A
P
BEARING SEAT UPPER
Price
$6.70
PSB1102245
LOCK WASHER 5MM
Price
N/A
P
NEEDLE BEARING TLA-810
Price
$4.30
P
BEARING SEAT LOWER
Price
$6.70
PSB1102248
PHLP HD SCR 10-24 X 1/2
Price
N/A
PSB1102249
FLAT WASHER #10
Price
N/A
PSB1102250
BALL BEARING 698ZZ
Price
N/A
PSB1102251
HEX BOLT 1/4-20 X 3/4
Price
N/A
PSB1102259
FLAT WASHER 3/8
Price
N/A
PSB1102260
FLAT WASHER 5/16
Price
N/A
PSB1102261
HEX NUT 3/8-16
Price
N/A
PSB1102262
HEX NUT 5/16-18
Price
N/A
PSB1102264
FLAT WASHER #8
Price
N/A
PSB1102265
FLAT WASHER 1/2
Price
N/A
P
FLAT WASHER 1/2 X 1 X 1/32
Price
$3.80
P
FLAT WASHER 1/2 X 13/16 X 3/32
Price
$1.60
P
REAR PANEL
Price
$105.10
P
SIDE BRACKET
Price
$49.55
PSB1102271
TAP SCREW #8 X 3/8
Price
N/A
PSB1102272
TAP SCREW #8 X 1/2
Price
N/A
P
ADHESIVE FOAM STRIP
Price
$4.30
P
BRACE FRONT
Price
$50.15
P
BRACE REAR
Price
$50.15
P
HANDLE
Price
$17.25
P
FRAME
Price
$620.40
PSB1102298
PHLP HD SCR M6-1 X 8
Price
N/A
PSB1102299
HEX NUT M6-1
Price
N/A
P
HANDWHEEL TYPE-11 185D X 34B X M10-1.5
Price
$56.80
P
REVOLVING HANDLE 24 X 113, 3/8-16 X 14
Price
$18.45
P
COLLAR
Price
$4.30
PSB1102303
SET SCREW 1/4-20 X 1/4
Price
N/A
PSB1102304
SET SCREW 3/8-16 X 3/8
Price
N/A
P
WORM GEAR 10T
Price
$19.10
P
SHAFT MOUNT
Price
$22.70
PSB1102307
CAP SCREW 1/4-20 X 5/8
Price
N/A
P
BUSHING
Price
$6.70
P
ADJUSTMENT PLATE
Price
$27.20
PSB1102310
HEX BOLT 3/8-16 X 1
Price
N/A
PSB1102311
FLAT WASHER 3/8
Price
N/A
P
DUST COVER
Price
$23.60
PSB1102313
TAP SCREW #8 X 3/8
Price
N/A
PSB1102314
PHLP HD SCR 1/4-20 X 5/16
Price
N/A
P
CONTROL BOX
Price
$105.10
P
STRAIN RELIEF TYPE-1 25
Price
$8.20
PSB1102319
HEX BOLT 1/4-20 X 5/8
Price
N/A
PSB1102320
FLAT WASHER 1/4
Price
N/A
P
PEDESTAL
Price
$123.80
PSB1102323
PHLP HD SCR M6-1 X 6
Price
N/A
P
CONTROL PANEL
Price
$34.45
PSB1102325
PHLP HD SCR M5-.8 X 10
Price
N/A
PSB1102343
PHLP HD SCR 1/4-20 X 1/4
Price
N/A
P
NYLON CABLE TIES
Price
$1.60
P
FLAT WASHER 16.5 X 30 X 1.2MM, BRASS
Price
$4.00
PSB1102354
HEX WRENCH 3MM
Price
N/A
PSB1102355
HEX WRENCH 5MM
Price
N/A
P
PLASTIC P-CLIP 1"
Price
$1.85
P
CONVEYOR START BUTTON 1A 220V 22MM
Price
$54.35
P
DRUM START BUTTON 1A 220V 22MM
Price
$54.35
P
OFF BUTTON TAICHUAN TLB22-F01R-I
Price
$47.10
P
AMP METER DIGITAL D040A FA-50V
Price
$115.95
P
E-STOP BUTTON TAICHUAN TPB22-S01R
Price
$58.00
P
WIRING PANEL 5 X 275 X 155
Price
$65.25
P
CONVEYOR SPEED DIAL
Price
$97.85
P
POWER CORD 10G 3W 72" V2.01.24
Price
$111.85
P
MOTOR CORD 12G 3W 70"
Price
$107.50
P
CONVEYOR MOTOR CORD 16G 3W 67"
Price
$86.05
P
STAIN RELIEF TYPE-3 PG21
Price
$3.65
P
FUSE 250V 2A
Price
$7.25
P
CURRENT SENSOR
Price
$6.05
P
OVERLOAD RELAY NHD NTH-32
Price
$8.50
P
CONTACTOR NHD C-18D 220V
Price
$10.00
P
CONTACTOR NHD C-09D 220V
Price
$10.00
P
TERMINAL BLOCK NHT-3.5
Price
$12.75
P
CIRCUIT BOARD
Price
$76.10
P
FUSE 250V 8A
Price
$3.65
P
MACHINE ID LABEL
Price
$15.00
PSB1102502
ENTANGLEMENT LABEL 2 X 3.25
Price
N/A
P
KICKBACK HAZARD-PINCH LABEL
Price
$5.80
PSB1102504
KEEP DOOR CLOSED LABEL 2.5 X 1.5
Price
N/A
PSB1102505
SB DK BLUE TOUCH-UP AEROSOL 5oz
Price
N/A
P
MODEL NUMBER LABEL
Price
$15.00
PSB1102507
New South Bend Nameplates 152mm (6")
Price
N/A
PSB1102508
SB LT BLUE TOUCH-UP AEROSOL 5oz
Price
N/A
P
COMBO WARNING LABEL
Price
$6.30
PSB1102510
SB GRAY TOUCH-UP AEROSOL 5oz
Price
N/A
PSB1102511
ELECTRICITY LABEL 0.7
Price
N/A
P
MANUAL SB1102 MFD-04.22-12.23 V1.11.21
Price
$21.95
P
MANUAL SB1102 MFD-01.24-04.25 V2.11.23
Price
$14.65
P
MANUAL SB1102 MFD-05.25+ V3.05.25
Price
$22.80
