Parts for SB1112 Dual-Station HC-60T/24T Hydraulic Press

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

P

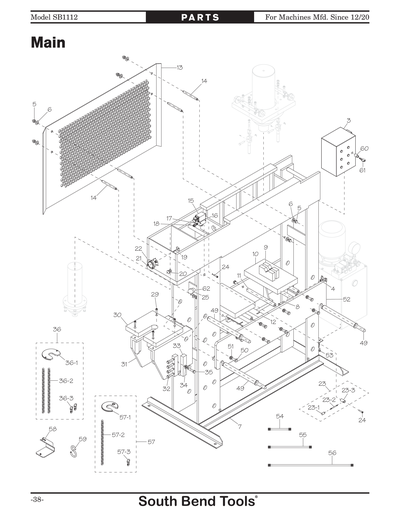

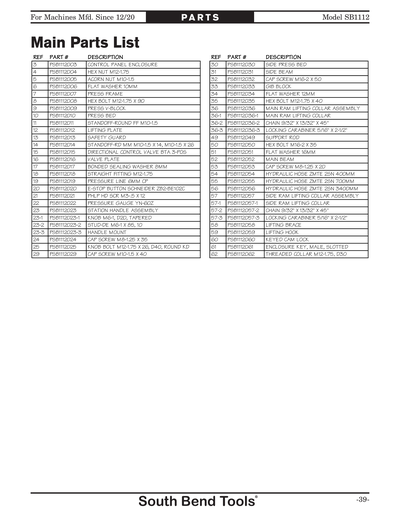

CONTROL PANEL ENCLOSURE
PSB1112004
Now: PN09M
HEX NUT M12-1.75
Price
N/A
PSB1112005
Now: PN43M
ACORN NUT M10-1.5
Price
N/A
PSB1112006
Now: PW04M
FLAT WASHER 10MM
Price
N/A
P
PRESS FRAME
PSB1112008
HEX BOLT M12-1.75 X 90
Price
N/A
P
PRESS V-BLOCK
P
PRESS BED
P
STANDOFF-ROUND FF M10-1.5
P
LIFTING PLATE
PSB1112013
SAFETY GUARD
Price
N/A
P
STANDOFF-RD MM M10-1.5 X 14, M10-1.5 X 2
P
DIRECTIONAL CONTROL VALVE BTA 3-POS
P
VALVE PLATE
P
BONDED SEALING WASHER 8MM
P
STRAIGHT FITTING M12-1.75
P
PRESSURE LINE 6MM CP
P
E-STOP BUTTON SCHNEIDER ZB2-BE102C
PSB1112021
Now: PS50M
PHLP HD SCR M3-.5 X 12
Price
N/A
P
PRESSURE GAUGE YN-60Z
P
STATION HANDLE ASSEMBLY
P
KNOB M6-1, D20, TAPERED
P
STUD-DE M6-1 X 85, 10
P
HANDLE MOUNT
PSB1112024
CAP SCREW M8-1.25 X 35
Price
N/A
P
SIDE CYLINDER ASSEMBLY
PSB1112027
Now: PW06M
FLAT WASHER 12MM
Price
N/A
PSB1112028
Now: PB24M
HEX BOLT M12-1.75 X 45
Price
N/A
PSB1112029
CAP SCREW M10-1.5 X 40
Price
N/A
P
SIDE PRESS BED
P
SIDE BEAM
PSB1112032
CAP SCREW M16-2 X 50
Price
N/A
P
GIB BLOCK
PSB1112034
Now: PW06M
FLAT WASHER 12MM
Price
N/A
PSB1112035
Now: PB35M
HEX BOLT M12-1.75 X 40
Price
N/A
P
MAIN RAM LIFTING COLLAR ASSEMBLY
P
MAIN RAM LIFTING COLLAR
P
CHAIN 9/32" X 13/32" X 45"
P
LOCKING CARABINER 5/16" X 2-1/2"
P

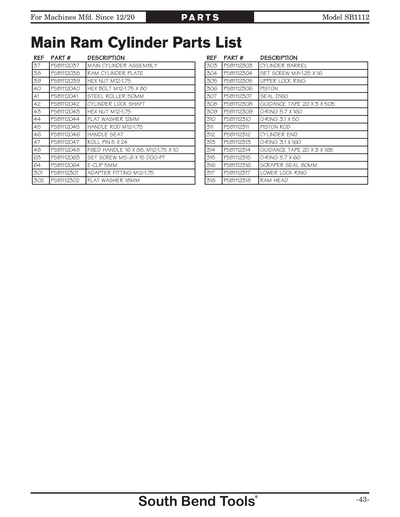

MAIN CYLINDER ASSEMBLY
P
RAM CYLINDER PLATE
PSB1112039
Now: PN09M
HEX NUT M12-1.75
Price
N/A
PSB1112040
HEX BOLT M12-1.75 X 80
Price
N/A
P
STEEL ROLLER 50MM
P
CYLINDER LOCK SHAFT
PSB1112043
Now: PN09M
HEX NUT M12-1.75
Price
N/A
PSB1112044
Now: PW06M
FLAT WASHER 12MM
Price
N/A
P
HANDLE ROD M12-1.75
P
HANDLE SEAT
PSB1112047
ROLL PIN 5 X 24
Price
N/A
P
FIXED HANDLE 16 X 88, M12-1.75 X 10
P
SUPPORT ROD
P
HEX BOLT M16-2 X 35
PSB1112051
Now: PW08M
FLAT WASHER 16MM
Price
N/A
P
MAIN BEAM
PSB1112053
CAP SCREW M8-1.25 X 20
Price
N/A
P
HYDRAULIC HOSE ZMTE 2SN 400MM
P
HYDRAULIC HOSE ZMTE 2SN 700MM
P
HYDRAULIC HOSE ZMTE 2SN 3400MM
P
SIDE RAM LIFTING COLLAR ASSEMBLY
P
SIDE RAM LIFTING COLLAR
PSB1112057-2
CHAIN 9/32" X 13/32" X 45"
Price
N/A
PSB1112057-3
LOCKING CARABINER 5/16" X 2-1/2"
Price
N/A
P
LIFTING BRACE
P
LIFTING HOOK
P
KEYED CAM LOCK
P
ENCLOSURE KEY, MALE, SLOTTED
P
SET SCREW M5-.8 X 15 DOG-PT
PSB1112064
E-CLIP 5MM
Price
N/A

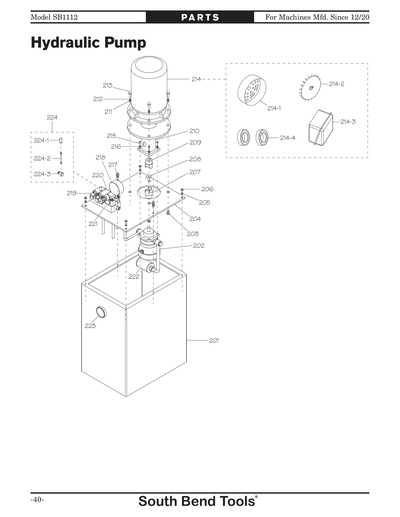

P

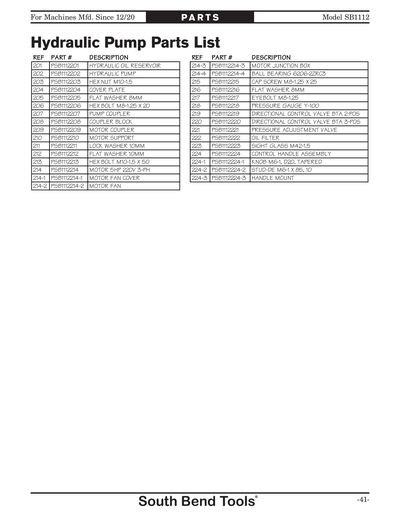

HYDRAULIC OIL RESERVOIR
P
HYDRAULIC PUMP
PSB1112203
Now: PN02M
HEX NUT M10-1.5
Price
N/A
P
COVER PLATE
PSB1112205
Now: PW01M
FLAT WASHER 8MM
Price
N/A
PSB1112206
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
P
PUMP COUPLER
P
COUPLER BLOCK
P
MOTOR COUPLER
P
MOTOR SUPPORT
PSB1112211
LOCK WASHER 10MM
Price
N/A
PSB1112212
Now: PW04M
FLAT WASHER 10MM
Price
N/A
PSB1112213
Now: PB73M
HEX BOLT M10-1.5 X 50
Price
N/A
P
MOTOR 5HP 220V 3-PH
P
MOTOR FAN COVER
P
MOTOR FAN
P
MOTOR JUNCTION BOX
P
BALL BEARING 6206-2ZRC3
PSB1112215
CAP SCREW M8-1.25 X 25
Price
N/A
PSB1112216
Now: PW01M
FLAT WASHER 8MM
Price
N/A
P
EYEBOLT M8-1.25
PSB1112218
PRESSURE GAUGE
Price
N/A
P
DIRECTIONAL CONTROL VALVE BTA 2-POS
P
DIRECTIONAL CONTROL VALVE BTA 3-POS
PSB1112221
PRESSURE ADJUSTMENT VALVE
Price
N/A
P
OIL FILTER
PSB1112223
SIGHT GLASS M42-1.5
Price
N/A
P
CONTROL HANDLE ASSEMBLY
P
KNOB M6-1, D20, TAPERED
P
STUD-DE M6-1 X 85, 10
P
HANDLE MOUNT
P
ADAPTER FITTING M12-1.75
PSB1112302
Now: PW18M
FLAT WASHER 18MM
Price
N/A
P
CYLINDER BARREL
PSB1112304
SET SCREW M8-1.25 X 16
Price
N/A
P
UPPER LOCK RING
P
PISTON
P
SEAL D160
P
GUIDANCE TAPE 20 X 3 X 505
P
O-RING 5.7 X 160
P
O-RING 3.1 X 50
P
PISTON ROD
P
CYLINDER END
P
O-RING 3.1 X 160
PSB1112314
GUIDANCE TAPE 20 X 3 X 165
Price
N/A
PSB1112315
O-RING 5.7 X 60
Price
N/A
P
SCRAPER SEAL 80MM
P
LOWER LOCK RING
P
RAM HEAD
P

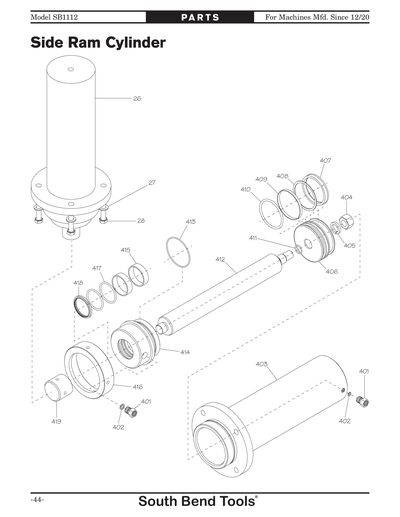

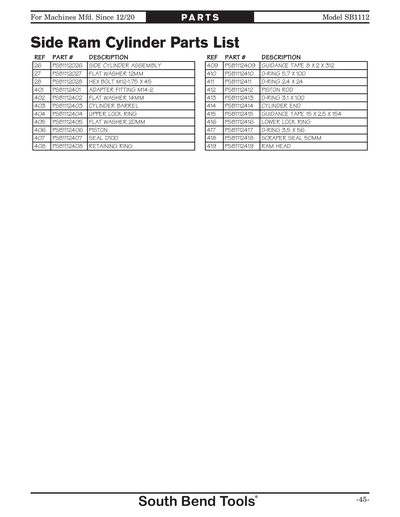

ADAPTER FITTING M14-2
PSB1112402
Now: PW10M
FLAT WASHER 14MM
Price
N/A
P
CYLINDER BARREL
P
UPPER LOCK RING
PSB1112405
Now: PW13M
FLAT WASHER 20MM
Price
N/A
P
PISTON
P
SEAL D100
P
RETAINING RING
P
GUIDANCE TAPE 8 X 2 X 312
P
O-RING 5.7 X 100
P
O-RING 2.4 X 24
P
PISTON ROD
P
O-RING 3.1 X 100
P
CYLINDER END
P
GUIDANCE TAPE 15 X 2.5 X 154
P
LOWER LOCK RING
P
O-RING 3.5 X 56
P
SCRAPER SEAL 50MM
P
RAM HEAD
P

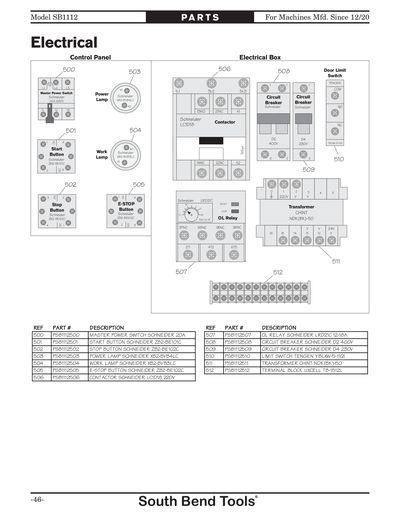

MASTER POWER SWITCH SCHNEIDER 20A
P
START BUTTON SCHNEIDER ZB2-BE101C
P
STOP BUTTON SCHNEIDER ZB2-BE102C
P
POWER LAMP SCHNEIDER XB2-BVB4LC
P
WORK LAMP SCHNEIDER XB2-BVB3LC
PSB1112505
E-STOP BUTTON SCHNEIDER ZB2-BE102C
Price
N/A
P
CONTACTOR SCHNEIDER LC1D18 220V
P
OL RELAY SCHNEIDER LRD21C 12-18A
P
CIRCUIT BREAKER SCHNEIDER D2 400V
P
CIRCUIT BREAKER SCHNEIDER D4 230V
P
LIMIT SWITCH TENGEN YBLXW-5-11Q1
P
TRANSFORMER CHINT NDK(BK)-50
P
TERMINAL BLOCK UXCELL TB-1512L
P

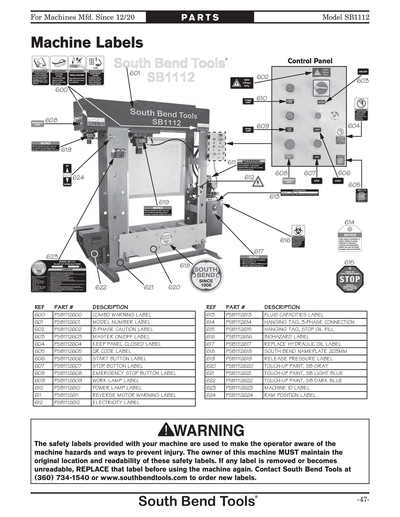

COMBO WARNING LABEL
P
MODEL NUMBER LABEL
P
3-PHASE CAUTION LABEL
P
MASTER ON/OFF LABEL
P
KEEP PANEL CLOSED LABEL
P
QR CODE LABEL
P
START BUTTON LABEL
P
STOP BUTTON LABEL
P
EMERGENCY STOP BUTTON LABEL
P
WORK LAMP LABEL
P
POWER LAMP LABEL
P
REVERSE MOTOR WARNING LABEL
P
FLUID CAPACITIES LABEL
PSB1112614
3-PHASE CONNECTION 2.5W X 2.8H
Price
N/A
PSB1112615
STOP OIL FILL TAG 4W X 4H
Price
N/A
PSB1112616
BIOHAZARD LABEL 1.5 X 2.5
Price
N/A
P
REPLACE HYDRAULIC OIL LABEL
PSB1112618
New South Bend Nameplates 203mm (8")
Price
N/A
P
RELEASE PRESSURE LABEL
PSB1112620
SB GRAY TOUCH-UP AEROSOL 5oz
Price
N/A
PSB1112621
SB LT BLUE TOUCH-UP AEROSOL 5oz
Price
N/A
PSB1112622
SB DK BLUE TOUCH-UP AEROSOL 5oz
Price
N/A
P
MACHINE ID LABEL
P
RAM POSITION LABEL
P
MANUAL SB1112 MFD 10.20+ V1.08.21
