Parts for SB1113 12" x 87" Jointer with Helical Cutterhead

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

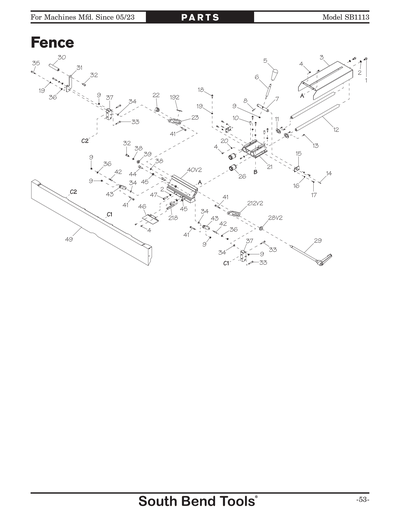

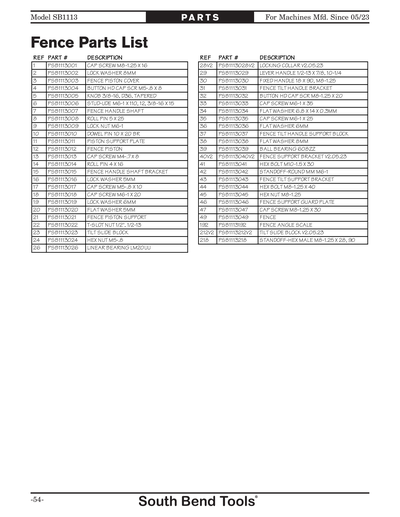

PSB1113001
CAP SCREW M8-1.25 X 16
Price
N/A
PSB1113002
LOCK WASHER 8MM
Price
N/A
P
FENCE PISTON COVER V1
P
FENCE PISTON COVER V2.05.24
PSB1113004
BUTTON HD CAP SCR M5-.8 X 8
Price
N/A
PSB1113005
KNOB 3/8-16, D36, TAPERED
Price
N/A
P
STUD-UDE M6-1 X 110, 12, 3/8-16 X 15
P
FENCE HANDLE SHAFT
PSB1113008
ROLL PIN 5 X 25
Price
N/A
PSB1113009
LOCK NUT M6-1
Price
N/A
P
DOWEL PIN 10 X 20 BR
P
PISTON SUPPORT PLATE
P
FENCE PISTON V1
P
FENCE PISTON V2.05.24
PSB1113013
CAP SCREW M4-.7 X 8
Price
N/A
PSB1113014
ROLL PIN 4 X 16
Price
N/A
P
FENCE HANDLE SHAFT BRACKET
PSB1113016
LOCK WASHER 5MM
Price
N/A
PSB1113017
CAP SCREW M5-.8 X 10
Price
N/A
PSB1113018
CAP SCREW M6-1 X 20
Price
N/A
PSB1113019
LOCK WASHER 6MM
Price
N/A
PSB1113020
Now: PW02M
FLAT WASHER 5MM
Price
N/A
P
FENCE PISTON SUPPORT
P
T-SLOT NUT 1/2", 1/2-13
P
TILT SLIDE BLOCK
PSB1113024
Now: PN06M
HEX NUT M5-.8
Price
N/A
PSB1113025
SET SCREW M5-.8 X 30
Price
N/A
P
LINEAR BEARING LM20UU
PSB1113027
SET SCREW M5-.8 X 20
Price
N/A
PSB1113028
Now: PW08M
FLAT WASHER 16MM
Price
N/A
P
LOCKING COLLAR V2.05.23
P
LEVER HANDLE 1/2-13 X 7/8, 10-1/4
P
FIXED HANDLE 18 X 90, M8-1.25
P
FENCE TILT HANDLE BRACKET
PSB1113032
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
PSB1113033
CAP SCREW M6-1 X 35
Price
N/A
P
FLAT WASHER 6.8 X 14 X 0.3MM
PSB1113035
CAP SCREW M6-1 X 25
Price
N/A
PSB1113036
Now: PW03M
FLAT WASHER 6MM
Price
N/A
P
FENCE TILT HANDLE SUPPORT BLOCK
PSB1113038
Now: PW01M
FLAT WASHER 8MM
Price
N/A
PSB1113039
Now: G3845
Bearing - 22mm x 8mm
Price
N/A
PSB1113040
FENCE SUPPORT BRACKET V2.05.23
Price
N/A
P
FENCE SUPPORT BRACKET V2.05.23
PSB1113041
Now: PB01M
HEX BOLT M10-1.5 X 30
Price
N/A
P
STANDOFF-ROUND MM M6-1
P
FENCE TILT SUPPORT BRACKET
PSB1113044
Now: PB15M
HEX BOLT M8-1.25 X 40
Price
N/A
PSB1113045
Now: PN03M
HEX NUT M8-1.25
Price
N/A
P
FENCE SUPPORT GUARD PLATE
PSB1113047
CAP SCREW M8-1.25 X 30
Price
N/A
P
STUD-DE M6-1 X 320, 10
P
FENCE
P
FENCE BRACKET
PSB1113051
Now: PW04M
FLAT WASHER 10MM
Price
N/A
PSB1113052
LOCK WASHER 10MM
Price
N/A
PSB1113053
CAP SCREW M10-1.5 X 30
Price
N/A

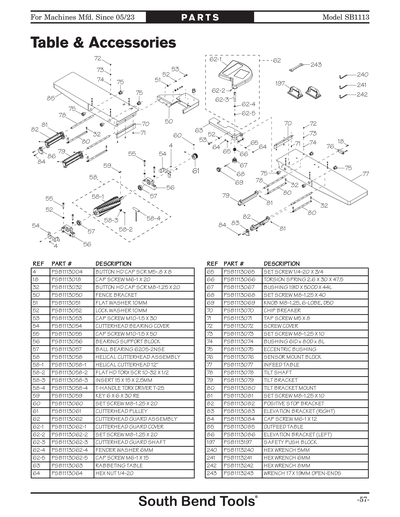

P
CUTTERHEAD BEARING COVER
PSB1113055
CAP SCREW M10-1.5 X 50
Price
N/A
P
BEARING SUPPORT BLOCK
PSB1113057
***USE PSB1109069***
Price
N/A
P
HELICAL CUTTERHEAD ASSEMBLY
P
HELICAL CUTTERHEAD 12"
PSB1113058-2
Now: PFH32
FLAT HEAD TORX 10-32 X 1/2
Price
N/A
PSB1113058-3
Now: H9893
Indexable Carbide Insert - 15 x 15 x 2.5mm, 10-Pk.
Price
N/A
PSB1113058-4
T-HANDLE TORX DRIVER T-25
Price
N/A
P
KEY 6 X 6 X 30 RE
PSB1113060
SET SCREW M8-1.25 X 20
Price
N/A
P
CUTTERHEAD PULLEY
P
CUTTERHEAD GUARD ASSEMBLY
P
CUTTERHEAD GUARD COVER
PSB1113062-2
SET SCREW M8-1.25 X 20
Price
N/A
P
CUTTERHEAD GUARD SHAFT
PSB1113062-4
FENDER WASHER 6MM
Price
N/A
PSB1113062-5
CAP SCREW M6-1 X 15
Price
N/A
P
RABBETING TABLE
PSB1113064
Now: PN05
HEX NUT 1/4-20
Price
N/A
PSB1113065
Now: PSS06
SET SCREW 1/4-20 X 3/4
Price
N/A
P
TORSION SPRING 2.6 X 30 X 47.5
P
BUSHING 19ID X 50OD X 44L
PSB1113068
SET SCREW M8-1.25 X 40
Price
N/A
P
KNOB M8-1.25, 6-LOBE, D50
P
CHIP BREAKER
PSB1113071
TAP SCREW M5 X 8
Price
N/A
PSB1113072
SCREW COVER
Price
N/A
PSB1113073
SET SCREW M8-1.25 X 10
Price
N/A
PSB1113074
BUSHING
Price
N/A
P
ECCENTRIC BUSHING
PSB1113076
SENSOR MOUNT BLOCK V3.02.19
Price
N/A
P
INFEED TABLE
P
TILT SHAFT
P
TILT BRACKET
P
TILT BRACKET MOUNT
PSB1113081
SET SCREW M8-1.25 X 10
Price
N/A
P
POSITIVE STOP BRACKET
PSB1113083
RIGHT ELEVATE BRACKET V2.02.19
Price
N/A
PSB1113084
CAP SCREW M6-1 X 12
Price
N/A
P
OUTFEED TABLE
PSB1113086
LEFT ELEVATE BRACKET V2.02.19
Price
N/A
PSB1113087
CAP SCREW 10-24 X 1/2
Price
N/A
PSB1113088
BALL BEARING 6000ZZ
Price
N/A
P
BEARING COVER
PSB1113090
PINION GEAR
Price
N/A
PSB1113091
FENDER WASHER 5MM
Price
N/A
PSB1113092
BUTTON HD CAP SCR M5-.8 X 16
Price
N/A
PSB1113093
ROLL PIN 4 X 25
Price
N/A
PSB1113094
SHAFT V2.08.20
Price
N/A
P
ECCENTRIC BUSHING
PSB1113096
SET SCREW M6-1 X 6
Price
N/A
PSB1113097
CAP SCREW M6-1 X 15
Price
N/A
PSB1113098
LOCK NUT M8-1.25
Price
N/A
P
STRUT BRACKET
P
TABLE STRUT
PSB1113101
CAP SCREW M8-1.25 X 20
Price
N/A
PSB1113102
Now: PB22M
HEX BOLT M8-1.25 X 50
Price
N/A
PSB1113103
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
PSB1113104
HEX BOLT M10-1.5 X 45
Price
N/A
PSB1113105
BALL BEARING 6002ZZ
Price
N/A
PSB1113106
Now: PW01M
FLAT WASHER 8MM
Price
N/A
PSB1113107
CAP SCREW M8-1.25 X 20
Price
N/A
P
STANDOFF-HEX MF M10-1.5 X 10, M8-1.25
PSB1113109
Now: PW03M
FLAT WASHER 6MM
Price
N/A
PSB1113110
BUTTON HD CAP SCR M6-1 X 10
Price
N/A
P
STANDOFF-HEX MM M10-1.5 X 98, 10
P
V-BELT COVER
P
KNOB M10-1.5, 6-LOBE, D62
P

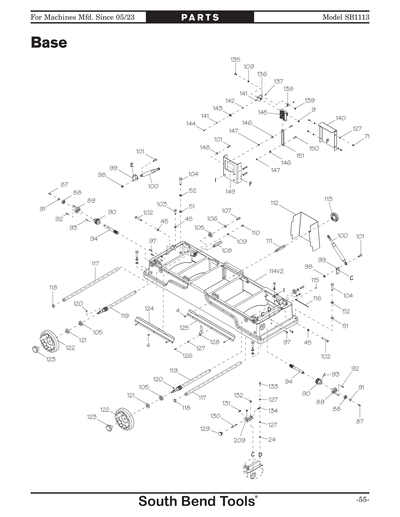

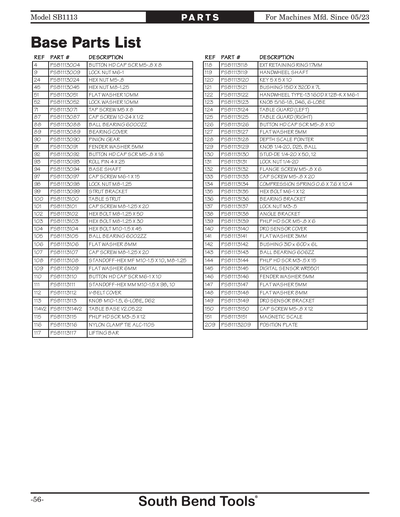

Table Base
P
TABLE BASE V2.05.22
PSB1113115
Now: PS50M
PHLP HD SCR M3-.5 X 12
Price
N/A
PSB1113116
NYLON MARKER TIE ALC-110S
Price
N/A
P
LIFTING BAR
PSB1113118
Now: PR18M
EXT RETAINING RING 17MM
Price
N/A
P
HANDWHEEL SHAFT
PSB1113120
Now: PK06M
KEY 5 X 5 X 10
Price
N/A
PSB1113121
BUSHING
Price
N/A
PSB1113122
HANDWHEEL TYPE-13 160D X 12B-K X M6-1
Price
N/A
P
KNOB 5/16-18, D46, 6-LOBE
P
TABLE GUARD (LEFT)
P
TABLE GUARD (RIGHT)
PSB1113126
BUTTON HD CAP SCR M5-.8 X 10
Price
N/A
PSB1113127
Now: PW02M
FLAT WASHER 5MM
Price
N/A
P
DEPTH SCALE POINTER
PSB1113129
KNOB 1/4-20, D7/8, BALL
Price
N/A
P
STUD-DE 1/4-20 X 50, 12
PSB1113131
Now: PLN02
LOCK NUT 1/4-20
Price
N/A
PSB1113132
FLANGE SCREW M5-.8 X 6
Price
N/A
PSB1113133
CAP SCREW M5-.8 X 20
Price
N/A
PSB1113134
EXTENSION SPRING
Price
N/A
PSB1113135
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
P
BEARING BRACKET V1
P
BEARING BRACKET V2.05.24
PSB1113137
LOCK NUT M3-.5
Price
N/A
P
ANGLE BRACKET
PSB1113139
Now: PS19M
PHLP HD SCR M5-.8 X 6
Price
N/A
PSB1113140
DRO SENSOR COVER
Price
N/A
PSB1113141
Now: PW07M
FLAT WASHER 3MM
Price
N/A
PSB1113142
BUSHING
Price
N/A
PSB1113143
BALL BEARING 606ZZ
Price
N/A
PSB1113144
BUTTON HD CAP SCR M3-.5 X 15
Price
N/A
PSB1113145
DIGITAL READOUT
Price
N/A
PSB1113146
FENDER WASHER 5MM
Price
N/A
PSB1113147
Now: PW02M
FLAT WASHER 5MM
Price
N/A
PSB1113148
Now: PW01M
FLAT WASHER 8MM
Price
N/A
PSB1113149
DRO SENSOR BRACKET V1
Price
N/A
PSB1113150
CAP SCREW M5-.8 X 12
Price
N/A
PSB1113151
MAGNETIC SCALE
Price
N/A
PSB1113152
CONTROL PANEL COVER
Price
N/A
PSB1113153
DRO CORD 18G 1W 6" V2.10.20
Price
N/A
PSB1113154
START SWITCH
Price
N/A
PSB1113155
E-STOP BUTTON LB 19/22MM V2.10.20
Price
N/A
PSB1113156
LIGHT 250V 1.2W JG18
Price
N/A
PSB1113157
SWITCH PLATE
Price
N/A
PSB1113158
BUTTON HD CAP SCR M4-.7 X 6
Price
N/A
PSB1113159
TAP SCREW M3 X 8
Price
N/A
PSB1113160
DIGITAL READOUT BRACKET V3.02.19
Price
N/A
PSB1113161
DIGITAL READOUT ASSEMBLY V3.02.19
Price
N/A
PSB1113161-1
DIGITAL READOUT ASSEMBLY V3.02.19
Price
N/A
P
BATTERY COVER
PSB1113162
BATTERY AAA V1
Price
N/A
PSB1113163
GROMMET M11 TYPE-2 SNAP-IN
Price
N/A
P
CONTROL PANEL COLUMN V1
P
CONTROL PANEL COLUMN V2.05.22
PSB1113165
CAP SCREW M5-.8 X 8
Price
N/A
PSB1113166
CAP SCREW M8-1.25 X 20
Price
N/A
PSB1113167
GROMMET M11 TYPE-2 SNAP-IN
Price
N/A
PSB1113168
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
PSB1113169
EXT TOOTH WASHER 4MM
Price
N/A
PSB1113170
DRO CORD
Price
N/A

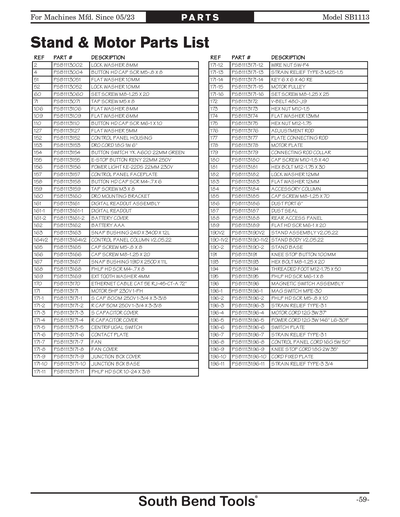

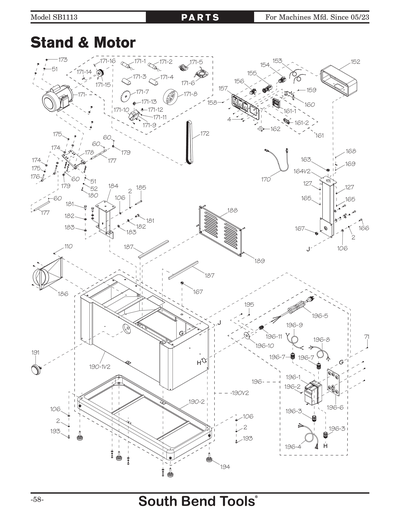

P
MOTOR 5HP 230V 1-PH
P
S CAP 800M 250V 1-3/4 X 3-3/8
P
JUNCTION BOX BASE
PSB1113171-11
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
PSB1113171-12
WIRE NUT SW-P4
Price
N/A
P
STRAIN RELIEF TYPE-3 M25-1.5
P
KEY 6 X 6 X 40 RE
P
MOTOR PULLEY
PSB1113171-16
SET SCREW M8-1.25 X 25
Price
N/A
PSB1113171-2
R CAPACITOR 35M 450V 2 X 3-1/2
Price
N/A
P
S CAPACITOR COVER
P
R CAPACITOR COVER
PSB1113171-5
CENTRIFUGAL SWITCH 3/4 3600
Price
N/A
PSB1113171-6
CONTACT PLATE 25MM X 37.5MM INT
Price
N/A
P
FAN
P
FAN COVER
P
JUNCTION BOX COVER
P
V-BELT 480-J9
PSB1113173
Now: PN02M
HEX NUT M10-1.5
Price
N/A
PSB1113174
Now: PW28M
FLAT WASHER 13MM
Price
N/A
PSB1113175
Now: PN09M
HEX NUT M12-1.75
Price
N/A
PSB1113176
ROD END BOLT M12-1.75 X 120, 25.4
Price
N/A
PSB1113177
PLATE CONNECTING ROD
Price
N/A
PSB1113178
MOTOR MOUNT PLATE V1
Price
N/A
PSB1113179
COLLAR
Price
N/A
PSB1113180
CAP SCREW M10-1.5 X 40
Price
N/A
PSB1113181
Now: PB27M
HEX BOLT M12-1.75 X 30
Price
N/A
PSB1113182
LOCK WASHER 12MM
Price
N/A
PSB1113183
Now: PW06M
FLAT WASHER 12MM
Price
N/A
P
ACCESSORY COLUMN
PSB1113185
CAP SCREW M8-1.25 X 70
Price
N/A
P
DUST PORT 6"
P
DUST SEAL
PSB1113188
REAR ACCESS PANEL
Price
N/A
PSB1113189
FLAT HD SCR M6-1 X 20
Price
N/A
P
STAND ASSEMBLY V1
P
STAND BODY V1
P
STAND BODY V2.05.22
P
STAND BASE
P
STAND ASSEMBLY V2.05.22
PSB1113191
KNEE STOP BUTTON ASSEMBLY
Price
N/A
P
FENCE ANGLE SCALE
PSB1113193
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
PSB1113194
THREADED FOOT M12-1.75 X 50
Price
N/A
PSB1113195
Now: PS03M
PHLP HD SCR M6-1 X 8
Price
N/A
P
MAGNETIC SWITCH ASSEMBLY
P
MAG SWITCH MPE-30
P
CORD FIXED PLATE
P
STRAIN RELIEF TYPE-3 3/4
PSB1113196-2
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
P
STRAIN RELIEF TYPE-3 1
PSB1113196-4
MOTOR CORD 12G 3W 37" V2.04.19
Price
N/A
PSB1113196-5
MOTOR CORD 12G 3W 37" V2.04.19
Price
N/A
PSB1113196-6
SWITCH PLATE
Price
N/A
P
STRAIN RELIEF TYPE-3 1
PSB1113196-8
CONTROL PANEL CORD 16AWG X 5C
Price
N/A
PSB1113196-9
KNEE STOP CORD 18G 2W 31"
Price
N/A
PSB1113197
Now: W1400
Safety Push Block - Small
Price
N/A
P
POSITION PLATE
P
STOP MOUNT
P
STOP BRACKET
P
90 DEG STOP BLOCK V1
PSB1113212V2
TILT SLIDE BLOCK
Price
N/A
PSB1113213
CAP SCREW M6-1 X 15
Price
N/A
P
SHOULDER BOLT 5/16-18 X 3/8, 3/8 X 1/4
PSB1113215
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
PSB1113216
WAVY WASHER 10MM
Price
N/A
P
STANDOFF-HEX MALE M8-1.25 X 28, 90
PSB1113240
HEX WRENCH 5MM
Price
N/A
PSB1113241
HEX WRENCH 6MM
Price
N/A
PSB1113242
HEX WRENCH 8MM
Price
N/A
PSB1113243
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A

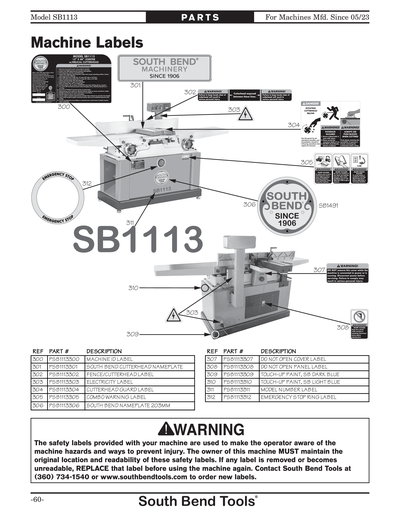

P
MACHINE ID LABEL
P
SOUTH BEND CUTTERHEAD NAMEPLATE
P
FENCE/CUTTERHEAD LABEL
PSB1113303
ELECTRICITY LABEL 0.5
Price
N/A
P
CUTTERHEAD GUARD LABEL
PSB1113305
COMBO WARNING LABEL
Price
N/A
PSB1113306
New South Bend Nameplates 203mm (8")
Price
N/A
PSB1113307
DO NOT OPEN COVER LABEL
Price
N/A
PSB1113308
DO NOT OPEN PANEL LABEL
Price
N/A
PSB1113309
SB DK BLUE TOUCH-UP AEROSOL 5oz
Price
N/A
PSB1113310
SB LT BL FOR SB1003 TOUCH-UP PAINT
Price
N/A
P
MODEL NUMBER LABEL
PSB1113312
EMERGENCY STOP RING LABEL
Price
N/A
P
FENCE LOCKING KIT
P
MANUAL SB1113 MFD 08.21-04.22 V1.07.21
P
MANUAL SB1113 MFD 05.22+ V2.03.22
P
MANUAL SB1113 MFD 05.23+ V3.04.23
