Parts for SB1117 - 9" x 138-1/2" Oscillating Edge Sander

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref # Part # Description Price Qty

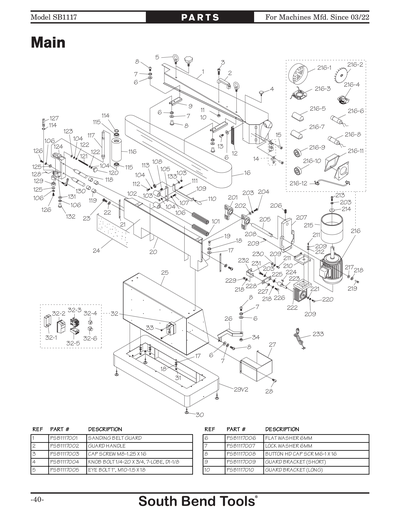

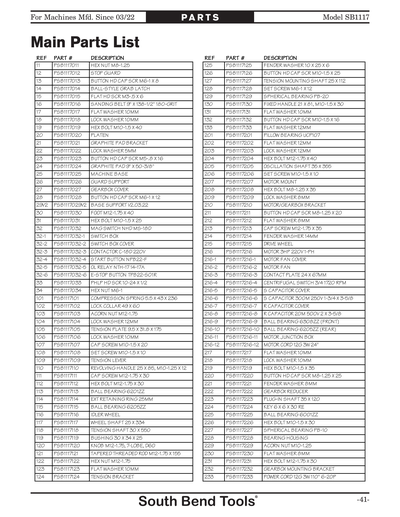

PSB1117001 PSB1117001
SANDING BELT GUARD
N/A
PSB1117002 PSB1117002
GUARD HANDLE
N/A
PSB1117003 PSB1117003
***USE PCAP11M***
N/A
PSB1117004 PSB1117004
KNOB BOLT 1/4-20 X 3/4, 7-LOBE, D1-1/8
N/A
PSB1117005 PSB1117005
EYE BOLT 1", M10-1.5 X 18
N/A
PSB1117006 PSB1117006
***USE PW03M***
N/A
PSB1117007 PSB1117007
***USE PLW03M***
N/A
PSB1117008 PSB1117008
***USE PCAP115M***
N/A
PSB1117009 PSB1117009
GUARD BRACKET (SHORT)
N/A
PSB1117010 PSB1117010
GUARD BRACKET (LONG)
N/A
PSB1117011 PSB1117011
***USE PN03M***
N/A
PSB1117012 PSB1117012
STOP GUARD
N/A
PSB1117013 PSB1117013
***USE PBHS15M***
N/A
PSB1117014 PSB1117014
BALL-STYLE GRAB LATCH
N/A
PSB1117015 PSB1117015
***USE PFH49M***
N/A
PSB1117016 PSB1117016
SANDING BELT 9" X 138-1/2" 120-GRIT
N/A
PSB1117017 PSB1117017
***USE PW04M***
N/A
PSB1117018 PSB1117018
***USE PLW06M***
N/A
PSB1117019 PSB1117019
***USE PB31M***
N/A
PSB1117020 PSB1117020
PLATEN
N/A
PSB1117021 PSB1117021
GRAPHITE PAD BRACKET
N/A
PSB1117022 PSB1117022
***USE PLW01M***
N/A
PSB1117023 PSB1117023
***USE PBHS16M***
N/A
PSB1117024 PSB1117024 GRAPHITE PAD 9" X 50-3/8" $50.58
PSB1117025 PSB1117025
MACHINE BASE
N/A
PSB1117026 PSB1117026
GUARD SUPPORT
N/A
PSB1117027 PSB1117027
GEARBOX COVER
N/A
PSB1117028 PSB1117028
***USE PBHS09M***
N/A
PSB1117029 PSB1117029
BASE SUPPORT
N/A
PSB1117030 PSB1117030
FOOT M12-1.75 X 20
N/A
PSB1117031 PSB1117031
***USE PB32M***
N/A
PSB1117032 PSB1117032
MAG SWITCH NHD MS1-18D
N/A
PSB1117032-1 PSB1117032-1
SWITCH BOX
N/A
PSB1117032-2 PSB1117032-2
SWITCH BOX COVER
N/A
PSB1117032-3 PSB1117032-3
CONTACTOR C-18D 220V
N/A
PSB1117032-4 PSB1117032-4
AUX CONTACT BLOCK
N/A
PSB1117032-5 PSB1117032-5
OL RELAY NTH-17 14-17A
N/A
PSB1117032-6 PSB1117032-6
E-STOP BUTTON TPB22-S01R
N/A
PSB1117033 PSB1117033
***USE PS01***
N/A
PSB1117034 PSB1117034
***USE PN01M***
N/A
PSB1117101 PSB1117101
COMPRESSION SPRING 5.5 X 43 X 236
N/A
PSB1117102 PSB1117102
LOCK COLLAR 49 X 60
N/A
PSB1117103 PSB1117103
***USE PN26M***
N/A
PSB1117104 PSB1117104
***USE PLW05M***
N/A
PSB1117105 PSB1117105
TENSION PLATE 9.5 X 31.8 X 175
N/A
PSB1117106 PSB1117106
***USE PLW06M***
N/A
PSB1117107 PSB1117107
Replaced By PB74M
HEX BOLT M10-1.5 X 20
N/A View Replacement
PSB1117108 PSB1117108
***USE PSS30M***
N/A
PSB1117109 PSB1117109
TENSION LEVER
N/A
PSB1117110 PSB1117110
REVOLVING HANDLE 25 X 85, M10-1.25 X 12
N/A
PSB1117111 PSB1117111
***USE PCAP77M***
N/A
PSB1117112 PSB1117112
***USE PB27M***
N/A
PSB1117113 PSB1117113
***USE P6201ZZ***
N/A
PSB1117114 PSB1117114
***USE PR11M***
N/A
PSB1117115 PSB1117115
***USE P6205ZZ***
N/A
PSB1117116 PSB1117116
IDLER WHEEL
N/A
PSB1117117 PSB1117117
WHEEL SHAFT 25 X 334
N/A
PSB1117118 PSB1117118
TENSION SHAFT 30 X 550
N/A
PSB1117119 PSB1117119
BUSHING 30 X 34 X 25
N/A
PSB1117120 PSB1117120
KNOB M12-1.75, 7-LOBE, D60
N/A
PSB1117121 PSB1117121
TAPERED THREADED ROD M12-1.75 X 155
N/A
PSB1117122 PSB1117122
***USE PN09M***
N/A
PSB1117123 PSB1117123
***USE PW04M***
N/A
PSB1117124 PSB1117124
TENSION BRACKET
N/A
PSB1117125 PSB1117125
FENDER WASHER 10 X 25 X 6
N/A
PSB1117126 PSB1117126
***USE PBHS10M***
N/A
PSB1117127 PSB1117127
TENSION MOUNTING SHAFT 25 X 112
N/A
PSB1117128 PSB1117128
***USE PSS04M***
N/A
PSB1117129 PSB1117129
SPHERICAL BEARING PB-20
N/A
PSB1117130 PSB1117130
FIXED HANDLE 21 X 81, M10-1.5 X 30
N/A
PSB1117131 PSB1117131
***USE PW04M***
N/A
PSB1117132 PSB1117132
BUTTON HD CAP SCR M10-1.5 X 16
N/A
PSB1117133 PSB1117133
***USE PW06M***
N/A
PSB1117201 PSB1117201
PILLOW BEARING UCP107
N/A
PSB1117202 PSB1117202
***USE PW06M***
N/A
PSB1117203 PSB1117203
***USE PLW05M***
N/A
PSB1117204 PSB1117204
***USE PB35M***
N/A
PSB1117205 PSB1117205
OSCILLATION SHAFT 35 X 355
N/A
PSB1117206 PSB1117206
***USE PSS30M***
N/A
PSB1117207 PSB1117207
MOTOR MOUNT
N/A
PSB1117208 PSB1117208
***USE PB20M***
N/A
PSB1117209 PSB1117209
***USE PLW04M***
N/A
PSB1117210 PSB1117210
MOTOR/GEARBOX BRACKET
N/A
PSB1117211 PSB1117211
***USE PBHS22M***
N/A
PSB1117212 PSB1117212
***USE PW01M***
N/A
PSB1117213 PSB1117213
***USE PCAP111M***
N/A
PSB1117214 PSB1117214
***USE PWF14M***
N/A
PSB1117215 PSB1117215
DRIVE WHEEL
N/A
PSB1117216 PSB1117216
MOTOR 3HP 220V 1-PH
N/A
PSB1117216-1 PSB1117216-1
MOTOR FAN COVER
N/A
PSB1117216-10 PSB1117216-10
***USE P6205ZZ***
N/A
PSB1117216-11 PSB1117216-11
MOTOR JUNCTION BOX
N/A
PSB1117216-12 PSB1117216-12
MOTOR CORD 12G 3W 24"
N/A
PSB1117216-2 PSB1117216-2
MOTOR FAN
N/A
PSB1117216-3 PSB1117216-3
CONTACT PLATE 24 X 67MM
N/A
PSB1117216-4 PSB1117216-4
CENTRIFUGAL SWITCH 3/4 1720 RPM
N/A
PSB1117216-5 PSB1117216-5
S CAPACITOR COVER
N/A
PSB1117216-6 PSB1117216-6
S CAPACITOR 300M 250V 1-3/4 X 3-5/8
N/A
PSB1117216-7 PSB1117216-7
R CAPACITOR COVER
N/A
PSB1117216-8 PSB1117216-8
R CAPACITOR 20M 500V 2 X 3-5/8
N/A
PSB1117216-9 PSB1117216-9
***USE P6308ZZ***
N/A
PSB1117217 PSB1117217
***USE PW04M***
N/A
PSB1117218 PSB1117218
***USE PLW06M***
N/A
PSB1117219 PSB1117219
***USE PB14M***
N/A
PSB1117220 PSB1117220
***USE PBHS23M***
N/A
PSB1117221 PSB1117221
***USE PWF08M***
N/A
PSB1117222 PSB1117222
GEARBOX REDUCER
N/A
PSB1117223 PSB1117223
PLUG-IN SHAFT 35 X 120
N/A
PSB1117224 PSB1117224
KEY 6 X 6 X 30 RE
N/A
PSB1117225 PSB1117225
***USE P6001ZZ***
N/A
PSB1117226 PSB1117226
***USE PB01M***
N/A
PSB1117227 PSB1117227
SPHERICAL BEARING PB-10
N/A
PSB1117228 PSB1117228
BEARING HOUSING
N/A
PSB1117229 PSB1117229
ACORN NUT M10-1.25
N/A
PSB1117230 PSB1117230
***USE PW01M***
N/A
PSB1117231 PSB1117231
***USE PB27M***
N/A
PSB1117232 PSB1117232
GEARBOX MOUNTING BRACKET
N/A
PSB1117233 PSB1117233
POWER CORD 12G 3W 106" 6-20P
N/A

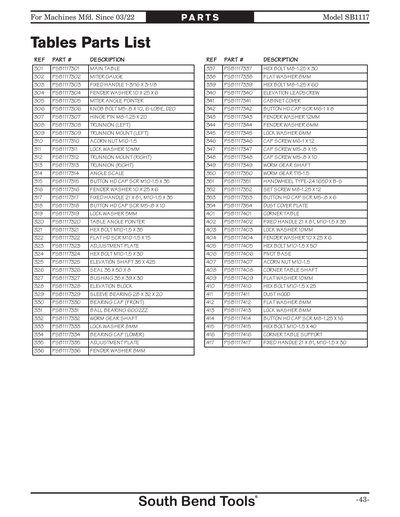

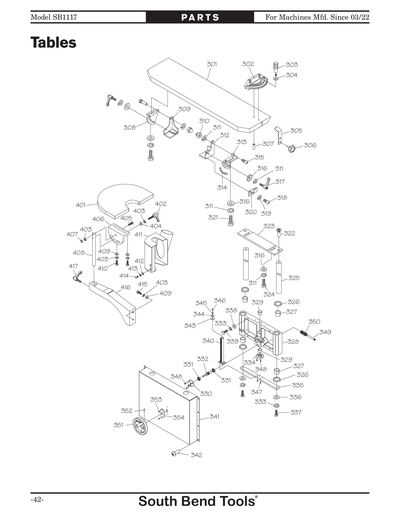

PSB1117301 PSB1117301
MAIN TABLE
N/A
PSB1117302 PSB1117302
MITER GAUGE
N/A
PSB1117303 PSB1117303
FIXED HANDLE 1-3/16 X 3-1/8
N/A
PSB1117304 PSB1117304
FENDER WASHER 10 X 25 X 6
N/A
PSB1117305 PSB1117305
MITER ANGLE POINTER
N/A
PSB1117306 PSB1117306
KNOB BOLT M5-.8 X 10, 6-LOBE, D20
N/A
PSB1117307 PSB1117307
HINGE PIN M8-1.25 X 20
N/A
PSB1117308 PSB1117308 TRUNNION (LEFT) $93.75
PSB1117309 PSB1117309
TRUNNION MOUNT (LEFT)
N/A
PSB1117310 PSB1117310
***USE PN43M***
N/A
PSB1117311 PSB1117311
***USE PLW06M***
N/A
PSB1117312 PSB1117312 TRUNNION MOUNT (RIGHT) $88.50
PSB1117313 PSB1117313 TRUNNION (RIGHT) $93.75
PSB1117314 PSB1117314 ANGLE SCALE $2.00
PSB1117315 PSB1117315
Replaced By PB14M
HEX BOLT M10-1.5 X 35
N/A View Replacement
PSB1117316 PSB1117316
***USE PSB1117125***
N/A
PSB1117317 PSB1117317
FIXED HANDLE 21 X 81, M10-1.5 X 35
N/A
PSB1117318 PSB1117318
***USE PBHS35M***
N/A
PSB1117319 PSB1117319
***USE PLW01M***
N/A
PSB1117320 PSB1117320
TABLE ANGLE POINTER
N/A
PSB1117321 PSB1117321
***USE PB14M***
N/A
PSB1117322 PSB1117322
***USE PFH18M***
N/A
PSB1117323 PSB1117323
ADJUSTMENT PLATE
N/A
PSB1117324 PSB1117324
***USE PB01M***
N/A
PSB1117325 PSB1117325
ELEVATION SHAFT 35 X 425
N/A
PSB1117326 PSB1117326
SEAL 35 X 50 X 8
N/A
PSB1117327 PSB1117327
BUSHING 35 X 39 X 30
N/A
PSB1117328 PSB1117328
ELEVATION BLOCK
N/A
PSB1117329 PSB1117329
SLEEVE BEARING 28 X 32 X 20
N/A
PSB1117330 PSB1117330
BEARING CAP (FRONT)
N/A
PSB1117331 PSB1117331
***USE P6002ZZ***
N/A
PSB1117332 PSB1117332
WORM GEAR SHAFT
N/A
PSB1117333 PSB1117333
***USE PLW04M***
N/A
PSB1117334 PSB1117334
BEARING CAP (LOWER)
N/A
PSB1117335 PSB1117335
ADJUSTMENT PLATE
N/A
PSB1117336 PSB1117336
***USE PWF08M***
N/A
PSB1117337 PSB1117337
***USE PB26M***
N/A
PSB1117338 PSB1117338
***USE PW01M***
N/A
PSB1117339 PSB1117339
***USE PB28M***
N/A
PSB1117340 PSB1117340
ELEVATION LEADSCREW
N/A
PSB1117341 PSB1117341
CABINET COVER
N/A
PSB1117342 PSB1117342
***USE PBHS15M***
N/A
PSB1117343 PSB1117343
***USE PWF12M***
N/A
PSB1117344 PSB1117344
***USE PWF06M***
N/A
PSB1117345 PSB1117345
***USE PLW03M***
N/A
PSB1117346 PSB1117346
***USE PCAP26M***
N/A
PSB1117347 PSB1117347
***USE PCAP10M***
N/A
PSB1117348 PSB1117348
***USE PCAP50M***
N/A
PSB1117349 PSB1117349
WORM GEAR SHAFT
N/A
PSB1117350 PSB1117350
WORM GEAR T15-1.5
N/A
PSB1117351 PSB1117351
HANDWHEEL TYPE-24 165D X B-S
N/A
PSB1117352 PSB1117352
***USE PSS14M***
N/A
PSB1117353 PSB1117353
***USE PBH17M***
N/A
PSB1117354 PSB1117354
DUST COVER PLATE
N/A
PSB1117401 PSB1117401
CORNER TABLE
N/A
PSB1117402 PSB1117402
FIXED HANDLE 21 X 81, M10-1.5 X 35
N/A
PSB1117403 PSB1117403
***USE PLW06M***
N/A
PSB1117404 PSB1117404
***USE PSB1117125***
N/A
PSB1117405 PSB1117405
***USE PB73M***
N/A
PSB1117406 PSB1117406
PIVOT BASE
N/A
PSB1117407 PSB1117407
***USE PN43M***
N/A
PSB1117408 PSB1117408
CORNER TABLE SHAFT
N/A
PSB1117409 PSB1117409
***USE PW04M***
N/A
PSB1117410 PSB1117410
***USE PB32M***
N/A
PSB1117411 PSB1117411
DUST HOOD
N/A
PSB1117412 PSB1117412
***USE PW01M***
N/A
PSB1117413 PSB1117413
***USE PLW04M***
N/A
PSB1117414 PSB1117414
***USE PBHS03M***
N/A
PSB1117415 PSB1117415
***USE PB31M***
N/A
PSB1117416 PSB1117416
CORNER TABLE SUPPORT
N/A
PSB1117417 PSB1117417
FIXED HANDLE 21 X 81, M10-1.5 X 30
N/A

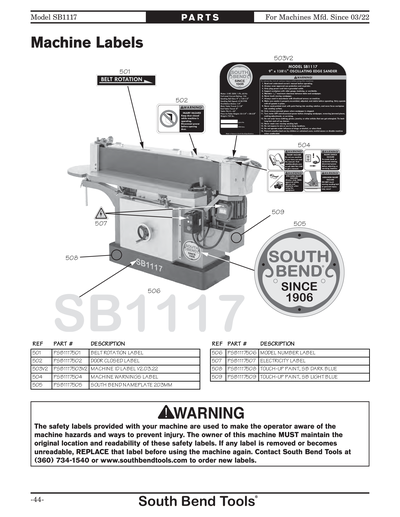

PSB1117501 PSB1117501
BELT ROTATION LABEL
N/A
PSB1117502 PSB1117502
***USE PSBLABEL13HL***
N/A
PSB1117503 PSB1117503
MACHINE ID LABEL
N/A
PSB1117504 PSB1117504
MACHINE WARNINGS LABEL
N/A
PSB1117505 PSB1117505
***USE SB1491***
N/A
PSB1117506 PSB1117506
MODEL NUMBER LABEL
N/A
PSB1117507 PSB1117507
***USE PSBLABEL15M***
N/A
PSB1117508 PSB1117508
***USE PSBPAINT06***
N/A
PSB1117509 PSB1117509
***USE PSBPAINT05***
N/A
PSB1117MAN PSB1117MAN
MANUAL SB1117 MFD-12.20+ V1.02.21
N/A
