Parts for SB1118 25" Planer with Helical Cutterhead

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

PSB1118001
WORM GEARBOX ASSEMBLY
Price
N/A
PSB1118002
BUTTON HD CAP SCR M6-1 X 10
Price
N/A
P
DEFLECTION PLATE
PSB1118004
CAP SCREW M8-1.25 X 30
Price
N/A
PSB1118005
LOCK WASHER 8MM
Price
N/A
P
HINGE
PSB1118007
Now: PN03M
HEX NUT M8-1.25
Price
N/A
P
TOP COVER
PSB1118009
PAD
Price
N/A
P
HANDLE
PSB1118011
CAP SCREW M8-1.25 X 25
Price
N/A
PSB1118012
Now: PW03M
FLAT WASHER 6MM
Price
N/A
PSB1118013
CAP SCREW M5-.8 X 12
Price
N/A
PSB1118014
LOCK WASHER 5MM
Price
N/A
PSB1118015
GAS SPRING MOUNT
Price
N/A
PSB1118016
SPROCKET MOUNT
Price
N/A
PSB1118017
CAP SCREW M10-1.5 X 35
Price
N/A
PSB1118018
Now: PN06M
HEX NUT M5-.8
Price
N/A
PSB1118019
CAP SCREW M8-1.25 X 20
Price
N/A
PSB1118020
SPROCKET BOLT
Price
N/A
PSB1118021
SPROCKET 13T
Price
N/A
PSB1118022
Now: PW04M
FLAT WASHER 10MM
Price
N/A
PSB1118023
Now: PN02M
HEX NUT M10-1.5
Price
N/A
P
LEFT COLUMN
PSB1118026
Now: PB33M
HEX BOLT M12-1.75 X 50
Price
N/A
PSB1118027
CAP SCREW M6-1 X 16
Price
N/A
PSB1118028
Now: PN01M
HEX NUT M6-1
Price
N/A
PSB1118029
KNOB 3/8-16, D1-1/4, TAPERED
Price
N/A
PSB1118030
SHAFT 3/8-16, 5-7/8L
Price
N/A
P
EXTENSION TABLE
PSB1118032
ROLL PIN 5 X 25
Price
N/A
P
ACCESS PANEL, UPPER LEFT
P
HOUSING, UPPER LEFT
PSB1118038
SET SCREW M10-1.5 X 20
Price
N/A
PSB1118039
SET SCREW M6-1 X 30
Price
N/A
P
DUST PORT 6"
PSB1118041
Now: PB94M
HEX BOLT M5-.8 X 25
Price
N/A
PSB1118042
PLATE
Price
N/A
PSB1118043
BEARING BLOCK
Price
N/A
PSB1118044
REAR ROLLER
Price
N/A
PSB1118045
KEY 5 X 5 X 12 RE
Price
N/A
P
FENDER WASHER 8.5 X 30 X 3.3
PSB1118047
CAP SCREW M10-1.5 X 20
Price
N/A
PSB1118048
CAP SCREW M10-1.5 X 75
Price
N/A
PSB1118049
COMPRESSION SPRING 3 X 20 X 35.5
Price
N/A
PSB1118050
CAP SCREW M10-1.5 X 40
Price
N/A
P
PRESSURE BAR
PSB1118052
SPROCKET 22T
Price
N/A
PSB1118053
EXT RETAINING RING 62MM
Price
N/A
PSB1118054
LONG REAR ROLLER
Price
N/A
P
BALL BEARING 6007-2NSE
P
BALL BEARING 6010-2NSE
P
KEY 8 X 7 X 35 RE
P
HELICAL CUTTERHEAD ASSEMBLY
P
HELICAL CUTTERHEAD 25"
P
FLAT HD TORX SCR #10-32 X 1/2
PSB1118058-3
Now: H9893
Indexable Carbide Insert - 15 x 15 x 2.5mm, 10-Pk.
Price
N/A
PSB1118059
WAVY WASHER 6MM
Price
N/A
PSB1118060
CAP SCREW M5-.8 X 10
Price
N/A
PSB1118061
RUBBER PIN
Price
N/A
P
SHOULDER BOLT M5-.8 X 7, 10 X 4
P
COLLAR
PSB1118064
CAP SCREW M8-1.25 X 35
Price
N/A
PSB1118065
FENDER WASHER 11 X 53 X 3
Price
N/A
PSB1118066
CUTTERHEAD PULLEY
Price
N/A
P
BUSHING
PSB1118068
LOCK WASHER 10MM
Price
N/A
PSB1118069
SET SCREW M8-1.25 X 10
Price
N/A
PSB1118070
WAVY WASHER 6MM
Price
N/A
PSB1118071
Now: PW01M
FLAT WASHER 8MM
Price
N/A
PSB1118072
MOUNTING BRACKET, LEFT
Price
N/A
PSB1118073
SHAFT
Price
N/A
PSB1118074
SHAFT
Price
N/A
PSB1118075
Now: PR11M
EXT RETAINING RING 25MM
Price
N/A
PSB1118076
COLLAR
Price
N/A
PSB1118077
KEY 8 X 7 X 16 RE
Price
N/A
PSB1118078
SHAFT
Price
N/A
PSB1118079
BUSHING
Price
N/A
PSB1118080
INFEED ROLLER
Price
N/A
PSB1118081
MOUNTING BRACKET, RIGHT
Price
N/A
PSB1118082
PLATE
Price
N/A
PSB1118083
SHAFT
Price
N/A
PSB1118084
COMPRESSION SPRING 5 X 29 X 90
Price
N/A
PSB1118085
BRACKET LEFT
Price
N/A
PSB1118087
PRESSURE ARM
Price
N/A
PSB1118088
TORSION SPRING
Price
N/A
PSB1118089
BRACKET RIGHT
Price
N/A
PSB1118090
SHAFT
Price
N/A
PSB1118091
SHAFT
Price
N/A
PSB1118092
***USE P1033X069***
Price
N/A
PSB1118093
ANTI-KICKBACK PAWL V2.03.23
Price
N/A
P
ANTI-KICKBACK PAWL V2.03.23
PSB1118094
Now: PR25M
INT RETAINING RING 47MM
Price
N/A
PSB1118095
STANDOFF-HEX MM M10-1.5 X 20, 175
Price
N/A
PSB1118096
CAP SCREW M5-.8 X 10
Price
N/A
PSB1118097
Now: PS51M
PHLP HD SCR M4-.7 X 30
Price
N/A
PSB1118098
BUTTON HD CAP SCR M3-.5 X 15
Price
N/A
PSB1118100
CABLE TIE 250MM
Price
N/A
P
RIGHT COLUMN
P
KEY 5 X 5 X 20 RE
PSB1118103
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
P
HOUSING, UPPER RIGHT
P
ACCESS PANEL, UPPER RIGHT
PSB1118106
CHAIN #40 X 24P
Price
N/A

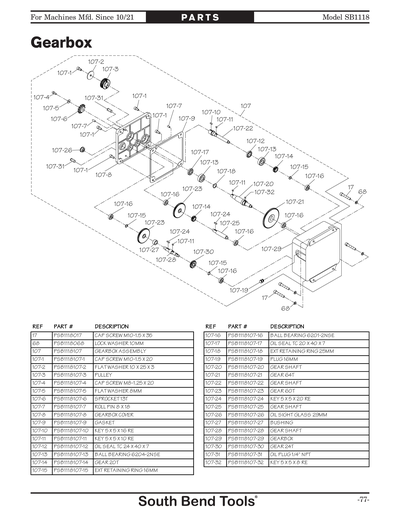

P
GEARBOX ASSEMBLY
PSB1118107-1
CAP SCREW M10-1.5 X 20
Price
N/A
P
KEY 5 X 5 X 16 RE
PSB1118107-11
KEY 5 X 5 X 10 RE
Price
N/A
PSB1118107-12
OIL SEAL
Price
N/A
PSB1118107-13
BALL BEARING 6204-2NSE
Price
N/A
PSB1118107-14
GEAR 20T
Price
N/A
PSB1118107-15
Now: PR06M
EXT RETAINING RING 16MM
Price
N/A
PSB1118107-16
BALL BEARING 6201-2NSE
Price
N/A
P
OIL SEAL TC 20 X 40 X 7
PSB1118107-18
Now: PR11M
EXT RETAINING RING 25MM
Price
N/A
P
PLUG 16MM
P
FLAT WASHER 10 X 25 X 3
P
GEAR SHAFT
P
GEAR 64T
PSB1118107-22
SHAFT
Price
N/A
PSB1118107-23
GEAR 60T
Price
N/A
PSB1118107-24
KEY 5 X 5 X 20 RE
Price
N/A
PSB1118107-25
SHAFT
Price
N/A
P
OIL SIGHT GLASS 29MM
P
BUSHING
PSB1118107-28
SHAFT
Price
N/A
PSB1118107-29
GEAR BOX COVER RIGHT
Price
N/A
P
PULLEY
PSB1118107-30
GEAR 24T
Price
N/A
PSB1118107-31
OIL PLUG V1
Price
N/A
P
KEY 5 X 5 X 8 RE
PSB1118107-4
CAP SCREW M8-1.25 X 20
Price
N/A
PSB1118107-5
Now: PW01M
FLAT WASHER 8MM
Price
N/A
PSB1118107-6
SPROCKET
Price
N/A
PSB1118107-7
ROLL PIN 8 X 18
Price
N/A
P
GEARBOX COVER
PSB1118107-9
GASKET
Price
N/A
P
MAIN TABLE
PSB1118109
Now: PW04M
FLAT WASHER 10MM
Price
N/A
PSB1118110
CAP SCREW M8-1.25 X 25
Price
N/A
PSB1118111
SET SCREW M8-1.25 X 10
Price
N/A
PSB1118112
CAP SCREW M5-.8 X 16
Price
N/A
PSB1118113
GUIDE PLATE
Price
N/A
PSB1118114
GIB
Price
N/A
PSB1118115
SET SCREW M8-1.25 X 40
Price
N/A
PSB1118116
Now: PB01M
HEX BOLT M10-1.5 X 30
Price
N/A
PSB1118117
ROLLER BRACKET
Price
N/A
PSB1118118
BALL BEARING 6203-2NSE
Price
N/A
PSB1118119
ROLLER
Price
N/A
PSB1118120
Now: PW01M
FLAT WASHER 8MM
Price
N/A
PSB1118121
SHAFT
Price
N/A
PSB1118122
CAM
Price
N/A
PSB1118123
PLATE
Price
N/A
PSB1118124
ROLLER
Price
N/A
PSB1118125
SET SCREW M5-.8 X 8
Price
N/A
PSB1118126
PLATE
Price
N/A
P
SHOULDER BOLT M8-1.25 X 8, 14 X 18
P
BRACKET
P
KEY 5 X 5 X 10 RE
PSB1118130
Now: PR15M
EXT RETAINING RING 30MM
Price
N/A
PSB1118132
SCALE BRACKET
Price
N/A
PSB1118133
BRACKET
Price
N/A
PSB1118134
HUB SHAFT
Price
N/A
PSB1118135
E-CLIP 24MM
Price
N/A
P
POINTER
PSB1118137
BUTTON HD CAP SCR M4-.7 X 6
Price
N/A
PSB1118138
HUB
Price
N/A
PSB1118139
SET SCREW M6-1 X 8
Price
N/A
PSB1118140
HANDLE
Price
N/A
PSB1118141
HOUSING BRACKET
Price
N/A
PSB1118142
CAP SCREW M8-1.25 X 40
Price
N/A
P
ELEVATION MOTOR 1/2HP, 220/440V, 3-PH
P
MOTOR FAN COVER
P
MOTOR FAN
P
JUNCTION BOX
PSB1118143-4
BALL BEARING 6203ZZ
Price
N/A
PSB1118143-5
BALL BEARING 6202ZZ
Price
N/A
PSB1118144
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
PSB1118145
CAP SCREW M6-1 X 20
Price
N/A
PSB1118146
LOCK WASHER 6MM
Price
N/A
PSB1118147
BRACKET STEP BOLT
Price
N/A
PSB1118148
BALL BEARING 6205ZZ
Price
N/A
PSB1118149
GEAR SHAFT
Price
N/A
PSB1118150
Now: PK01M
KEY 5 X 5 X 22
Price
N/A
PSB1118151
WORM GEAR
Price
N/A
PSB1118152
BUSHING
Price
N/A
PSB1118153
BALL BEARING 6204ZZ
Price
N/A
PSB1118154
WORM GEARBOX
Price
N/A
P
OIL SEAL TC 25 X 40 X 8
PSB1118156
WORM SHAFT
Price
N/A
PSB1118157
GEAR 24T
Price
N/A
PSB1118158
BALL BEARING 6203ZZ
Price
N/A
PSB1118159
KNOB ASSEMBLY
Price
N/A
PSB1118159-1
BEZEL
Price
N/A
PSB1118159-2
DIAL
Price
N/A
PSB1118159-3
BRACKET
Price
N/A
PSB1118159-4
BEZEL NUT
Price
N/A
PSB1118159-5
BUTTON HD CAP SCR M6-1 X 10
Price
N/A
PSB1118159-6
Now: PW03M
FLAT WASHER 6MM
Price
N/A
PSB1118160
STEP BRACKET
Price
N/A
PSB1118161
BALL BEARING 6201ZZ
Price
N/A
PSB1118162
Now: PR06M
EXT RETAINING RING 16MM
Price
N/A
PSB1118163
GEAR 60T
Price
N/A
PSB1118164
GEAR SHAFT
Price
N/A
PSB1118165
OIL SEAL SC 17 X 30 X 8
Price
N/A
PSB1118166
Now: PR18M
EXT RETAINING RING 17MM
Price
N/A
PSB1118167
GASKET
Price
N/A
PSB1118168
GEARBOX COVER
Price
N/A
P
CAP SCREW M6-1 X 26
PSB1118170
ROLL PIN 6 X 25
Price
N/A
PSB1118171
SPROCKET 26T
Price
N/A
PSB1118172
OIL PLUG V1
Price
N/A
PSB1118173
BALL BEARING 6202ZZ
Price
N/A
PSB1118174
GEAR SHAFT
Price
N/A
P
KEY 5 X 5 X 20 RE
PSB1118176
GEAR 20T
Price
N/A
P
FLAT WASHER 17 X 35 X 2
PSB1118178
CHAIN #40 X 58P
Price
N/A
PSB1118179
SPROCKET
Price
N/A
PSB1118180
HANDWHEEL ASSEMBLY
Price
N/A
PSB1118180-1
FOLDING HANDLE 28 X 90, M6-1
Price
N/A
PSB1118180-2
FLAT HD SCR M6-1 X 12
Price
N/A
PSB1118180-3
ROLL PIN 8 X 18
Price
N/A
PSB1118180-4
HANDWHEEL TYPE-13 200D X 20B X M6-1
Price
N/A
PSB1118180-5
BALL BEARING 6004ZZ
Price
N/A
PSB1118181
HANDWHEEL BRACKET
Price
N/A
P
MAIN MOTOR CORD 8G 4W 60"
P
KEY 5 X 5 X 15 RE
PSB1118184
HANDWHEEL SHAFT
Price
N/A
PSB1118185
COMPRESSION SPRING 1.2 X 23.4 X 40
Price
N/A
PSB1118186
CAP SCREW M8-1.25 X 12
Price
N/A
PSB1118187
SET SCREW M6-1 X 16
Price
N/A
PSB1118188
HANDWHEEL CONNECTOR
Price
N/A
PSB1118189
ROLL PIN 8 X 20
Price
N/A
PSB1118190
CAP SCREW M6-1 X 10
Price
N/A
PSB1118191
Now: PW03M
FLAT WASHER 6MM
Price
N/A
P
MAIN MOTOR 15HP 220/440V 3-PH
P
JUNCTION BOX
PSB1118192-11
BALL BEARING 6208ZZ
Price
N/A
PSB1118192-12
BALL BEARING 6206ZZ
Price
N/A
PSB1118192-3
CAP SCREW M10-1.5 X 20
Price
N/A
P
FENDER WASHER 11 X 53 X 3
P
KEY 10 X 8 X 56 RE
PSB1118192-6
GROMMET M11 TYPE-2 SNAP-IN
Price
N/A
PSB1118192-7
MOTOR PULLEY
Price
N/A
P
MOTOR FAN COVER
P
MOTOR FAN
PSB1118193
BALL BEARING 6906ZZ
Price
N/A
PSB1118194
SHAFT
Price
N/A
PSB1118195
Now: PR26M
INT RETAINING RING 52MM
Price
N/A
PSB1118196
Now: PB73M
HEX BOLT M10-1.5 X 50
Price
N/A
PSB1118197
Now: PN09M
HEX NUT M12-1.75
Price
N/A
PSB1118198
LOCK WASHER 12MM
Price
N/A
PSB1118199
Now: PW06M
FLAT WASHER 12MM
Price
N/A
PSB1118200
ROD END BOLT M12-1.75 X 120, 25.4
Price
N/A
PSB1118201
MOTOR MOUNTING PLATE
Price
N/A
PSB1118202
SHAFT
Price
N/A
PSB1118204
LEADSCREW (RIGHT)
Price
N/A
PSB1118205
MOUNTING RING
Price
N/A
PSB1118206
FLANGE BOLT M4-.7 X 8
Price
N/A
PSB1118207
***USE PSB1109153***
Price
N/A
PSB1118208
LEADSCREW
Price
N/A
PSB1118209
Now: PR70M
INT RETAINING RING 68MM
Price
N/A
P
BALL BEARING 6008-2NSE
PSB1118211
THRUST BEARING 51105
Price
N/A
PSB1118212
BUSHING
Price
N/A
P
EXT TOOTH WASHER 25MM
PSB1118214
LEADSCREW NUT M25-1.5
Price
N/A
PSB1118215
SPROCKET PLATE
Price
N/A
PSB1118216
Now: PVA81
V-BELT A81
Price
N/A
P
V-BELT 3GT-720-15
PSB1118218
SPROCKET 26T
Price
N/A
PSB1118219
COMPRESSION SPRING 2 X 17.6 X 44
Price
N/A
P
BASE COVER, REAR
PSB1118221
GROMMET M11 TYPE-2 SNAP-IN
Price
N/A
P
GROMMET 16MM
PSB1118223
PLATE
Price
N/A
PSB1118224
LOCK NUT M10-1.5
Price
N/A
PSB1118225
LIFTING HOOK
Price
N/A
PSB1118226
CAP SCREW M10-1.5 X 30
Price
N/A
PSB1118227
CAP SCREW M16-2 X 55
Price
N/A
PSB1118228
Now: PN13M
HEX NUT M16-2
Price
N/A
PSB1118229
FOOT
Price
N/A
P
BASE
PSB1118231
SPROCKET SHAFT
Price
N/A
P
BASE COVER, FRONT
P
BASE COVER, SIDE
P
FENDER WASHER 11 X 53 X 3
PSB1118235
CAP SCREW M10-1.5 X 20
Price
N/A
PSB1118236
CAP SCREW M10-1.5 X 45
Price
N/A
P
CHAIN #40 X 74P
PSB1118238
Now: PN03M
HEX NUT M8-1.25
Price
N/A
PSB1118239
GAS SPRING 20KG 292L
Price
N/A
PSB1118240
CHAIN #40 X 54P
Price
N/A
PSB1118241
CHAIN #40 X 84P
Price
N/A
PSB1118242
Now: PW04M
FLAT WASHER 10MM
Price
N/A
PSB1118243
Now: PW05M
FLAT WASHER 4MM
Price
N/A
PSB1118244
PLATE
Price
N/A
PSB1118245
SET SCREW M6-1 X 20
Price
N/A
PSB1118247
CAP SCREW M6-1 X 12
Price
N/A
PSB1118249
CAP SCREW M12-1.75 X 40
Price
N/A
PSB1118250
EXTENSION SPRING 1.2 X 11.5 X 34.2
Price
N/A
PSB1118251
POWER SUPPLY JUNCTION BOX
Price
N/A
PSB1118252
TERMINAL BLOCK
Price
N/A
PSB1118253
BUTTON HD CAP SCR M5-.8 X 10
Price
N/A
PSB1118254
PAD 40 X 10 X 2
Price
N/A
PSB1118255
SET SCREW M4-.7 X 6
Price
N/A
PSB1118256
Now: PW03M
FLAT WASHER 6MM
Price
N/A
PSB1118257
HEX BOLT M10-1.5 X 70
Price
N/A
PSB1118258
CAP SCREW M8-1.25 X 20
Price
N/A
P
SHOULDER BOLT M10-1.5 X 20, 16 X 22
PSB1118260
BUSHING
Price
N/A
PSB1118262
PAD 33 X 10 X 2
Price
N/A
PSB1118263
COLLAR
Price
N/A
PSB1118264
E-CLIP 8MM
Price
N/A
PSB1118265
BRACKET
Price
N/A
PSB1118266
MAGNETIC STRIP
Price
N/A
PSB1118267
IDLER SPROCKET 13T
Price
N/A
PSB1118268
CAP SCREW M10-1.5 X 50
Price
N/A
PSB1118275
HEX WRENCH 5MM
Price
N/A
PSB1118276
HEX WRENCH 8MM
Price
N/A
PSB1118277
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
PSB1118278
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
PSB1118279
WRENCH 22 X 24MM OPEN-ENDS
Price
N/A
PSB1118280
SCREWDRIVER PHLP/FLAT HEAD #1
Price
N/A
P
TORX DRIVER T-25
PSB1118285
HEX WRENCH 3MM
Price
N/A
PSB1118286
HEX WRENCH 4MM
Price
N/A
PSB1118292
STRAIN RELIEF PG21
Price
N/A
P
EXT RETAINING RING 90MM
PSB1118294
Now: PB22M
HEX BOLT M8-1.25 X 50
Price
N/A
PSB1118295
Now: PW01M
FLAT WASHER 8MM
Price
N/A
P
OIL CUP 3/16"
PSB1118301
EXT TOOTH WASHER 6MM
Price
N/A
PSB1118302
EXT TOOTH WASHER 8MM
Price
N/A
PSB1118303
CAP SCREW M10-1.5 X 20
Price
N/A
PSB1118305
CAP SCREW M8-1.25 X 16
Price
N/A
PSB1118306
SET SCREW M5-.8 X 5
Price
N/A
P
PULLEY
PSB1118308
Now: PW01M
FLAT WASHER 8MM
Price
N/A
PSB1118309
CAP SCREW M6-1 X 20
Price
N/A
PSB1118310
Now: PW03M
FLAT WASHER 6MM
Price
N/A
P
GROMMET 38MM
PSB1118313
Now: PW02M
FLAT WASHER 5MM
Price
N/A
P
PLUG 13MM
P
FENDER WASHER 14 X 35 X 1
P
SPACER 6.5 X 15 X 20
PSB1118317
CAP SCREW M6-1 X 35
Price
N/A
PSB1118318
LOCK NUT M6-1
Price
N/A
PSB1118319
EXT TOOTH WASHER 4MM
Price
N/A
PSB1118320
BUTTON HD CAP SCR M4-.7 X 8
Price
N/A
PSB1118321
CABLE TIE 250MM
Price
N/A
P
WIRE WRAP 12MM

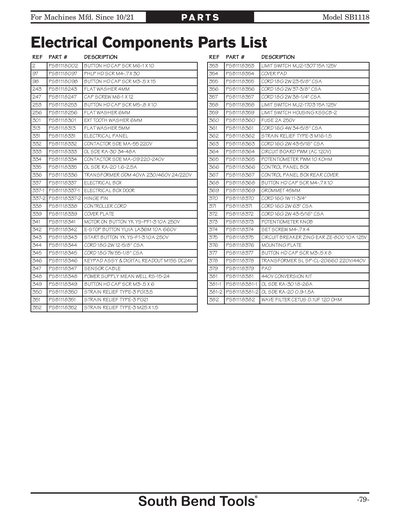

P
ELECTRICAL PANEL
P
CONTACTOR SDE MA-55 220V
P
SDE OL RA-30 34-48A
PSB1118334
TABLE MOTOR 220V CONTACTOR SHERN DIAN
Price
N/A
P
OL SDE RA-20 1.6-2.5A
P
TRANSFORMER GDM 40VA 230/460V 24/220V
P
ELECTRICAL BOX
P
CONTROLLER CORD
P
COVER PLATE
PSB1118341
MAIN MOTOR BUTTON
Price
N/A
P
E-STOP BUTTON YIJIA LA36M 10A 660V
PSB1118343
START SWITCH TE XB4-BA31
Price
N/A
P
CORD 18G 2W 12-5/8" CSA
P
CORD 18G 7W 55-1/8" CSA
P
KEYPAD ASSY & DIGITAL READOUT M15S DC24V
PSB1118347
SENSOR CABLE
Price
N/A
P
POWER SUPPLY MEAN WELL RS-15-24
PSB1118349
BUTTON HD CAP SCR M3-.5 X 6
Price
N/A
PSB1118350
STRAIN RELIEF M15 TYPE-6 ST
Price
N/A
PSB1118351
STRAIN RELIEF PG21
Price
N/A
PSB1118352
STRAIN RELIEF M25 TYPE-6 ST
Price
N/A
PSB1118353
LIMIT SWITCH MJ2-1307 V2.07.21
Price
N/A
PSB1118354
COVER PAD
Price
N/A
P
CORD 18G 2W 23-5/8" CSA
P
CORD 18G 2W 37-3/8" CSA
PSB1118357
CSA CORD 18AWG 2C 970MM
Price
N/A
PSB1118358
LIMIT SWITCH MJ2-1703
Price
N/A
PSB1118359
LIMIT SWITCH HOUSING
Price
N/A
P
FUSE 2A 250V
PSB1118361
CSA CORD 16AWG 4C 880MM
Price
N/A
P
STRAIN RELIEF TYPE-3 M16-1.5
P
CORD 16G 2W 43-5/16" CSA
P
CIRCUIT BOARD PWM (AC 120V)
P
POTENTIOMETER PWM 10 KOHM
P
CONTROL PANEL BOX
P
CONTROL PANEL BOX REAR COVER
PSB1118368
BUTTON HD CAP SCR M4-.7 X 10
Price
N/A
P
GROMMET 45MM
P
CORD 16G 1W 11-3/4"
P
CORD 16G 2W 63" CSA
PSB1118372
CORD 16G 2W 43-5/16" CSA
Price
N/A
P
POTENTIOMETER KNOB
PSB1118374
SET SCREW M4-.7 X 4
Price
N/A
P
CIRCUIT BREAKER ZING EAR ZE-800 10A 125V
P
MOUNTING PLATE
PSB1118377
BUTTON HD CAP SCR M3-.5 X 8
Price
N/A
P
TRANSFORMER SL SP-CL-20660 220V/440V
PSB1118379
WIRE NUT P3
Price
N/A
P
FEED MOTOR 3/4HP, 110V DC
PSB1118380-2
BRUSH COVER
Price
N/A
P
BRUSH
P
BRUSH HOLDER
P
440V CONVERSION KIT
PSB1118381-1
440V CONVERSION KIT
Price
N/A
PSB1118381-2
440V CONVERSION KIT
Price
N/A
P
WAVE FILTER CETUS 0.1UF 120 OHM
P

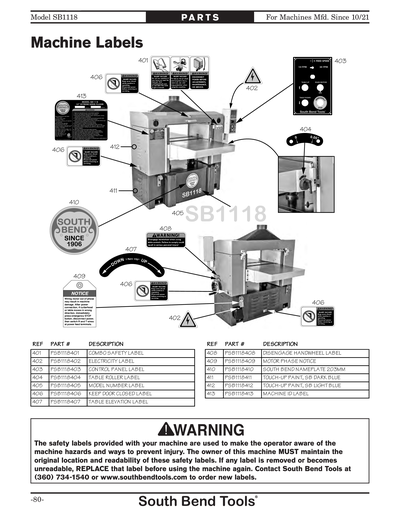

COMBO SAFETY LABEL
PSB1118402
ELECTRICITY LABEL 1.4
Price
N/A
P
CONTROL PANEL LABEL
PSB1118404
TABLE ROLLER LABEL
Price
N/A
P
MODEL NUMBER LABEL
PSB1118406
KEEP DOOR CLOSED LABEL 2.5 X 1.5
Price
N/A
PSB1118407
TABLE CONTROL LABEL
Price
N/A
P
DISENGAGE HANDWHEEL LABEL
P
MOTOR PHASE NOTICE
PSB1118410
New South Bend Nameplates 203mm (8")
Price
N/A
P
MACHINE ID LABEL
P
MANUAL SB1118 MFD-09.21+ V1.01.22
