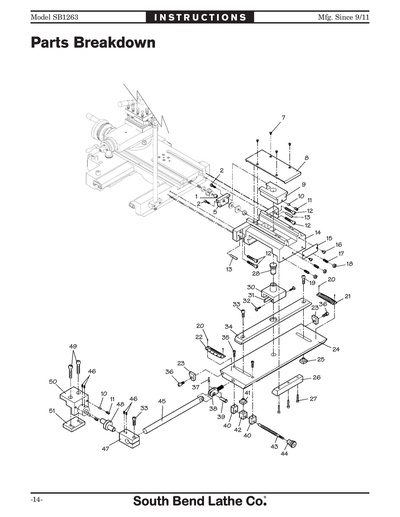

Parts for SB1263 - Taper Attachment for 13", 14", 16" Lathes
If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.
Please note: All parts ship out of our Springfield, Missouri facility.

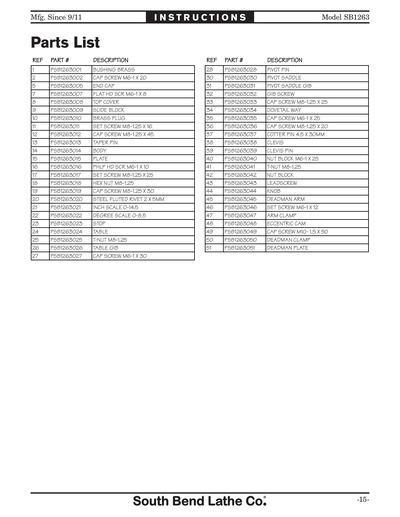

| Ref # | Part # | Description | Price | Qty | |
|---|---|---|---|---|---|
| PSB1263001 | PSB1263001 |
BUSHING BRASS
|
N/A | ||
| PSB1263002 |
PSB1263002
Replaced By PCAP02M
|
CAP SCREW M6-1 X 20
|
N/A | View Replacement | |
| PSB1263005 | PSB1263005 |
END CAP
|
N/A | ||
| PSB1263007 |
PSB1263007
Replaced By PFH04M
|
FLAT HD SCR M6-1 X 8
|
N/A | View Replacement | |
| PSB1263008 | PSB1263008 |
TOP COVER
|
N/A | ||
| PSB1263009 | PSB1263009 |
SLIDE BLOCK
|
N/A | ||
| PSB1263010 | PSB1263010 |
BRASS PLUG
|
N/A | ||
| PSB1263011 |
PSB1263011
Replaced By PSS06M
|
SET SCREW M8-1.25 X 16
|
N/A | View Replacement | |
| PSB1263012 |
PSB1263012
Replaced By PCAP45M
|
CAP SCREW M8-1.25 X 45
|
N/A | View Replacement | |
| PSB1263013 | PSB1263013 | TAPER PIN | $7.50 | ||
| PSB1263014 | PSB1263014 |
BODY
|
N/A | ||
| PSB1263015 | PSB1263015 |
PLATE
|
N/A | ||
| PSB1263016 |
PSB1263016
Replaced By PS68M
|
PHLP HD SCR M6-1 X 10
|
N/A | View Replacement | |
| PSB1263017 |
PSB1263017
Replaced By PSS21M
|
SET SCREW M8-1.25 X 25
|
N/A | View Replacement | |
| PSB1263018 |
PSB1263018
Replaced By PN03M
|
HEX NUT M8-1.25
|
N/A | View Replacement | |
| PSB1263019 |
PSB1263019
Replaced By PCAP13M
|
CAP SCREW M8-1.25 X 30
|
N/A | View Replacement | |
| PSB1263020 |
PSB1263020
Replaced By PRIV001M
|
RIVET 2 X 5MM NAMEPLATE, STEEL
|
N/A | View Replacement | |
| PSB1263021 | PSB1263021 |
INCH SCALE 0-14.5
|
N/A | ||
| PSB1263022 | PSB1263022 |
DEGREE SCALE 0-8.5
|
N/A | ||
| PSB1263023 | PSB1263023 |
STOP
|
N/A | ||
| PSB1263024 | PSB1263024 |
TABLE
|
N/A | ||
| PSB1263025 | PSB1263025 |
T-NUT M8-1.25
|
N/A | ||
| PSB1263026 | PSB1263026 |
TABLE GIB
|
N/A | ||
| PSB1263027 |
PSB1263027
Replaced By PCAP07M
|
CAP SCREW M6-1 X 30
|
N/A | View Replacement | |
| PSB1263028 | PSB1263028 |
PIVOT PIN
|
N/A | ||
| PSB1263030 | PSB1263030 |
PIVOT SADDLE
|
N/A | ||
| PSB1263031 | PSB1263031 |
PIVOT SADDLE GIB
|
N/A | ||
| PSB1263032 | PSB1263032 | GIB SCREW | $13.25 | ||
| PSB1263033 |
PSB1263033
Replaced By PCAP31M
|
CAP SCREW M8-1.25 X 25
|
N/A | View Replacement | |
| PSB1263034 | PSB1263034 |
DOVETAIL WAY
|
N/A | ||
| PSB1263035 |
PSB1263035
Replaced By PCAP06M
|
CAP SCREW M6-1 X 25
|
N/A | View Replacement | |
| PSB1263036 |
PSB1263036
Replaced By PCAP14M
|
CAP SCREW M8-1.25 X 20
|
N/A | View Replacement | |
| PSB1263037 | PSB1263037 | COTTER PIN 4.5 X 30MM | $1.00 | ||
| PSB1263038 | PSB1263038 | CLEVIS | $100.25 | ||
| PSB1263039 | PSB1263039 | CLEVIS PIN | $20.50 | ||
| PSB1263040 | PSB1263040 |
NUT BLOCK M6-1 X 25
|
N/A | ||
| PSB1263041 | PSB1263041 |
T-NUT M8-1.25
|
N/A | ||
| PSB1263042 | PSB1263042 |
NUT BLOCK
|
N/A | ||
| PSB1263043 | PSB1263043 |
LEADSCREW
|
N/A | ||
| PSB1263044 | PSB1263044 |
KNOB
|
N/A | ||
| PSB1263045 | PSB1263045 | DEADMAN ARM | $150.50 | ||
| PSB1263046 |
PSB1263046
Replaced By PSS04M
|
SET SCREW M6-1 X 12
|
N/A | View Replacement | |
| PSB1263047 | PSB1263047 |
ARM CLAMP
|
N/A | ||
| PSB1263048 | PSB1263048 |
ECCENTRIC CAM
|
N/A | ||
| PSB1263049 |
PSB1263049
Replaced By PCAP143M
|
CAP SCREW M10-1.5 X 50
|
N/A | View Replacement | |
| PSB1263050 | PSB1263050 |
DEADMAN CLAMP
|
N/A | ||
| PSB1263051 | PSB1263051 |
DEADMAN PLATE
|
N/A | ||
| PSB1263MAN | PSB1263MAN |
MANUAL SB1263 MFG 9/11 1/12
|
N/A |
