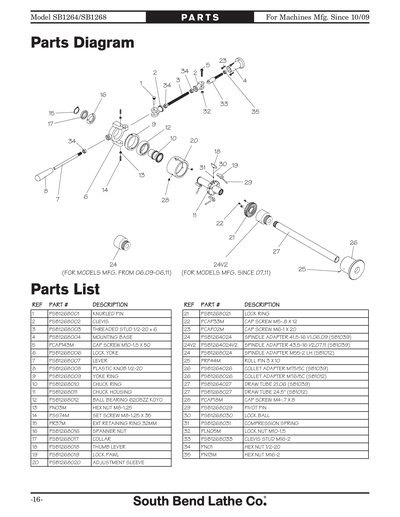

Parts for SB1264 - 5-C Collet Attachment for D1-5 South Bend Lathes

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref # Part # Description Price Qty
PSB1264001 PSB1264001
Replaced By PSB1268001
KNURLED PIN
N/A View Replacement
PSB1264002 PSB1264002
Replaced By PSB1268002
CLEVIS
N/A View Replacement
PSB1264003 PSB1264003
Replaced By PSB1268003
THREADED STUD 1/2-20 X 6
N/A View Replacement
PSB1264004 PSB1264004
Replaced By PSB1268004
MOUNTING BASE
N/A View Replacement
PSB1264005 PSB1264005
Replaced By PCAP143M
CAP SCREW M10-1.5 X 50
N/A View Replacement
PSB1264006 PSB1264006
Replaced By PSB1268006
LOCK YOKE
N/A View Replacement
PSB1264007 PSB1264007
Replaced By PSB1268007
LEVER
N/A View Replacement
PSB1264008 PSB1264008
Replaced By PSB1268008
PLASTIC KNOB 1/2-20
N/A View Replacement
PSB1264009 PSB1264009
Replaced By PSB1268009
YOKE RING
N/A View Replacement
PSB1264010 PSB1264010
Replaced By PSB1268010
CHUCK RING
N/A View Replacement
PSB1264011 PSB1264011
Replaced By PSB1268011
CHUCK HOUSING
N/A View Replacement
PSB1264012 PSB1264012
Replaced By PSB1268012
BALL BEARING 6208ZZ KOYO
N/A View Replacement
PSB1264013 PSB1264013
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
PSB1264014 PSB1264014
Replaced By PSS74M
SET SCREW M8-1.25 X 35
N/A View Replacement
PSB1264015 PSB1264015
Replaced By PR37M
EXT RETAINING RING 32MM
N/A View Replacement
PSB1264016 PSB1264016
Replaced By PSB1268016
SPANNER NUT
N/A View Replacement
PSB1264017 PSB1264017
Replaced By PSB1268017
COLLAR
N/A View Replacement
PSB1264018 PSB1264018
Replaced By PSB1268018
THUMB LEVER
N/A View Replacement
PSB1264019 PSB1264019
Replaced By PSB1268019
LOCK PAWL
N/A View Replacement
PSB1264020 PSB1264020
Replaced By PSB1268020
ADJUSTMENT SLEEVE
N/A View Replacement
PSB1264021 PSB1264021
Replaced By PSB1268021
LOCK RING
N/A View Replacement
PSB1264022 PSB1264022
Replaced By PCAP33M
CAP SCREW M5-.8 X 12
N/A View Replacement
PSB1264023 PSB1264023
Replaced By PCAP02M
CAP SCREW M6-1 X 20
N/A View Replacement
PSB1264024 PSB1264024
SPINDLE ADAPTER 41.5-16 V1.06.09
N/A
PSB1264024V2 PSB1264024V2 SPINDLE ADAPTER 43.5-16 V2.07.11 $127.80
PSB1264025 PSB1264025
Replaced By PRP44M
ROLL PIN 3 X 10
N/A View Replacement
PSB1264026 PSB1264026
COLLET ADAPTER MT5/5C
N/A
PSB1264027 PSB1264027 DRAW TUBE 21.06 $98.25
PSB1264028 PSB1264028
Replaced By PCAP18M
CAP SCREW M4-.7 X 8
N/A View Replacement
PSB1264029 PSB1264029
Replaced By PSB1268029
PIVOT PIN
N/A View Replacement
PSB1264030 PSB1264030
Replaced By PSB1268030
LOCK BALL
N/A View Replacement
PSB1264031 PSB1264031
Replaced By PSB1268031
COMPRESSION SPRING
N/A View Replacement
PSB1264032 PSB1264032
Replaced By PLN05M
LOCK NUT M10-1.5
N/A View Replacement
PSB1264033 PSB1264033
Replaced By PSB1268033
CLEVIS SLEEVE HEAD STUD M16-2
N/A View Replacement
PSB1264034 PSB1264034
Replaced By PN01
HEX NUT 1/2-20
N/A View Replacement
PSB1264035 PSB1264035
Replaced By PN13M
HEX NUT M16-2
N/A View Replacement
PSB1264MAN PSB1264MAN
Replaced By PSB1268MANV2
MANUAL SB1264 SB1268 MFG 07/11 V2.07.11
N/A View Replacement
PXSB1264027 XSB1264027
*DISCD*DRAW TUBE 21.06
N/A
