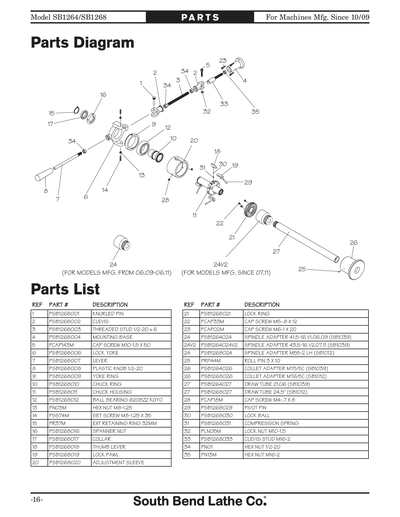

Parts for SB1268 5-C Collet Closer for D1-6 South Bend Lathes

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

P
KNURLED PIN
P
CLEVIS
P
THREADED STUD 1/2-20 X 6
P
MOUNTING BASE
PSB1268005
CAP SCREW M10-1.5 X 50
Price
N/A
P
LOCK YOKE
P
LEVER
P
PLASTIC KNOB 1/2-20
P
YOKE RING
P
CHUCK RING
P
CHUCK HOUSING
P
BALL BEARING 6208ZZ KOYO
PSB1268013
Now: PN03M
HEX NUT M8-1.25
Price
N/A
PSB1268014
SET SCREW M8-1.25 X 35
Price
N/A
PSB1268015
Now: PR37M
EXT RETAINING RING 32MM
Price
N/A
P
SPANNER NUT
P
COLLAR
P
THUMB LEVER
P
LOCK PAWL
P
ADJUSTMENT SLEEVE
P
LOCK RING
PSB1268022
CAP SCREW M5-.8 X 12
Price
N/A
PSB1268023
CAP SCREW M6-1 X 20
Price
N/A
P
SPINDLE ADAPTER M55-2 LH
PSB1268025
ROLL PIN 3 X 10
Price
N/A
P
COLLET ADAPTER MT6/5C
P
DRAW TUBE 24.5"
PSB1268028
CAP SCREW M4-.7 X 8
Price
N/A
P
PIVOT PIN
P
LOCK BALL
P
COMPRESSION SPRING
PSB1268032
LOCK NUT M10-1.5
Price
N/A
P
CLEVIS SLEEVE HEAD STUD M16-2
PSB1268034
Now: PN01
HEX NUT 1/2-20
Price
N/A
PSB1268035
Now: PN13M
HEX NUT M16-2
Price
N/A
PSB1268MAN
MANUAL SB1268 MFG 10/09 V1.02.10
Price
N/A
P
MANUAL SB1268 MFG 10/09 V1.02.10
P
MANUAL SB1264 SB1268 MFG 07/11 V2.07.11
