Parts for SB1493 1-1/2 HP Variable-Speed Buffer

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

P
BASE
PSB1493002
CORD PLATE
Price
N/A
PSB1493003
POWER CORD 16G 3W 72" 5-15P
Price
N/A
PSB1493004
STRAIN RELIEF TYPE-1 1/2
Price
N/A
P
CONTROL PANEL UNIT
PSB1493007
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
PSB1493008
*DISCD*BASE PLATE
Price
N/A
PSB1493009
TAP SCREW M3.5 X 10
Price
N/A
PSB1493010
Now: PFS03
FLANGE SCREW 10-24 X 3/8
Price
N/A
P
MOTOR 1-1/2HP 110V/220V 1-PH
PSB1493012
Now: PFH25
FLAT HD SCR 5/16-18 X 1
Price
N/A
PSB1493013
Now: PLW01
LOCK WASHER 5/16
Price
N/A
PSB1493014
Now: PN02
HEX NUT 5/16-18
Price
N/A
P
T-BUSHING 16 X 25 X 8
P
T-BUSHING 19 X 32 X 9
P
WHEEL FLANGE 5/8"
PSB1493018
Now: PN04
HEX NUT 5/8-11
Price
N/A
PSB1493019
Now: PN27
HEX NUT 5/8-11 LH
Price
N/A
PSB1493020
EXT TOOTH WASHER #10
Price
N/A
PSB1493021
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
PSB1493022
ON/OFF SWITCH JI-HONG J9301-1YT
Price
N/A
PSB1493023
*DISCD*VARIABLE-SPEED DIAL
Price
N/A
PSB1493024
Now: PB58
HEX BOLT 3/8-16 X 2
Price
N/A
PSB1493025
Now: PW02
FLAT WASHER 3/8
Price
N/A
PSB1493026
Now: PLW04
LOCK WASHER 3/8
Price
N/A
PSB1493027
Now: PN08
HEX NUT 3/8-16
Price
N/A
PSB1493028
WRENCH 23MM CLOSED-END
Price
N/A
P

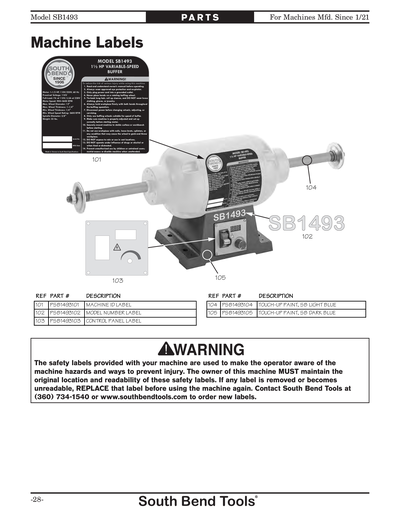

MACHINE ID LABEL
P
MODEL NUMBER LABEL
P
CONTROL PANEL LABEL
P
MANUAL SB1493 MFD-12.21+ V1.01.21
