Item: T20831 | Model: M1020

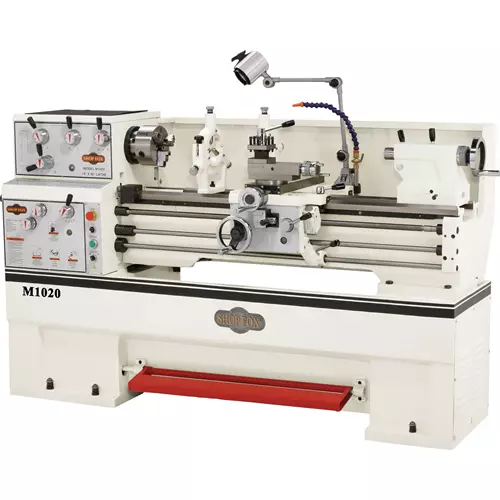

Image for Shop Fox T20831 - 14" X 40" Lathe
    If your job shop is in need of a quality lathe, then the Model M1020 is your answer. Powered by a 3HP motor, this lathe features 12-speeds, a generous 14" swing, 40" distance between centers and 62 different standard and metric threading options. Remove the gap and give yourself an extra 6" in diameter. 3" jaw and 4" jaw chucks, coolant pump, halogen lamp plus a whole lot of accessories are standard on this machine.

  • Foot brake
  • Hardened and ground gears in headstock
  • Induction hardened bedways
  • Jog button and emergency stop
  • Micrometer carriage stop
  • Inch/metric dials
  • 6" 3-jaw chuck with two piece jaws
  • 8" 4-jaw chuck
  • 12" faceplate
  • Steady rest / follow rest
  • 4-way turret tool post
  • MT #3 dead center
  • Coolant system with back splash
  • Threading dial
  • Halogen lamp
  • One piece cast iron stand
  • Motor: 3 HP, 220V, single-phase, 60 Hz, 1725 RPM
  • Swing over bed: 14"
  • Swing over gap: 20"
  • Swing over saddle: 8-1/2"
  • Distance between centers: 40"
  • Bed width: 10-1/4"
  • Spindle bore: 1-1/2"
  • Spindle nose: D1-4 Cam lock
  • Spindle nose taper: MT #5
  • Cross slide travel: 7"
  • Compound travel: 3-1/2"
  • Tailstock barrel taper: MT #3
  • Tailstock barrel travel: 4-5/8"
  • Range of speeds: (12 speeds) 40-1800 RPM
  • number of longitudinal and cross feeds: 40
  • Range of longitudinal feeds (in./rev.): 0.0012" 0.0294"
  • Range of cross feeds (in./rev.): 0.0006"-0.0147"
  • Number of inch threads: 40
  • Range of inch threads: 4-112 TPI
  • Number of metric threads: 22
  • Range of metric threads: 0.45-7.5mm
  • Leadscrew: 8 TPI
  • Feed rod diameter: 3/4"
  • Height: 45"
  • Length: 80"
  • Width: 29-1/2"
  • Approximate shipping weight: 2738 lbs.
