Item: T21850 | Model: W1711

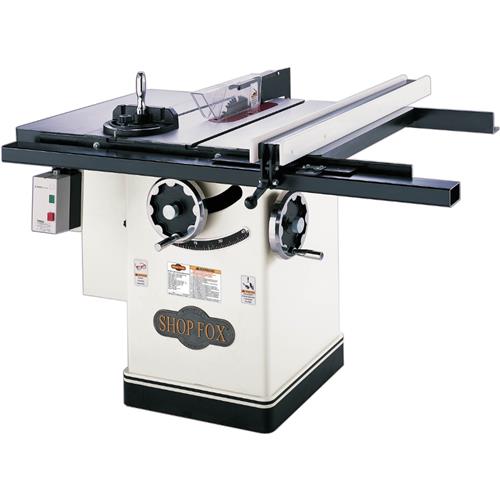

Image for Shop Fox T21850 - 5 HP 10" Left Tilt Table Saw
  • Motor: 5 HP, 28A, single-phase, 220V
  • Drive: Triple belt
  • Table size: 40-1/8" x 27" with wings (included)
  • Table: Precision ground cast iron with T-Slots
  • Arbor: 5/8" (can accept up to 13/16" Dado set as well)
  • Table saw inserts: Two included (Standard and Dado)
  • Miter gauge: Heavy-duty cast-iron includes patented adjustable miter bar
  • Switch: Heavy-duty magnetic
  • Maximum blade height: 3"
  • Ripping capacity with standard rails: 25" (Optional long rails available)
  • Blade tilt: Left (away from fence)
  • Handwheels: Extra large cast iron
  • Fence: SHOP FOX® Classic
  • Power cord size: 10' x 12 Gauge
  • Guard: Clear plastic
  • Sealed ball bearing construction
  • Motor cover and dust port included
  • Powder coated paint
  • Approx. shipping weight: 474 lbs.



    PUSH STICK H3308 INCLUDED
Overview
Manual Buy Parts
Overview
  • Motor: 5 HP, 28A, single-phase, 220V
  • Drive: Triple belt
  • Table size: 40-1/8" x 27" with wings (included)
  • Table: Precision ground cast iron with T-Slots
  • Arbor: 5/8" (can accept up to 13/16" Dado set as well)
  • Table saw inserts: Two included (Standard and Dado)
  • Miter gauge: Heavy-duty cast-iron includes patented adjustable miter bar
  • Switch: Heavy-duty magnetic
  • Maximum blade height: 3"
  • Ripping capacity with standard rails: 25" (Optional long rails available)
  • Blade tilt: Left (away from fence)
  • Handwheels: Extra large cast iron
  • Fence: SHOP FOX® Classic
  • Power cord size: 10' x 12 Gauge
  • Guard: Clear plastic
  • Sealed ball bearing construction
  • Motor cover and dust port included
  • Powder coated paint
  • Approx. shipping weight: 474 lbs.



    PUSH STICK H3308 INCLUDED
