Item# M1111 Model# M1111

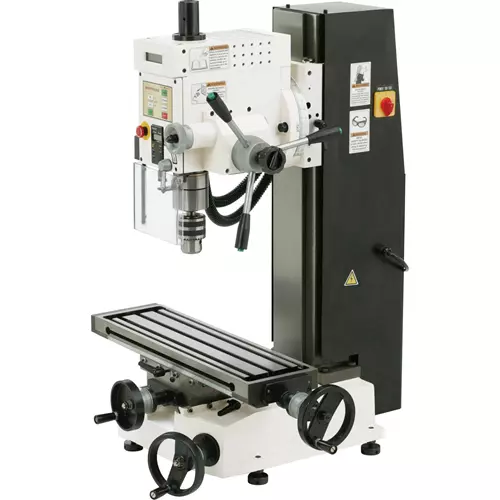

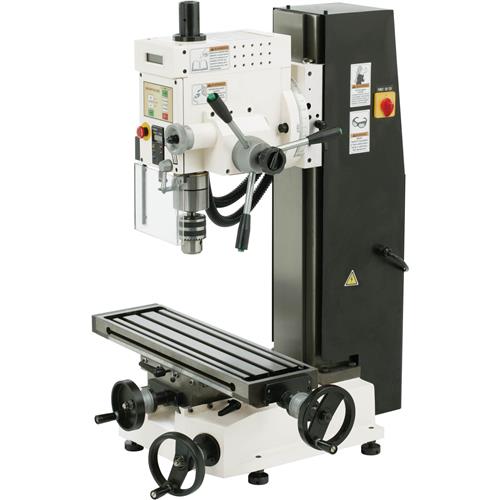

Shop Fox M1111 - 6" x 21" 1 HP Deluxe Variable-Speed Mill/Drill

$2,618.99
+$149.00  Freight
+$0.00  Oversize
The M1111 Milling Machine has all of the important features of the M1110, but with additional time-saving luxuries. This deluxe milling machine is equipped with a quick-tilt headstock for horizontal milling, 1 HP brushless DC motor, a multi-function digital depth scale on the quill, push-button speed control, and digital spindle tachometer. The quick-reverse tapping feature simplifies hole threading—Just put the machine in “tapping mode,” start the tap, and once threading is complete, push a button to reverse the spindle and immediately withdraw the tap from the hole. A back-lit digital display provides precise spindle speed for matching tooling and material. All of these extra features make the M1111 one of the most sought-after milling machines available!

Made in an ISO 9001 Factory

Specifications

  • Motor: 1 HP, brushless DC motor, 110V, 12A
  • Spindle taper: R-8
  • Spindle travel: 2-3/4"
  • Swing: 18"
  • Max. distance spindle to table: 14-3/4"
  • X/Y-axis handwheel calibration: 0.001"
  • Z-axis handwheel calibration: 0.0005"
  • T-Slots: 3 @ 1-11/16" centers, 7/16" wide
  • Table size: 6-1/4" x 21-5/8"
  • Table travel (longitudinal): 15-7/8"
  • Table travel (cross): 5-3/4"
  • Headstock travel: 14-7/8"
  • Drilling capacity: 1"
  • Max. face cutter diameter: 2"
  • Quill diameter: 60mm (2.362")
  • Variable speed: 100-1750 RPM
  • Over 14" of headstock movement
  • Dovetail column ways for accuracy
  • Digital readout for spindle depth features metric or inch reading and a zeroing function
  • Head tilts 90° left & right
  • Push button variable-speed
  • Back-lit digital speed display
  • Reversing buttons on rack handles for tapping
  • Coolant trough
  • Front-mounted fine downed knob
  • Push button motor control for forward, reverse, tapping and ON/OFF
  • Front-mounted emergency stop button
  • See-through chip guard with safety switch
  • Includes 5/8" drill chuck & arbor, 2 T-nuts, 2 open-end combo wrenches, 4 hex wrenches, extra drive belt, and 4 leveling feet
  • Approximate shipping weight: 426 lbs.
  • View More Details
