Item: W1802 | Model: W1802

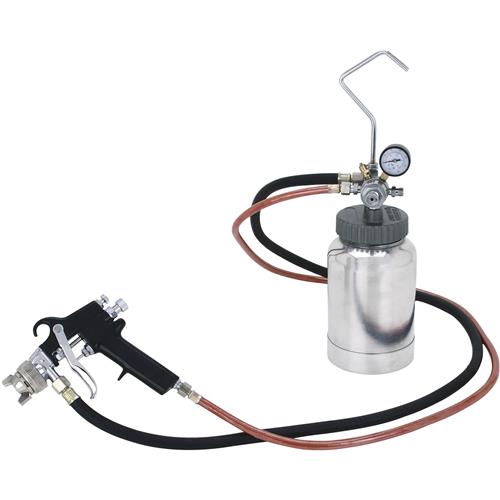

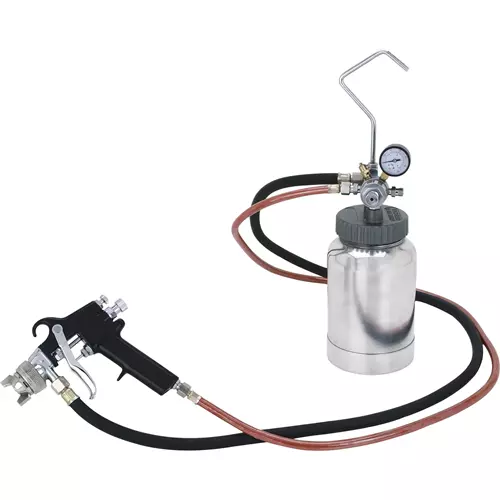

W1802 Pressure Feed Professional Spray Gun Set
A spray system for medium to high viscosity liquids.
The lightweight spray gun has an adjustable spray pattern from round to a wide fan.
The atomizing cap needs to be adjusted for horizontal or vertical spraying patterns. Spraying in the wrong direction may lead to material build up on the atomizing cap horn.
The two-stage trigger releases compressed air for blowing off the work piece in stage one and sprays material in stage two.
This set has a two-liter pressurized paint cup with a built-in regulator and hook-type handle for easy use.
It is ideal for painting large areas such as trucks, busses, and vans.
The W1811 comes with a 2-year warranty which covers parts and assures the unit is free from factory defects.
The W1811 manual was written by our U.S. based-Technical Documentation Department. The complete and easy-to-read manual makes it easier to assemble and maintain your spray gun.
We stand behind our tools! In the event that questions arise, please contact our knowledgeable staff to help you troubleshoot problems and process warranty claims
SPECIFICATIONS:
- Type: Pressurized cup
- Required pressure: 29–43.5 PSI
- Material capacity: 2 quarts
- Pattern width: 180–230 mm
- Fluid tip: 2 mm
- Optional tip range: 1.5–2.5mm
- Air consumption: 6 CFM
- Air hose inlet: 1/4" NPT
- Fluid hose inlet: 3/8" NPS
- Hose length: 5 feet
Actions for Products including purchasing, availability and wishlist
Product detail tabs
Overview
The lightweight spray gun has an adjustable spray pattern from round to a wide fan.
The atomizing cap needs to be adjusted for horizontal or vertical spraying patterns. Spraying in the wrong direction may lead to material build up on the atomizing cap horn.
The two-stage trigger releases compressed air for blowing off the work piece in stage one and sprays material in stage two.
This set has a two-liter pressurized paint cup with a built-in regulator and hook-type handle for easy use.
It is ideal for painting large areas such as trucks, busses, and vans.
The W1811 comes with a 2-year warranty which covers parts and assures the unit is free from factory defects.
The W1811 manual was written by our U.S. based-Technical Documentation Department. The complete and easy-to-read manual makes it easier to assemble and maintain your spray gun.
We stand behind our tools! In the event that questions arise, please contact our knowledgeable staff to help you troubleshoot problems and process warranty claims
W1802 Pressure Feed Professional Spray Gun Set
A spray system for medium to high viscosity liquids.
The lightweight spray gun has an adjustable spray pattern from round to a wide fan.
The atomizing cap needs to be adjusted for horizontal or vertical spraying patterns. Spraying in the wrong direction may lead to material build up on the atomizing cap horn.
The two-stage trigger releases compressed air for blowing off the work piece in stage one and sprays material in stage two.
This set has a two-liter pressurized paint cup with a built-in regulator and hook-type handle for easy use.
It is ideal for painting large areas such as trucks, busses, and vans.
The W1811 comes with a 2-year warranty which covers parts and assures the unit is free from factory defects.
The W1811 manual was written by our U.S. based-Technical Documentation Department. The complete and easy-to-read manual makes it easier to assemble and maintain your spray gun.
We stand behind our tools! In the event that questions arise, please contact our knowledgeable staff to help you troubleshoot problems and process warranty claims
SPECIFICATIONS:
- Type: Pressurized cup
- Required pressure: 29–43.5 PSI
- Material capacity: 2 quarts
- Pattern width: 180–230 mm
- Fluid tip: 2 mm
- Optional tip range: 1.5–2.5mm
- Air consumption: 6 CFM
- Air hose inlet: 1/4" NPT
- Fluid hose inlet: 3/8" NPS
- Hose length: 5 feet
