Item# T20828 Model# M1003

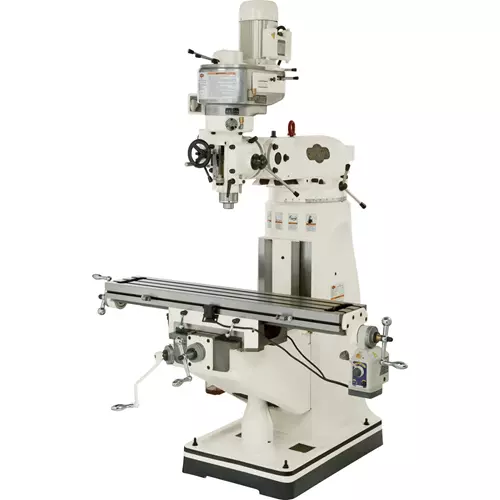

Shop Fox T20828 - Vertical Mill 9" x 49"

    Weighing in at over 2400 lbs of cast iron and hardened precision ground steel, Model M1003 has the size and stability to handle the toughest jobs. With a 2 HP motor driving 8 speeds from 78 to 2400 RPM, 3 speed quill feed with a micrometer depth stop and auto reverse, and a variable speed longitudinal power feed, this machine has the ability to do the most complex and precise jobs. This brute has both power and finesse!

  • One-shot pump lubrication
  • Auto down feed
  • Quill feeds/spindle rev.: .0019", .0035", .0058" Auto stop with micro adjustable stop
  • R-8 spindle Longitudinal power feed
  • Hardened and ground table surface Chrome plated, precision-ground quill
  • Adjustable micrometer quill depth stop
  • Motor: 2 HP, 110V/220V, single-phase, TEFC, prewired to 220V
  • Spindle travel: 5"
  • Table size: 9" x 49"
  • Table travel (longitudinal): 27"
  • Table travel (cross): 12"
  • Max. dist. spindle to table: 18-3/4"
  • Max. dist. spindle to column: 18-1/2"
  • Knee travel: 16"
  • Head tilt: 45° both ways
  • Head swivel: 90° both ways
  • T-slots: 3 on 2-1/2" centers, 1/2" studs
  • Speeds: 8 Range of speeds: 78, 98, 197, 278, 670, 850, 1700 and 2400 RPM
  • Approximate shipping weight: 2405 lbs.
View More Details

Recommended For You

Overview
    Weighing in at over 2400 lbs of cast iron and hardened precision ground steel, Model M1003 has the size and stability to handle the toughest jobs. With a 2 HP motor driving 8 speeds from 78 to 2400 RPM, 3 speed quill feed with a micrometer depth stop and auto reverse, and a variable speed longitudinal power feed, this machine has the ability to do the most complex and precise jobs. This brute has both power and finesse!

  • One-shot pump lubrication
  • Auto down feed
  • Quill feeds/spindle rev.: .0019", .0035", .0058" Auto stop with micro adjustable stop
  • R-8 spindle Longitudinal power feed
  • Hardened and ground table surface Chrome plated, precision-ground quill
  • Adjustable micrometer quill depth stop
  • Motor: 2 HP, 110V/220V, single-phase, TEFC, prewired to 220V
  • Spindle travel: 5"
  • Table size: 9" x 49"
  • Table travel (longitudinal): 27"
  • Table travel (cross): 12"
  • Max. dist. spindle to table: 18-3/4"
  • Max. dist. spindle to column: 18-1/2"
  • Knee travel: 16"
  • Head tilt: 45° both ways
  • Head swivel: 90° both ways
  • T-slots: 3 on 2-1/2" centers, 1/2" studs
  • Speeds: 8 Range of speeds: 78, 98, 197, 278, 670, 850, 1700 and 2400 RPM
  • Approximate shipping weight: 2405 lbs.
