Item: SB1008 | Model: SB1008
1 Product Photos

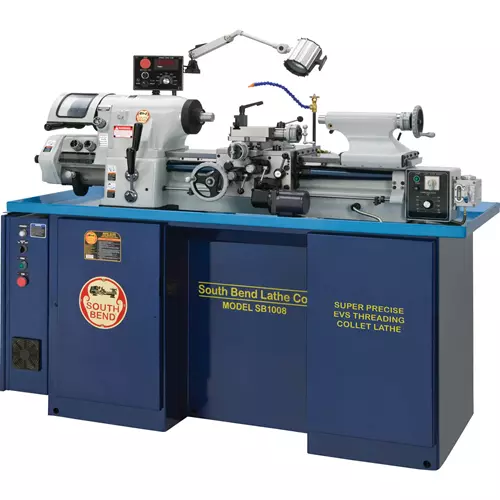

South Bend SB1008 - Super Precision EVS Threading Collet Lathe
Sale price limited to stock on handSpindle runout within 0.00125 mm (50 millionths of an inch) Hardened and ground spindle mounted on high-precision angular-contact bearings for sustained precision and rigidity Infinitely variable spindle speed between 50-4000 RPM 3 HP motor with current-vector inverter drive for increased low-end torque Fast lever-action collet closer Independent variable feeds for carriage and cross slide Turcite B slideway bearing surface between carriage and bed Quick change inch and metric gearbox Inch and metric dual dials Automatic threading stop and control High-quality Japanese Yaskawa Inverter An ideal machine for super high-precision work on small parts using 5-C collets 5-C bar stock diameter up to 1.0625" Built to extremely high South Bend standards for industrial-duty use. Swing over bed: 11" Distance between centers: 18" Swing over cross slide: 5.98" Swing over saddle: 9.05" Cross slide travel: 6" Compound travel: 3" Carriage travel: 25" Spindle nose: 5-C (10°) Spindle bore: 1.25" Spindle taper: 4° Spindle speeds w/ 5-C: 50-4000 RPM Spindle speed w/ 6" 3-Jaw Chuck: 50-3000 RPM Tailstock taper MT #2 Tailstock travel : 3.75" Tailstock barrel diameter: 1.358" Inch threads: 11-108 TPI Metric threads: 0.275-2.7 mm Modular pitches: N/A Diametral pitches: N/A Number of longitudinal feeds: Variable Longitudinal feed range: 0.3125"-7"/min Number of cross feeds: Variable Cross feed range: 0.1875"-4"/min Voltage/phase/amps: 220V, 3-Phase, 10A Spindle motor: 3 HP Coolant motor: 1/8 HP Feed inverter motor: 1/2 HP Machine footprint : 59" x 25" Approximate shipping weight: 2004 lbs.
View More Details
Incredible Sale!
With a spindle runout of less than 50 millionths of an inch, these lathes are the most accurate in the world and indispensable when precision, speed and repeatability are important.
Features:
Tool post is optional
CAPACITY
HEADSTOCK
TAILSTOCK:
THREADS
FEEDS
ELECTRICAL
GENERAL
Accessories
Overview
Sale price limited to stock on handSpindle runout within 0.00125 mm (50 millionths of an inch) Hardened and ground spindle mounted on high-precision angular-contact bearings for sustained precision and rigidity Infinitely variable spindle speed between 50-4000 RPM 3 HP motor with current-vector inverter drive for increased low-end torque Fast lever-action collet closer Independent variable feeds for carriage and cross slide Turcite B slideway bearing surface between carriage and bed Quick change inch and metric gearbox Inch and metric dual dials Automatic threading stop and control High-quality Japanese Yaskawa Inverter An ideal machine for super high-precision work on small parts using 5-C collets 5-C bar stock diameter up to 1.0625" Built to extremely high South Bend standards for industrial-duty use. Swing over bed: 11" Distance between centers: 18" Swing over cross slide: 5.98" Swing over saddle: 9.05" Cross slide travel: 6" Compound travel: 3" Carriage travel: 25" Spindle nose: 5-C (10°) Spindle bore: 1.25" Spindle taper: 4° Spindle speeds w/ 5-C: 50-4000 RPM Spindle speed w/ 6" 3-Jaw Chuck: 50-3000 RPM Tailstock taper MT #2 Tailstock travel : 3.75" Tailstock barrel diameter: 1.358" Inch threads: 11-108 TPI Metric threads: 0.275-2.7 mm Modular pitches: N/A Diametral pitches: N/A Number of longitudinal feeds: Variable Longitudinal feed range: 0.3125"-7"/min Number of cross feeds: Variable Cross feed range: 0.1875"-4"/min Voltage/phase/amps: 220V, 3-Phase, 10A Spindle motor: 3 HP Coolant motor: 1/8 HP Feed inverter motor: 1/2 HP Machine footprint : 59" x 25" Approximate shipping weight: 2004 lbs.
Incredible Sale!
With a spindle runout of less than 50 millionths of an inch, these lathes are the most accurate in the world and indispensable when precision, speed and repeatability are important.
Features:
Tool post is optional
CAPACITY
HEADSTOCK
TAILSTOCK:
THREADS
FEEDS
ELECTRICAL
GENERAL
