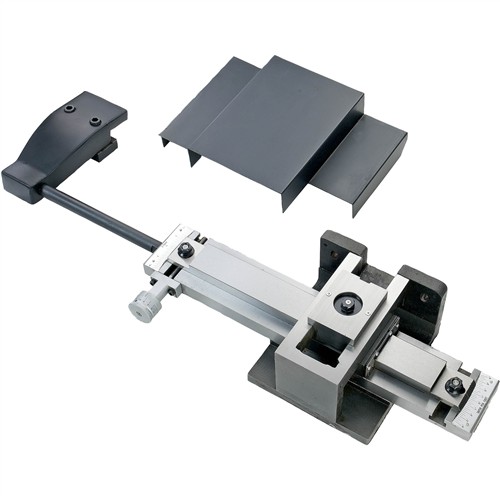

SB1085 Taper Turning Attachment for South Bend Big Bore Lathes

Upgrade your lathe for precise taper machining.

The SB1085 Taper Attachment mounts to the back bed way of your lathe. Accurate tapers can be cut without repositioning the attachment or having to offset the tailstock.

You can use the taper attachment without disengaging the cross-slide nut. This design allows the taper attachment to be functional at any time by simply tightening the two deadman clamp cap screws that lock the deadman clamp to the rear lathe way.

The SB1085 features an inch scale and a degree scale. An angle adjusting knob with fine threads achieves precise control when setting tapers.

This taper attachment fits our entire line of South Bend Big Bore lathes and needs to be ordered at the time of lathe purchase, as it will be installed at the factory.

SPECIFICATIONS:

• Taper per inch:
• Max taper length:
• Minor inch scale divisions:
• Major inch scale divisions:
• Taper angle range:
• Minor angle scale divisions:
• Major angle scale divisions:
• Approximate shipping weight:

FEATURES:

• Fine-grain cast-iron body
• Dual inch and degree scales
• Fine screw taper adjustment knob
• Three-way adjustable external gib

FITS:

• SB1065F
• SB1066F
• SB1067F
• SB1068F
• SB1069F
• SB1070F
• SB1071F

Made in an ISO 9001 factory

Need help?

South Bend offers U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition. And to ensure your satisfaction, the SB1085 comes with a 1-year warranty.
