Parts for ST1012 15" Planer with Helical-Style Cutterhead

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

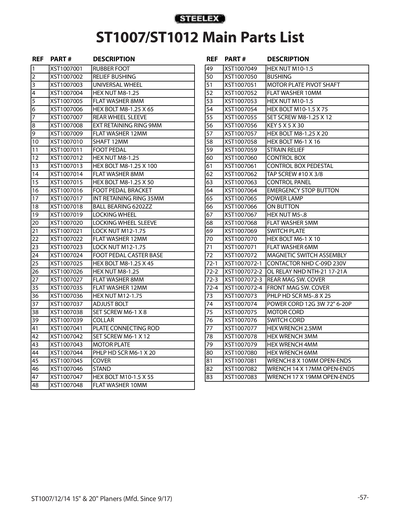

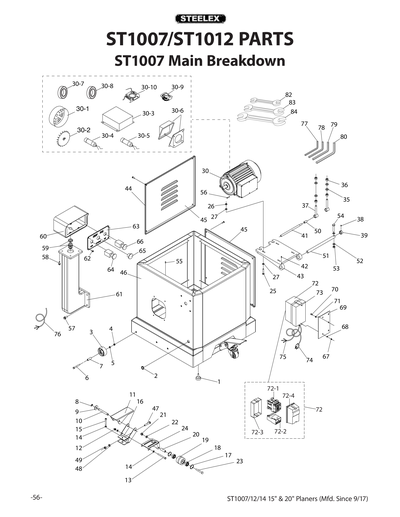

PXST1012001
RUBBER FOOT
Price
N/A
PXST1012002
RELIEF BUSHING
Price
N/A
PXST1012003
UNIVERSAL WHEEL
Price
N/A
PXST1012004
Now: PN03M
HEX NUT M8-1.25
Price
N/A
PXST1012005
Now: PW01M
FLAT WASHER 8MM
Price
N/A
PXST1012006
Now: PB86M
HEX BOLT M8-1.25 X 65
Price
N/A
PXST1012007
REAR WHEEL SLEEVE
Price
N/A
PXST1012008
Now: PR16M
EXT RETAINING RING 9MM
Price
N/A
PXST1012009
Now: PW06M
FLAT WASHER 12MM
Price
N/A
PXST1012010
SHAFT 12MM
Price
N/A
PXST1012011
FOOT PEDAL
Price
N/A
PXST1012012
Now: PN03M
HEX NUT M8-1.25
Price
N/A
PXST1012013
Now: PB45M
HEX BOLT M8-1.25 X 100
Price
N/A
PXST1012014
Now: PW01M
FLAT WASHER 8MM
Price
N/A
PXST1012015
Now: PB22M
HEX BOLT M8-1.25 X 50
Price
N/A
PXST1012016
FOOT PEDAL BRACKET
Price
N/A
PXST1012017
Now: PR21M
INT RETAINING RING 35MM
Price
N/A
PXST1012018
BALL BEARING 6202ZZ
Price
N/A
PXST1012019
LOCKING WHEEL
Price
N/A
PXST1012020
LOCKING WHEEL SLEEVE
Price
N/A
PXST1012021
LOCK NUT M12-1.75
Price
N/A
PXST1012022
Now: PW06M
FLAT WASHER 12MM
Price
N/A
PXST1012023
LOCK NUT M12-1.75
Price
N/A
PXST1012024
FOOT PEDAL CASTER BASE
Price
N/A
PXST1012025
HEX BOLT M8-1.25 X 45
Price
N/A
PXST1012026
Now: PN03M
HEX NUT M8-1.25
Price
N/A
PXST1012027
Now: PW01M
FLAT WASHER 8MM
Price
N/A
PXST1012030
MOTOR 3HP 240V 1-PH
Item is no longer available
Price
N/A
PXST1012030-1
MOTOR FAN COVER
Item is no longer available
Price
N/A
PXST1012030-10
CONTACT PLATE 16MM
Item is no longer available
Price
N/A
P
MOTOR FAN
PXST1012030-3
CAPACITOR COVER
Item is no longer available
Price
N/A
PXST1012030-4
R CAPACITOR 40M 450V
Item is no longer available
Price
N/A
PXST1012030-5
S CAPACITOR 250M 300V
Item is no longer available
Price
N/A
PXST1012030-6
MOTOR JUNCTION BOX
Item is no longer available
Price
N/A
PXST1012030-7
BALL BEARING 6204ZZ
Price
N/A
PXST1012030-8
BALL BEARING 6203ZZ
Price
N/A
PXST1012030-9
CENTRIFUGAL SWITCH 16MM 3450 RPM
Item is no longer available
Price
N/A
PXST1012035
Now: PW06M
FLAT WASHER 12MM
Price
N/A
PXST1012036
Now: PN09M
HEX NUT M12-1.75
Price
N/A
PXST1012037
ADJUST BOLT
Price
N/A
PXST1012038
SET SCREW M6-1 X 8
Price
N/A
PXST1012039
COLLAR
Price
N/A
PXST1012041
PLATE CONNECTING ROD
Price
N/A
PXST1012042
SET SCREW M6-1 X 12
Price
N/A
PXST1012043
MOTOR PLATE
Price
N/A
PXST1012044
Now: PS26M
PHLP HD SCR M6-1 X 20
Price
N/A
PXST1012045
COVER
Price
N/A
PXST1012046
STAND
Price
N/A
PXST1012047
HEX BOLT M10-1.5 X 55
Price
N/A
PXST1012048
Now: PW04M
FLAT WASHER 10MM
Price
N/A
PXST1012049
Now: PN02M
HEX NUT M10-1.5
Price
N/A
PXST1012050
BUSHING
Price
N/A
PXST1012051
MOTOR PLATE PIVOT SHAFT
Price
N/A
PXST1012052
Now: PW04M
FLAT WASHER 10MM
Price
N/A
PXST1012053
Now: PN02M
HEX NUT M10-1.5
Price
N/A
PXST1012054
Now: PB44M
HEX BOLT M10-1.5 X 75
Price
N/A
PXST1012055
SET SCREW M8-1.25 X 12
Price
N/A
PXST1012056
Now: PK12M
KEY 5 X 5 X 30
Price
N/A
PXST1012057
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
PXST1012058
Now: PB83M
HEX BOLT M6-1 X 16
Price
N/A
PXST1012059
STRAIN RELIEF
Price
N/A
PXST1012060
CONTROL BOX
Price
N/A
PXST1012061
CONTROL BOX PEDESTAL
Price
N/A
PXST1012062
TAP SCREW #10 X 3/8
Price
N/A
PXST1012063
CONTROL PANEL
Price
N/A
PXST1012064
EMERGENCY STOP BUTTON
Price
N/A
PXST1012065
POWER LAMP
Price
N/A
PXST1012066
ON BUTTON
Price
N/A
PXST1012067
Now: PN06M
HEX NUT M5-.8
Price
N/A
PXST1012068
Now: PW02M
FLAT WASHER 5MM
Price
N/A
PXST1012069
SWITCH PLATE
Price
N/A
PXST1012070
Now: PB04M
HEX BOLT M6-1 X 10
Price
N/A
PXST1012071
Now: PW03M
FLAT WASHER 6MM
Price
N/A
PXST1012072
MAGNETIC SWITCH ASSEMBLY
Price
N/A
PXST1012072-1
CONTACTOR NHD C-09D 230V
Price
N/A
PXST1012072-2
OL RELAY NHD NTH-21 17-21A
Price
N/A
PXST1012072-3
REAR MAG SW. COVER
Price
N/A
PXST1012072-4
FRONT MAG SW. COVER
Price
N/A
PXST1012073
Now: PS22M
PHLP HD SCR M5-.8 X 25
Price
N/A
PXST1012074
POWER CORD 12G 3W 72" 6-20P
Price
N/A
PXST1012075
MOTOR CORD
Price
N/A
PXST1012076
SWITCH CORD
Price
N/A
PXST1012077
HEX WRENCH 2.5MM
Price
N/A
PXST1012078
HEX WRENCH 3MM
Price
N/A
PXST1012079
HEX WRENCH 4MM
Price
N/A
PXST1012080
HEX WRENCH 6MM
Price
N/A
PXST1012081
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
PXST1012082
WRENCH 14 X 17MM OPEN-ENDS
Price
N/A
PXST1012083
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A

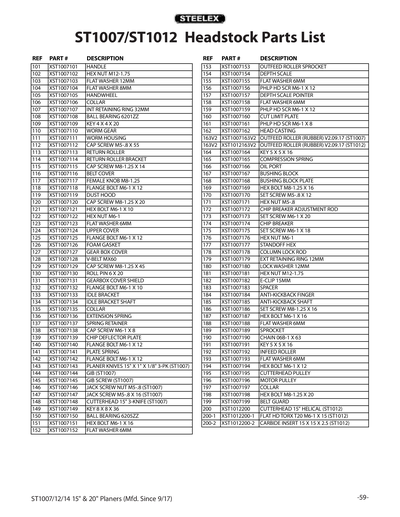

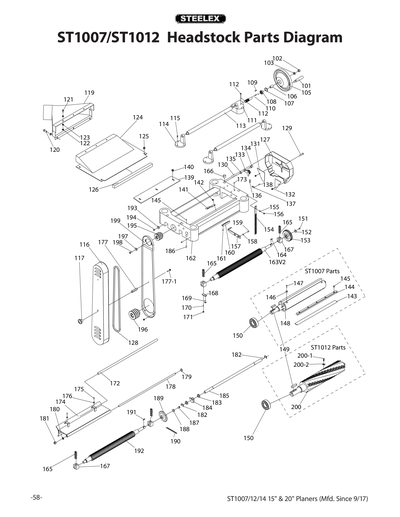

PXST1012101
HANDLE
Price
N/A
PXST1012102
Now: PN09M
HEX NUT M12-1.75
Price
N/A
PXST1012103
Now: PW06M
FLAT WASHER 12MM
Price
N/A
PXST1012104
Now: PW01M
FLAT WASHER 8MM
Price
N/A
PXST1012105
HANDWHEEL
Price
N/A
PXST1012106
COLLAR
Price
N/A
PXST1012107
Now: PR29M
INT RETAINING RING 32MM
Price
N/A
PXST1012108
BALL BEARING 6201ZZ
Price
N/A
PXST1012109
Now: PK48M
KEY 4 X 4 X 20
Price
N/A
PXST1012110
WORM GEAR
Price
N/A
PXST1012111
WORM HOUSING
Price
N/A
PXST1012112
CAP SCREW M5-.8 X 55
Price
N/A
PXST1012113
RETURN ROLLER
Price
N/A
PXST1012114
RETURN ROLLER BRACKET
Price
N/A
PXST1012115
CAP SCREW M8-1.25 X 14
Price
N/A
PXST1012116
BELT COVER
Price
N/A
PXST1012117
FEMALE KNOB M8-1.25
Price
N/A
PXST1012118
FLANGE BOLT M6-1 X 12
Price
N/A
PXST1012119
*** USE P0453056***
Price
N/A
PXST1012120
CAP SCREW M8-1.25 X 20
Price
N/A
PXST1012121
Now: PB04M
HEX BOLT M6-1 X 10
Price
N/A
PXST1012122
Now: PN01M
HEX NUT M6-1
Price
N/A
PXST1012123
Now: PW03M
FLAT WASHER 6MM
Price
N/A
PXST1012124
UPPER COVER
Price
N/A
PXST1012125
FLANGE BOLT M6-1 X 12
Price
N/A
PXST1012126
FOAM GASKET
Item is no longer available
Price
N/A
PXST1012127
GEAR BOX COVER
Price
N/A
PXST1012128
Now: PVM60
V-BELT M60 3L600
Price
N/A
PXST1012129
CAP SCREW M8-1.25 X 45
Price
N/A
PXST1012130
ROLL PIN 6 X 20
Price
N/A
PXST1012131
GEARBOX COVER SHIELD
Price
N/A
PXST1012132
FLANGE BOLT M6-1 X 10
Price
N/A
PXST1012133
IDLE BRACKET
Price
N/A
PXST1012134
IDLE BRACKET SHAFT
Price
N/A
PXST1012135
COLLAR
Price
N/A
PXST1012136
EXTENSION SPRING
Price
N/A
PXST1012137
SPRING RETAINER
Price
N/A
PXST1012138
CAP SCREW M6-1 X 8
Price
N/A
PXST1012139
CHIP DEFLECTOR PLATE
Price
N/A
PXST1012140
FLANGE BOLT M6-1 X 12
Price
N/A
PXST1012141
PLATE SPRING
Price
N/A
PXST1012142
FLANGE BOLT M6-1 X 12
Price
N/A
PXST1012149
KEY 8 X 8 X 36
Price
N/A
PXST1012150
BALL BEARING 6205ZZ
Price
N/A
PXST1012151
Now: PB83M
HEX BOLT M6-1 X 16
Price
N/A
PXST1012152
Now: PW03M
FLAT WASHER 6MM
Price
N/A
PXST1012153
OUTFEED ROLLER SPROCKET
Price
N/A
PXST1012154
DEPTH SCALE
Price
N/A
PXST1012155
Now: PW03M
FLAT WASHER 6MM
Price
N/A
PXST1012156
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
PXST1012157
DEPTH SCALE POINTER
Price
N/A
PXST1012158
Now: PW03M
FLAT WASHER 6MM
Price
N/A
PXST1012159
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
PXST1012160
CUT LIMIT PLATE
Price
N/A
PXST1012161
Now: PS03M
PHLP HD SCR M6-1 X 8
Price
N/A
PXST1012162
HEAD CASTING
Price
N/A
PXST1012163
*** USE P0453081***
Price
N/A
PXST1012163V2
Now: D4784
Rubber Outfeed Roller for W1742/ST1007
Price
N/A
PXST1012164
Now: PK08M
KEY 5 X 5 X 16
Price
N/A
PXST1012165
COMPRESSION SPRING
Price
N/A
PXST1012166
OIL PORT
Price
N/A
PXST1012167
BUSHING BLOCK
Price
N/A
PXST1012168
BUSHING BLOCK PLATE
Price
N/A
PXST1012169
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
PXST1012170
SET SCREW M5-.8 X 12
Price
N/A
PXST1012171
Now: PN06M
HEX NUT M5-.8
Price
N/A
PXST1012172
CHIP BREAKER ADJUSTMENT ROD
Price
N/A
PXST1012173
SET SCREW M6-1 X 20
Price
N/A
PXST1012174
CHIP BREAKER
Price
N/A
PXST1012175
SET SCREW M6-1 X 18
Price
N/A
PXST1012176
Now: PN01M
HEX NUT M6-1
Price
N/A
PXST1012177
STANDOFF HEX
Price
N/A
PXST1012178
COLUMN LOCK ROD
Price
N/A
PXST1012179
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
PXST1012180
LOCK WASHER 12MM
Price
N/A
PXST1012181
Now: PN09M
HEX NUT M12-1.75
Price
N/A
PXST1012182
E-CLIP 15MM
Price
N/A
PXST1012183
SPACER
Price
N/A
PXST1012184
ANTI-KICKBACK FINGER
Price
N/A
PXST1012185
ANTI-KICKBACK SHAFT
Price
N/A
PXST1012186
SET SCREW M8-1.25 X 16
Price
N/A
PXST1012187
Now: PB83M
HEX BOLT M6-1 X 16
Price
N/A
PXST1012188
Now: PW03M
FLAT WASHER 6MM
Price
N/A
PXST1012189
SPROCKET
Price
N/A
PXST1012190
CHAIN 06B-1 X 63
Price
N/A
PXST1012191
Now: PK08M
KEY 5 X 5 X 16
Price
N/A
PXST1012192
*** USE P0453095***
Price
N/A
PXST1012193
Now: PW03M
FLAT WASHER 6MM
Price
N/A
PXST1012194
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
PXST1012195
CUTTERHEAD PULLEY
Price
N/A
PXST1012196
MOTOR PULLEY
Price
N/A
PXST1012197
COLLAR
Price
N/A
PXST1012198
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
PXST1012199
BELT GUARD
Price
N/A
PXST1012200
CUTTERHEAD 15" HELICAL
Item is no longer available
Price
N/A
P
FLAT HD TORX T20 M6-1 X 15
PXST1012200-2
Replacement Inserts for Helical Cutterheads - 15 x 15 x 2.5mm, 10 Pk.
Price
N/A
PXST1012201
GEARBOX COVER
Price
N/A
PXST1012202
Now: PB10M
HEX BOLT M6-1 X 25
Price
N/A
PXST1012203
SPROCKET
Price
N/A
PXST1012204

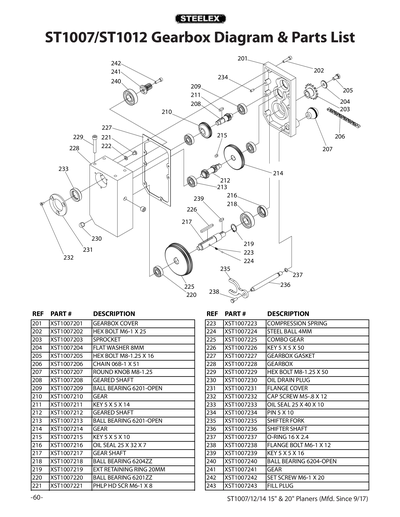

Now: PW01M
FLAT WASHER 8MM
Price
N/A
PXST1012205
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
PXST1012206
CHAIN 06B-1 X 51
Price
N/A
PXST1012207
ROUND KNOB M8-1.25
Price
N/A
PXST1012208
GEARED SHAFT
Price
N/A
PXST1012209
BALL BEARING 6201-OPEN
Price
N/A
PXST1012210
GEAR
Price
N/A
PXST1012211
Now: PK19M
KEY 5 X 5 X 14
Price
N/A
PXST1012212
GEARED SHAFT
Price
N/A
PXST1012213
BALL BEARING 6201-OPEN
Price
N/A
PXST1012214
GEAR
Price
N/A
PXST1012215
Now: PK06M
KEY 5 X 5 X 10
Price
N/A
PXST1012216
OIL SEAL 25 X 32 X 7
Price
N/A
PXST1012217
GEAR SHAFT
Price
N/A
PXST1012218
BALL BEARING 6204ZZ
Price
N/A
PXST1012219
Now: PR09M
EXT RETAINING RING 20MM
Price
N/A
PXST1012220
BALL BEARING 6201ZZ
Price
N/A
PXST1012221
Now: PS03M
PHLP HD SCR M6-1 X 8
Price
N/A
PXST1012222
Now: PW03M
FLAT WASHER 6MM
Price
N/A
PXST1012223
COMPRESSION SPRING
Price
N/A
PXST1012224
STEEL BALL 4MM
Price
N/A
PXST1012225
COMBO GEAR
Price
N/A
PXST1012226
Now: PK36M
KEY 5 X 5 X 50
Price
N/A
PXST1012227
GEARBOX GASKET
Price
N/A
PXST1012228
GEARBOX
Price
N/A
PXST1012229
Now: PB22M
HEX BOLT M8-1.25 X 50
Price
N/A
PXST1012230
OIL DRAIN PLUG
Price
N/A
PXST1012231
FLANGE COVER
Price
N/A
PXST1012232
CAP SCREW M5-.8 X 12
Price
N/A
PXST1012233
OIL SEAL 25 X 40 X 10
Price
N/A
PXST1012234
PIN 5 X 10
Price
N/A
PXST1012235
SHIFTER FORK
Price
N/A
PXST1012236
SHIFTER SHAFT
Price
N/A
PXST1012237
O-RING 16 X 2.4
Price
N/A
PXST1012238
FLANGE BOLT M6-1 X 12
Price
N/A
PXST1012239
Now: PK08M
KEY 5 X 5 X 16
Price
N/A
PXST1012240
BALL BEARING 6204-OPEN
Price
N/A
PXST1012241
GEAR
Price
N/A
PXST1012242
SET SCREW M6-1 X 20
Price
N/A
PXST1012243
FILL PLUG
Price
N/A

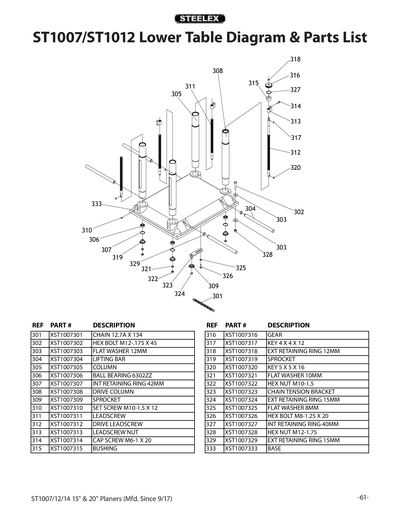

PXST1012301
CHAIN 12.7A X 134
Price
N/A
PXST1012302
Now: PB24M
HEX BOLT M12-1.75 X 45
Price
N/A
PXST1012303
Now: PW06M
FLAT WASHER 12MM
Price
N/A
PXST1012304
LIFTING BAR
Price
N/A
PXST1012305
COLUMN
Price
N/A
PXST1012306
BALL BEARING 6302ZZ
Price
N/A
PXST1012307
Now: PR24M
INT RETAINING RING 42MM
Price
N/A
PXST1012308
DRIVE COLUMN
Price
N/A
PXST1012309
SPROCKET
Item is no longer available
Price
N/A
PXST1012310
SET SCREW M10-1.5 X 12
Price
N/A
PXST1012311
LEADSCREW
Price
N/A
PXST1012312
DRIVE LEADSCREW
Price
N/A
PXST1012313
LEADSCREW NUT
Price
N/A
PXST1012314
CAP SCREW M6-1 X 20
Price
N/A
PXST1012315
BUSHING
Price
N/A
PXST1012316
GEAR
Price
N/A
PXST1012317
Now: PK69M
KEY 4 X 4 X 12
Price
N/A
PXST1012318
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
PXST1012319
SPROCKET
Price
N/A
PXST1012320
Now: PK08M
KEY 5 X 5 X 16
Price
N/A
PXST1012321
Now: PW04M
FLAT WASHER 10MM
Price
N/A
PXST1012322
Now: PN02M
HEX NUT M10-1.5
Price
N/A
PXST1012323
CHAIN TENSION BRACKET
Price
N/A
PXST1012324
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
PXST1012325
Now: PW01M
FLAT WASHER 8MM
Price
N/A
PXST1012326
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
PXST1012327
Now: PR23M
INT RETAINING RING 40MM
Price
N/A
PXST1012328
Now: PN09M
HEX NUT M12-1.75
Price
N/A
PXST1012329
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
PXST1012333
BASE
Price
N/A

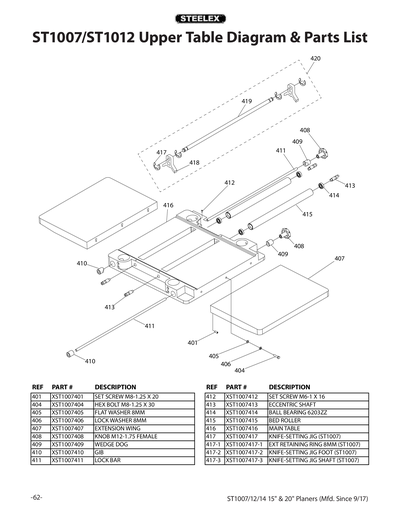

PXST1012401
SET SCREW M8-1.25 X 20
Price
N/A
PXST1012404
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
PXST1012405
Now: PW01M
FLAT WASHER 8MM
Price
N/A
PXST1012406
LOCK WASHER 8MM
Price
N/A
PXST1012407
EXTENSION WING
Price
N/A
PXST1012408
KNOB M12-1.75 FEMALE
Price
N/A
PXST1012409
WEDGE DOG
Price
N/A
PXST1012410
GIB
Price
N/A
PXST1012411
LOCK BAR
Price
N/A
PXST1012412
SET SCREW M6-1 X 16
Price
N/A
PXST1012413
ECCENTRIC SHAFT
Price
N/A
PXST1012414
BALL BEARING 6203ZZ
Price
N/A
PXST1012415
BED ROLLER
Price
N/A
PXST1012416
MAIN TABLE
Price
N/A

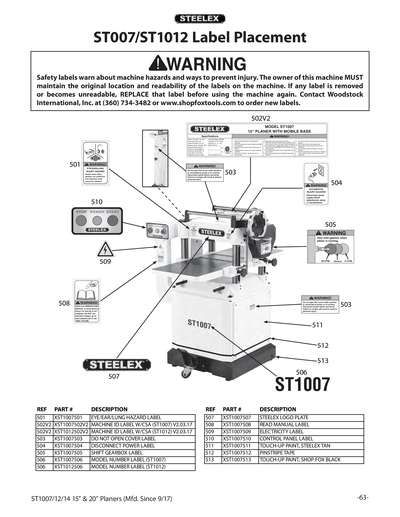

PXST1012502
MACHINE ID LABEL V1
Item is no longer available
Price
N/A
PXST1012502V2
MACHINE ID LABEL W/CSA V2.08.16
Item is no longer available
Price
N/A
PXST1012503
DO NOT OPEN COVER LABEL
Price
N/A
PXST1012504
DISCONNECT 110V 2W X 3.3H
Price
N/A
PXST1012505
SHIFT GEARBOX LABEL
Price
N/A
PXST1012506
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
PXST1012507
STEELEX NAMEPLATE
Price
N/A
PXST1012508
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
PXST1012509
ELECTRICITY 0.5W X 0.4H
Price
N/A
PXST1012510
CONTROL PANEL LABEL
Price
N/A
PXST1012511
STEELEX MACHINE GREY
Price
N/A
PXST1012512
PINSTRIPE TAPE
Price
N/A
PXST1012513
GLOSSY BLACK
Price
N/A
PXST1012MAN
MANUAL ST1007/12/14 MFD-04.16 V1.04.16
Price
N/A
PXST1012MANV2
MANUAL ST1007/12/14 MFD-04.16 V2.08.16
Price
N/A
