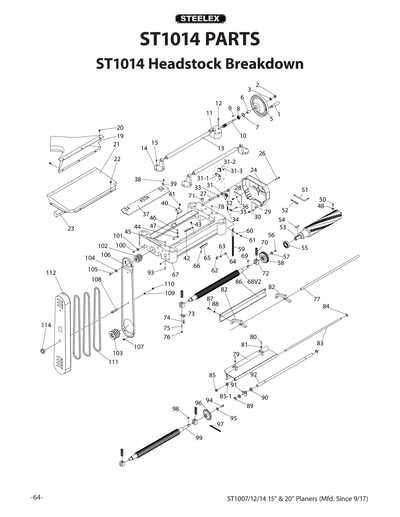

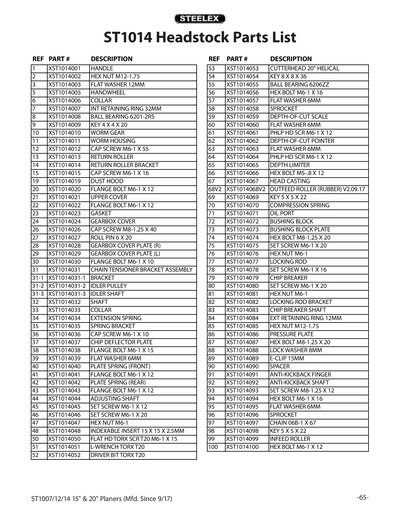

Parts for ST1014 20" Planer with Helical-Style Cutterhead

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

P
HANDLE
PXST1014002
Now: PN09M
HEX NUT M12-1.75
Price
N/A
PXST1014003
Now: PW06M
FLAT WASHER 12MM
Price
N/A
PXST1014005
HANDWHEEL
Item is no longer available
Price
N/A
P
COLLAR
PXST1014007
Now: PR29M
INT RETAINING RING 32MM
Price
N/A
PXST1014008
BALL BEARING 6201-2RS
Price
N/A
PXST1014009
Now: PK48M
KEY 4 X 4 X 20
Price
N/A
P
WORM GEAR
PXST1014011
WORM HOUSING
Item is no longer available
Price
N/A
PXST1014012
CAP SCREW M6-1 X 55
Price
N/A
PXST1014013
RETURN ROLLER
Item is no longer available
Price
N/A
PXST1014014
RETURN ROLLER BRACKET
Item is no longer available
Price
N/A
PXST1014015
CAP SCREW M6-1 X 16
Price
N/A
PXST1014019
DUST HOOD
Item is no longer available
Price
N/A
PXST1014020
FLANGE BOLT M6-1 X 12
Price
N/A
PXST1014021
UPPER COVER
Item is no longer available
Price
N/A
PXST1014022
FLANGE BOLT M6-1 X 12
Price
N/A
PXST1014023
GASKET
Item is no longer available
Price
N/A
P
GEARBOX COVER
PXST1014026
CAP SCREW M8-1.25 X 40
Price
N/A
PXST1014027
ROLL PIN 6 X 20
Price
N/A
PXST1014028
GEARBOX COVER PLATE (R)
Item is no longer available
Price
N/A
PXST1014029
GEARBOX COVER PLATE (L)
Item is no longer available
Price
N/A
PXST1014030
FLANGE BOLT M6-1 X 10
Price
N/A
PXST1014031
CHAIN TENSIONER BRACKET ASSEMBLY
Item is no longer available
Price
N/A
PXST1014031-1
BRACKET
Item is no longer available
Price
N/A
PXST1014031-2
IDLER PULLEY
Item is no longer available
Price
N/A
PXST1014031-3
IDLER SHAFT
Item is no longer available
Price
N/A
PXST1014032
SHAFT
Item is no longer available
Price
N/A
PXST1014033
COLLAR
Item is no longer available
Price
N/A
PXST1014034
EXTENSION SPRING
Item is no longer available
Price
N/A
PXST1014035
SPRING BRACKET
Item is no longer available
Price
N/A
PXST1014036
CAP SCREW M6-1 X 10
Price
N/A
PXST1014037
CHIP DEFLECTOR PLATE
Item is no longer available
Price
N/A
PXST1014038
FLANGE BOLT M6-1 X 15
Price
N/A
PXST1014039
Now: PW03M
FLAT WASHER 6MM
Price
N/A
PXST1014040
PLATE SPRING (FRONT)
Item is no longer available
Price
N/A
PXST1014041
FLANGE BOLT M6-1 X 12
Price
N/A
PXST1014042
PLATE SPRING (REAR)
Item is no longer available
Price
N/A
PXST1014043
FLANGE BOLT M6-1 X 12
Price
N/A
PXST1014044
ADJUSTING SHAFT
Item is no longer available
Price
N/A
PXST1014045
SET SCREW M6-1 X 12
Price
N/A
PXST1014046
SET SCREW M6-1 X 20
Price
N/A
PXST1014047
Now: PN01M
HEX NUT M6-1
Price
N/A
PXST1014048
Now: H7319
Indexable Carbide Inserts - 14 x 14 x 2mm, 10-Pk.
Price
N/A
PXST1014050
FLAT HD TORX SCR T20 M6-1 X 15
Price
N/A
PXST1014051
L-WRENCH TORX T20
Price
N/A
PXST1014052
DRIVER BIT TORX T20
Price
N/A
PXST1014053
CUTTERHEAD 20" HELICAL
Item is no longer available
Price
N/A
PXST1014054
KEY 8 X 8 X 36
Price
N/A
PXST1014055
BALL BEARING 6206ZZ
Price
N/A
PXST1014056
Now: PB83M
HEX BOLT M6-1 X 16
Price
N/A
PXST1014057
Now: PW03M
FLAT WASHER 6MM
Price
N/A
PXST1014058
SPROCKET
Item is no longer available
Price
N/A
PXST1014059
DEPTH-OF-CUT SCALE
Item is no longer available
Price
N/A
PXST1014060
Now: PW03M
FLAT WASHER 6MM
Price
N/A
PXST1014061
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
PXST1014062
DEPTH-OF-CUT POINTER
Item is no longer available
Price
N/A
PXST1014063
Now: PW03M
FLAT WASHER 6MM
Price
N/A
PXST1014064
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
PXST1014065
DEPTH LIMITER
Item is no longer available
Price
N/A
PXST1014066
HEX BOLT M5-.8 X 12
Price
N/A
PXST1014067
HEAD CASTING
Item is no longer available
Price
N/A
PXST1014068
OUTFEED ROLLER
Item is no longer available
Price
N/A
PXST1014068V2
Now: D4785
Rubber Outfeed Roller for W1754/ST1014
Price
N/A
PXST1014069
Now: PK01M
KEY 5 X 5 X 22
Price
N/A
PXST1014070
COMPRESSION SPRING
Item is no longer available
Price
N/A
PXST1014071
OIL PORT
Item is no longer available
Price
N/A
PXST1014072
BUSHING BLOCK
Item is no longer available
Price
N/A
PXST1014073
BUSHING BLOCK PLATE
Item is no longer available
Price
N/A
PXST1014074
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
PXST1014075
SET SCREW M6-1 X 20
Price
N/A
PXST1014076
Now: PN01M
HEX NUT M6-1
Price
N/A
PXST1014077
LOCKING ROD
Item is no longer available
Price
N/A
PXST1014078
SET SCREW M6-1 X 16
Price
N/A
PXST1014079
CHIP BREAKER
Item is no longer available
Price
N/A
PXST1014080
SET SCREW M6-1 X 20
Price
N/A
PXST1014081
Now: PN01M
HEX NUT M6-1
Price
N/A
PXST1014082
LOCKING ROD BRACKET
Item is no longer available
Price
N/A
PXST1014083
CHIP BREAKER SHAFT
Item is no longer available
Price
N/A
PXST1014084
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
PXST1014085
Now: PN09M
HEX NUT M12-1.75
Price
N/A
PXST1014086
PRESSURE PLATE
Item is no longer available
Price
N/A
PXST1014087
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
PXST1014088
LOCK WASHER 8MM
Price
N/A
PXST1014089
E-CLIP 15MM
Price
N/A
PXST1014090
SPACER
Item is no longer available
Price
N/A
PXST1014091
ANTI-KICKBACK FINGER
Item is no longer available
Price
N/A
PXST1014092
ANTI-KICKBACK SHAFT
Item is no longer available
Price
N/A
PXST1014093
SET SCREW M8-1.25 X 12
Price
N/A
PXST1014094
Now: PB83M
HEX BOLT M6-1 X 16
Price
N/A
PXST1014095
Now: PW03M
FLAT WASHER 6MM
Price
N/A
PXST1014096
SPROCKET
Item is no longer available
Price
N/A
PXST1014097
CHAIN 06B-1 X 67
Item is no longer available
Price
N/A
PXST1014098
Now: PK01M
KEY 5 X 5 X 22
Price
N/A
PXST1014099
INFEED ROLLER
Item is no longer available
Price
N/A
PXST1014100
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
PXST1014101
Now: PW03M
FLAT WASHER 6MM
Price
N/A
PXST1014102
CUTTERHEAD PULLEY
Item is no longer available
Price
N/A
PXST1014103
MOTOR PULLEY
Item is no longer available
Price
N/A
PXST1014104
Now: PW01M
FLAT WASHER 8MM
Price
N/A
PXST1014105
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
PXST1014106
BELT GUARD
Item is no longer available
Price
N/A
PXST1014107
FLANGE BOLT M6-1 X 10
Price
N/A
PXST1014108
BELT COVER STAND-OFF
Item is no longer available
Price
N/A
PXST1014109
Now: PW01M
FLAT WASHER 8MM
Price
N/A
PXST1014110
Now: PN03M
HEX NUT M8-1.25
Price
N/A
P
COGGED V-BELT MX-60
PXST1014112
BELT COVER
Item is no longer available
Price
N/A
PXST1014114
STAR KNOB M8-1.25
Item is no longer available
Price
N/A
PXST1014115
LOCK WASHER 12MM
Price
N/A

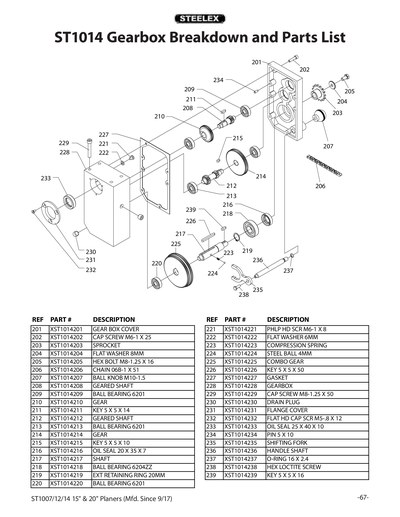

PXST1014201
GEAR BOX COVER
Item is no longer available
Price
N/A
PXST1014202
CAP SCREW M6-1 X 25
Price
N/A
PXST1014203
SPROCKET
Item is no longer available
Price
N/A
PXST1014204
Now: PW01M
FLAT WASHER 8MM
Price
N/A
PXST1014205
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
PXST1014206
CHAIN 06B-1 X 51
Price
N/A
P
BALL KNOB M10-1.5
PXST1014208
GEARED SHAFT
Item is no longer available
Price
N/A
PXST1014209
BALL BEARING 6201ZZ
Price
N/A
PXST1014210
GEAR
Item is no longer available
Price
N/A
PXST1014211
Now: PK19M
KEY 5 X 5 X 14
Price
N/A
PXST1014212
GEARED SHAFT
Item is no longer available
Price
N/A
PXST1014213
BALL BEARING 6201ZZ
Price
N/A
PXST1014214
GEAR
Item is no longer available
Price
N/A
PXST1014215
Now: PK06M
KEY 5 X 5 X 10
Price
N/A
P
OIL SEAL 20 X 35 X 7
PXST1014217
SHAFT
Item is no longer available
Price
N/A
PXST1014218
BALL BEARING 6204ZZ
Price
N/A
PXST1014219
Now: PR09M
EXT RETAINING RING 20MM
Price
N/A
PXST1014220
BALL BEARING 6201ZZ
Price
N/A
PXST1014221
Now: PS03M
PHLP HD SCR M6-1 X 8
Price
N/A
PXST1014222
Now: PW03M
FLAT WASHER 6MM
Price
N/A
PXST1014223
COMPRESSION SPRING
Item is no longer available
Price
N/A
PXST1014224
STEEL BALL 4MM
Price
N/A
PXST1014225
COMBO GEAR
Item is no longer available
Price
N/A
PXST1014226
Now: PK36M
KEY 5 X 5 X 50
Price
N/A
P
GASKET
PXST1014228
GEARBOX
Item is no longer available
Price
N/A
PXST1014229
CAP SCREW M8-1.25 X 50
Price
N/A
PXST1014230
DRAIN PLUG
Item is no longer available
Price
N/A
PXST1014231
FLANGE COVER
Item is no longer available
Price
N/A
PXST1014232
FLAT HD CAP SCR M5-.8 X 12
Price
N/A
P
OIL SEAL 25 X 40 X 10
PXST1014234
PIN 5 X 10
Item is no longer available
Price
N/A
PXST1014235
SHIFTING FORK
Item is no longer available
Price
N/A
PXST1014236
HANDLE SHAFT
Item is no longer available
Price
N/A
PXST1014237
O-RING 16 X 2.4
Item is no longer available
Price
N/A
PXST1014238
HEX LOCTITE SCREW
Item is no longer available
Price
N/A
PXST1014239
Now: PK08M
KEY 5 X 5 X 16
Price
N/A
PXST1014240
FILL PLUG
Item is no longer available
Price
N/A

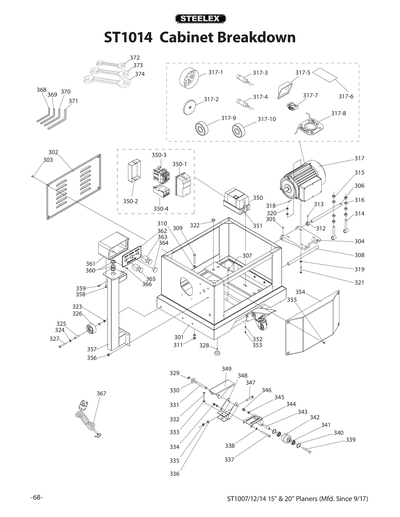

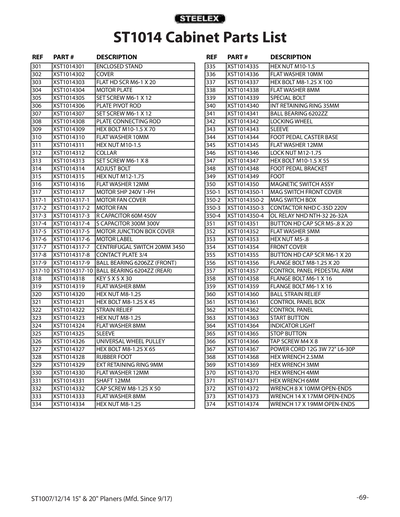

PXST1014301
ENCLOSED STAND
Item is no longer available
Price
N/A
PXST1014302
COVER
Item is no longer available
Price
N/A
PXST1014303
FLAT HD SCR M6-1 X 20
Price
N/A
PXST1014304
MOTOR PLATE
Item is no longer available
Price
N/A
PXST1014305
SET SCREW M6-1 X 12
Price
N/A
PXST1014306
PLATE PIVOT ROD
Item is no longer available
Price
N/A
PXST1014307
SET SCREW M6-1 X 12
Price
N/A
PXST1014308
PLATE CONNECTING ROD
Item is no longer available
Price
N/A
PXST1014309
HEX BOLT M10-1.5 X 70
Price
N/A
PXST1014310
Now: PW04M
FLAT WASHER 10MM
Price
N/A
PXST1014311
Now: PN02M
HEX NUT M10-1.5
Price
N/A
PXST1014312
COLLAR
Item is no longer available
Price
N/A
PXST1014313
SET SCREW M6-1 X 8
Price
N/A
PXST1014314
ADJUST BOLT
Item is no longer available
Price
N/A
PXST1014315
Now: PN09M
HEX NUT M12-1.75
Price
N/A
PXST1014316
Now: PW06M
FLAT WASHER 12MM
Price
N/A
P
MOTOR 5HP 240V 1-PH
PXST1014317-1
MOTOR FAN COVER
Item is no longer available
Price
N/A
PXST1014317-10
BALL BEARING 6204ZZ
Price
N/A
P
MOTOR FAN
PXST1014317-3
R CAPACITOR 60M 450V
Item is no longer available
Price
N/A
P
S CAPACITOR 300M 300V
PXST1014317-5
MOTOR JUNCTION BOX
Item is no longer available
Price
N/A
PXST1014317-6
MOTOR LABEL
Item is no longer available
Price
N/A
PXST1014317-7
CENTRIFUGAL SWITCH 20MM 3450
Item is no longer available
Price
N/A
PXST1014317-8
CONTACT PLATE 3/4
Item is no longer available
Price
N/A
PXST1014317-9
BALL BEARING 6206ZZ
Price
N/A
PXST1014318
Now: PK12M
KEY 5 X 5 X 30
Price
N/A
PXST1014319
Now: PW01M
FLAT WASHER 8MM
Price
N/A
PXST1014320
Now: PN03M
HEX NUT M8-1.25
Price
N/A
PXST1014321
HEX BOLT M8-1.25 X 45
Price
N/A
PXST1014322
STRAIN RELIEF
Item is no longer available
Price
N/A
PXST1014323
Now: PN03M
HEX NUT M8-1.25
Price
N/A
PXST1014324
Now: PW01M
FLAT WASHER 8MM
Price
N/A
PXST1014325
SLEEVE
Item is no longer available
Price
N/A
PXST1014326
REAR WHEEL
Item is no longer available
Price
N/A
PXST1014327
Now: PB86M
HEX BOLT M8-1.25 X 65
Price
N/A
P
RUBBER FOOT
PXST1014329
Now: PR16M
EXT RETAINING RING 9MM
Price
N/A
PXST1014330
Now: PW06M
FLAT WASHER 12MM
Price
N/A
PXST1014331
SHAFT 12MM
Item is no longer available
Price
N/A
PXST1014332
CAP SCREW M8-1.25 X 50
Price
N/A
PXST1014333
Now: PW01M
FLAT WASHER 8MM
Price
N/A
PXST1014334
Now: PN03M
HEX NUT M8-1.25
Price
N/A
PXST1014335
Now: PN02M
HEX NUT M10-1.5
Price
N/A
PXST1014336
Now: PW04M
FLAT WASHER 10MM
Price
N/A
PXST1014337
Now: PB45M
HEX BOLT M8-1.25 X 100
Price
N/A
PXST1014338
Now: PW01M
FLAT WASHER 8MM
Price
N/A
P
LOCKING WHEEL AXLE BOLT
PXST1014340
Now: PR21M
INT RETAINING RING 35MM
Price
N/A
PXST1014341
BALL BEARING 6202ZZ
Price
N/A
P
LOCKING WHEEL
P
SLEEVE
P
FOOT PEDAL CASTER BASE
PXST1014345
Now: PW06M
FLAT WASHER 12MM
Price
N/A
PXST1014346
LOCK NUT M12-1.75
Price
N/A
PXST1014347
HEX BOLT M10-1.5 X 55
Price
N/A
P
FOOT PEDAL BRACKET
P
FOOT
PXST1014350
*DISCD*MAGNETIC SWITCH ASSY
Item is no longer available
Price
N/A
PXST1014350-1
MAG SWITCH FRONT COVER
Item is no longer available
Price
N/A
PXST1014350-2
MAG SWITCH BOX
Item is no longer available
Price
N/A
PXST1014350-3
CONTACTOR NHD C-35D 220V
Item is no longer available
Price
N/A
PXST1014350-4
OL RELAY NHD NTH-32 26-32A
Item is no longer available
Price
N/A
PXST1014351
BUTTON HD CAP SCR M5-.8 X 20
Price
N/A
PXST1014352
Now: PW02M
FLAT WASHER 5MM
Price
N/A
PXST1014353
Now: PN06M
HEX NUT M5-.8
Price
N/A
PXST1014354
FRONT COVER
Item is no longer available
Price
N/A
PXST1014355
BUTTON HD CAP SCR M6-1 X 20
Price
N/A
PXST1014356
FLANGE BOLT M8-1.25 X 20
Price
N/A
PXST1014357
CONTROL PANEL PEDESTAL ARM
Item is no longer available
Price
N/A
PXST1014358
FLANGE BOLT M6-1 X 16
Price
N/A
PXST1014359
FLANGE BOLT M6-1 X 16
Price
N/A
PXST1014360
STRAIN RELIEF
Item is no longer available
Price
N/A
PXST1014361
CONTROL PANEL BOX
Item is no longer available
Price
N/A
PXST1014362
CONTROL PANEL
Item is no longer available
Price
N/A
PXST1014363
START BUTTON
Item is no longer available
Price
N/A
PXST1014364
INDICATOR LIGHT
Item is no longer available
Price
N/A
P
STOP BUTTON
PXST1014366
TAP SCREW M4 X 8
Price
N/A
PXST1014367
POWER CORD 12G 3W 72" L6-30P
Item is no longer available
Price
N/A
PXST1014368
HEX WRENCH 2.5MM
Price
N/A
PXST1014369
HEX WRENCH 3MM
Price
N/A
PXST1014370
HEX WRENCH 4MM
Price
N/A
PXST1014371
HEX WRENCH 6MM
Price
N/A
PXST1014372
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
PXST1014373
WRENCH 14 X 17MM OPEN-ENDS
Price
N/A
PXST1014374
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A

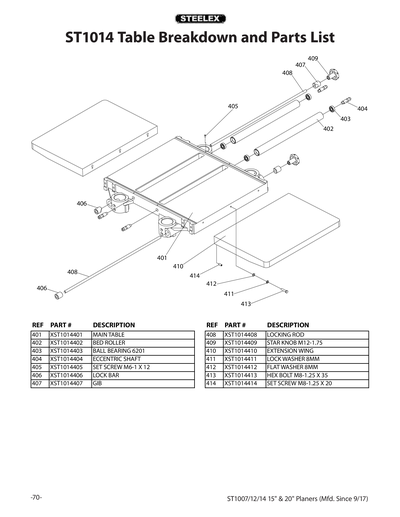

PXST1014401
MAIN TABLE
Item is no longer available
Price
N/A
PXST1014402
BED ROLLER
Item is no longer available
Price
N/A
PXST1014403
BALL BEARING 6201ZZ
Price
N/A
P
ECCENTRIC SHAFT
PXST1014405
SET SCREW M6-1 X 12
Price
N/A
P
LOCK BAR
PXST1014407
GIB
Item is no longer available
Price
N/A
PXST1014408
LOCKING ROD
Item is no longer available
Price
N/A
PXST1014409
STAR KNOB M12-1.75
Item is no longer available
Price
N/A
PXST1014410
EXTENSION WING
Item is no longer available
Price
N/A
PXST1014411
LOCK WASHER 8MM
Price
N/A
PXST1014412
Now: PW01M
FLAT WASHER 8MM
Price
N/A
PXST1014413
Now: PB20M
HEX BOLT M8-1.25 X 35
Price
N/A
PXST1014414
SET SCREW M8-1.25 X 20
Price
N/A

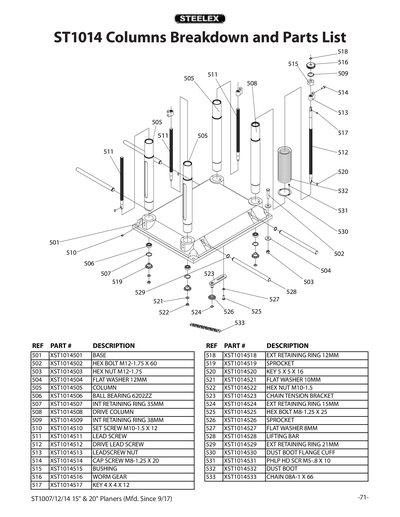

PXST1014501
BASE
Item is no longer available
Price
N/A
PXST1014502
Now: PB38M
HEX BOLT M12-1.75 X 60
Price
N/A
PXST1014503
Now: PN09M
HEX NUT M12-1.75
Price
N/A
PXST1014504
Now: PW06M
FLAT WASHER 12MM
Price
N/A
PXST1014505
COLUMN
Item is no longer available
Price
N/A
PXST1014506
BALL BEARING 6202ZZ
Price
N/A
PXST1014507
Now: PR21M
INT RETAINING RING 35MM
Price
N/A
PXST1014508
DRIVE COLUMN
Item is no longer available
Price
N/A
PXST1014509
Now: PR22M
INT RETAINING RING 38MM
Price
N/A
PXST1014510
SET SCREW M10-1.5 X 12
Price
N/A
PXST1014511
LEAD SCREW
Item is no longer available
Price
N/A
PXST1014512
DRIVE LEAD SCREW
Item is no longer available
Price
N/A
PXST1014513
LEADSCREW NUT
Item is no longer available
Price
N/A
PXST1014514
CAP SCREW M8-1.25 X 20
Price
N/A
PXST1014515
BUSHING
Item is no longer available
Price
N/A
PXST1014516
WORM GEAR
Item is no longer available
Price
N/A
PXST1014517
Now: PK69M
KEY 4 X 4 X 12
Price
N/A
PXST1014518
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
PXST1014519
SPROCKET
Item is no longer available
Price
N/A
PXST1014520
Now: PK08M
KEY 5 X 5 X 16
Price
N/A
PXST1014521
Now: PW04M
FLAT WASHER 10MM
Price
N/A
PXST1014522
Now: PN02M
HEX NUT M10-1.5
Price
N/A
PXST1014523
CHAIN TENSION BRACKET
Item is no longer available
Price
N/A
PXST1014524
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
PXST1014525
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
PXST1014526
SPROCKET
Item is no longer available
Price
N/A
PXST1014527
Now: PW01M
FLAT WASHER 8MM
Price
N/A
PXST1014528
LIFTING BAR
Item is no longer available
Price
N/A
PXST1014529
Now: PR81M
EXT RETAINING RING 21MM
Price
N/A
PXST1014530
DUST BOOT FLANGE CUFF
Item is no longer available
Price
N/A
PXST1014531
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
PXST1014532
DUST BOOT
Item is no longer available
Price
N/A
PXST1014533
CHAIN 08A-1 X 66
Item is no longer available
Price
N/A

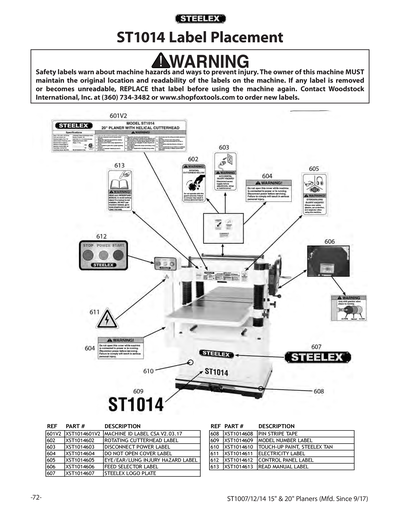

PXST1014601
MACHINE ID LABEL
Item is no longer available
Price
N/A
PXST1014601V2
MACHINE ID LABEL V2.08.16
Item is no longer available
Price
N/A
PXST1014602
ROTATING CUTTERHEAD LABEL
Item is no longer available
Price
N/A
PXST1014603
DISCONNECT 110V 2W X 3.3H
Price
N/A
PXST1014604
DO NOT OPEN COVER LABEL
Item is no longer available
Price
N/A
PXST1014606
SHIFT GEARBOX LABEL
Item is no longer available
Price
N/A
PXST1014607
STEELEX NAMEPLATE
Price
N/A
PXST1014608
PIN STRIPE TAPE
Item is no longer available
Price
N/A
PXST1014609
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
PXST1014610
STEELEX MACHINE GREY
Price
N/A
PXST1014611
ELECTRICITY 1.4W X 1.2H
Price
N/A
PXST1014612
CONTROL PANEL LABEL
Item is no longer available
Price
N/A
PXST1014613
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
PXST1014MAN
MANUAL ST1007/12/14 MFD-04.16 V1.04.16
Price
N/A
PXST1014MANV2
MANUAL ST1007/12/14 MFD-04.16 V2.08.16
Price
N/A
