Item: T1168 | Model: V812

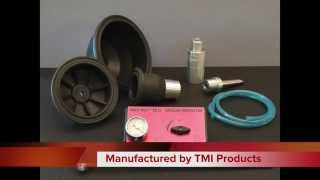

1 Product Video

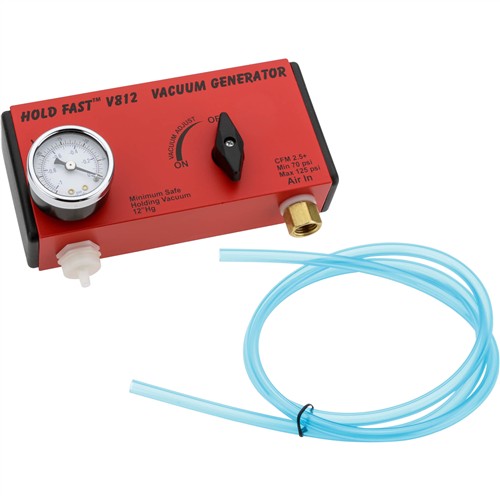

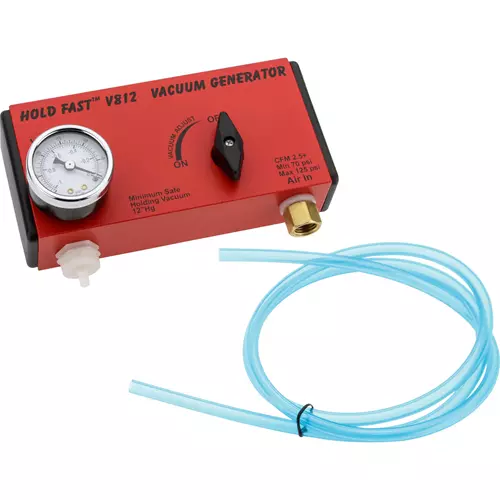

For use with the T1169 Vacuum Stabilizer Chamber Kit, this provides more vacuum volume as you increase air pressure up to 85PSI. Supply air at 90PSI allows you to increase air pressure resulting in increased vacuum and vacuum volume. Please note: as the air pressure increases from 70 to 85PSI so does the air consumption from your air compressor making it cycle more often. Over 85PSI does not benefit the vacuum - just uses more compressed air. Air compressor required to use this unit. Includes vacuum hose.
Specifications:
Specifications:
- Typical vacuum at 70PSI= 21"hg
- Typical vacuum at 85PSI = 25"+hg
- Typical vacuum volume at 85PSI = .6CFM
- Compressed air consumption = 1.2 CFM @ 85PSI
Actions for Products including purchasing, availability and wishlist
Product detail tabs
Overview
For use with the T1169 Vacuum Stabilizer Chamber Kit, this provides more vacuum volume as you increase air pressure up to 85PSI. Supply air at 90PSI allows you to increase air pressure resulting in increased vacuum and vacuum volume. Please note: as the air pressure increases from 70 to 85PSI so does the air consumption from your air compressor making it cycle more often. Over 85PSI does not benefit the vacuum - just uses more compressed air. Air compressor required to use this unit. Includes vacuum hose.
Specifications:
Specifications:
- Typical vacuum at 70PSI= 21"hg
- Typical vacuum at 85PSI = 25"+hg
- Typical vacuum volume at 85PSI = .6CFM
- Compressed air consumption = 1.2 CFM @ 85PSI
