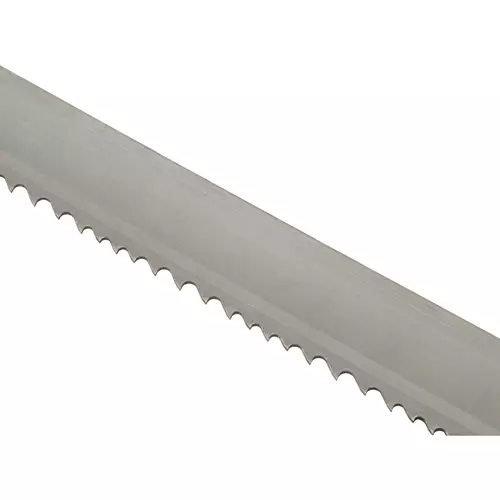

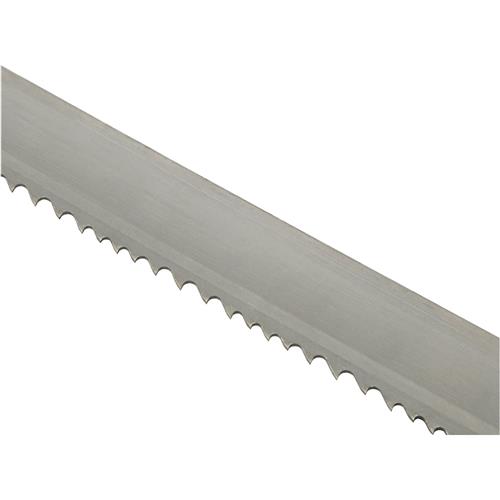

G8798 101" x 1" x .035" x 4-6 TPI VP Bi-Metal Bandsaw Blade
A 101" variable pitch bi-metal blade for cleaner cuts.
Variable pitch bandsaw blades are a little different than traditional pitch blades. The teeth per inch (TPI) are not uniform, but switch within a group of teeth. The section with less TPI has larger gullets for clearing out debris followed by a section of greater TPI for cleaning up the cut.
In addition, this style of blade drastically reduces harmonic vibration which will make less noise and a better overall cut. A variable-tooth set will also help to reduce possible tooth stripping that occurs when cutting hard materials. Above all, it offers high heat, wear, and shock resistance.
Typically, there are more teeth per inch for narrower blades compared to wider blades. We sell these variable pitch blades from 3-4 to 10-14 TPI versions. This means the 4-6 TPI blade cuts slower than the 3-4 TPI blade and faster the 10-14 TPI blade.
Width is an important factor when considering a new blade. The typical range is as small as 1/8" wide to 3/4" wide. This 1" wide blade is good for contour sawing with a minimum radius of 7". For resaw cutting, you will want to fit the widest blade available for your machine.
The flex back blade helps with absorbing the stresses of cutting curves. It is heat-treated at the teeth, leaving the back with more flexibility for movement through the material.
Choosing the correct blade for your 14" bandsaw can seem like a helpless task. Using the incorrect blade can dramatically affect your bandsaw’s operation. With this explanation, the factors you would select the 101" G8798 Bandsaw Blade should make total sense for your needs.
Here is a useful bandsaw blade chart to help visualize general blade configurations and capabilities.
The Grizzly Customer Service and Technical Support teams are based in the U.S.A.
SPECIFICATIONS:
- Length: 101"
- Width: 1"
- Gauge: 0.035"
- TPI: 4-6 VP
- Type: Carbon tool steel
FITS:
- Grizzly G0570
- Grizzly G9970
- Shop Fox W1672
- General 14" 90-100
- Wilton 3502, 3575
Made in the USA
