Parts for T10065 - 4" High Precision Double Clamp Milling Vise

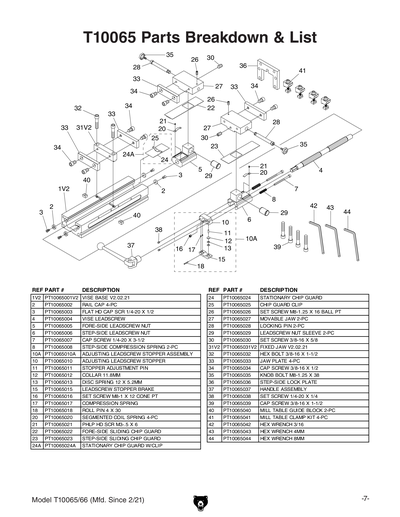

Part Diagram for T10065
Part Diagram for T10065

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1V2
4" High Precision Double Clamp Milling Vise
Price
N/A
2
RAIL CAP 4-PC
Item is no longer available
Price
N/A
3
FLAT HD CAP SCR 1/4-20 X 1/2
Price
N/A
4
VISE LEADSCREW
Item is no longer available
Price
N/A
5
FORE-SIDE LEADSCREW NUT
Item is no longer available
Price
N/A
6
STEP-SIDE LEADSCREW NUT
Item is no longer available
Price
N/A
7
CAP SCREW 1/4-20 X 3-1/2
Price
N/A
8
STEP-SIDE COMPRESSION SPRING 2-PC
Item is no longer available
Price
N/A
10
ADJUSTING LEADSCREW STOPPER ASSEMBLY
Price
N/A
10A
ADJUSTING LEADSCREW STOPPER ASSEMBLY
Item is no longer available
Price
N/A
11
ADJUSTING LEADSCREW STOPPER ASSEMBLY
Price
N/A
12
ADJUSTING LEADSCREW STOPPER ASSEMBLY
Price
N/A
13
ADJUSTING LEADSCREW STOPPER ASSEMBLY
Price
N/A
15
ADJUSTING LEADSCREW STOPPER ASSEMBLY
Price
N/A
16
ADJUSTING LEADSCREW STOPPER ASSEMBLY
Price
N/A
17
ADJUSTING LEADSCREW STOPPER ASSEMBLY
Price
N/A
18
ROLL PIN 4 X 30
Price
N/A
20
SEGMENTED COIL SPRING 4-PC
Item is no longer available
Price
N/A
21
PHLP HD SCR M3-.5 X 6
Price
N/A
22
FORE-SIDE SLIDING CHIP GUARD
Item is no longer available
Price
N/A
23
STEP-SIDE SLIDING CHIP GUARD
Item is no longer available
Price
N/A
24
STATIONARY CHIP GUARD W/CLIP
Price
N/A
24A
STATIONARY CHIP GUARD W/CLIP
Item is no longer available
Price
N/A
25
STATIONARY CHIP GUARD W/CLIP
Price
N/A
26
SET SCREW M8-1.25 X 16 BALL PT
Item is no longer available
Price
N/A
27
MOVABLE JAW 2-PC
Item is no longer available
Price
N/A
28
LOCKING PIN 2-PC
Item is no longer available
Price
N/A
29
LEADSCREW NUT SLEEVE 2-PC
Item is no longer available
Price
N/A
30
SET SCREW 3/8-16 X 5/8
Price
N/A
31
FIXED JAW V1
Item is no longer available
Price
N/A
31V2
FIXED JAW V2.02.21
Item is no longer available
Price
N/A
32
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
33
JAW PLATE 4-PC
Item is no longer available
Price
N/A
34
CAP SCREW 3/8-16 X 1/2
Price
N/A
35
KNOB BOLT M8-1.25 X 38
Item is no longer available
Price
N/A
36
STEP-SIDE LOCK PLATE
Item is no longer available
Price
N/A
37
HANDLE ASSEMBLY
Item is no longer available
Price
N/A
38
SET SCREW 1/4-20 X 1/4
Price
N/A
39
CAP SCREW 3/8-16 X 1-1/2
Price
N/A
40
MILL TABLE GUIDE BLOCK 2-PC
Price
$21.20
41
MILL TABLE CLAMP KIT 4-PC
Price
$199.25
42
ALLEN WRENCH 3/16"
Price
N/A
43
HEX WRENCH 4MM
Price
N/A
44
HEX WRENCH 8MM
Price
N/A
MAN
MANUAL T10065/6 MFD-09.12-01.21 V1.09.12
Item is no longer available
Price
N/A
MANV2
MANUAL T10065/6 MFD-02.21+ V2.03.21
Item is no longer available
Price
N/A
