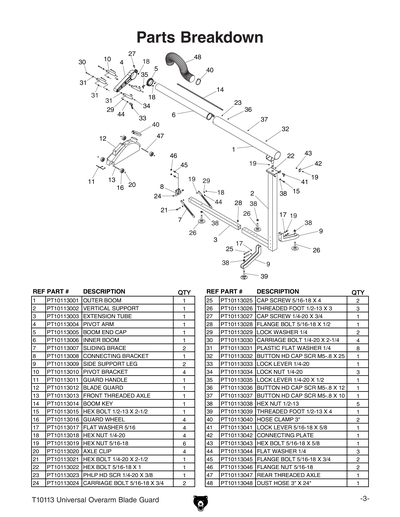

Parts for T10113 Universal Overarm Blade Guard for Table Saws

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
OUTER BOOM
2
VERTICAL SUPPORT
3
EXTENSION TUBE
4
PIVOT ARM
4-1
PIVOT BRACKET
Price
N/A
5
BOOM END CAP
6
INNER BOOM
7
SLIDING BRACE
8
CONNECTING BRACKET
9
SIDE SUPPORT LEG
10
PIVOT BRACKET
11
GUARD HANDLE
12
BLADE GUARD
13
FRONT THREADED AXLE
14
BOOM KEY
15
Now: PB27
HEX BOLT 1/2-13 X 2-1/2
Price
N/A
16
GUARD WHEEL
17
Now: PW07
FLAT WASHER 5/16
Price
N/A
18
Now: PN05
HEX NUT 1/4-20
Price
N/A
19
Now: PN02
HEX NUT 5/16-18
Price
N/A
20
AXLE CLIP
21
Now: PB98
HEX BOLT 1/4-20 X 2-1/2
Price
N/A
22
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
23
Now: PS07
PHLP HD SCR 1/4-20 X 3/8
Price
N/A
24
Now: PCB05
CARRIAGE BOLT 5/16-18 X 3/4
Price
N/A
25
CAP SCREW 5/16-18 X 4
Price
N/A
26
THREADED FOOT 1/2-13 X 3
27
Now: PB10
HEX BOLT 1/4-20 X 2
Price
N/A
28
Now: PFB01
FLANGE BOLT 5/16-18 X 1/2
Price
N/A
29
Now: PLW02
LOCK WASHER 1/4
Price
N/A
30
Now: PCB23
CARRIAGE BOLT 1/4-20 X 2-1/4
Price
N/A
31
PLASTIC FLAT WASHER 1/4
32
BUTTON HD CAP SCR M5-.8 X 25
Price
N/A
33
LOCK LEVER 1/4-20
34
Now: PLN02
LOCK NUT 1/4-20
Price
N/A
35
ADJUSTABLE HANDLE 1/4-20 X 1/2, 80MM
Price
N/A
36
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
37
BUTTON HD CAP SCR M5-.8 X 10
Price
N/A
38
Now: PN06
HEX NUT 1/2-12
Price
N/A
39
THREADED FOOT 1/2-13 X 4
40
HOSE CLAMP 3"
41
LOCK LEVER 5/16-18 X 5/8
42
CONNECTING PLATE
43
Now: PB32
HEX BOLT 5/16-18 X 5/8
Price
N/A
44
Now: PW06
FLAT WASHER 1/4
Price
N/A
45
Now: PFB16
FLANGE BOLT 5/16-18 X 1
Price
N/A
46
Now: PFN02
FLANGE NUT 5/16-18
Price
N/A
47
REAR THREADED AXLE
48
DUST HOSE 3" X 24"
49
HOSE CLAMP 3"
Price
N/A
