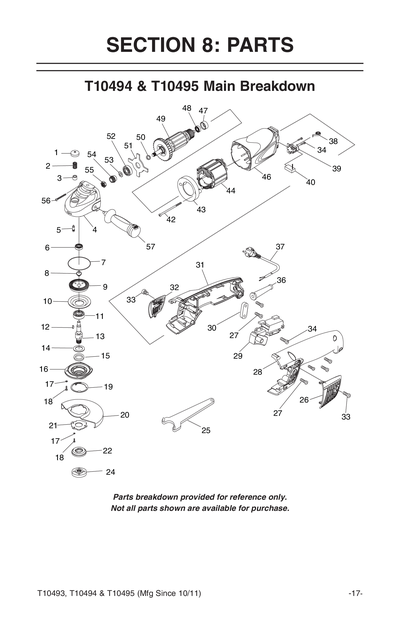

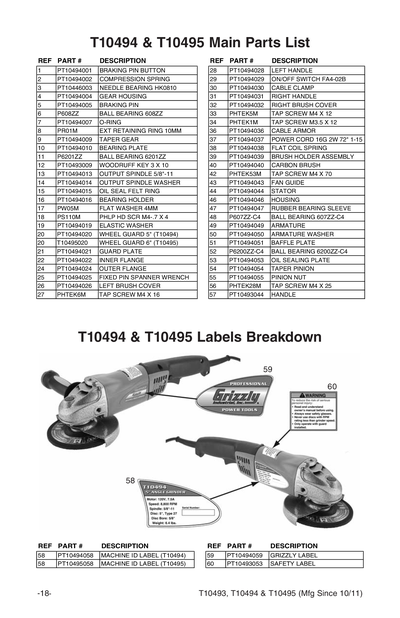

Parts for T10495 6" Angle Grinder

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
*DISCD*BRAKING PIN BUTTON
Price
N/A
2
*DISCD*COMPRESSION SPRING
Price
N/A
3
*DISCD*NEEDLE BEARING HK0810
Price
N/A
4
*DISCD*GEAR HOUSING
Price
N/A
5
*DISCD*BRAKING PIN
Price
N/A
6
Now: G3845
Bearing - 22mm x 8mm
Price
N/A
7
*DISCD*O-RING
Price
N/A
8
Now: PR01M
EXT RETAINING RING 10MM
Price
N/A
9
*DISCD*TAPER GEAR
Price
N/A
10
*DISCD*BEARING PLATE
Price
N/A
11
BALL BEARING 6201ZZ
Price
N/A
12
WOODRUFF KEY 3 X 10
Price
N/A
13
*DISCD*OUTPUT SPINDLE 5/8"-11
Price
N/A
14
FLAT WASHER 22MM
Price
N/A
15
*DISCD*OIL SEAL FELT RING
Price
N/A
16
*DISCD*BEARING HOLDER
Price
N/A
17
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
18
PHLP HD SCR M4-.7 X 4
Price
N/A
19
*DISCD*BELLEVILLE LOCK WASHER 42MM
Price
N/A
20
WHEEL GUARD 6"
21
*DISCD*GUARD PLATE
Price
N/A
22
*DISCD*INNER FLANGE
Price
N/A
24
*DISCD*OUTER FLANGE
Price
N/A
25
*DISCD*FIXED PIN SPANNER WRENCH
Price
N/A
26
*DISCD*LEFT BRUSH COVER
Price
N/A
27
TAP SCREW M4 X 16
Price
N/A
28
*DISCD*LEFT HANDLE
Price
N/A
29
*DISCD*ON/OFF SWITCH FA4-02B
Price
N/A
30
*DISCD*CABLE CLAMP
Price
N/A
31
*DISCD*RIGHT HANDLE
Price
N/A
32
*DISCD*RIGHT BRUSH COVER
Price
N/A
33
TAP SCREW M4 X 12
Price
N/A
34
TAP SCREW M3.5 X 12
Price
N/A
36
*DISCD*CABLE ARMOR
Price
N/A
37
*DISCD*POWER CORD 16G 2W 1-15 72"
Price
N/A
38
*DISCD*FLAT COIL SPRING
Price
N/A
39
*DISCD*BRUSH HOLDER ASSEMBLY
Price
N/A
40
*DISCD*CARBON BRUSH (SET OF 2)
Price
N/A
42
TAP SCREW M4 X 70
Price
N/A
43
*DISCD*FAN GUIDE
Price
N/A
44
*DISCD*STATOR
Price
N/A
46
*DISCD*HOUSING
Price
N/A
47
*DISCD*RUBBER BEARING SLEEVE
Price
N/A
48
BALL BEARING 607ZZ-C4
Price
N/A
49
*DISCD*ARMATURE
Price
N/A
50
Now: PW04M
FLAT WASHER 10MM
Price
N/A
51
*DISCD*BAFFLE PLATE
Price
N/A
52
BALL BEARING 6200ZZ-C4
Price
N/A
53
*DISCD*OIL SEALING PLATE
Price
N/A
54
*DISCD*TAPER PINION
Price
N/A
55
*DISCD*PINION NUT
Price
N/A
56
TAP SCREW M4 X 25
Price
N/A
57
*DISCD*HANDLE
Price
N/A
58
MACHINE ID LABEL
Item is no longer available
Price
N/A
59
*DISCD*GRIZZLY LABEL
Price
N/A
60
SAFETY LABEL
Price
N/A
MAN
MANUAL T10493 MFG 10/11 V1.10.11
Price
N/A
P607ZZ-C4
BALL BEARING 607ZZ-C4
Item is no longer available
Price
N/A
PHTEK53M
TAP SCREW M4 X 70
Item is no longer available
Price
N/A
