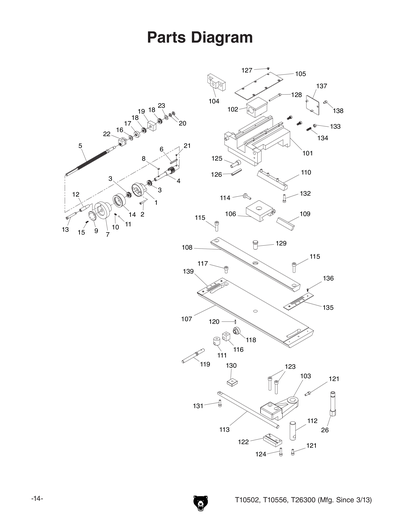

Parts for T10502 - Taper Attachment for G0709 & G0824 Lathe

1/2

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

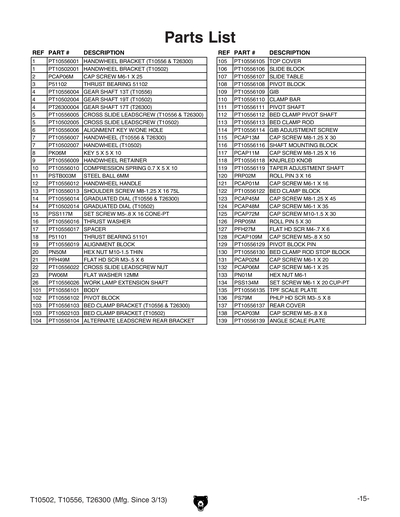

Ref #
Part #
Description
1
Price
$20.25
2
CAP SCREW M6-1 X 25
Price
N/A
3
THRUST BEARING 51102
Price
N/A
4
Price
$26.50
5
CROSS SLIDE LEADSCREW 417MM
Price
$48.50
6
ALIGNMENT KEY W/ONE HOLE
Price
N/A
7
Price
$20.25
8
KEY 5 X 5 X 10
Price
N/A
9
HANDWHEEL RETAINER
Price
N/A
10
COMPRESSION SPRING 0.7 X 5 X 10
Price
N/A
11
STEEL BALL 6MM
Price
N/A
12
HANDWHEEL HANDLE
Price
N/A
13
SHOULDER SCREW M8-1.25 X 16 75L
Price
N/A
14
Price
$24.25
15
SET SCREW M5-.8 X 16 CONE-PT
Price
N/A
16
THRUST WASHER
Price
N/A
17
SPACER
Price
N/A
18
THRUST BEARING 51101
Price
N/A
19
ALIGNMENT BLOCK
Price
N/A
20
HEX NUT M10-1.5 THIN
Price
N/A
21
FLAT HD SCR M3-.5 X 6
Price
N/A
22
CROSS SLIDE LEADSCREW NUT
Price
N/A
23
FLAT WASHER 12MM
Price
N/A
24
CROSS FEED HANDWHEEL/LEADSCREW ASSY.
Price
$220.25
26
WORK LAMP EXTENSION SHAFT
Price
N/A
102
PIVOT BLOCK
Price
N/A
103
Price
$29.50
104
ALTERNATE LEADSCREW REAR BRACKET
Price
N/A
105
TOP COVER
Price
N/A
106
SLIDE BLOCK
Price
N/A
107
SLIDE TABLE
Price
N/A
108
PIVOT BAR
Price
N/A
110
CLAMP BAR
Price
N/A
111
PIVOT SHAFT
Price
N/A
112
BED CLAMP PIVOT SHAFT
Price
N/A
113
BED CLAMP ROD
Price
N/A
114
GIB ADJUSTMENT SCREW
Price
N/A
115
CAP SCREW M8-1.25 X 30
Price
N/A
116
SHAFT MOUNTING BLOCK
Price
N/A
117
CAP SCREW M8-1.25 X 16
Price
N/A
118
KNURLED KNOB
Price
N/A
119
TAPER ADJUSTMENT SHAFT
Price
N/A
120
ROLL PIN 3 X 16
Price
N/A
121
CAP SCREW M6-1 X 16
Price
N/A
122
BED CLAMP BLOCK
Price
N/A
123
CAP SCREW M8-1.25 X 45
Price
N/A
124
CAP SCREW M6-1 X 35
Price
N/A
125
CAP SCREW M10-1.5 X 30
Price
N/A
126
ROLL PIN 5 X 30
Price
N/A
127
FLAT HD SCR M4-.7 X 6
Price
N/A
128
CAP SCREW M5-.8 X 50
Price
N/A
129
PIVOT BLOCK PIN
Price
N/A
130
BED CLAMP ROD STOP BLOCK
Price
N/A
131
CAP SCREW M6-1 X 20
Price
N/A
132
CAP SCREW M6-1 X 25
Price
N/A
133
HEX NUT M6-1
Price
N/A
134
SET SCREW M6-1 X 20 CUP POINT
Price
N/A
135
TPF SCALE PLATE
Price
N/A
136
PHLP HD SCR M3-.5 X 8
Price
N/A
137
REAR COVER
Price
N/A
138
CAP SCREW M5-.8 X 8
Price
N/A
139
ANGLE SCALE PLATE
Price
N/A
MAN
MANUAL T10556 MFG-3/13 V1.06.13
Price
N/A
