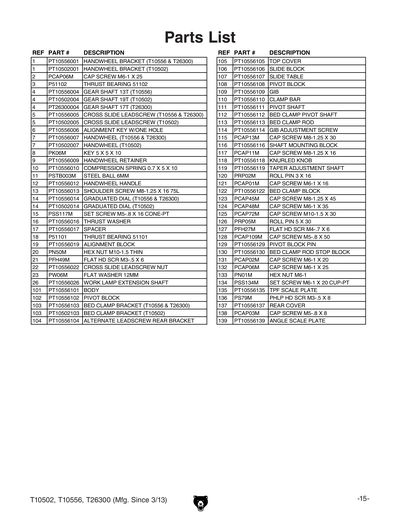

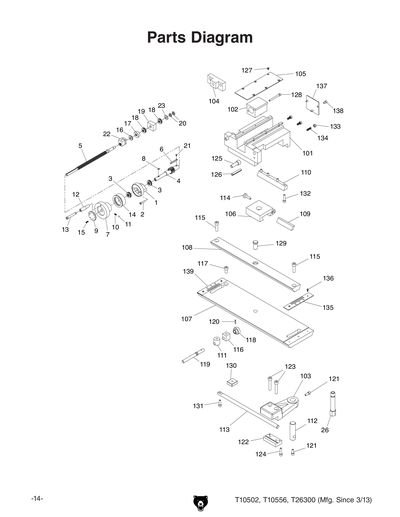

Parts for T10556 Taper Attachment Kit for G4002/G4003/G4003G

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
HANDWHEEL BRACKET
2
CAP SCREW M6-1 X 25
Price
N/A
3
THRUST BEARING 51102
Price
N/A
4
GEAR SHAFT 13T
5
CROSS SLIDE LEADSCREW
6
ALIGNMENT KEY W/ONE HOLE
7
HANDWHEEL
8
Now: PK06M
KEY 5 X 5 X 10
Price
N/A
9
HANDWHEEL RETAINER
10
COMPRESSION SPRING 0.7 X 5 X 10
11
STEEL BALL 6MM
Price
N/A
12
HANDWHEEL HANDLE
13
SHOULDER SCREW M8-1.25 X 16 75L
14
GRADUATED DIAL
15
SET SCREW M5-.8 X 16 CONE-PT
Price
N/A
16
THRUST WASHER
17
SPACER
18
THRUST BEARING 51101
Price
N/A
19
ALIGNMENT BLOCK
20
Now: PN50M
HEX NUT M10-1.5 THIN
Price
N/A
21
FLAT HD SCR M3-.5 X 6
Price
N/A
22
CROSS SLIDE LEADSCREW NUT
23
Now: PW06M
FLAT WASHER 12MM
Price
N/A
26
WORK LAMP EXTENSION SHAFT
101
BODY
102
PIVOT BLOCK
103
BED CLAMP BRACKET
104
ALTERNATE LEADSCREW REAR BRACKET
105
TOP COVER
106
SLIDE BLOCK
107
SLIDE TABLE
108
PIVOT BAR
109
GIB
110
CLAMP BAR
111
PIVOT SHAFT
112
BED CLAMP PIVOT SHAFT
113
BED CLAMP ROD
114
GIB ADJUSTMENT SCREW
115
CAP SCREW M8-1.25 X 30
Price
N/A
116
SHAFT MOUNTING BLOCK
117
CAP SCREW M8-1.25 X 16
Price
N/A
118
KNURLED KNOB
119
TAPER ADJUSTMENT SHAFT
120
ROLL PIN 3 X 16
Price
N/A
121
CAP SCREW M6-1 X 16
Price
N/A
122
BED CLAMP BLOCK
123
CAP SCREW M8-1.25 X 45
Price
N/A
124
CAP SCREW M6-1 X 35
Price
N/A
125
CAP SCREW M10-1.5 X 30
Price
N/A
126
ROLL PIN 5 X 30
Price
N/A
127
FLAT HD SCR M4-.7 X 6
Price
N/A
128
CAP SCREW M5-.8 X 50
Price
N/A
129
PIVOT BLOCK PIN
130
BED CLAMP ROD STOP BLOCK
131
CAP SCREW M6-1 X 20
Price
N/A
132
CAP SCREW M6-1 X 25
Price
N/A
133
Now: PN01M
HEX NUT M6-1
Price
N/A
134
SET SCREW M6-1 X 20 CUP POINT
Price
N/A
135
TPF SCALE PLATE
136
Now: PS79M
PHLP HD SCR M3-.5 X 8
Price
N/A
137
REAR COVER
138
CAP SCREW M5-.8 X 8
Price
N/A
139
ANGLE SCALE PLATE
MAN
MANUAL T10556 MFG-3/13 V1.06.13
