Parts for T10717 50" Deluxe Heavy-Duty Shear

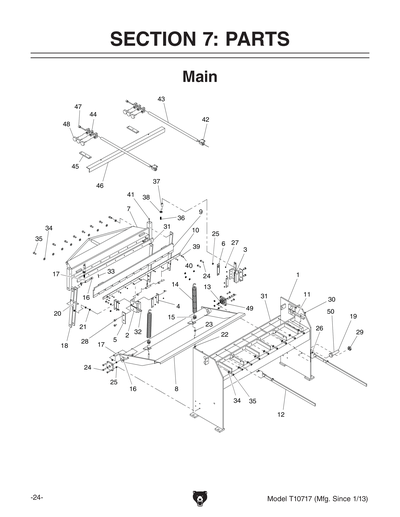

Parts Diagrams for T10717 - 50" Deluxe Heavy-Duty Shear

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

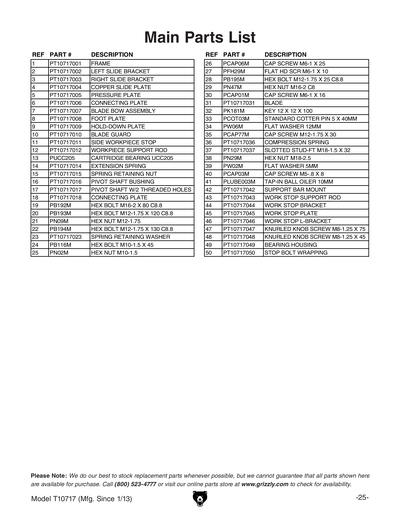

Parts List for Parts for T10717 50" Deluxe Heavy-Duty Shear

1
FRAME
$1,875.95
Enter quantity between 1 and 99
2
LEFT SLIDE BRACKET
$125.10
Enter quantity between 1 and 99
3
RIGHT SLIDE BRACKET
$125.10
Enter quantity between 1 and 99
4
COPPER SLIDE PLATE
$18.00
Enter quantity between 1 and 99
5
PRESSURE PLATE
$15.85
Enter quantity between 1 and 99
6
CONNECTING PLATE
$10.85
Enter quantity between 1 and 99
7
BLADE BOW ASSEMBLY
$927.20
Enter quantity between 1 and 99
8
FOOT PLATE
$414.00
Enter quantity between 1 and 99
9
HOLD-DOWN PLATE
$207.00
Enter quantity between 1 and 99
10
BLADE GUARD
$32.40
Enter quantity between 1 and 99
11
SIDE WORKPIECE STOP
$21.60
Enter quantity between 1 and 99
12
FRONT WORKPIECE SUPPORT ROD
$51.75
Enter quantity between 1 and 99
13
CARTRIDGE BEARING UCC205
Price
N/A
14
EXTENSION SPRING
$35.65
Enter quantity between 1 and 99
15
SPRING RETAINING NUT
$10.85
Enter quantity between 1 and 99
16
PIVOT SHAFT BUSHING
$4.35
Enter quantity between 1 and 99
17
PIVOT SHAFT W/2 THREADED HOLES
$6.50
Enter quantity between 1 and 99
18
CONNECTING PLATE
$12.95
Enter quantity between 1 and 99
19
HEX BOLT M16-2 X 80 C8.8
Price
N/A
20
HEX BOLT M12-1.75 X 120 C8.8
Price
N/A
21
Now: PN09M
HEX NUT M12-1.75
Price
N/A
22
HEX BOLT M12-1.75 X 130 C8.8
Price
N/A
23
Now: PW06M
FLAT WASHER 12MM
Price
N/A
24
Now: PB22M
HEX BOLT M8-1.25 X 50
Price
N/A
25
Now: PN02M
HEX NUT M10-1.5
Price
N/A
26
CAP SCREW M6-1 X 25
Price
N/A
27
FLAT HD SCR M6-1 X 10
Price
N/A
28
HEX BOLT M12-1.75 X 25 C8.8
Price
N/A
29
Now: PN47M
HEX NUT M16-2 C8
Price
N/A
30
CAP SCREW M6-1 X 16
Price
N/A
31
BLADE
$366.60
Enter quantity between 1 and 99
32
KEY 12 X 12 X 100
Price
N/A
33
COTTER PIN 5 X 40MM STANDARD
Price
N/A
34
Now: PW06M
FLAT WASHER 12MM
Price
N/A
35
CAP SCREW M12-1.75 X 30
Price
N/A
36
COMPRESSION SPRING
$1.90
Enter quantity between 1 and 99
37
SLOTTED STUD-FT M18-1.5 X 32
$1.90
Enter quantity between 1 and 99
38
Now: PN29M
HEX NUT M18-2.5
Price
N/A
39
Now: PW02M
FLAT WASHER 5MM
Price
N/A
40
CAP SCREW M5-.8 X 8
Price
N/A
41
BALL OILER 10MM PRESS-IN
Price
N/A
42
SUPPORT BAR MOUNT
$16.40
Enter quantity between 1 and 99
43
REAR WORKSTOP SUPPORT ROD
$55.65
Enter quantity between 1 and 99
44
WORKSTOP BRACKET
$13.95
Enter quantity between 1 and 99
45
WORKSTOP PLATE
$12.95
Enter quantity between 1 and 99
46
WORKSTOP L-BRACKET
$62.60
Enter quantity between 1 and 99
47
KNURLED KNOB SCREW M8-1.25 X 75
$5.45
Enter quantity between 1 and 99
48
KNURLED KNOB SCREW M8-1.25 X 45
$7.60
Enter quantity between 1 and 99
49
BEARING HOUSING
$32.40
Enter quantity between 1 and 99
50
STOP BOLT WRAPPING
$3.65
Enter quantity between 1 and 99
51

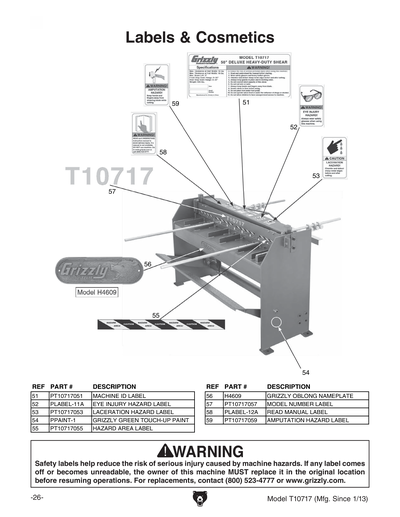

MACHINE ID LABEL
$16.40
Enter quantity between 1 and 99
52
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
53
LACERATION HAZARD LABEL
$5.85
Enter quantity between 1 and 99
54
N/S GRIZZLY GREEN G1023S
Price
N/A
55
HAZARD AREA LABEL
$7.50
Enter quantity between 1 and 99
56
Now: H4609
Oblong Nameplate-Small
Price
N/A
57
MODEL NUMBER LABEL
$7.50
Enter quantity between 1 and 99
58
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
59
AMPUTATION HAZARD LABEL
$3.75
Enter quantity between 1 and 99
MAN
MANUAL T10717 MFG 01/13 V1.02.13
$14.65
Enter quantity between 1 and 99
