Parts for T10727 12" Slip Roll

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

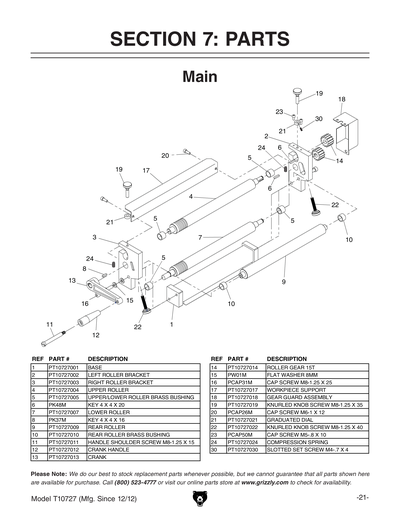

1
BASE
2
LEFT ROLLER BRACKET
3
RIGHT ROLLER BRACKET
4
UPPER ROLLER
5
UPPER/LOWER ROLLER BRASS BUSHING
6
Now: PK48M
KEY 4 X 4 X 20
Price
N/A
7
LOWER ROLLER
8
Now: PK37M
KEY 4 X 4 X 16
Price
N/A
9
REAR ROLLER
10
REAR ROLLER BRASS BUSHING
11
HANDLE SHOULDER SCREW M8-1.25 X 15
12
CRANK HANDLE
13
CRANK
14
ROLLER GEAR 15T
15
Now: PW01M
FLAT WASHER 8MM
Price
N/A
16
CAP SCREW M8-1.25 X 25
Price
N/A
17
WORKPIECE SUPPORT
18
GEAR GUARD ASSEMBLY
19
KNURLED KNOB SCREW M8-1.25 X 35
20
CAP SCREW M6-1 X 12
Price
N/A
21
GRADUATED DIAL
22
KNURLED KNOB SCREW M8-1.25 X 40
23
CAP SCREW M5-.8 X 10
Price
N/A
24
COMPRESSION SPRING
25

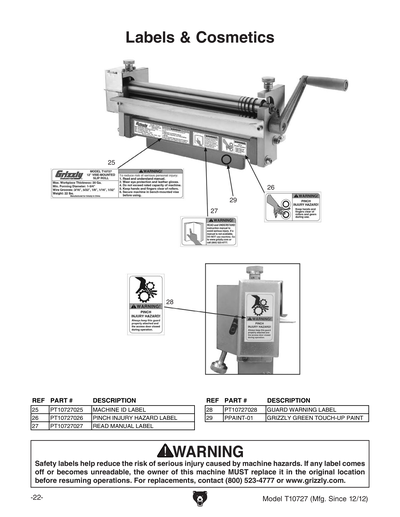

MACHINE ID LABEL
26
PINCH INJURY HAZARD LABEL
27
READ MANUAL LABEL
28
GUARD WARNING LABEL
29
N/S GRIZZLY GREEN G1023S
Price
N/A
30
SLOTTED SET SCREW M4-.7 X 4
MAN
MANUAL T10727 MFG 12/12 V1.01.13
