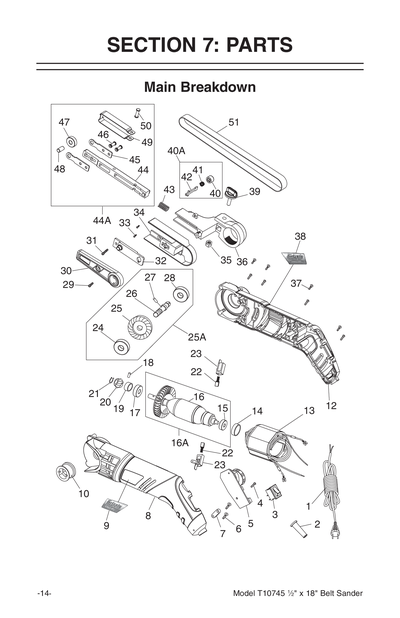

Parts for T10745 1/2" x 18" Handheld Belt Sander

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

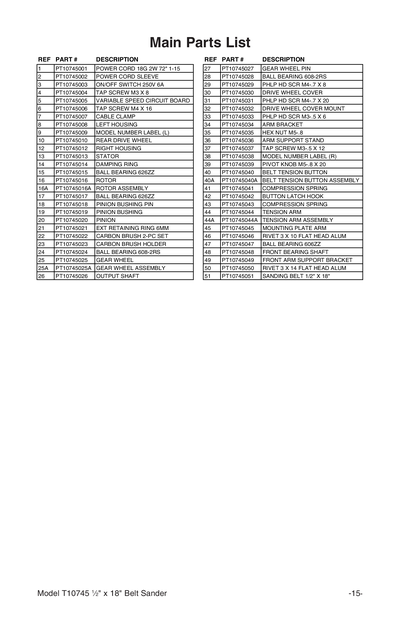

1
POWER CORD 18G 2W 72" 1-15
2
POWER CORD SLEEVE
3
ON/OFF SWITCH 250V 6A
4
TAP SCREW M3 X 8
Price
N/A
5
VARIABLE SPEED CIRCUIT BOARD
6
TAP SCREW M4 X 16
Price
N/A
7
CABLE CLAMP
8
LEFT HOUSING
9
MODEL NUMBER LABEL (L)
10
REAR DRIVE WHEEL
12
RIGHT HOUSING
13
STATOR
14
DAMPING RING
15
BALL BEARING 626ZZ
Price
N/A
16
ROTOR
16A
ROTOR ASSEMBLY
17
BALL BEARING 626ZZ
Price
N/A
18
PINION BUSHING PIN
19
PINION BUSHING
20
PINION
21
Now: PR04M
EXT RETAINING RING 6MM
Price
N/A
22
CARBON BRUSH 2-PC SET
23
CARBON BRUSH HOLDER
24
BALL BEARING 608-2RS
Price
N/A
25
GEAR WHEEL
25A
GEAR WHEEL ASSEMBLY
26
OUTPUT SHAFT
27
GEAR WHEEL PIN
28
BALL BEARING 608-2RS
Price
N/A
29
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
30
DRIVE WHEEL COVER
31
Now: PS52M
PHLP HD SCR M4-.7 X 20
Price
N/A
32
DRIVE WHEEL COVER MOUNT
33
Now: PS12M
PHLP HD SCR M3-.5 X 6
Price
N/A
34
ARM BRACKET
35
Now: PN06M
HEX NUT M5-.8
Price
N/A
36
ARM SUPPORT STAND
37
TAP SCREW M3.5 X 12
Price
N/A
38
MODEL NUMBER LABEL (R)
39
PIVOT KNOB M5-.8 X 20
40
BELT TENSION BUTTON
40A
BELT TENSION BUTTON ASSEMBLY
41
COMPRESSION SPRING
42
BUTTON LATCH HOOK
43
COMPRESSION SPRING
44
TENSION ARM ASSEMBLY
Price
N/A
44A
TENSION ARM ASSEMBLY
45
TENSION ARM ASSEMBLY
Price
N/A
46
TENSION ARM ASSEMBLY
Price
N/A
47
BALL BEARING 606ZZ
Price
N/A
48
TENSION ARM ASSEMBLY
Price
N/A
49
TENSION ARM ASSEMBLY
Price
N/A
50
TENSION ARM ASSEMBLY
Price
N/A
51
SANDING BELT 1/2" X 18"
MAN
MANUAL T10745 MFG 07/11 V1.06.13
