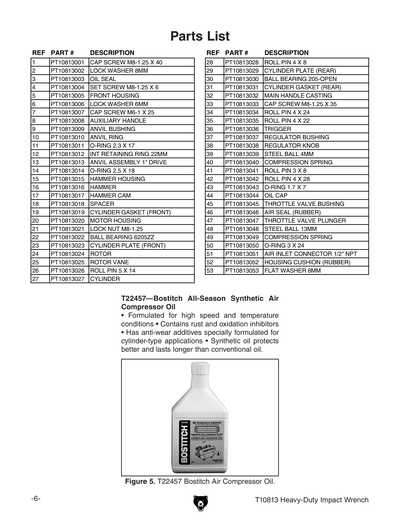

Parts for T10813 Heavy Duty 1" Drive Air Impact Wrench

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
CAP SCREW M8-1.25 X 40
Price
N/A
2
LOCK WASHER 8MM
Price
N/A
3
OIL SEAL
4
SET SCREW M8-1.25 X 6
Price
N/A
5
FRONT HOUSING
6
LOCK WASHER 6MM
Price
N/A
7
CAP SCREW M6-1 X 25
Price
N/A
8
AUXILIARY HANDLE
9
ANVIL BUSHING
10
ANVIL RING
11
O-RING 2.3 X 17
12
Now: PR57M
INT RETAINING RING 22MM
Price
N/A
13
ANVIL ASSEMBLY 1" DRIVE
14
O-RING 2.5 X 18
15
HAMMER HOUSING
16
HAMMER
17
HAMMER CAM
18
SPACER
19
CYLINDER GASKET (FRONT)
20
MOTOR HOUSING
21
LOCK NUT M8-1.25
Price
N/A
22
BALL BEARING 6205ZZ
Price
N/A
23
CYLINDER PLATE (FRONT)
24
ROTOR
25
ROTOR VANE
26
ROLL PIN 5 X 14
Price
N/A
27
CYLINDER
28
ROLL PIN 4 X 8
Price
N/A
29
CYLINDER PLATE (REAR)
30
BALL BEARING 205-OPEN
Price
N/A
31
CYLINDER GASKET (REAR)
32
MAIN HANDLE CASTING
33
CAP SCREW M8-1.25 X 35
Price
N/A
34
ROLL PIN 4 X 24
Price
N/A
35
ROLL PIN 4 X 22
Price
N/A
36
TRIGGER
37
REGULATOR BUSHING
38
REGULATOR KNOB
39
STEEL BALL 4MM
Price
N/A
40
COMPRESSION SPRING 3.8 X 9.5MM
41
ROLL PIN 3 X 8
Price
N/A
42
ROLL PIN 4 X 28
Price
N/A
43
O-RING 1.7 X 7
44
OIL CAP
45
THROTTLE VALVE BUSHING
46
AIR SEAL (RUBBER)
47
THROTTLE VALVE PLUNGER
48
*DISCD* STEEL BALL 13MM
Price
N/A
49
COMPRESSION SPRING 19.7 X 11.7 X 30MM
50
O-RING 3 X 24
51
AIR INLET CONNECTOR 14NPT
52
HOUSING CUSHION (RUBBER)
53
Now: PW01M
FLAT WASHER 8MM
Price
N/A
MAN
MANUAL T10813 MFD-12/13+ V1.12.13
P
BALL BEARING 205-OPEN
PSTB016M
*DISCD* STEEL BALL 13MM
Item is no longer available
Price
N/A
