Parts for T10814 - Tool Grinder with Cup Grinding Wheel

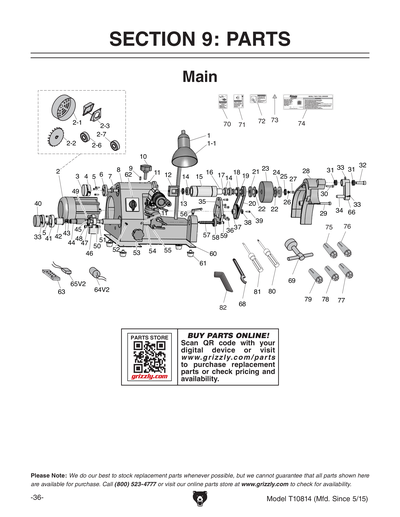

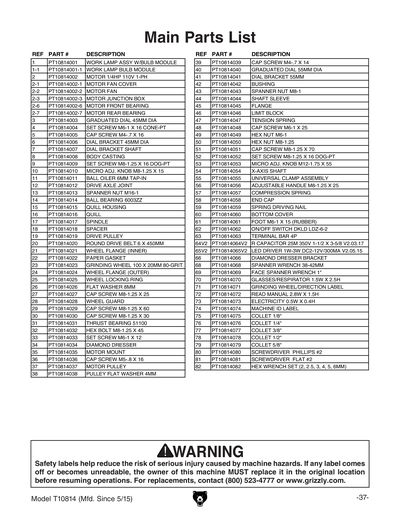

Part Diagram for T10814
Part Diagram for T10814
Part Diagram for T10814
Part Diagram for T10814

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
*DISCD*WORK LAMP ASSY W/BULB MODULE
Price
$46.60
1-1
*DISCD*WORK LAMP BULB
Price
$46.60
2
*DISCD*MOTOR 1/4HP 110V 1-PH
Item is no longer available
Price
N/A
2-1
*DISCD*MOTOR FAN COVER
Item is no longer available
Price
N/A
2-2
*DISCD*MOTOR FAN
Item is no longer available
Price
N/A
2-3
*DISCD*MOTOR 1/4HP 110V 1-PH
Price
N/A
2-4
*DISCD*MOTOR 1/4HP 110V 1-PH
Price
N/A
2-5
*DISCD*MOTOR 1/4HP 110V 1-PH
Price
N/A
2-6
*DISCD*MOTOR 1/4HP 110V 1-PH
Price
N/A
2-7
*DISCD*MOTOR 1/4HP 110V 1-PH
Price
N/A
3
*DISCD*GRADUATED DIAL 45MM DIA
Item is no longer available
Price
N/A
4
SET SCREW M6-1 X 16 CONE-PT
Price
N/A
5
CAP SCREW M4-.7 X 16
Price
N/A
6
*DISCD*DIAL BRACKET 45MM DIA
Item is no longer available
Price
N/A
7
*DISCD*DIAL BRACKET SHAFT
Item is no longer available
Price
N/A
8
*DISCD*BODY CASTING
Item is no longer available
Price
N/A
9
SET SCREW M8-1.25 X 16 DOG-PT
Price
N/A
10
*DISCD*STAR KNOB BOLT M8-1.25 X 15
Item is no longer available
Price
N/A
11
BALL OILER 6MM PRESS-IN
Price
N/A
13
*DISCD*SPANNER NUT M16-1
Item is no longer available
Price
N/A
14
Bearing - 35mm x 17mm
Price
N/A
15
*DISCD*QUILL HOUSING
Item is no longer available
Price
N/A
17
*DISCD*SPINDLE
Item is no longer available
Price
N/A
18
*DISCD*SPACER
Item is no longer available
Price
N/A
19
*DISCD*DRIVE PULLEY
Item is no longer available
Price
N/A
20
*DISCD*ROUND DRIVE BELT 6 X 450MM
Item is no longer available
Price
N/A
21
*DISCD*WHEEL FLANGE (INNER & OUTER)
Item is no longer available
Price
N/A
22
*DISCD*GRINDING WHEEL 100 X 20MM 80-GRIT
Price
N/A
23
*DISCD*GRINDING WHEEL 100 X 20MM 80-GRIT
Price
$46.60
24
*DISCD*WHEEL FLANGE (INNER & OUTER)
Price
N/A
25
*DISCD*WHEEL LOCKING RING
Item is no longer available
Price
N/A
26
FLAT WASHER 8MM
Price
N/A
27
CAP SCREW M8-1.25 X 25
Price
N/A
29
CAP SCREW M8-1.25 X 60
Price
N/A
30
CAP SCREW M8-1.25 X 30
Price
N/A
31
THRUST BEARING 51100
Price
N/A
32
HEX BOLT M8-1.25 X 45
Price
N/A
33
SET SCREW M6-1 X 12
Price
N/A
34
*DISCD*DIAMOND DRESSER
Item is no longer available
Price
N/A
35
*DISCD*MOTOR MOUNT
Item is no longer available
Price
N/A
36
CAP SCREW M5-.8 X 16
Price
N/A
37
*DISCD*MOTOR PULLEY
Item is no longer available
Price
N/A
38
*DISCD*PULLEY FLAT WASHER 4MM
Item is no longer available
Price
N/A
39
CAP SCREW M4-.7 X 14
Price
N/A
40
*DISCD*GRADUATED DIAL 55MM DIA
Item is no longer available
Price
N/A
41
*DISCD*DIAL BRACKET 55MM
Item is no longer available
Price
N/A
42
*DISCD*BUSHING
Item is no longer available
Price
N/A
45
*DISCD*FLANGE
Item is no longer available
Price
N/A
46
*DISCD*LIMIT BLOCK
Item is no longer available
Price
N/A
48
CAP SCREW M6-1 X 25
Price
N/A
49
HEX NUT M6-1
Price
N/A
50
HEX NUT M8-1.25
Price
N/A
51
CAP SCREW M8-1.25 X 70
Price
N/A
52
SET SCREW M8-1.25 X 16 DOG-PT
Price
N/A
53
*DISCD*STAR KNOB BOLT M12-1.75 X 55
Price
$20.70
54
*DISCD*X-AXIS SHAFT
Item is no longer available
Price
N/A
55
*DISCD*UNIVERSAL CLAMP ASSEMBLY
Item is no longer available
Price
N/A
55-1
*DISCD*LOCK KNOB M5-.8 X 25 5-LOBE
Price
$11.50
56
*DISCD*ADJUSTABLE HANDLE M8-1.25 X 25
Item is no longer available
Price
N/A
60
*DISCD*BOTTOM COVER
Item is no longer available
Price
N/A
61
*DISCD*FOOT M6-1 X 15 (RUBBER)
Item is no longer available
Price
N/A
62
*DISCD*ON/OFF SWITCH DKLD LDZ-6-2
Price
$62.10
63
*DISCD*TERMINAL BAR 4P
Item is no longer available
Price
N/A
64
*DISCD*MOTOR 1/4HP 110V 1-PH
Price
N/A
64V2
R CAPACITOR 25M 350V 1-1/2 X 3-5/8
Price
N/A
65
*DISCD*LED DRIVER 100/245VAC-3/12VDC
Price
$34.50
65V2
*DISCD*LED DRIVER 1W-3W DC2-12V/300MA V2
Price
$34.50
66
*DISCD*DIAMOND DRESSER BRACKET
Item is no longer available
Price
N/A
67
Replacement Diamond Wheel for T10814
Price
N/A
68
*DISCD*SPANNER WRENCH 38-42MM
Price
$34.50
69
*DISCD*FACE SPANNER WRENCH 1"
Price
$124.20
70
GLASSES/RESPIRATOR 1.5W X 2.5H
Price
N/A
71
*DISCD*GRINDING WHEEL/DIRECTION LABEL
Item is no longer available
Price
N/A
72
READ MANUAL 2.8W X 1.5H
Price
N/A
73
ELECTRICITY 0.5W X 0.4H
Price
N/A
74
MACHINE ID LABEL
Item is no longer available
Price
N/A
83
*DISCD*STRAIN RELIEF M16 TYPE-6 ST
Item is no longer available
Price
N/A
MAN
MANUAL T10814 MFD-11/13+ V1.01.14
Price
$12.25
MANV2
MANUAL T10814 MFD-03.15 V2.05.17
Item is no longer available
Price
N/A
