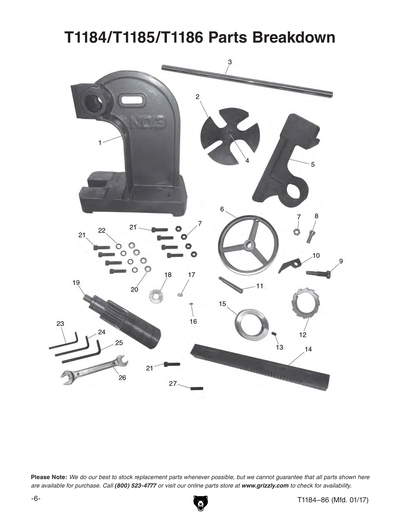

Parts for T1184 2-Ton Ratcheting Arbor Press

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
MACHINE BODY
2
TABLE
3
HANDLE
4
ROLL PIN 6 X 20
Price
N/A
5
SWING ARM
6
HANDWHEEL TYPE-5 148D X 16B-K X M10-1.5
Price
N/A
6V2
HANDWHEEL TYPE-5 148D X 16B-K X M10-1.5
Price
N/A
6V3
HANDWHEEL TYPE-5 148D X 16B-K X M10-1.5
7
Now: PN03M
HEX NUT M8-1.25
Price
N/A
8
CAP SCREW M8-1.25 X 20
Price
N/A
9
SHLDR HEX BOLT M10-1.5 X 25, 12MM
10
RATCHET LATCH
11
HANDWHEEL HANDLE M10-1.5 X 15, 95L
12
RATCHET GEAR
13
SET SCREW M8-1.25 X 10
Price
N/A
14
RAM
15
LOCK COLLAR
16
KEY 5 X 5 X 10
17
KEY 8 X 10 X 16
18
Now: PW18M
FLAT WASHER 18MM
Price
N/A
19
PINION SHAFT V1
19V2
PINION SHAFT V2.07.19
20
Now: PW01M
FLAT WASHER 8MM
Price
N/A
21
CAP SCREW M8-1.25 X 35
Price
N/A
22
LOCK WASHER 8MM
Price
N/A
23
Now: PN03M
HEX NUT M8-1.25
Price
N/A
24
HEX WRENCH 5MM
Price
N/A
25
HEX WRENCH 6MM
Price
N/A
26
HEX WRENCH 8MM
Price
N/A
27
WRENCH 14 X 17MM OPEN-ENDS
Price
N/A
28
ROLL PIN 6 X 35
Price
N/A
MAN
MANUAL T1184-86 MFD-12.16 V1.04.17
