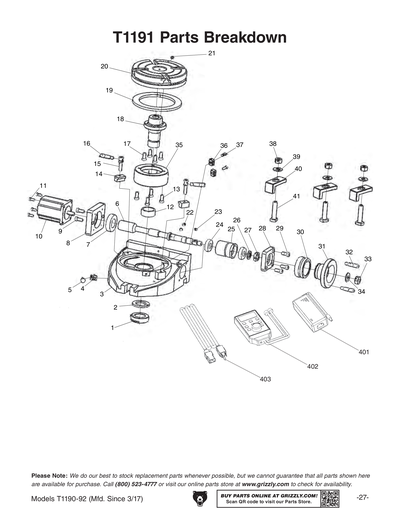

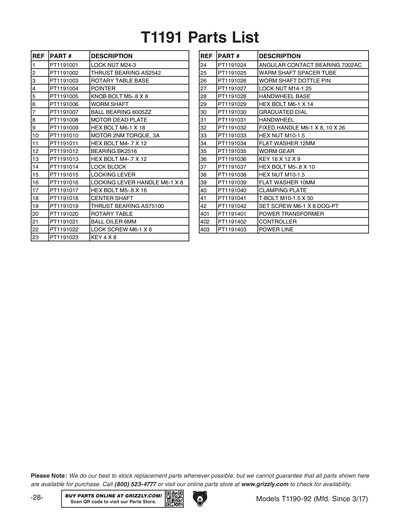

Parts for T1191 4-3/8" Power Rotary Table with DRO Control

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
LOCK NUT M24-3
Price
N/A
2
THRUST BEARING AS2542
Price
N/A
3
ROTARY TABLE BASE
4
POINTER
5
KNOB BOLT M5-.8 X 8
Price
N/A
6
WORM SHAFT
7
BALL BEARING 6005ZZ
Price
N/A
8
MOTOR DEAD PLATE
9
Now: PB91M
HEX BOLT M6-1 X 18
Price
N/A
10
MOTOR 2NM TORQUE, 3A
11
Now: PB97M
HEX BOLT M4-.7 X 12
Price
N/A
12
BEARING BK2516
13
Now: PB97M
HEX BOLT M4-.7 X 12
Price
N/A
14
LOCK BLOCK
Price
N/A
15
LOCKING LEVER
16
LOCKING LEVER HANDLE M6-1 X 8
17
Now: PB95M
HEX BOLT M5-.8 X 16
Price
N/A
18
CENTER SHAFT
19
THRUST BEARING AS75100
20
ROTARY TABLE
21
BALL OILER 6MM
Price
N/A
22
LOCK SCREW M6-1 X 6
23
KEY 4 X 8
Price
N/A
24
ANGULAR CONTACT BEARING 7002AC
25
WARM SHAFT SPACER TUBE
26
WORM SHAFT DOTTLE PIN
27
LOCK NUT M14-1.25
28
HANDWHEEL BASE
29
HEX BOLT M6-1 X 14
30
GRADUATED DIAL
31
HANDWHEEL
32
FIXED HANDLE M6-1 X 8, 10 X 26
33
Now: PN02M
HEX NUT M10-1.5
Price
N/A
34
Now: PW06M
FLAT WASHER 12MM
Price
N/A
35
WORM GEAR
36
KEY 16 X 12 X 9
Price
N/A
37
Now: PB96M
HEX BOLT M5-.8 X 10
Price
N/A
38
Now: PN02M
HEX NUT M10-1.5
Price
N/A
39
Now: PW04M
FLAT WASHER 10MM
Price
N/A
40
CLAMPING PLATE
Price
N/A
41
Now: PB73M
HEX BOLT M10-1.5 X 50
Price
N/A
42
SET SCREW M6-1 X 8 DOG-PT
Price
N/A
401
POWER TRANSFORMER
402
CONTROLLER
403
POWER CORD
