Parts for T1243 Compound Cross-Slide Table 7" x 9"

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

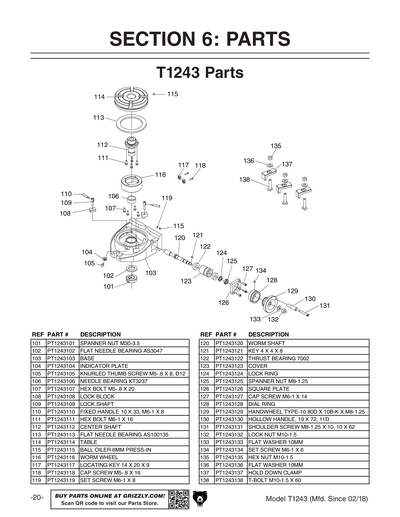

101
SPANNER NUT M30-3.5
102
FLAT NEEDLE BEARING AS3047
103
BASE
104
INDICATOR PLATE
105
KNURLED THUMB SCREW M5-.8 X 8, D12
106
NEEDLE BEARING KT3237
107
Now: PB42M
HEX BOLT M5-.8 X 20
Price
N/A
108
LOCK BLOCK
109
LOCK SHAFT
110
FIXED HANDLE 10 X 33, M6-1 X 8
111
Now: PB83M
HEX BOLT M6-1 X 16
Price
N/A
112
CENTER SHAFT
113
FLAT NEEDLE BEARING AS100135
114
TABLE
115
BALL OILER 6MM
Price
N/A
116
WORM WHEEL
117
LOCATING KEY 14 X 20 X 9
118
CAP SCREW M5-.8 X 16
Price
N/A
119
SET SCREW M6-1 X 8
Price
N/A
120
WORM SHAFT
121
Now: PK65M
KEY 4 X 4 X 8
Price
N/A
122
THRUST BEARING 7002
123
COVER
124
LOCK RING
125
SPANNER NUT M8-1.25
126
SQUARE PLATE
127
CAP SCREW M6-1 X 14
Price
N/A
128
DIAL RING
129
HANDWHEEL TYPE-10 80D X 10B-K X M8-1.25
130
HOLLOW HANDLE 20 X 72 10D
131
SHOULDER SCREW M8-1.25 X 10, 10 X 62
132
LOCK NUT M10-1.5
Price
N/A
133
Now: PW04M
FLAT WASHER 10MM
Price
N/A
134
SET SCREW M6-1 X 6
Price
N/A
135
Now: PN02M
HEX NUT M10-1.5
Price
N/A
136
Now: PW04M
FLAT WASHER 10MM
Price
N/A
137
HOLD DOWN CLAMP
138
T-BOLT M10-1.5 X 60

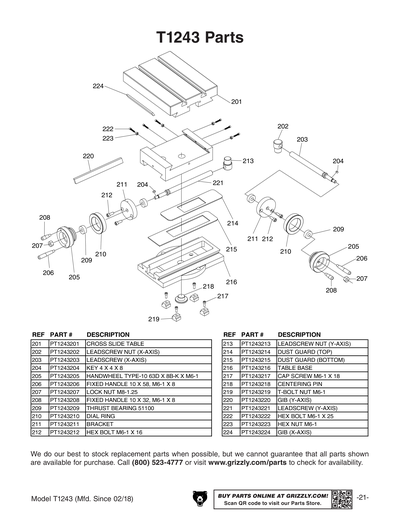

201
CROSS SLIDE TABLE
201-1
INCH SCALE SET
202
LEADSCREW NUT (X-AXIS)
203
LEADSCREW (X-AXIS)
204
Now: PK65M
KEY 4 X 4 X 8
Price
N/A
205
HANDWHEEL TYPE-10 64D X 8B-K X M6-1
206
FIXED HANDLE 10 X 58, M6-1 X 8
207
LOCK NUT M8-1.25
Price
N/A
208
FIXED HANDLE 10 X 32, M6-1 X 8
209
THRUST BEARING 51100
Price
N/A
210
DIAL RING
211
BRACKET
212
CAP SCREW M6-1 X 16
Price
N/A
213
LEADSCREW NUT (Y-AXIS)
214
DUST GUARD (TOP)
215
DUST GUARD (BOTTOM)
216
TABLE BASE
217
CAP SCREW M6-1 X 18
Price
N/A
218
CENTERING PIN
219
T-BOLT NUT M6-1
220
GIB (Y-AXIS)
221
LEADSCREW (Y-AXIS)
222
CAP SCREW M6-1 X 25
Price
N/A
223
Now: PN01M
HEX NUT M6-1
Price
N/A
224
GIB (X-AXIS)
MAN
T1243 MANUAL MFD-04.18+ V1.05.18
