Parts for T20644 - 15 Gauge 1-1/4" - 2-1/2" 34 Angled Finish Nailer

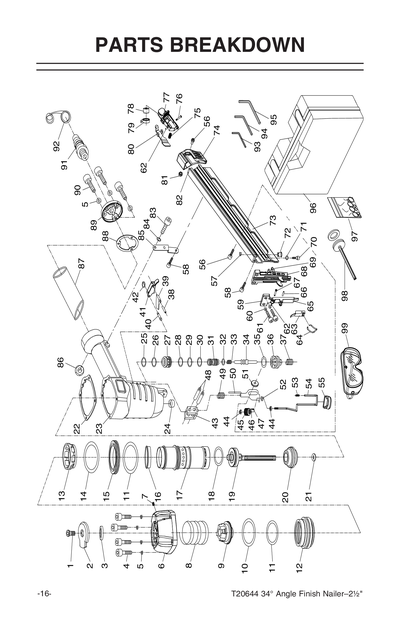

Part Diagram for T20644
Part Diagram for T20644
Part Diagram for T20644
Part Diagram for T20644

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
*DISCD*CYLINDER COVER CAP SCREW
Item is no longer available
Price
N/A
2
*DISCD*AIR DEFLECTOR
Item is no longer available
Price
N/A
3
FLAT WASHER 10MM
Price
N/A
4
CAP SCREW M5-.8 X 25
Price
N/A
5
LOCK WASHER 5MM
Price
N/A
6
*DISCD*CYLINDER COVER
Item is no longer available
Price
N/A
7
SET SCREW M4-.7 X 6
Price
N/A
8
*DISCD*COMPRESSION SPRING
Item is no longer available
Price
N/A
9
*DISCD*SWITCH VALVE SEAT
Item is no longer available
Price
N/A
10
O-RING 3.1 X 29.4 G30
Price
N/A
11
O-RING 44.4 X 3.1 G45
Price
N/A
12
*DISCD*SWITCH VALVE
Item is no longer available
Price
N/A
13
*DISCD*COLLAR
Price
$1.49
14
O-RING 64.4 X 3.1 G65
Price
N/A
15
*DISCD*FIXED RING
Item is no longer available
Price
N/A
16
*DISCD*SEALING WASHER
Price
$1.49
17
*DISCD*CYLINDER
Price
$17.25
18
O-RING 34.7 X 3.5 P35
Price
N/A
19
*DISCD*PISTON
Item is no longer available
Price
N/A
20
*DISCD*BUMPER
Item is no longer available
Price
N/A
21
*DISCD*GUIDE
Item is no longer available
Price
N/A
22
*DISCD*GASKET
Price
$2.90
23
*DISCD*GUN BODY
Price
$31.65
24
*DISCD*RUBBER WASHER
Price
$1.49
25
O-RING 15 X 2.65
Price
N/A
26
O-RING 17.5 X 1.5 S18
Price
N/A
27
*DISCD*TRIGGER VALVE SEAT
Item is no longer available
Price
N/A
28
*DISCD* O-RING 6.2 X 1.8
Price
N/A
29
*DISCD* O-RING 6.4 X 2
Price
N/A
30
*DISCD* O-RING 9 X 1.8
Price
N/A
31
*DISCD*TRIGGER VALVE GUIDE
Item is no longer available
Price
N/A
32
O-RING 2.5 X 1.5 S3
Price
N/A
33
*DISCD*SWITCH VALVE SPRING
Item is no longer available
Price
N/A
34
*DISCD*SWITCH VALVE STEM
Item is no longer available
Price
N/A
35
*DISCD* O-RING 20.3 X 2.3
Price
N/A
36
*DISCD*TRIGGER VALVE SEAT
Item is no longer available
Price
N/A
37
*DISCD*COMPRESSION SPRING
Item is no longer available
Price
N/A
38
ROLL PIN 3 X 16
Price
N/A
39
*DISCD*SAFETY SPACER
Item is no longer available
Price
N/A
40
*DISCD*PIN
Item is no longer available
Price
N/A
41
*DISCD*TRIGGER
Item is no longer available
Price
N/A
42
*DISCD*O-RING 1.7 X 2
Price
$1.49
43
*DISCD*SAFETY SEAT
Item is no longer available
Price
N/A
44
HEX NUT M4-.7
Price
N/A
45
*DISCD*ADJUSTING NUT
Item is no longer available
Price
N/A
46
STEEL BALL 2MM
Price
N/A
47
*DISCD*COMPRESSION SPRING
Item is no longer available
Price
N/A
48
ROLL PIN 3 X 30
Price
N/A
49
*DISCD*COMPRESSION SPRING
Item is no longer available
Price
N/A
50
*DISCD*DRIVE STAND
Item is no longer available
Price
N/A
51
*DISCD*SPACER
Item is no longer available
Price
N/A
52
E-CLIP 6MM
Price
N/A
53
*DISCD*COMPRESSION SPRING
Item is no longer available
Price
N/A
54
*DISCD*SAFETY NOSE
Price
$1.49
55
*DISCD*SAFETY COVER
Item is no longer available
Price
N/A
56
CAP SCREW M4-.7 X 10
Price
N/A
57
E-CLIP 3MM
Price
N/A
58
CAP SCREW M4-.7 X 8
Price
N/A
59
*DISCD*FIXED COVER
Item is no longer available
Price
N/A
60
LOCK WASHER 6MM
Price
N/A
61
CAP SCREW M6-1 X 20
Price
N/A
62
*DISCD*O-RING 1.7 X 2MM
Item is no longer available
Price
N/A
63
*DISCD*QUICK RELEASE HANDLE
Item is no longer available
Price
N/A
64
*DISCD*LATCH
Price
$1.49
65
*DISCD*DRIVER GUIDE COVER
Item is no longer available
Price
N/A
66
ROLL PIN 3 X 22
Price
N/A
67
*DISCD*PIN
Item is no longer available
Price
N/A
68
*DISCD*DRIVE GUIDE
Item is no longer available
Price
N/A
69
*DISCD*SPACER
Price
$1.49
70
CAP SCREW M4-.7 X 12
Price
N/A
71
FLAT WASHER 4MM
Price
N/A
72
*DISCD*LOCK SCREW
Price
$1.49
73
*DISCD*MAGAZINE
Item is no longer available
Price
N/A
74
*DISCD*FIXED SEAT
Item is no longer available
Price
N/A
75
*DISCD*PUSHER SPRING
Item is no longer available
Price
N/A
76
*DISCD*PUSHER PIN
Item is no longer available
Price
N/A
77
*DISCD*PUSHER SEAT
Item is no longer available
Price
N/A
78
*DISCD*SPRING CORE
Item is no longer available
Price
N/A
79
*DISCD*TORSION SPRING
Item is no longer available
Price
N/A
80
*DISCD*PUSHER
Item is no longer available
Price
N/A
81
HEX NUT M4-.7
Price
N/A
82
*DISCD*DRIVE NAIL BAR
Item is no longer available
Price
N/A
83
CAP SCREW M5-.8 X 12
Price
N/A
84
FLAT WASHER 5MM
Price
N/A
85
*DISCD*SUPPORT SEAT
Item is no longer available
Price
N/A
86
FLANGE NUT M5-.8
Price
N/A
87
*DISCD*RUBBER HANDLE CASE
Item is no longer available
Price
N/A
88
*DISCD*END CAP GASKET
Item is no longer available
Price
N/A
89
*DISCD*END CAP
Item is no longer available
Price
N/A
90
CAP SCREW M5-.8 X 18
Price
N/A
91
*DISCD*MALE AIR PLUG 1/4" NPT
Item is no longer available
Price
N/A
92
*DISCD*AIR PLUG DUST COVER
Price
$1.49
93
HEX WRENCH 3MM
Price
N/A
94
HEX WRENCH 4MM
Price
N/A
95
HEX WRENCH 5MM
Price
N/A
96
*DISCD*CARRYING CASE
Item is no longer available
Price
N/A
97
*DISCD*COMPLETE O-RING KIT
Price
$1.49
98
*DISCD*PISTON REPAIR KIT
Price
$14.70
99
*DISCD*SAFETY GLASSES
Item is no longer available
Price
N/A
MAN
MANUAL FOR T20644 03/08
Price
$22.65
