Parts for T23092 - High Pressure Spray Gun

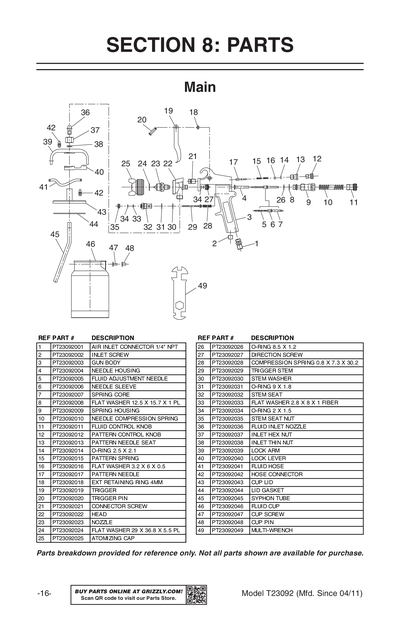

Part Diagram for T23092
Part Diagram for T23092

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
AIR INLET CONNECTOR 1/4" NPT
Item is no longer available
Price
N/A
2
INLET SCREW
Item is no longer available
Price
N/A
3
*DISCD*GUN BODY
Item is no longer available
Price
N/A
4
NEEDLE HOUSING
Item is no longer available
Price
N/A
5
FLUID ADJUSTMENT NEEDLE
Price
$1.49
6
NEEDLE SLEEVE
Item is no longer available
Price
N/A
7
SPRING CORE
Item is no longer available
Price
N/A
8
FLAT WASHER 12.5 X 15.7 X 1 PL
Item is no longer available
Price
N/A
9
SPRING HOUSING
Item is no longer available
Price
N/A
10
NEEDLE COMPRESSION SPRING
Item is no longer available
Price
N/A
11
FLUID CONTROL KNOB
Item is no longer available
Price
N/A
12
PATTERN CONTROL KNOB
Item is no longer available
Price
N/A
13
PATTERN NEEDLE SEAT
Item is no longer available
Price
N/A
14
O-RING 2.5 X 2.1
Price
N/A
15
PATTERN SPRING
Item is no longer available
Price
N/A
16
FLAT WASHER 3.2 X 6 X 0.5
Item is no longer available
Price
N/A
17
PATTERN NEEDLE
Item is no longer available
Price
N/A
18
EXT RETAINING RING 4MM
Item is no longer available
Price
N/A
19
TRIGGER
Item is no longer available
Price
N/A
20
TRIGGER PIN
Item is no longer available
Price
N/A
21
CONNECTOR SCREW
Item is no longer available
Price
N/A
22
HEAD
Item is no longer available
Price
N/A
23
NOZZLE
Price
$4.60
24
FLAT WASHER 29 X 36.8 X 5.5 PL
Item is no longer available
Price
N/A
25
ATOMIZING CAP
Item is no longer available
Price
N/A
26
O-RING 8.5 X 1.2
Item is no longer available
Price
N/A
27
DIRECTION SCREW
Item is no longer available
Price
N/A
28
COMPRESSION SPRING 0.8 X 7.3 X 30.2
Item is no longer available
Price
N/A
29
TRIGGER STEM
Item is no longer available
Price
N/A
30
*DISCD* STEM WASHER
Price
$1.49
31
O-RING 9 X 1.8
Item is no longer available
Price
N/A
32
STEM SEAT
Item is no longer available
Price
N/A
33
FLAT WASHER 2.8 X 8 X 1 FIBER
Item is no longer available
Price
N/A
34
O-RING 2 X 1.5
Item is no longer available
Price
N/A
35
*DISCD* STEM SEAT NUT
Price
$1.49
36
FLUID INLET NOZZLE
Item is no longer available
Price
N/A
37
INLET HEX NUT
Item is no longer available
Price
N/A
38
INLET THIN NUT
Item is no longer available
Price
N/A
39
LOCK ARM
Item is no longer available
Price
N/A
40
LOCK LEVER
Item is no longer available
Price
N/A
41
FLUID HOSE
Item is no longer available
Price
N/A
42
HOSE CONNECTOR
Item is no longer available
Price
N/A
43
CUP LID
Item is no longer available
Price
N/A
44
LID GASKET
Item is no longer available
Price
N/A
45
SYPHON TUBE
Item is no longer available
Price
N/A
46
FLUID CUP
Price
$13.55
47
CUP SCREW
Item is no longer available
Price
N/A
48
CUP PIN
Item is no longer available
Price
N/A
49
MULTI-WRENCH
Item is no longer available
Price
N/A
