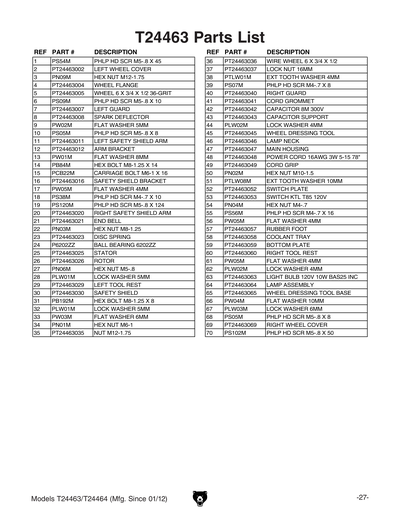

Parts for T24463 - 6" Bench Grinder with Work Light

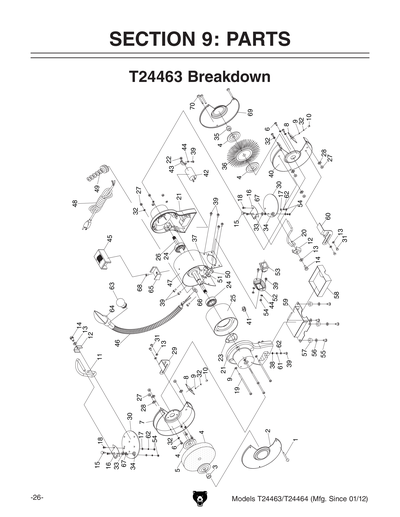

Part Diagram for T24463
Part Diagram for T24463
Part Diagram for T24463
Part Diagram for T24463
Part Diagram for T24463
Part Diagram for T24463

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
PHLP HD SCR M5-.8 X 45
Price
N/A
2
LEFT WHEEL COVER
Price
$3.25
3
HEX NUT M12-1.75
Price
N/A
4
WHEEL FLANGE
Price
$1.90
5
GRINDING WHEEL 6 X 3/4 X 1/2
Price
$12.65
6
PHLP HD SCR M5-.8 X 10
Price
N/A
7
LEFT GUARD
Price
$4.70
8
SPARK DEFLECTOR
Price
$1.90
9
FLAT WASHER 5MM
Price
N/A
10
PHLP HD SCR M5-.8 X 8
Price
N/A
11
LEFT SAFETY SHIELD ARM
Price
$1.90
12
ARM BRACKET
Price
$1.90
13
FLAT WASHER 8MM
Price
N/A
14
HEX BOLT M8-1.25 X 14
Price
N/A
15
CARRIAGE BOLT M6-1 X 16
Price
N/A
16
SAFETY SHIELD BRACKET
Price
$1.90
17
FLAT WASHER 4MM
Price
N/A
18
PHLP HD SCR M4-.7 X 10
Price
N/A
19
PHLP HD SCR M5-.8 X 124
Price
$1.90
20
RIGHT SAFETY SHIELD ARM
Price
$1.90
21
END BELL
Price
$18.40
22
HEX NUT M8-1.25
Price
N/A
23
DISC SPRING
Price
$1.90
24
BALL BEARING 6202ZZ
Price
N/A
25
STATOR
Price
$24.85
26
ROTOR
Price
$12.65
27
HEX NUT M5-.8
Price
N/A
28
LOCK WASHER 5MM
Price
N/A
29
LEFT TOOL REST
Price
$2.60
30
***USE PT24464043***
Item is no longer available
Price
N/A
31
HEX BOLT M8-1.25 X 80
Price
N/A
32
LOCK WASHER 5MM
Price
N/A
33
FLAT WASHER 6MM
Price
N/A
34
HEX NUT M6-1
Price
N/A
35
HEX NUT M12-1.75 LH
Price
N/A
36
WIRE WHEEL 6 X 3/4 X 1/2
Price
$17.65
37
LOCK NUT 16MM
Price
$1.90
38
EXT TOOTH WASHER 4MM
Price
N/A
39
PHLP HD SCR M4-.7 X 8
Price
N/A
40
RIGHT GUARD
Price
$7.00
41
GROMMET
Price
$1.90
42
R CAPACITOR 8M 300V
Price
$4.35
43
CAPACITOR BRACKET
Price
$1.90
44
LOCK WASHER 4MM
Price
N/A
45
WHEEL DRESSING TOOL
Price
$9.00
46
LAMP NECK
Price
$10.45
47
MAIN HOUSING
Price
$3.25
48
POWER CORD 16G 3W 78" 5-15P
Price
$8.35
49
CORD GRIP
Price
$1.90
50
HEX NUT M10-1.5
Price
N/A
51
EXT TOOTH WASHER 10MM
Price
N/A
52
SWITCH PLATE
Price
$1.90
53
**USE PT24464026***
Item is no longer available
Price
N/A
54
HEX NUT M4-.7
Price
N/A
55
PHLP HD SCR M4-.7 X 16
Price
N/A
56
FLAT WASHER 4MM
Price
N/A
57
RUBBER FOOT
Price
$1.90
58
COOLANT TRAY
Price
$2.90
59
BOTTOM PLATE
Price
$1.90
60
RIGHT TOOL REST
Price
$2.60
61
FLAT WASHER 4MM
Price
N/A
62
LOCK WASHER 4MM
Price
N/A
63
LIGHT BULB 120V 10W BAS25 INC
Price
$2.25
64
LAMP ASSEMBLY
Price
$12.95
65
WHEEL DRESSING TOOL BASE
Price
$1.90
66
FLAT WASHER 10MM
Price
N/A
67
LOCK WASHER 6MM
Price
N/A
68
PHLP HD SCR M5-.8 X 8
Price
N/A
69
RIGHT WHEEL COVER
Price
$3.00
70
PHLP HD SCR M5-.8 X 50
Price
N/A
71
SAFETY SHIELD
Price
$4.70

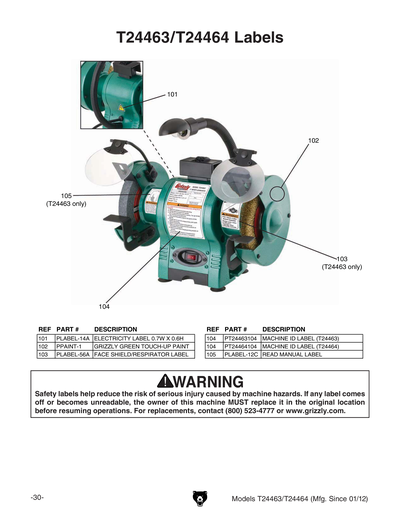

101
ELECTRICITY 0.7W X 0.6H
Price
N/A
102
N/S GRIZZLY GREEN G1023S
Price
N/A
103
FACE SHIELD/RESPIRATIOR LABEL
Price
$3.15
104
MACHINE ID LABEL
Price
$16.40
105
READ MANUAL LABEL
Price
$3.15
MAN
MAN T24463-64 MFD-01.12-01.16 V1.05.12
Price
$12.25
MANV2
MANUAL T24463-64 MFD-02.16+ V2.03.16
Price
$17.75
